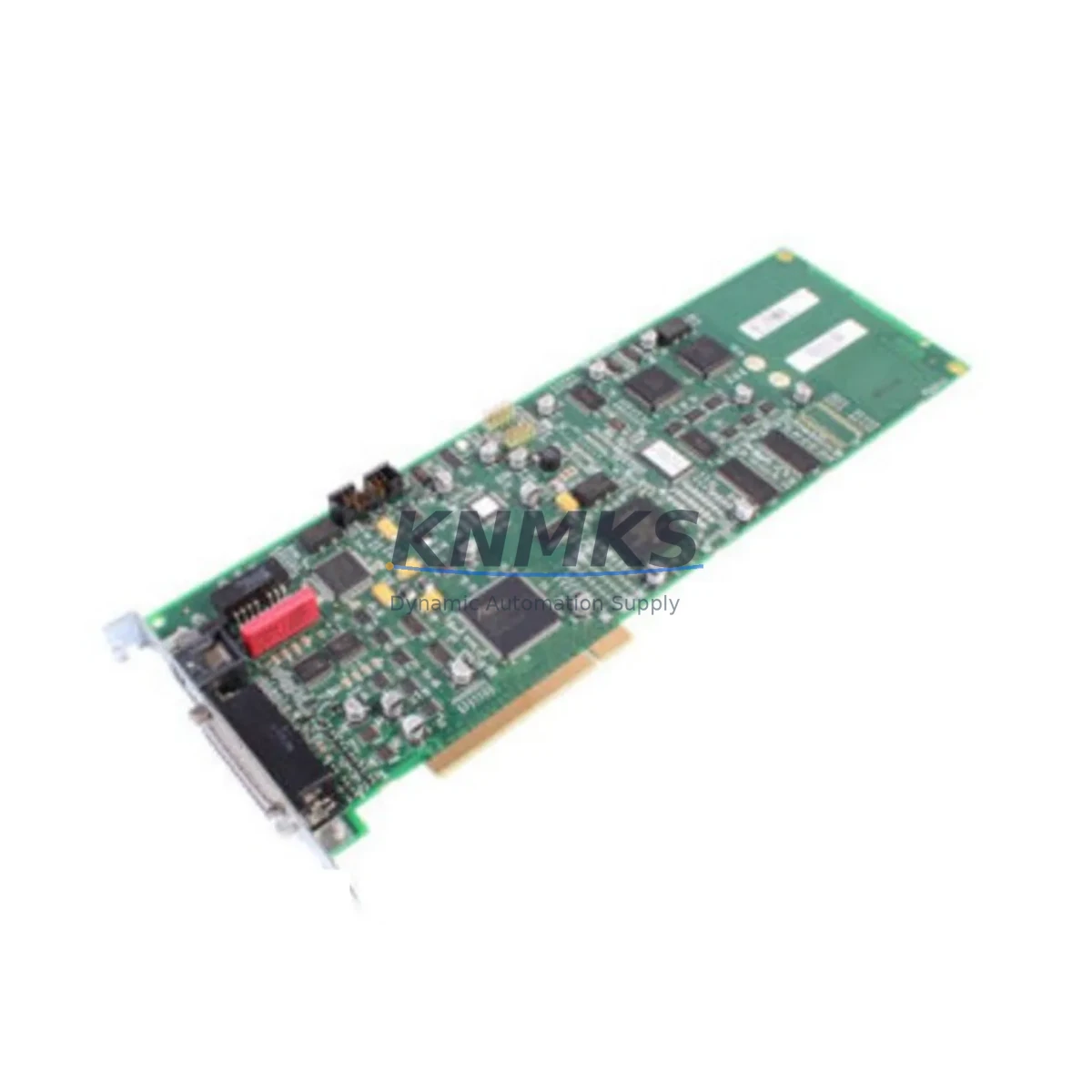

ABB DSQC532B 3HAC023447-001 Fail-Safe Axis Computer

Overview

ABB DSQC532B 3HAC023447-001 Fail-Safe Axis Computer: Fault Protection and Critical Industrial Reliability

The ABB DSQC532B (3HAC023447-001) is a high-reliability axis computer board engineered for the ABB IRC5 robot controller platform. Designed to sustain continuous, uninterrupted motion control in demanding industrial environments, this module delivers fail-safe axis coordination across multi-axis robotic systems operating in petrochemical plants, power generation facilities, metallurgical processing lines, port automation, and continuous manufacturing cells. Its robust architecture directly addresses the most critical risks in industrial control: unplanned downtime, axis miscommunication, signal drift, and control loop interruption.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated IRC5 control cabinet, the DSQC532B axis computer operates as the central nerve of motion execution. Its reliability depends on — and directly supports — the integrity of surrounding components. The ABB DSQC663 (3HAC026253-001) main computer board handles high-level task scheduling and program execution; any instability in the axis computer would cascade into motion faults at the main computer level, making the DSQC532B a critical upstream protection point. Axis feedback signals are routed through the ABB DSQC374 (3HAC025338-001) serial measurement board, which converts encoder pulses into position data — a chain that depends on the axis computer maintaining stable communication timing to prevent position drift or runaway axis events.

On the power side, the ABB DSQC661 (3HAC026254-001) power distribution board regulates cabinet-level DC supply rails. Surge events or voltage sags on this board can propagate to the axis computer, making proper power conditioning a prerequisite for DSQC532B longevity. In high-EMI environments such as arc welding cells or heavy press lines, the ABB DSQC679 (3HAC028357-003) teach pendant and its associated communication cables must be properly shielded and routed away from drive cabling — a precaution that also protects the axis computer’s internal bus from induced noise. For applications requiring functional safety compliance, the ABB DSQC400 (3HAC025097-001) safety board works in conjunction with the axis computer to enforce safe-speed and safe-stop functions, ensuring that any axis computer fault triggers a controlled, safe-state shutdown rather than an uncontrolled stop. Together, these components form a layered cabinet protection strategy where the DSQC532B is both a protected asset and a protective element in the overall control architecture.

Critical Industrial Safety Applications

The ABB DSQC532B is deployed across the most demanding continuous-process and safety-critical industrial sectors. In petrochemical and refinery environments, robotic systems equipped with IRC5 controllers handle hazardous material transfer, valve actuation, and inspection tasks where an unplanned axis fault could trigger process upsets or safety system activations. The fail-safe axis coordination provided by the DSQC532B ensures that motion commands are executed with deterministic timing, reducing the risk of partial moves or mid-cycle stops that could leave equipment in unsafe positions.

In power generation and electrical utility facilities, robotic maintenance systems operate near high-voltage equipment where EMI levels are extreme. The DSQC532B’s EMI-hardened design maintains signal integrity in these environments, preventing spurious axis commands that could damage equipment or injure personnel. Metallurgical and steel processing plants subject control hardware to elevated ambient temperatures, heavy vibration from rolling mills and presses, and conductive dust contamination. The DSQC532B’s enclosed cabinet installation and thermal tolerance make it suitable for these conditions, provided cabinet cooling systems — such as the IRC5 controller’s integrated fan and filter assemblies — are maintained.

In port and logistics automation, robotic palletizing and container handling systems run continuously across multiple shifts. Any axis computer failure results in immediate production stoppage and potential load-drop hazards. Stocking a verified DSQC532B spare reduces mean time to repair (MTTR) from days to hours. Water treatment and municipal infrastructure facilities increasingly deploy robotic systems for pipe inspection and chemical dosing, where the IRC5 platform’s reliability record and the availability of genuine spare boards like the DSQC532B are key factors in system selection and long-term maintenance planning.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DSQC532B?
The support terms confirmed by quotation cover all functional defects identified under normal operating conditions within an ABB IRC5 controller environment. If the board fails to perform its axis coordination function within the confirmed support period, we provide full replacement or repair at no additional cost. The confirmed support period begins from the date of confirmed delivery.

Q2: How is the DSQC532B tested before shipment?
Every DSQC532B unit undergoes a pre-shipment functional inspection that verifies board power-up behavior, communication bus response, and absence of physical damage or component anomalies. Units that do not pass inspection are not dispatched. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is this board compatible with all IRC5 controller variants?
The DSQC532B (3HAC023447-001) is designed for the ABB IRC5 controller platform. Compatibility should be verified against your specific IRC5 cabinet revision and robot model. For multi-robot or IRC5 Panel Mounted Controller (PMC) configurations, confirm the axis computer slot assignment with your ABB system documentation or contact our technical team before ordering.

Q4: Can long-term supply continuity be guaranteed for this part?
We maintain dedicated stock of the DSQC532B to support ongoing maintenance and emergency replacement requirements. For facilities operating multiple IRC5 systems, we recommend establishing a consignment or scheduled replenishment arrangement to ensure spare availability without capital lock-up. Our team can provide lead-time commitments and volume pricing for planned maintenance programs.
