ABB DSQC532 3HAC12158-1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DSQC532 3HAC12158-1 Maintenance-Proven Spare Part for Factory Uptime

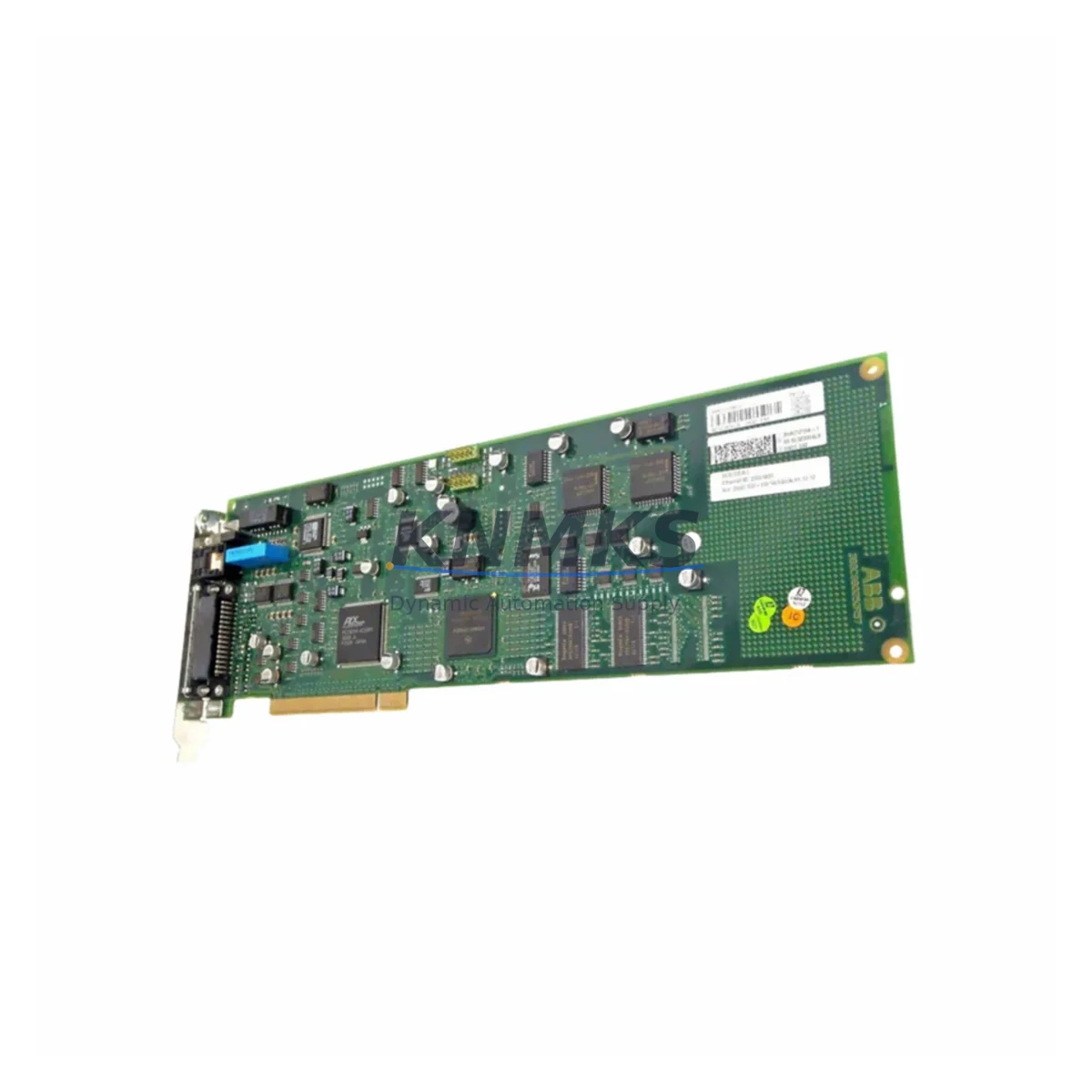

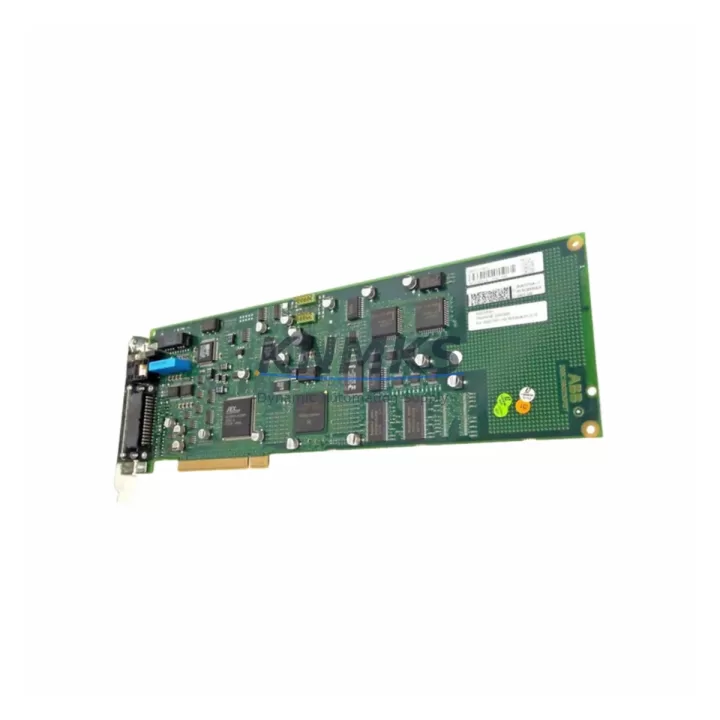

The ABB DSQC532 (part number 3HAC12158-1) is the main computer board for ABB IRC5 robot controllers, serving as the central processing unit that manages motion control, program execution, I/O coordination, and communication across the entire robot system. In high-throughput manufacturing environments — automotive body shops, foundry lines, arc welding cells, and palletizing stations — this board is the single most critical component for sustained robot uptime. When the DSQC532 fails, the entire IRC5 cabinet goes offline. Stocking a verified, pre-tested replacement is not optional for any maintenance team operating ABB IRC5 robots in production-critical roles.

KNMKS supplies the DSQC532 / 3HAC12158-1 as an original ABB spare, sourced from authorized channels, individually tested before dispatch, and backed by a support terms confirmed by quotation. Each unit ships with full traceability documentation to support your maintenance records and audit requirements. Multi-region stock ensures fast dispatch for both emergency callouts and planned annual overhaul schedules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The DSQC532 does not operate in isolation. When a maintenance engineer responds to an IRC5 controller fault — whether a CPU watchdog trip, a boot failure, or a persistent 38xxx-series error — the computer board is rarely the only component that requires attention. A disciplined site inspection should cover the full electrical environment of the IRC5 cabinet before and after the board replacement.

Begin with the DSQC609 power supply unit, which provides regulated 24 VDC to the DSQC532 and other logic boards. A degraded DSQC609 can cause intermittent resets that mimic CPU board failure; always verify output voltage stability under load before condemning the computer board. Similarly, inspect the DSQC611 axis computer board, which works in tandem with the DSQC532 for motion trajectory calculation — a fault on either board can produce overlapping error codes that complicate root-cause isolation.

Check the DSQC643 I/O board for any signs of communication dropout or blown protection fuses on the digital output channels. I/O board faults frequently accompany CPU board replacements in aging IRC5 cabinets, particularly in environments with high inductive load switching. The DSQC658 fieldbus adapter (DeviceNet or PROFIBUS variant, depending on your cell configuration) should also be inspected for firmware compatibility with the replacement DSQC532, as mismatched firmware versions can prevent the controller from completing its boot sequence.

Do not overlook the teach pendant cable and FlexPendant (DSQC679) connection. A damaged pendant cable can generate spurious communication errors that are logged against the computer board. Inspect the RJ45 connector and cable sheath for mechanical damage, especially in cells where the pendant is frequently repositioned. Finally, verify the integrity of the IRC5 backplane connector and the board retention clips — poor seating of the DSQC532 in the backplane slot is a common cause of post-replacement boot failures that are incorrectly attributed to a faulty spare.

For procurement engineers building or refreshing a spare parts inventory, the DSQC532 / 3HAC12158-1 should be treated as a Tier-1 critical spare — one unit on-shelf per IRC5 cabinet cluster, with a replenishment trigger set at consumption. Pairing it with a stocked DSQC609 power supply and DSQC643 I/O board covers the majority of IRC5 controller downtime scenarios without requiring emergency air freight.

Site Replacement Workflow

Replacing the DSQC532 in an IRC5 cabinet is a structured procedure that, when followed correctly, minimizes downtime to under two hours for a prepared maintenance team.

Step 1 — Backup: Before powering down, use RobotStudio or the FlexPendant to perform a full system backup to a USB drive. This captures the RAPID programs, system parameters, tool data, and I/O configuration. The backup is essential for restoring the controller to its pre-fault state after the board swap.

Step 2 — Power isolation: Switch the IRC5 main disconnect to OFF and apply lockout/tagout. Wait a minimum of 5 minutes for capacitors in the drive section to discharge before opening the cabinet door.

Step 3 — Board removal: Disconnect all cables from the DSQC532 in sequence — Ethernet, serial, and the backplane ribbon connectors. Note cable routing and label connectors if not already marked. Release the board retention clips and slide the board out of the backplane slot.

Step 4 — Replacement installation: Seat the new DSQC532 firmly into the backplane slot until the retention clips engage. Reconnect all cables in reverse order. Verify that the DSQC609 power supply output is within specification before powering up.

Step 5 — System restore: Power the IRC5 cabinet to boot mode. Load the system backup from USB via the FlexPendant boot menu. Allow the controller to complete its full boot sequence — typically 3 to 5 minutes. Verify that all axes home correctly and that I/O signals are active before releasing the cell to production.

This workflow applies equally to IRC5 Single Cabinet and Dual Cabinet configurations. For Panel Mounted Controller (PMC) variants, consult the ABB IRC5 Product Manual (document 3HAC021313-001) for cabinet-specific access procedures.

Spare Parts Support FAQ

Q1: Is the DSQC532 / 3HAC12158-1 still available as a new original spare, or only as refurbished?
KNMKS supplies the DSQC532 as original ABB spare stock sourced from authorized distribution channels. Each unit is individually tested before dispatch. Where new stock is allocated, units are shipped in original ABB packaging with full traceability. Contact [email protected] to confirm current stock condition and lead time for your quantity requirement.

Q2: How do I verify compatibility between the DSQC532 replacement and my existing IRC5 system software version?
Compatibility is determined by the RobotWare version installed on your IRC5 controller. The DSQC532 / 3HAC12158-1 is compatible with RobotWare 5.x and selected 6.x releases. Before ordering, note your current RobotWare version from the FlexPendant (ABB menu → System Info) and provide it to our technical team. We will confirm firmware alignment and advise on any update requirements prior to shipment.

Q3: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. To initiate a support terms claim, contact [email protected] with your order reference, a description of the fault, and any relevant error codes from the IRC5 event log. KNMKS will arrange return logistics and dispatch a replacement unit upon fault confirmation.

Q4: Can KNMKS support long-term supply agreements for the DSQC532 to cover multi-year maintenance contracts?
Yes. KNMKS offers long-term supply agreements for critical IRC5 spare parts, including the DSQC532 / 3HAC12158-1, with reserved stock allocation, fixed pricing, and priority dispatch. This is particularly relevant for maintenance contractors managing large IRC5 fleets or OEMs supporting installed base under multi-year service contracts. Contact [email protected] or call +86 18359268345 to discuss terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC532 3HAC12158-1
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSQC532 3HAC12158-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
