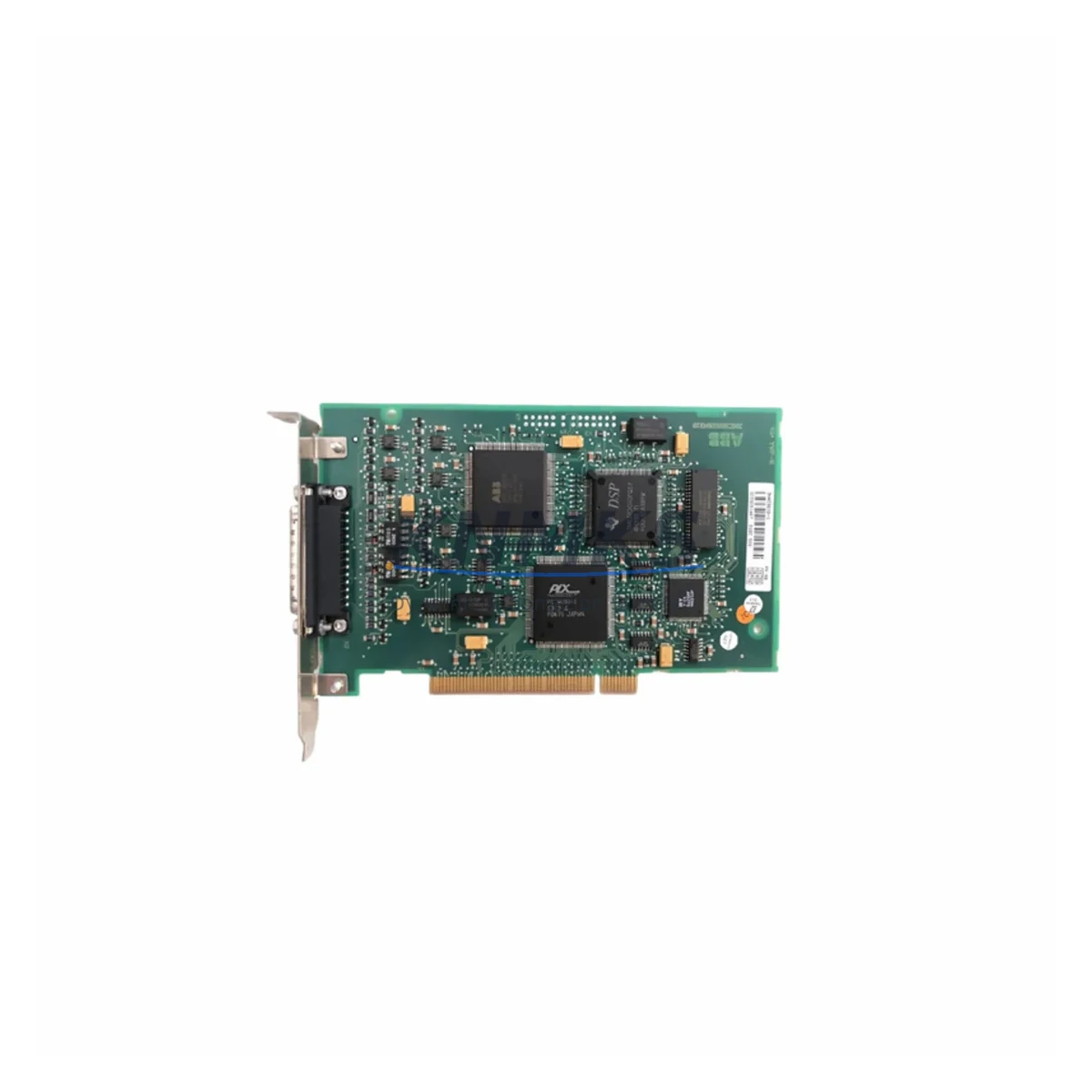

ABB DSQC503 3HAC3619-1 Fail-Safe CPU for Industrial Control

Overview

ABB DSQC503 3HAC3619-1 Fail-Safe CPU for Industrial Control Reliability

The ABB DSQC503 (3HAC3619-1) is the main computer unit — the central processing and safety coordination core — of ABB’s IRC5 and S4C+ robot controller platforms. In continuous production environments where unplanned downtime carries six-figure hourly costs, the DSQC503 serves as the last line of defense against control interruption. Its architecture is engineered to sustain deterministic cycle execution under high electromagnetic interference, voltage transients, thermal stress, and mechanical vibration — conditions that are routine in arc welding cells, press-tending lines, foundry automation, and heavy-duty palletizing systems.

Every DSQC503 3HAC3619-1 unit dispatched by KNMKS undergoes pre-shipment functional verification against ABB IRC5 controller firmware compatibility matrices. Signal integrity, memory addressing, and inter-board communication paths are validated before packaging. This eliminates the risk of receiving a module that passes visual inspection but fails at first power-on — a failure mode that accounts for a disproportionate share of emergency downtime events in robot-intensive facilities.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The DSQC503 does not operate in isolation. Its fail-safe performance depends on the integrity of the surrounding controller board stack and power architecture. In IRC5 cabinets, the DSQC503 interfaces directly with the DSQC604 axis computer board, which handles real-time servo loop calculations for each robot axis. A degraded DSQC604 can generate false position feedback that the DSQC503 interprets as a motion fault — triggering unnecessary safety stops on otherwise healthy production lines. Maintaining a verified spare DSQC604 alongside the DSQC503 is standard practice in high-utilization welding and assembly cells.

Power stability is equally critical. The DSQC661 power supply unit provides regulated 24 VDC to the controller’s logic boards, including the DSQC503. Voltage ripple or dropout events from a degraded DSQC661 are a leading cause of unexpected CPU resets — events that appear as random controller faults but are in fact power-induced. Facilities running three-shift operations should treat the DSQC661 as a consumable-class spare, not a long-cycle replacement item.

On the safety interlock side, the DSQC400 safety board (or its successor DSQC643 in later IRC5 builds) manages emergency stop chains, safeguarding inputs, and mode selector logic. The DSQC503 reads safety state from this board on every control cycle. A compromised safety board can cause the DSQC503 to enter a latched fault state that mimics a CPU failure — making board-level diagnostics essential before condemning the main computer unit. Stocking a verified DSQC400 or DSQC643 eliminates this diagnostic ambiguity.

For facilities running DeviceNet-based I/O architectures, the DSQC378B DeviceNet board handles fieldbus communication between the IRC5 controller and peripheral I/O nodes. Signal loss or CRC errors on the DeviceNet segment are logged by the DSQC503 and can escalate to production halts if not resolved within the controller’s fault tolerance window. Pairing a replacement DSQC378B with the DSQC503 in your critical spares kit ensures full communication path redundancy. Similarly, facilities using DSQC532 I/O boards for digital input/output expansion should maintain at least one verified spare to prevent I/O-related interlock failures from cascading into controller-level faults.

Critical Industrial Safety Applications

In petrochemical and refinery automation, ABB IRC5 controllers running DSQC503 CPUs are deployed in hazardous-area robot cells for valve manipulation, pipe inspection, and catalyst handling. In these environments, a controller fault is not merely a production event — it is a process safety event. The DSQC503’s deterministic fault response and safety interlock processing capability make it suitable for integration into SIL-rated safety architectures when paired with appropriate safety-rated I/O and interlock hardware.

In automotive body-in-white and press-tending lines, IRC5 controllers with DSQC503 main computers manage high-cycle spot welding, material handling, and press synchronization. Cycle times of 6–12 seconds mean that even a 30-minute unplanned stop costs hundreds of lost units. Pre-tested DSQC503 replacement modules with same-day dispatch capability are a standard element of Tier 1 automotive supplier maintenance contracts.

In mining and mineral processing, robot controllers operating in high-dust, high-vibration environments — such as ore sorting, drill rod handling, and conveyor loading — place extreme demands on CPU thermal management and vibration tolerance. The DSQC503’s robust board construction and conformal coating (on OEM units) provide baseline protection against particulate ingress and mechanical stress.

In power generation and utility maintenance, IRC5-based robots are used for turbine blade inspection, cable laying, and substation maintenance tasks. Controller uptime in these applications is directly tied to grid reliability commitments. Facilities in this sector typically maintain a 1:4 spare ratio for critical controller boards, with the DSQC503 at the top of the priority list.

In port and logistics automation, high-throughput container handling and palletizing systems running ABB robots require zero-fault controller operation across extended shifts. The DSQC503’s ability to maintain communication integrity across DeviceNet and Ethernet segments under high-cycle load makes it the preferred replacement choice for maintenance teams managing fleets of IRC5 controllers.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DSQC503 3HAC3619-1?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified functions within the confirmed support period, KNMKS will provide a replacement unit at no additional cost. The confirmed support period begins from the date of confirmed delivery.

Q2: How is the DSQC503 tested before shipment?
Each DSQC503 3HAC3619-1 unit undergoes pre-shipment functional verification, including power-on testing, communication interface checks, and compatibility validation against IRC5 and S4C+ controller firmware. Only units that pass all verification steps are packaged and dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the DSQC503 compatible with both IRC5 and S4C+ controllers?
Yes. The DSQC503 (3HAC3619-1) is the main computer unit for both the ABB IRC5 (M2004 through M2016 builds) and the S4C+ (M2000A) controller platforms. Compatibility with specific RobotWare versions should be confirmed against your controller’s existing firmware revision. KNMKS technical support can assist with compatibility verification prior to order placement.

Q4: Can KNMKS support long-term or recurring supply of the DSQC503 for fleet maintenance programs?
Yes. KNMKS maintains multi-region inventory of the DSQC503 3HAC3619-1 to support both emergency replacement and scheduled maintenance programs. Long-term supply agreements, reserved stock arrangements, and volume pricing are available for facilities managing fleets of IRC5 or S4C+ controllers. Contact our sales team to discuss a tailored supply program for your maintenance requirements.
