ABB DSQC417 3HAC035381-001 Fail-Safe Rectifier for IRC5 Control

Overview

ABB DSQC417 3HAC035381-001 Fail-Safe Rectifier for IRC5 Control: Fault Protection and Critical Industrial Reliability

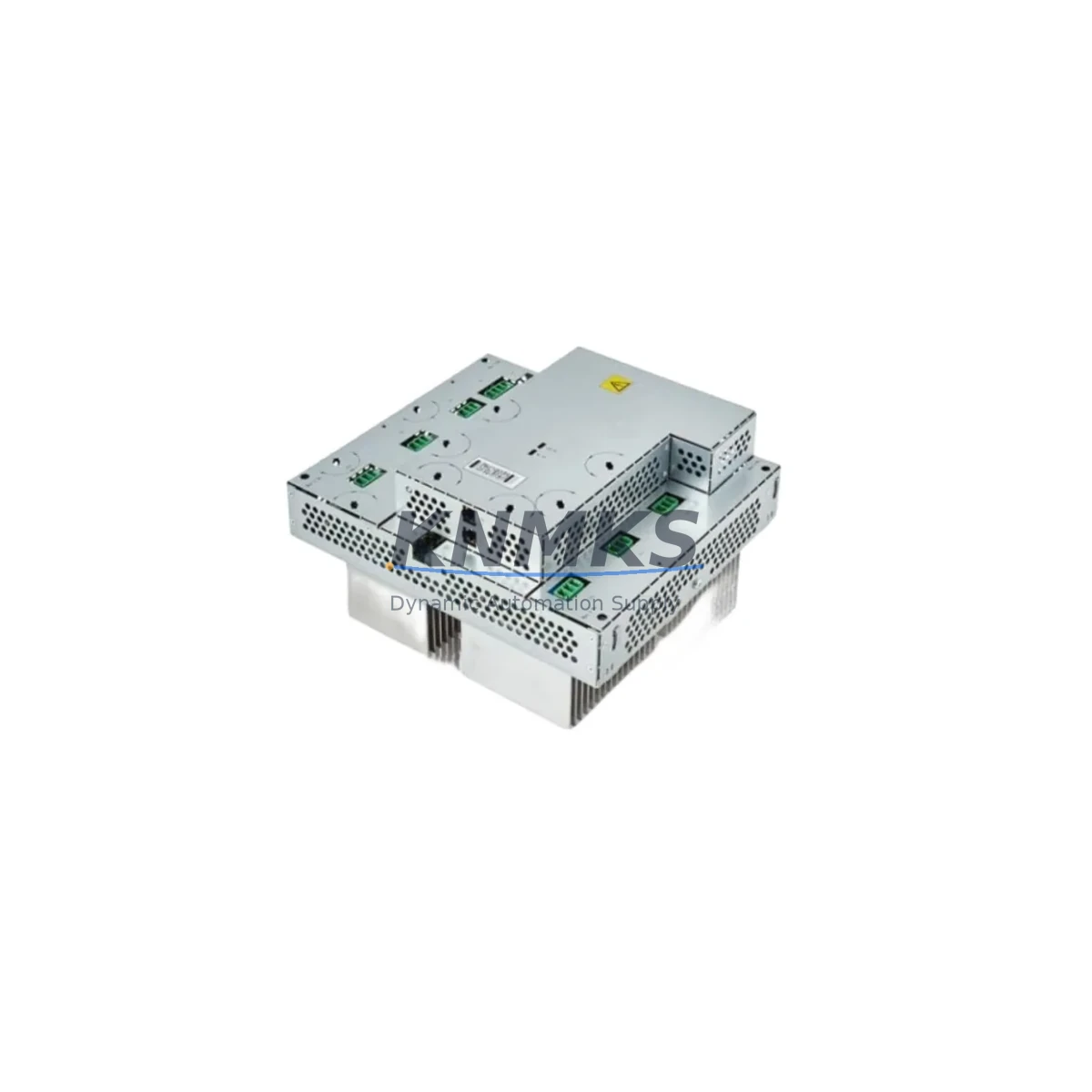

The ABB DSQC417 (3HAC035381-001) is a high-voltage, high-current (LVHC) rectifier module engineered for the ABB IRC5 robot controller platform. Designed to deliver stable, conditioned DC power to the drive system and control electronics, this module is a cornerstone of uninterrupted robot operation in demanding industrial environments. Whether deployed in automotive body-in-white lines, foundry automation, chemical processing, or continuous-cycle palletizing systems, the DSQC417 provides the power integrity that safety-critical robot cells demand.

In high-cycle production environments, power supply instability is one of the leading causes of unplanned robot downtime. The DSQC417 addresses this directly by converting incoming AC mains power into regulated DC output with built-in surge suppression and transient protection. This prevents voltage spikes — common in facilities with heavy motor loads, welding equipment, or variable-frequency drives — from propagating into the IRC5 drive modules or the DSQC400 computer unit. The result is a measurable reduction in nuisance faults, drive trips, and emergency stops caused by power anomalies.

The module’s thermal design supports continuous operation in control cabinets where ambient temperatures can rise significantly during peak production. Its compact form factor integrates directly into the IRC5 standard cabinet and IRC5 compact cabinet configurations, maintaining compatibility with the full ABB IRC5 drive system architecture. When paired with the ABB DSQC662 DeviceNet Gateway or the DSQC679 FlexPendant Interface Board, the DSQC417 ensures that communication and HMI subsystems receive clean, stable power — eliminating a common root cause of intermittent fieldbus errors and teach pendant disconnections.

In safety-rated robot cells, the DSQC417 works in close coordination with the ABB DSQC400 Drive System Computer and the DSQC611 Axis Computer. Any degradation in rectified DC output directly impacts servo drive performance and can trigger axis position errors or safety-rated emergency stop sequences. By maintaining rectifier integrity, maintenance teams protect the entire motion control chain — from the power supply rail through to the motor drive outputs — without requiring costly unplanned interventions.

For facilities operating in dusty, humid, or high-vibration environments such as mining conveyor automation, port crane control, or steel mill material handling, the DSQC417’s robust construction provides the environmental resilience needed for long mean-time-between-failure (MTBF) performance. Its sealed component layout resists particulate ingress, and its vibration-tolerant mounting design maintains electrical contact integrity even under continuous mechanical stress.

Spare parts availability is a critical factor in safety-critical automation. KNMKS maintains in-stock inventory of the DSQC417 to support rapid replacement scenarios — minimizing the window between fault detection and production resumption. Each unit undergoes pre-shipment functional testing to verify rectification performance, output voltage stability, and surge protection integrity before dispatch. This testing protocol ensures that replacement modules perform to OEM specification from the moment of installation, reducing commissioning risk in live production environments.

The ABB DSQC417 3HAC035381-001 is also a recommended spare for facilities running multiple IRC5 controllers, where a single rectifier failure can cascade into a multi-robot cell shutdown. Stocking one or two units as critical spares — alongside the DSQC609 I/O Module and the DSQC652 Digital I/O Board — provides a comprehensive power and I/O protection strategy that aligns with IEC 62061 and ISO 13849 spare parts management best practices for safety-rated machinery.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust IRC5 control cabinet protection strategy extends well beyond the rectifier module itself. The DSQC417 serves as the power foundation, but its reliability is amplified when the surrounding cabinet components are equally specified for industrial duty. The ABB DSQC609 I/O Module handles digital signal routing between the robot controller and field devices; any power instability reaching this module can cause I/O state errors that trigger safety-rated interlocks. Similarly, the ABB DSQC652 Digital I/O Board manages discrete input and output channels for end-of-arm tooling, conveyor interlocks, and safety gate signals — all of which depend on stable DC rail voltage supplied downstream of the DSQC417.

In cabinets where communication integrity is paramount, the ABB DSQC662 DeviceNet Gateway provides fieldbus connectivity to PLCs, safety controllers, and distributed I/O nodes. Voltage fluctuations at the rectifier stage can introduce CRC errors and communication timeouts on DeviceNet networks, leading to false fault conditions. Maintaining DSQC417 integrity directly protects fieldbus communication uptime. For facilities using PROFIBUS or Ethernet-based architectures, the same principle applies to the DSQC688 PROFIBUS Adapter, which shares the same DC power rail.

Thermal management within the IRC5 cabinet is another dimension of protection. The DSQC417 generates heat during rectification, and in cabinets without adequate airflow — common in retrofitted enclosures or outdoor weatherproof housings — thermal accumulation can reduce component lifespan. Pairing the rectifier with properly rated cabinet cooling units and monitoring the DSQC400 Drive Computer‘s thermal status via the FlexPendant provides early warning of thermal stress before it escalates to a fault condition.

Critical Industrial Safety Applications

The ABB DSQC417 3HAC035381-001 is deployed across a wide range of safety-critical industrial sectors where robot uptime directly impacts production safety and output continuity.

In petrochemical and refinery automation, IRC5-controlled robots perform inspection, valve actuation, and material transfer in zones classified under ATEX or IECEx hazardous area standards. Power supply reliability in these environments is non-negotiable — a rectifier fault that causes an uncontrolled robot stop in a live process area creates both production and safety risks. The DSQC417’s surge protection capability is particularly valuable in facilities where large rotating machinery generates significant electrical noise on the supply network.

In power generation and electrical utility applications, robots equipped with IRC5 controllers perform cable handling, transformer maintenance, and substation inspection tasks. These environments expose control cabinets to high electromagnetic interference (EMI) from high-voltage switching equipment. The DSQC417’s transient suppression design helps isolate the robot’s internal DC bus from externally induced voltage transients.

In mining and mineral processing, continuous-duty robots operate in high-dust, high-vibration environments where component fatigue is accelerated. Rectifier modules in these applications are subject to thermal cycling from ambient temperature swings and mechanical stress from conveyor and crusher vibration. The DSQC417’s robust construction supports extended service intervals in these conditions.

In water and wastewater treatment facilities, robots perform pipe inspection, valve control, and chemical dosing tasks in humid, corrosive atmospheres. The DSQC417’s sealed component design resists moisture ingress that could otherwise cause insulation breakdown or contact corrosion in the rectifier bridge assembly.

In port and maritime logistics, IRC5-controlled robots handle container positioning, welding, and inspection tasks aboard vessels and at quayside facilities. Salt-laden air and constant vibration from vessel movement create challenging conditions for power electronics. Reliable rectifier performance in these environments directly supports uninterrupted cargo handling operations.

Safety and Quality FAQ

Q1: Does the DSQC417 3HAC035381-001 come with a support terms?
Yes. Every DSQC417 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This support terms covers functional failure under normal operating conditions and includes replacement or repair support. Our support terms policy reflects our confidence in the pre-shipment testing process applied to every unit before dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each DSQC417 undergoes functional verification testing prior to shipment. This includes output voltage stability checks, rectification performance validation, and surge protection circuit integrity testing. Units that do not meet OEM-equivalent performance thresholds are not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all IRC5 cabinet variants?
The DSQC417 (3HAC035381-001) is designed for the ABB IRC5 drive system and is compatible with IRC5 Standard Cabinet and IRC5 Compact Cabinet configurations. Compatibility with specific robot models (IRB 1600, IRB 2600, IRB 4600, IRB 6640, etc.) depends on the cabinet type and drive configuration. If you require compatibility confirmation for a specific robot serial number or cabinet revision, contact our technical team with your robot’s nameplate data.

Q4: Can KNMKS support long-term or repeat supply of the DSQC417?
Yes. KNMKS maintains ongoing inventory of the DSQC417 and related IRC5 spare parts to support planned maintenance programs, critical spare strategies, and emergency replacement requirements. For facilities operating multiple IRC5 robots, we can provide volume pricing and reserved stock arrangements to ensure supply continuity. Contact us at [email protected] or +86 18359268345 to discuss your spare parts program requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
