ABB DSQC400E 3HAC058424-001 Fail-Safe DCU for Industrial Control

Overview

ABB DSQC400E 3HAC058424-001 Fail-Safe DCU for Industrial Control Reliability

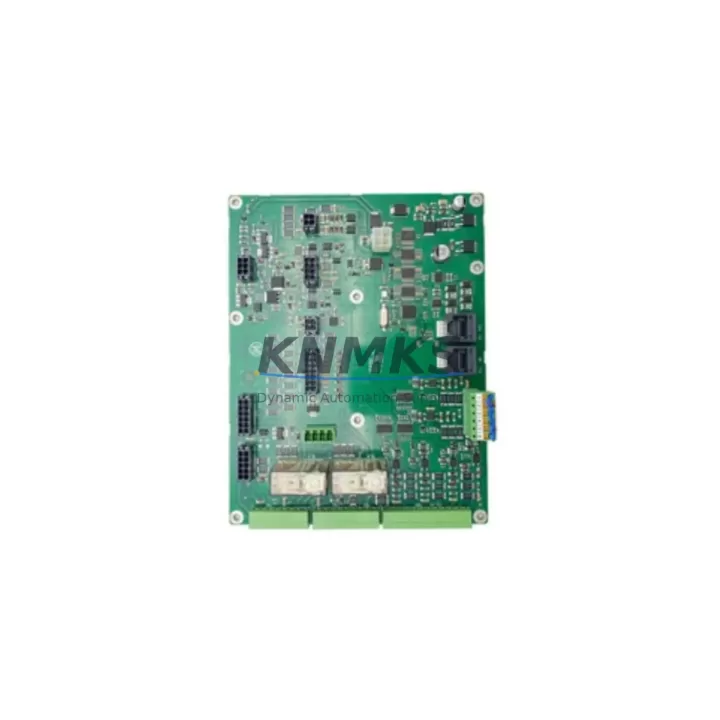

The ABB DSQC400E (3HAC058424-001) is a Distributed Control Unit engineered for the ABB IRC5 robot controller platform, purpose-built to sustain fail-safe operation in continuous production environments where control interruption carries direct safety and financial consequences. Designed and manufactured in Germany to ABB’s industrial-grade standards, this DCU serves as the communication and coordination backbone between the IRC5 main computer and peripheral I/O modules, ensuring deterministic signal exchange even under high electromagnetic interference, voltage fluctuation, and mechanical vibration.

In safety-critical installations — including robotic welding cells, automated assembly lines, and hazardous-area handling systems — the DSQC400E provides the signal integrity and fault-isolation capability required to prevent unplanned shutdowns and spurious trips. Its robust housing and conformal-coated PCB construction resist moisture ingress, conductive dust accumulation, and thermal cycling, making it a reliable choice for control cabinets operating in foundry, chemical processing, and port logistics environments where ambient conditions routinely exceed standard office-grade tolerances.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The DSQC400E does not operate in isolation — its reliability is directly tied to the integrity of the surrounding control architecture. In a well-engineered IRC5 cabinet, the DCU works in close coordination with the ABB DSQC662 fieldbus adapter to maintain real-time DeviceNet or Profibus communication with external PLCs and safety controllers. Power supply stability is critical: the ABB DSQC609 power supply unit provides the regulated 24 VDC rail that the DSQC400E depends on, and any ripple or dropout on this rail can cause the DCU to log communication faults or trigger a controlled stop.

For installations in high-surge environments — such as those near large motor drives, arc welding equipment, or overhead cranes — pairing the DSQC400E with a dedicated surge protection device on the 24 VDC input bus is strongly recommended. The ABB DSQC643 I/O module, commonly installed alongside the DCU in the same cabinet, handles digital signal routing to end-of-arm tooling and safety interlocks; any degradation in the DCU’s communication path will directly affect the DSQC643’s response latency. Similarly, the ABB DSQC652 digital I/O board relies on the DCU for coordinated signal arbitration in multi-robot cells.

In cabinets where thermal management is a concern — particularly in high-ambient foundry or press-shop environments — ensuring adequate airflow across the DSQC400E mounting position reduces the risk of thermal throttling and extends component service life. The ABB DSQC668 communication module, when present in the same IRC5 rack, shares the internal bus managed by the DCU, making the DSQC400E a single point of coordination for the entire communication stack.

Critical Industrial Safety Applications

The DSQC400E is deployed across a wide range of safety-critical industrial sectors. In automotive body-in-white welding facilities, IRC5-controlled robots perform continuous spot and arc welding cycles where any DCU communication fault triggers an immediate controlled stop — minimizing arc flash risk but also halting production. Rapid availability of a verified replacement DSQC400E is therefore a key element of the site’s spare parts strategy.

In petrochemical and refinery environments, robotic inspection and handling systems operating in Zone 2 classified areas depend on the IRC5 platform’s ability to maintain deterministic control loops. The DSQC400E’s role in sustaining I/O coordination ensures that safety interlock signals — such as emergency stop, gate monitoring, and pressure relief triggers — are processed without latency or signal drift.

In port and heavy logistics applications, IRC5-controlled robotic palletizers and container handlers operate in high-vibration, high-dust environments. The DCU’s conformal coating and robust connector design reduce the risk of intermittent contact faults that could cause erratic robot behavior or safety system nuisance trips. Mining and mineral processing sites similarly benefit from the DSQC400E’s tolerance for conductive dust and humidity, where standard control hardware would require frequent cleaning cycles or premature replacement.

For water treatment and utilities automation, where continuous operation is mandated and maintenance windows are narrow, holding a pre-tested DSQC400E in the site’s critical spare inventory eliminates the lead-time risk associated with sourcing this component during an unplanned outage.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform its specified DCU functions within the confirmed support period, we provide a replacement or documented resolution support. The confirmed support period begins from the date of shipment.

Q2: How is the DSQC400E tested before shipment?
Every unit undergoes a full functional verification on an IRC5-compatible test bench prior to dispatch. This includes communication bus integrity checks, I/O coordination response testing, and visual inspection for connector and PCB condition. A test report is available upon request.

Q3: Is this unit compatible with all IRC5 controller variants?
The DSQC400E (3HAC058424-001) is designed for the ABB IRC5 platform. Compatibility should be verified against your specific IRC5 cabinet configuration and software version. Our technical team can assist with compatibility confirmation based on your robot serial number and controller revision.

Q4: Can you support long-term or repeat supply for maintenance programs?
Yes. We maintain stock of the DSQC400E and related IRC5 components to support planned maintenance programs, spare parts agreements, and emergency replacement requirements. Contact us to discuss volume pricing, reserved stock arrangements, or multi-site supply contracts.
