ABB DSQC327A Migration-Ready Switch for Legacy IRC5 Systems

Overview

ABB DSQC327A Migration-Ready Switch for Legacy IRC5 Systems: Retrofit and Compatibility Upgrade Guide

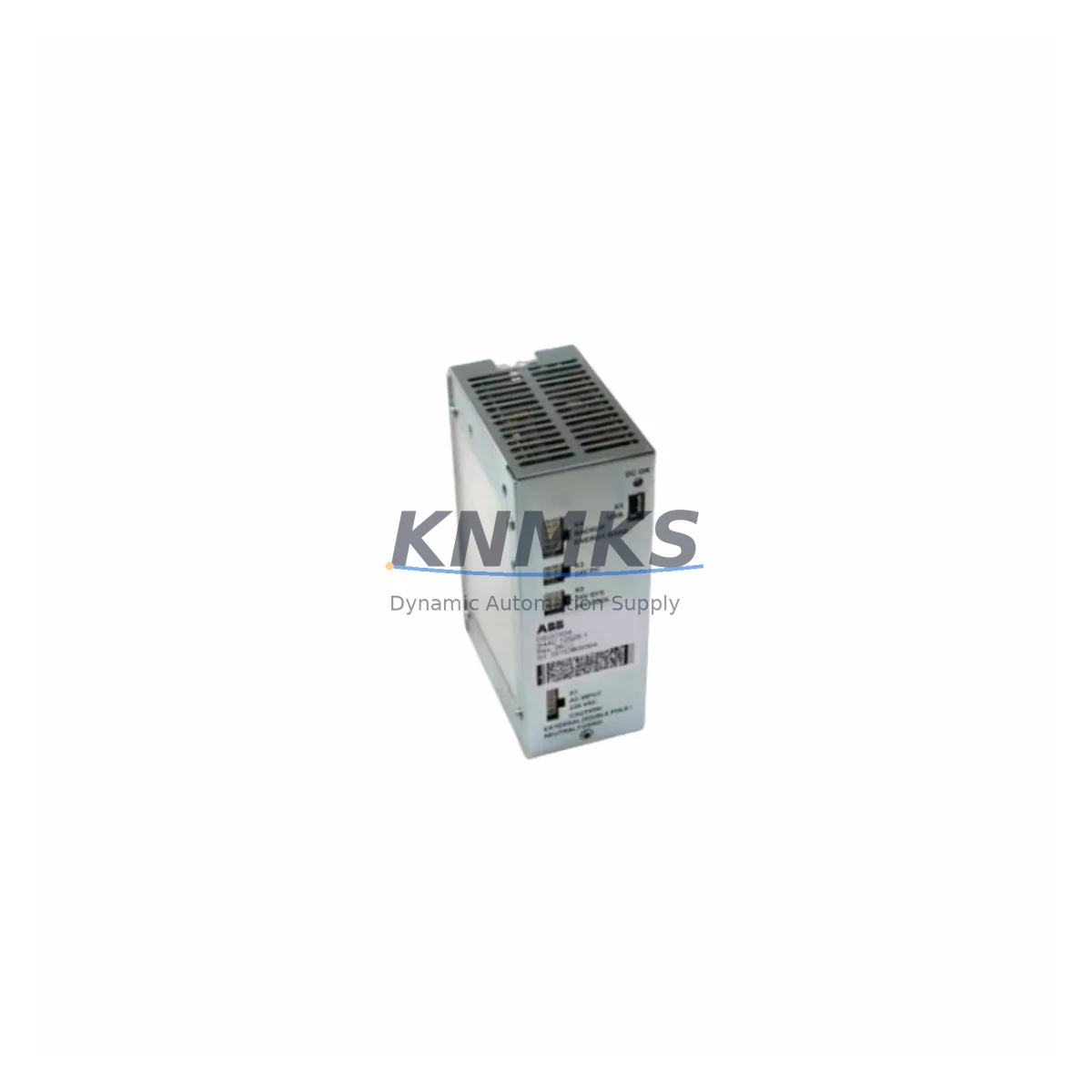

The ABB DSQC327A (OEM part number 3HAC17971-1) is an intermediate switch module originally designed for ABB IRC5 robot controller cabinets. As ABB progressively phases out legacy IRC5 hardware in favor of the OmniCore platform, the DSQC327A has become a critical spare part for maintenance engineers managing aging robotic cells in automotive, metal fabrication, and general manufacturing environments. KNMKS maintains verified in-stock inventory of the DSQC327A, pre-shipment tested, with a support terms confirmed by quotation covering defects in materials and workmanship.

For facilities running IRC5 single-cabinet or multi-cabinet configurations, the DSQC327A serves as a direct drop-in replacement for failed or degraded switching modules. Its role in the IRC5 power distribution chain means that a faulty unit can halt an entire robotic cell. Sourcing a verified replacement with confirmed firmware compatibility is essential to minimizing unplanned downtime and protecting the integrity of the existing control program.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit or partial upgrade of an IRC5-based robotic cell, the DSQC327A replacement is rarely an isolated task. Engineers typically encounter a cascade of interdependent components that must be evaluated in parallel. The IRC5 controller’s internal architecture relies on a coordinated set of modules: the DSQC639 main computer unit governs program execution and I/O mapping, while the DSQC662 axis computer manages servo drive communication. If the DSQC327A failure is accompanied by intermittent power faults, the DSQC608 power supply unit should be inspected and load-tested before the new switch module is installed, as an under-spec power supply can cause premature failure of replacement parts.

Terminal wiring is a common source of commissioning errors during IRC5 module replacement. The DSQC327A connects to the cabinet’s internal harness via a keyed connector; technicians should photograph the existing wiring layout before disconnection and cross-reference against the IRC5 product manual (3HAC021313-001). In multi-cabinet configurations, the DSQC401 I/O unit and DSQC328A digital I/O module assignments must be re-verified after any switching module replacement, as address conflicts can cause the controller to report I/O faults on startup.

For facilities considering a longer-term migration from IRC5 to OmniCore, the DSQC327A replacement provides an opportunity to audit the full cabinet inventory. Documenting the installed DSQC modules, their firmware revisions, and their wiring configurations creates a baseline that simplifies future OmniCore migration planning. The FlexPendant (IRC5 teach pendant) configuration and any custom RAPID program modules should be backed up to a USB drive before any hardware intervention, ensuring that program logic is preserved regardless of the outcome of the physical replacement.

Installation space within the IRC5 cabinet is generally not a constraint for a like-for-like DSQC327A replacement, as the module occupies the same footprint as the original. However, if the cabinet has been modified to accommodate third-party signal isolators or additional I/O expansion racks, technicians should confirm that the replacement module’s connector clearance is not obstructed before proceeding.

Downtime Control During System Migration

Unplanned downtime during an IRC5 module replacement can be significantly reduced through structured pre-replacement preparation. Before removing the DSQC327A, the following steps are recommended: perform a full system backup via the IRC5 FlexPendant (Backup and Restore menu), document all active I/O signal states, and confirm that the robot is in a safe, mechanically locked position. If the cell is part of a production line with upstream and downstream dependencies, coordinate a planned maintenance window rather than attempting a hot-swap repair.

After installing the replacement DSQC327A, the IRC5 controller should be powered on in manual mode. Run the built-in boot diagnostics to confirm that the new module is recognized by the system. Check the event log on the FlexPendant for any fault codes related to the switching module or power distribution. If the system reports a configuration mismatch, verify that the replacement unit’s hardware revision matches the original — ABB has released multiple hardware revisions of the DSQC327A, and some early IRC5 cabinets require a specific revision for full compatibility.

Once the module passes diagnostics, restore the system backup and run a dry-cycle test of the robot program in manual reduced-speed mode before returning the cell to automatic production. This sequence typically allows a trained technician to complete the replacement and return the cell to production within two to four hours, depending on cabinet accessibility and program complexity.

Retrofit Support FAQ

Q1: Is the DSQC327A a direct replacement for all IRC5 cabinet variants?
The DSQC327A (3HAC17971-1) is compatible with the majority of IRC5 single-cabinet and multi-cabinet configurations produced from 2004 onward. However, ABB has released hardware revisions over the product lifecycle. Customers should confirm the cabinet’s production date and existing module revision before ordering. KNMKS technical support can assist with compatibility verification based on the cabinet serial number.

Q2: What pre-shipment testing is performed on DSQC327A units?
All DSQC327A units shipped by KNMKS undergo functional power-on testing and visual inspection for connector integrity and PCB condition. Units that fail any test criterion are quarantined and not shipped. A test report is available upon request for critical production applications.

Q3: Can the DSQC327A be installed without re-programming the IRC5 controller?
In most cases, yes. The DSQC327A is a hardware switching module and does not store program logic. Replacing a failed unit with a compatible revision does not require changes to the RAPID program or I/O configuration. However, if the original failure caused a corrupted system backup, restoring from a known-good backup is recommended before returning the cell to production.

Q4: What is the support terms coverage and lead time for DSQC327A orders?
KNMKS provides a support terms confirmed by quotation on all DSQC327A units, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are typically dispatched within 1–2 business days. For urgent requirements, expedited shipping options are available. Contact [email protected] or call +86 18359268345 to confirm current stock levels and delivery timelines.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSQC327A DSQC327A3HAC17971-1
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSQC327A DSQC327A3HAC17971-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
