ABB DSQC314B Maintenance-Proven Spare Part for Factory Uptime

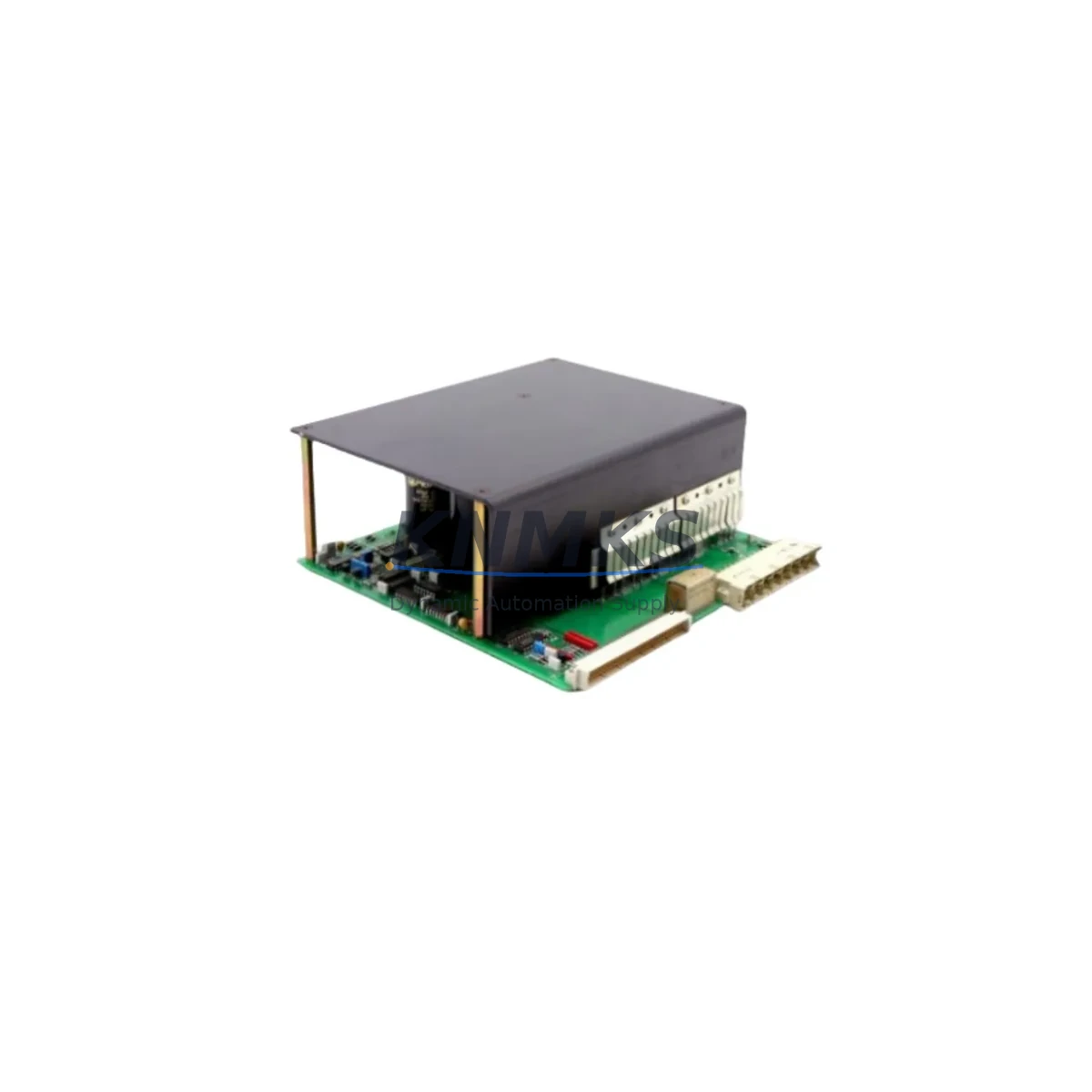

The ABB DSQC314B is a genuine Digital I/O Board engineered for ABB S4 and S4C series robot controllers operating within the DSQC automation platform. For maintenance engineers managing robotic welding cells, material handling lines, and automated assembly stations, the DSQC314B represents a critical interface component — responsible for routing discrete digital signals between the robot controller backplane and field-level actuators, sensors, and safety interlocks. When this board fails or degrades, the entire robot axis group loses I/O communication, triggering unplanned downtime that can cascade across a production line within minutes.

Sourcing a verified, pre-tested DSQC314B from a reliable spare parts supplier is the fastest path to restoring robot controller functionality without waiting weeks for OEM lead times. Each unit supplied by KNMKS undergoes pre-shipment electrical verification, functional I/O channel testing, and visual inspection before dispatch. A support terms confirmed by quotation is included as standard, covering manufacturing defects and functional failures under normal industrial operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A DSQC314B replacement should never be treated as an isolated swap. In ABB S4/S4C robot controllers, the Digital I/O Board operates as part of a tightly integrated control architecture. When performing a scheduled or emergency replacement, maintenance engineers should simultaneously inspect the following components to prevent repeat failures and ensure full system restoration:

Begin with the DSQC315 Analog I/O Board, which shares the same backplane slot architecture and is frequently stressed by the same power fluctuations that degrade the DSQC314B. Next, verify the DSQC332 Serial Measurement Board — axis encoder feedback integrity depends on clean signal routing through the I/O layer. The DSQC346 Power Supply Unit should be load-tested; an aging PSU delivering marginal 24 VDC rail voltage is a leading cause of intermittent I/O board faults and should be replaced proactively during any DSQC314B maintenance window.

Inspect all field wiring terminal blocks and I/O connector harnesses at the cabinet base. Corroded or loose terminals introduce ground loops that can corrupt digital signal states and cause nuisance faults that are often misdiagnosed as board failures. If the robot cell includes a DSQC352 DeviceNet Communication Board, verify its node address configuration and bus termination after the I/O board swap — a common oversight that delays restart. For cells with safety relay circuits, confirm that the DSQC400 Safety Board or equivalent safety relay module has not accumulated fault logs during the downtime event. Finally, check the teach pendant cable and FlexPendant connector for continuity; HMI communication errors sometimes surface immediately after an I/O board replacement due to pre-existing cable wear that was masked by the previous fault condition.

Procurement engineers should maintain a minimum of one DSQC314B unit in on-site buffer stock for every two to three S4/S4C robot controllers in active production. Given the age profile of S4-series installations — many now operating beyond 15 years — OEM availability windows are narrowing, making proactive inventory positioning essential for long-term line continuity.

Site Replacement Workflow

Step 1 — Fault Isolation: Retrieve the robot controller error log via the teach pendant. Confirm the fault code references a Digital I/O Board channel failure, communication timeout, or backplane slot error before proceeding. Do not replace the DSQC314B based solely on a field-level sensor fault without first ruling out wiring and terminal issues.

Step 2 — Safe Shutdown: Place the robot in manual mode, execute a controlled stop, and isolate the controller cabinet from mains power at the main disconnect. Follow LOTO (Lockout/Tagout) procedures. Allow the PSU capacitors to discharge for a minimum of 60 seconds before opening the cabinet.

Step 3 — Board Extraction: Photograph the existing DSQC314B connector layout and cable routing before disconnecting. Label all I/O harness connectors with their slot positions. Remove the board from the backplane slot using the extraction handles — avoid flexing the PCB.

Step 4 — Replacement Installation: Inspect the backplane slot connector pins for damage or corrosion before inserting the new DSQC314B. Seat the board firmly and evenly. Reconnect all I/O harnesses in the documented order. Verify that no connectors are cross-mated.

Step 5 — Power-Up and Verification: Restore mains power and boot the controller. Navigate to the I/O configuration panel on the teach pendant and verify that all digital input and output channels report correct states. Run a dry-cycle test of the robot program before returning the cell to production. Document the replacement in the maintenance log with the new board serial number and support terms start date.

This workflow is compatible with direct replacement of earlier DSQC314 (without suffix) variants in most S4C installations, though firmware version alignment should be confirmed with the controller system software version prior to hot-commissioning.

Spare Parts Support FAQ

Q1: Is the DSQC314B a direct drop-in replacement for the DSQC314 (original, no suffix)?
In most ABB S4C controller configurations, the DSQC314B is backward-compatible with the original DSQC314 slot position and connector layout. However, minor firmware or hardware revision differences may exist depending on the controller system software version. We recommend confirming the controller’s software version (accessible via the teach pendant system info menu) before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing does each DSQC314B unit undergo?
Every DSQC314B unit supplied by KNMKS is subject to a pre-shipment inspection protocol that includes visual PCB inspection for physical damage, electrical continuity testing of all I/O channels, power rail voltage verification, and functional board-level testing where applicable. Units are packed in ESD-safe anti-static bags with foam cushioning to prevent transit damage. A test report summary is available upon request.

Q3: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover functional failures and manufacturing defects under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or unauthorized modification. To initiate a support terms claim, contact [email protected] with the order reference, fault description, and controller error log. Replacement units are dispatched after fault confirmation, with return shipping of the defective unit arranged by KNMKS.

Q4: Can KNMKS support long-term supply agreements for DSQC314B across multiple plant sites?
Yes. KNMKS supports multi-site procurement agreements for industrial spare parts with extended lead times of 12 to 36 months. For maintenance managers overseeing multiple ABB robot installations across different facilities, a standing supply agreement ensures priority allocation, fixed pricing, and guaranteed stock reservation. Contact [email protected] or +86 18359268345 to discuss volume requirements and delivery scheduling.
