ABB DSQC313 3HAB2213-1 Fail-Safe SMB for Industrial Control Reliability

Overview

ABB DSQC313 3HAB2213-1 Fail-Safe SMB for Industrial Control Reliability

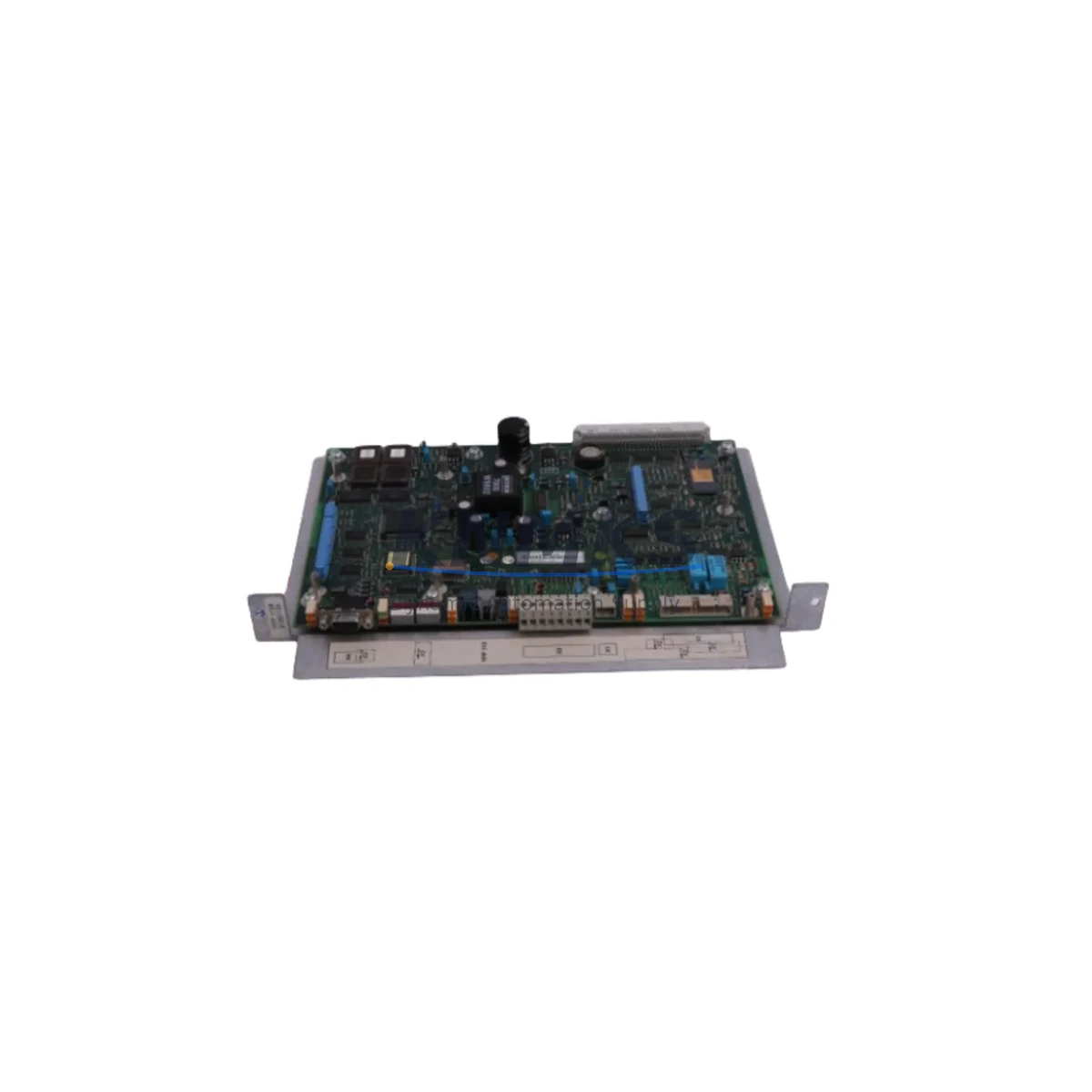

The ABB DSQC313 (3HAB2213-1) is a precision Serial Measurement Board engineered for ABB IRB6640 industrial robots operating in demanding, safety-critical environments. Designed to deliver uninterrupted axis position feedback to the robot controller, this SMB is a cornerstone of fail-safe motion control in continuous production lines, heavy-load automation cells, and high-electromagnetic-interference (EMI) enclosures. When control interruption, signal drift, or unplanned downtime is not an option, the DSQC313 provides the measurement integrity and surge resilience that industrial safety engineers depend on.

In petrochemical plants, power generation facilities, mining operations, and metallurgical processing lines, robot control systems are exposed to extreme vibration, thermal cycling, moisture ingress, and high-voltage transients. The DSQC313 is built to maintain accurate resolver signal conditioning and axis feedback under these conditions, preventing miscounts, encoder drift, and false position errors that could trigger emergency stops or — worse — undetected axis deviations. Its robust PCB design and shielded signal paths reduce susceptibility to conducted and radiated EMI, ensuring that the IRC5 controller receives clean, reliable data from every joint resolver.

Replacing a failed or degraded SMB with a genuine ABB DSQC313 restores the full safety loop integrity of the robot system. Paired with the ABB DSQC346 3HAC025466-001 axis computer board and the ABB DSQC662 3HAC026253-001 fieldbus communication board, the DSQC313 forms a tightly integrated measurement and control architecture within the IRC5 cabinet. When the ABB DSQC609 3HAC14265-1 power supply unit is also maintained in good condition, the entire control cabinet operates within its designed voltage and current tolerances, eliminating power-induced signal anomalies that can corrupt resolver feedback. For applications requiring coordinated multi-axis safety, the ABB DSQC643 3HAC025917-001 safety board works in conjunction with the DSQC313 to enforce axis-level safe torque off (STO) and safe stop functions.

In high-dust, high-humidity, or chemically aggressive environments — such as foundry automation, water treatment robotics, or offshore marine installations — the DSQC313’s conformal-coated board construction resists corrosion and contamination-induced leakage currents. This is particularly critical in control cabinets where inadequate sealing or cooling can lead to condensation on sensitive measurement circuitry. Alongside the ABB DSQC374 3HAB8101-8 I/O board for digital signal management, the DSQC313 ensures that both analog resolver signals and digital I/O remain stable even as ambient conditions fluctuate.

For maintenance engineers managing spare parts programs across multi-robot installations, stocking the DSQC313 as a critical spare eliminates extended downtime during unplanned failures. Its direct plug-in compatibility with the IRB6640 SMB slot means replacement can be completed during a planned maintenance window without firmware reconfiguration, reducing mean time to repair (MTTR) and protecting production throughput. All units supplied by KNMKS are sourced from verified channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable IRC5 control cabinet depends on the coordinated performance of every board and power component. The DSQC313 SMB sits at the heart of the axis measurement chain, but its effectiveness is amplified when the surrounding cabinet infrastructure is equally robust. The ABB DSQC609 3HAC14265-1 power supply unit must deliver stable, ripple-free DC rails to prevent measurement noise from corrupting resolver signals — any voltage sag or surge at the SMB power input can introduce axis position errors that are difficult to diagnose without oscilloscope-level analysis. The ABB DSQC346 3HAC025466-001 axis computer board processes the conditioned signals from the DSQC313 and translates them into motion commands; a degraded axis computer will mask even a perfectly functioning SMB, so both boards should be inspected together during fault diagnosis.

For cabinet-level communication integrity, the ABB DSQC662 3HAC026253-001 fieldbus adapter ensures that DeviceNet or Profibus signals between the robot controller and external safety PLCs remain synchronized. Communication dropouts at this layer can cause the IRC5 to enter a fault state even when the mechanical and measurement systems are fully operational. The ABB DSQC643 3HAC025917-001 safety board enforces the STO and SS1 safety functions mandated by IEC 62061 and ISO 13849 for collaborative and high-speed robot cells. Finally, the ABB DSQC374 3HAB8101-8 I/O board manages the digital interlock signals — emergency stop chains, gate monitoring, and light curtain inputs — that form the outer layer of the cabinet’s safety architecture. Maintaining all five of these components in verified condition is the foundation of a zero-unplanned-downtime cabinet protection strategy.

Critical Industrial Safety Applications

The ABB DSQC313 3HAB2213-1 is deployed across the most demanding industrial safety applications globally. In petrochemical and refinery automation, IRB6640 robots perform continuous welding and material handling in Zone 2 classified areas where any axis position error could result in a safety interlock trip, halting an entire process train. The DSQC313’s stable resolver feedback prevents nuisance trips caused by signal drift, keeping production throughput intact. In power generation and electrical utility environments, robots equipped with the IRB6640 perform high-voltage switchgear assembly and transformer winding tasks where precise, repeatable axis positioning is a safety requirement — not merely a quality metric.

In mining and mineral processing operations, robots operating in high-vibration, high-dust environments rely on the DSQC313’s conformal coating and robust PCB construction to maintain measurement accuracy despite constant mechanical shock. Water and wastewater treatment facilities use IRB6640 robots for pipe welding and valve assembly in high-humidity enclosures where condensation is a persistent risk to unprotected electronics. Metallurgical and steel mill automation cells expose robot controllers to radiated heat and electromagnetic interference from induction furnaces and arc welders — conditions under which a lesser SMB would exhibit signal noise and axis faults. In port and maritime applications, robots performing container handling and offshore platform maintenance face salt-laden air and wide temperature swings that accelerate corrosion on unprotected circuit boards. Across all these environments, the DSQC313 delivers the measurement stability and fault tolerance that safety-critical industrial automation demands.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DSQC313?
The support terms covers manufacturing defects, premature component failure, and functional non-conformance under normal operating conditions within the ABB IRC5 cabinet environment. It does not cover damage resulting from incorrect installation, overvoltage events beyond the board’s rated transient suppression capacity, or physical impact. Support requests are processed with a replacement-first policy to minimize your downtime.

Q2: How is each DSQC313 unit tested before shipment?
Every unit undergoes a pre-shipment functional verification that confirms resolver signal conditioning performance, power rail integrity, and connector continuity. Units that do not pass all test parameters are quarantined and not dispatched. A test record is maintained for traceability and is available upon request for quality-audited customers.

Q3: Is the DSQC313 a direct plug-in replacement for the IRB6640 without software reconfiguration?
Yes. The DSQC313 3HAB2213-1 is a direct hardware replacement for the IRB6640 SMB slot. No firmware update or axis calibration parameter change is required for a like-for-like swap. Standard axis calibration (fine calibration) should be performed after any SMB replacement as per ABB’s maintenance procedure to confirm resolver offset values are within specification.

Q4: Can KNMKS guarantee long-term supply of the DSQC313 given ABB’s product lifecycle?
KNMKS maintains a dedicated stock buffer of the DSQC313 and other critical IRB6640 spare parts to support customers through ABB’s end-of-life and last-time-buy phases. Our procurement network spans verified industrial surplus and authorized distribution channels, ensuring continued availability for customers with long-lifecycle robot installations requiring multi-year spare parts coverage.
