ABB DSQC239 YB560103-CH Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DSQC239 YB560103-CH Maintenance-Proven Spare Part for Factory Uptime

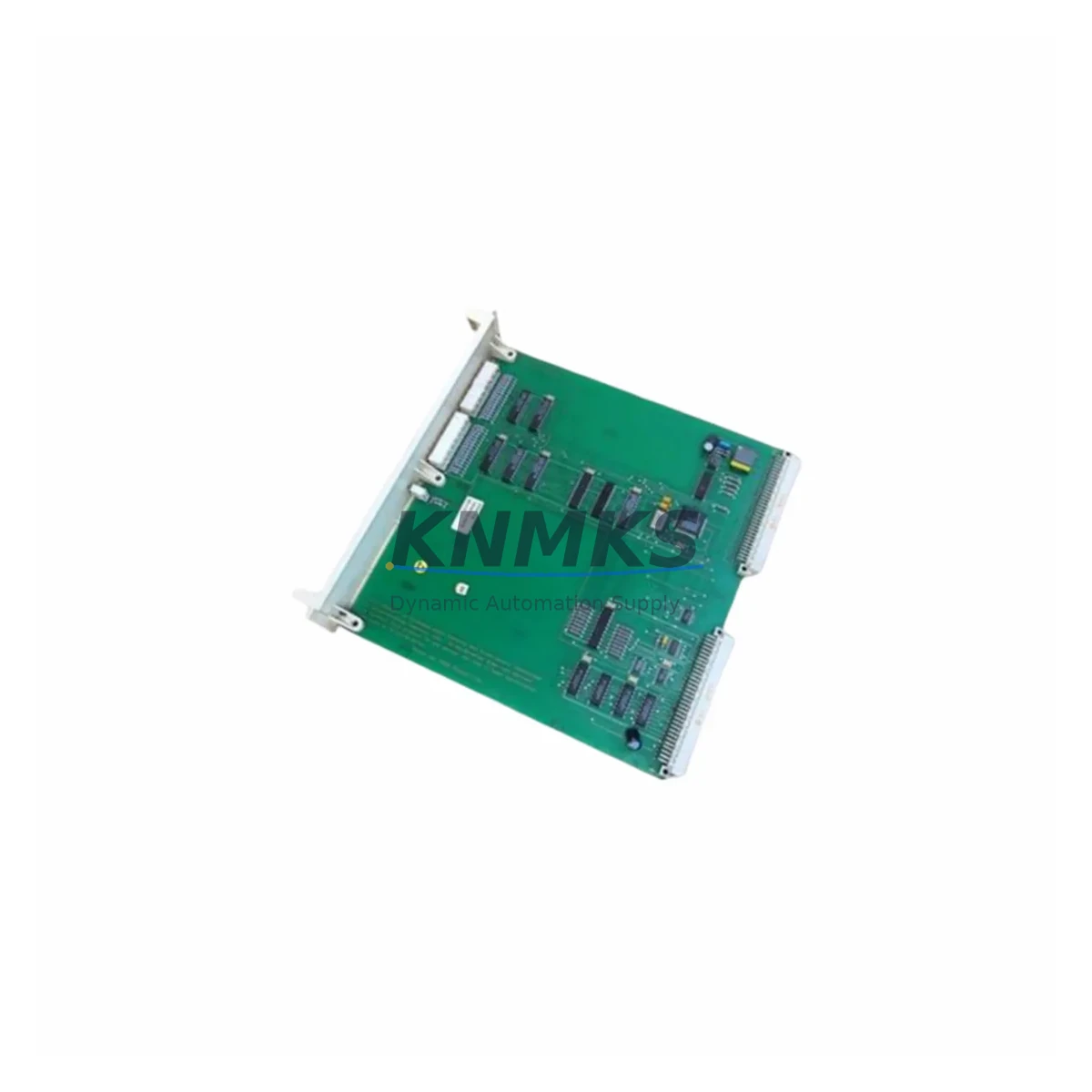

The ABB DSQC239 (YB560103-CH) is an original remote I/O board designed for ABB IRC5 robot controllers. As a critical interface between the robot controller and field-level I/O devices, this board plays a central role in maintaining uninterrupted production across automotive, foundry, food processing, and general manufacturing environments. Sourced from verified supply channels, pre-tested before dispatch, and backed by a support terms confirmed by quotation, the DSQC239 YB560103-CH is a maintenance-ready spare that supports both emergency replacement and planned outage strategies.

For maintenance engineers managing IRC5-based robot cells, the DSQC239 is a high-priority line item on any spare parts checklist. Its failure typically manifests as loss of digital I/O communication, unexpected robot faults, or controller boot errors — all of which result in immediate production stoppage. Keeping a verified unit availability confirmed by RFQ eliminates the lead time risk associated with sourcing from OEM channels during an unplanned outage.

Procurement engineers sourcing this board should confirm the YB560103-CH revision level against the installed IRC5 cabinet generation. KNMKS maintains multi-region stock to support fast global dispatch, with units available for same-week shipment to minimize downtime exposure. Long-term supply agreements are available for facilities operating multiple IRC5 cells or managing fleet-wide maintenance schedules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DSQC239 YB560103-CH in an IRC5 cabinet, a thorough inspection of adjacent components is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the DSQC508 power distribution board, which supplies regulated voltage to the I/O subsystem — a degraded power rail is a common root cause of I/O board failure. The DSQC652 digital I/O board and DSQC651 analog I/O board share the same backplane communication bus and should be checked for fault codes or communication errors before the cabinet is returned to service.

Field wiring terminations at the DSQC355A terminal unit or equivalent I/O terminal boards should be inspected for loose connections, corrosion, or insulation breakdown — particularly in high-vibration or high-humidity environments. If the IRC5 cabinet uses DeviceNet or PROFIBUS for field communication, the corresponding DSQC409 DeviceNet board or DSQC532 PROFIBUS board should be verified for correct node addressing and communication health after the I/O board swap.

The DSQC604 main computer unit firmware version should be confirmed compatible with the replacement DSQC239 revision. Mismatched firmware can cause initialization failures even with a fully functional spare. Additionally, the cabinet’s 24VDC fuse blocks and circuit protection components should be tested — a blown fuse upstream of the I/O board is frequently overlooked and will prevent the replacement board from powering up correctly.

For facilities running annual or biennial maintenance shutdowns, the DSQC239 should be included in the IRC5 cabinet inspection checklist alongside the teach pendant cable assembly, the SMB (Serial Measurement Board), and the axis computer modules. Proactive replacement of boards showing marginal I/O response times reduces the risk of mid-production failures and supports a predictable maintenance budget.

Site Replacement Workflow

Step 1 — Isolate and document: Place the IRC5 controller in maintenance mode. Record all active I/O assignments, DeviceNet/PROFIBUS node configurations, and any custom signal mappings from the FlexPendant or RobotStudio backup. This ensures full configuration restoration after the board swap.

Step 2 — Power down safely: Follow ABB IRC5 lockout/tagout procedures. Discharge the cabinet capacitors per the IRC5 product manual before handling any internal boards. Confirm 0V at the DSQC508 power distribution output before proceeding.

Step 3 — Remove and inspect: Extract the DSQC239 from its slot. Inspect the backplane connector for bent pins or contamination. Check the board’s LED indicators on the replacement unit before installation to confirm it powers up correctly in a bench test if possible.

Step 4 — Install and configure: Seat the replacement DSQC239 YB560103-CH firmly into the backplane slot. Reconnect all field wiring to the terminal unit. Restore the I/O configuration from the RobotStudio backup or re-enter signal assignments manually via the FlexPendant.

Step 5 — Verify and return to service: Power up the IRC5 controller and confirm all I/O channels report correctly. Run a dry-cycle test of the robot program before resuming production. Document the replacement in the maintenance log with the board serial number and dispatch date for support terms tracking.

This workflow is compatible with IRC5 Single Cabinet, Dual Cabinet, and IRC5 Compact configurations. The DSQC239 YB560103-CH is a direct replacement for worn or failed units without requiring controller reconfiguration in most standard IRC5 installations.

Spare Parts Support FAQ

Q1: Is the DSQC239 YB560103-CH compatible with all IRC5 cabinet variants?
The DSQC239 YB560103-CH is designed for ABB IRC5 robot controllers including Single Cabinet, Dual Cabinet, and IRC5 Compact variants. Compatibility should be confirmed against the specific IRC5 generation and software version installed at your site. KNMKS technical support can assist with compatibility verification prior to order.

Q2: How is the board tested before shipment?
All DSQC239 units are pre-tested for power-up integrity, I/O channel functionality, and backplane communication before dispatch. Each unit ships with a test record. The support terms confirmed by quotation cover functional failure under normal operating conditions from the dispatch date.

Q3: What is the recommended inventory strategy for IRC5 spare parts?
For facilities operating 3 or more IRC5 robot cells, maintaining one DSQC239 unit per 5–8 controllers is a standard industry practice. Pairing this with a spare DSQC508 power board and a DSQC652 digital I/O board covers the most common IRC5 cabinet failure modes and supports a sub-4-hour recovery target for most fault scenarios.

Q4: Can KNMKS support long-term supply for fleet maintenance programs?
Yes. KNMKS offers long-term supply agreements for facilities managing large IRC5 fleets or multi-site maintenance programs. Multi-region stock availability supports fast global dispatch, and scheduled delivery programs can be arranged to align with annual maintenance windows. Contact [email protected] for volume pricing and supply agreement terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
