ABB DSQC1050 3HAC064474-001 Maintenance Spare IRC5

Overview

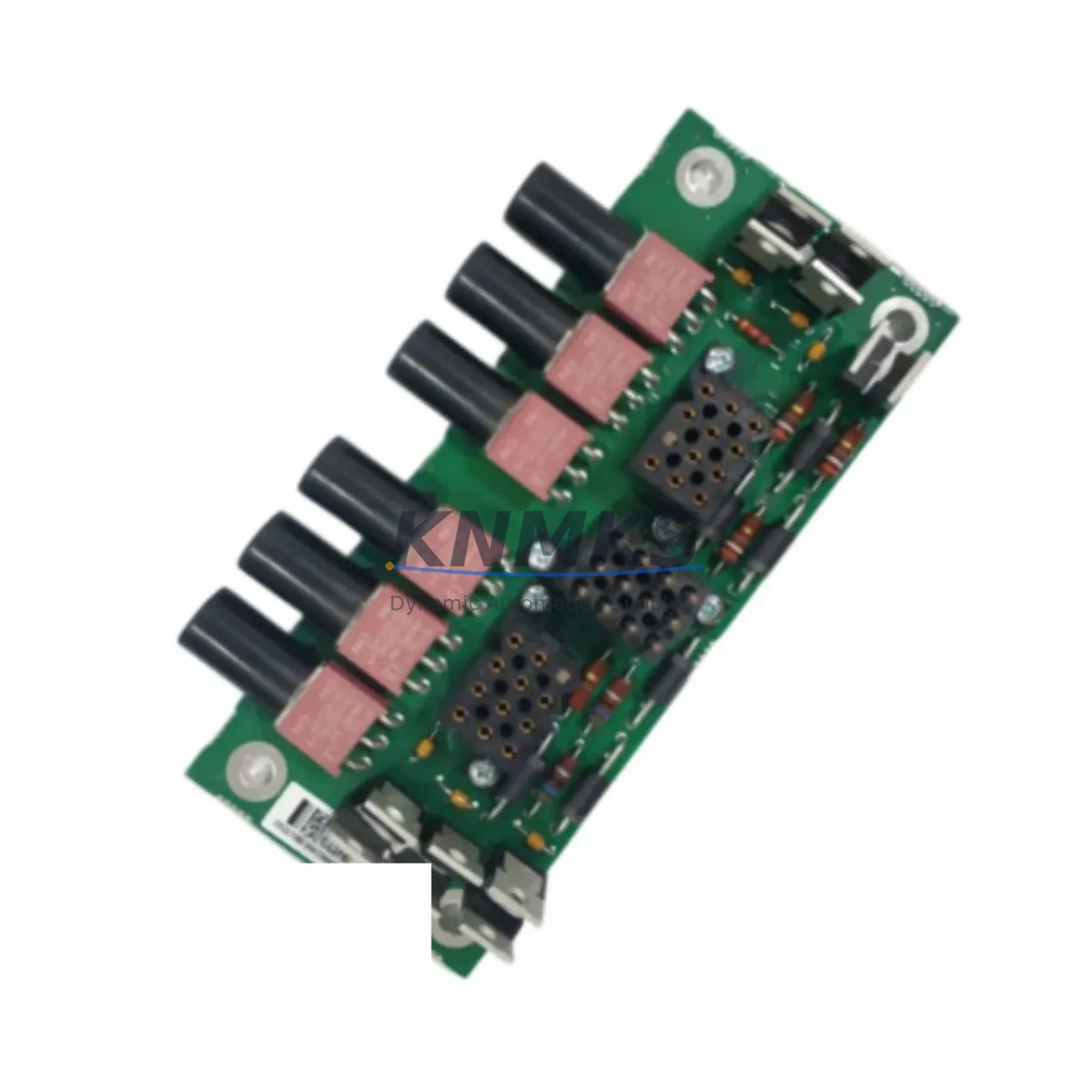

ABB DSQC1050 3HAC064474-001 Maintenance Spare IRC5: Original Brake Plate for Factory Uptime

The ABB DSQC1050 (OEM reference: 3HAC064474-001) is an original brake plate spare part designed for ABB IRC5 robot controllers. Sourced from verified supply channels, this component is essential for maintenance engineers managing ABB robotic systems in automotive, electronics, food processing, and general industrial automation environments. Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building a strategic spare parts inventory, the DSQC1050 delivers the OEM-grade reliability required to restore and sustain continuous production.

Factory downtime caused by brake system failures in IRC5 controllers can cascade rapidly across production lines. The DSQC1050 brake plate is a critical wear component within the IRC5 drive and brake circuit. Procurement engineers and maintenance planners working with ABB IRB series robots — including IRB 1600, IRB 2600, IRB 4600, and IRB 6640 — should treat this part as a priority stocking item. Holding at least one unit on-site significantly reduces mean time to repair (MTTR) and eliminates the lead-time risk associated with emergency sourcing.

Each unit is inspected and tested prior to shipment. A support terms confirmed by quotation is provided, covering manufacturing defects and functional failures under normal operating conditions. Global logistics support ensures delivery details confirmed by RFQ to maintenance sites across Asia, Europe, and the Americas.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DSQC1050 brake plate in an IRC5 controller, a thorough inspection of the surrounding electrical and mechanical subsystems is strongly recommended. Brake faults rarely occur in isolation — associated components in the same control cabinet and drive circuit should be evaluated concurrently to prevent repeat failures and unplanned stoppages.

Maintenance engineers should inspect the ABB DSQC662 axis computer board, which governs drive and brake logic within the IRC5 cabinet. A degraded axis computer can generate false brake fault codes or fail to release brakes correctly after a DSQC1050 replacement. Similarly, the ABB DSQC609 power supply unit should be checked for output voltage stability — insufficient or fluctuating DC supply is a common root cause of brake plate stress and premature wear.

The ABB DSQC643 I/O module connected to the brake circuit should be verified for correct signal output. Faulty I/O signals can prevent proper brake engagement or release, leading to axis drift or safety faults. Inspect the IRC5 drive unit (DSQC374 or equivalent) for thermal damage or capacitor aging, particularly in high-cycle applications such as spot welding or press tending.

Terminal blocks and internal wiring harnesses within the IRC5 cabinet should be inspected for loose connections, insulation degradation, or corrosion — especially in humid or chemically aggressive environments. The ABB FlexPendant (IRC5 teach pendant) should be tested to confirm brake override and manual release functions operate correctly after the replacement. If the system includes a DSQC1000 main computer, verify that firmware and brake parameter configurations are consistent with the replacement part specifications.

For sites running multiple IRC5 cabinets, a coordinated inspection schedule — covering brake plates, drive units, I/O modules, and power supplies across all controllers — is the most cost-effective approach to preventing cascading downtime across the production floor.

Site Replacement Workflow

Step 1 — Fault Identification: Retrieve the IRC5 error log via RobotStudio or the FlexPendant. Brake-related fault codes (e.g., 20223, 20224) typically indicate brake plate wear or brake circuit failure. Document the fault code and axis number before proceeding.

Step 2 — Safe Shutdown: Execute a controlled stop. Engage the IRC5 emergency stop circuit and isolate the cabinet from mains power. Allow capacitors to discharge fully (minimum 5 minutes) before opening the cabinet door.

Step 3 — Component Access: Locate the brake plate assembly within the IRC5 drive section. Photograph the existing wiring and connector orientation before disconnection. Label all connectors to ensure correct reassembly.

Step 4 — DSQC1050 Replacement: Remove the worn brake plate and install the new DSQC1050 (3HAC064474-001). Verify mechanical seating and secure all fasteners to the specified torque. Reconnect all connectors in the documented sequence.

Step 5 — System Verification: Restore power and perform a brake test sequence via the FlexPendant. Confirm that all axes hold position correctly under brake-applied conditions. Clear fault codes and run a low-speed test cycle before returning the robot to production.

Step 6 — Documentation: Record the replacement in the maintenance log, including part number, serial number, date, and technician ID. Update the spare parts inventory and initiate a replenishment order to maintain on-site stock levels.

Spare Parts Support FAQ

Q1: Is the DSQC1050 compatible with all IRC5 controller variants?
The DSQC1050 (3HAC064474-001) is designed for ABB IRC5 series controllers, including Single Cabinet, Dual Cabinet, and Panel Mounted configurations. Compatibility with specific robot models (IRB 1600, IRB 2600, IRB 4600, IRB 6640) should be confirmed against the IRC5 cabinet serial number and ABB spare parts documentation. Contact our technical team with your cabinet serial number for confirmation before ordering.

Q2: How is the DSQC1050 tested before shipment?
Each DSQC1050 unit undergoes a functional inspection prior to dispatch. Testing covers mechanical integrity, connector condition, and where applicable, electrical continuity checks. Units that do not pass inspection are not shipped. A support terms confirmed by quotation is provided from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended stocking strategy for the DSQC1050?
For production facilities operating one to three IRC5 controllers, maintaining a minimum of one DSQC1050 on-site is recommended. Sites with four or more IRC5 cabinets, or those operating in high-cycle or harsh environments, should consider stocking two to three units. Brake plates are classified as consumable wear components and should be included in annual spare parts budget planning alongside drive units, I/O modules, and power supplies.

Q4: Can you support long-term or repeat supply of the DSQC1050?
Yes. We maintain ongoing stock of the DSQC1050 and can support blanket purchase orders, scheduled deliveries, and long-term supply agreements for maintenance contractors and OEM service teams. For volume pricing, lead-time commitments, or consignment stock arrangements, contact our sales team directly.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
