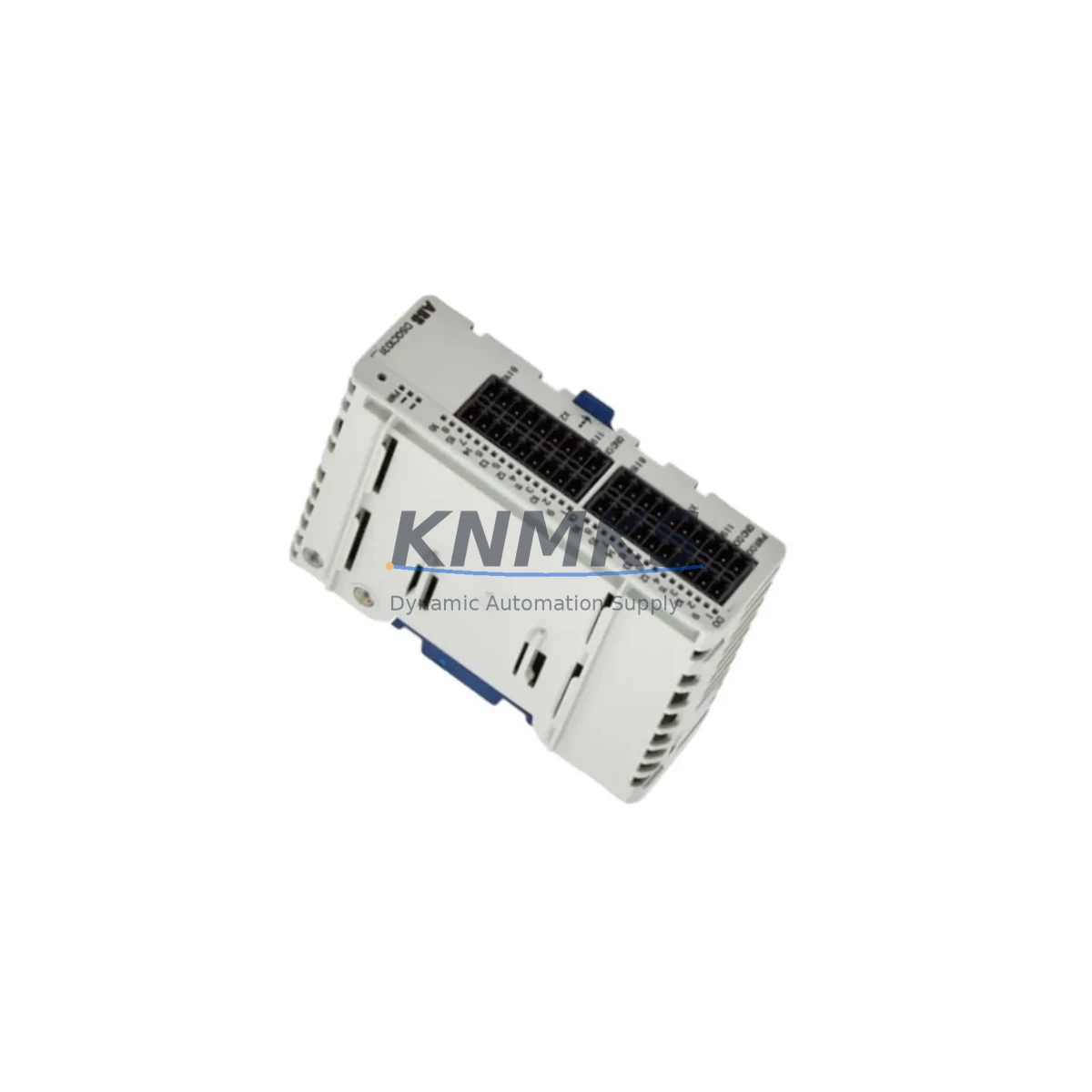

ABB DSQC1032 3HAC058665-001 Fail-Safe Analog I/O Module

Overview

ABB DSQC1032 3HAC058665-001 Fail-Safe Analog I/O Module: Fault Protection and Critical Industrial Reliability

The ABB DSQC1032 (3HAC058665-001) is a safety-enhanced analog I/O module engineered for the ABB IRC5 robot controller platform. Designed to operate reliably in demanding industrial environments — including high electromagnetic interference, heavy vibration, elevated temperatures, and moisture-laden atmospheres — this module delivers the signal integrity and fault tolerance that continuous production lines and safety-critical interlocks demand. Whether deployed in robotic welding cells, automated assembly stations, or precision process control cabinets, the DSQC1032 is a proven component for reducing unplanned downtime and protecting control loop continuity.

In safety-critical automation, analog signal drift, surge-induced faults, and I/O communication failures are among the leading causes of unplanned shutdowns. The DSQC1032 addresses these risks through robust hardware design, integrated surge protection, and compatibility with the IRC5’s redundant safety architecture. Its analog channels maintain calibrated accuracy under load fluctuations and power transients, ensuring that process variables — pressure, temperature, flow, and position — are faithfully transmitted to the controller without distortion or false triggering.

Every unit supplied by KNMKS undergoes pre-shipment functional testing to verify channel integrity, communication handshake with the IRC5 backplane, and surge protection performance. This testing protocol eliminates the risk of receiving a latent-fault module that passes visual inspection but fails under operational load — a critical assurance for maintenance teams managing spare parts in safety-classified environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The DSQC1032 does not operate in isolation — its reliability is directly tied to the quality of the surrounding control cabinet ecosystem. In a well-engineered IRC5 cabinet, the analog I/O module works in concert with the ABB DSQC1000 main computer unit, which manages task execution and safety supervision, and the ABB DSQC663 drive unit interface, which coordinates motion control signals. Power stability for the entire I/O bus is typically provided by the ABB DSQC609 power supply unit; any voltage ripple or dropout from this supply can propagate directly into analog channel readings, causing false process alarms or interlock trips.

For installations in environments with significant conducted or radiated EMI — common in arc welding, induction heating, and variable-frequency drive applications — the DSQC1032 should be paired with properly rated ferrite cores and shielded cable assemblies on all analog signal lines. The ABB DSQC652 digital I/O module, often installed alongside the DSQC1032 in the same IRC5 rack, handles discrete safety interlock signals; ensuring both modules share a clean, low-impedance ground reference is essential for preventing ground loop interference that can corrupt analog readings.

In high-availability production cells where robot downtime carries significant cost, maintenance teams frequently stock the ABB DSQC1032 as a critical spare alongside the ABB DSQC508 axis computer and the ABB DSQC679 teach pendant interface unit. This spare parts strategy ensures that a single module failure does not cascade into an extended production halt — a principle that aligns with IEC 62443 recommendations for industrial control system resilience.

Critical Industrial Safety Applications

The ABB DSQC1032 is deployed across a wide range of safety-critical industrial sectors where analog signal reliability is non-negotiable:

Petrochemical and Refinery Automation: In continuous process plants, the DSQC1032 supports analog feedback loops for pressure, temperature, and flow control in robotic inspection and valve actuation systems. Signal drift or I/O faults in these environments can trigger emergency shutdowns or, worse, mask developing process hazards. The module’s surge protection is particularly valuable in facilities where lightning-induced transients on field wiring are a recurring maintenance challenge.

Power Generation and Electrical Utilities: Robotic systems in power plant maintenance — including turbine inspection, cable handling, and switchgear assembly — rely on accurate analog I/O for position feedback and load monitoring. The DSQC1032’s compatibility with the IRC5 safety architecture supports the redundant control strategies required in IEC 61511 functional safety applications.

Mining and Mineral Processing: In underground and surface mining operations, control cabinets face extreme dust ingress, vibration from blasting and heavy machinery, and wide temperature swings. The DSQC1032’s robust construction and pre-tested reliability make it a preferred replacement module for robotic drilling, ore handling, and conveyor control systems where sourcing delays directly impact production tonnage.

Water and Wastewater Treatment: Robotic and automated systems in water treatment facilities require continuous analog monitoring of chemical dosing, flow rates, and tank levels. The DSQC1032 supports these applications in humid, chemically aggressive environments where module corrosion and signal degradation are persistent concerns.

Metallurgy and Steel Production: In electric arc furnace operations, continuous casting lines, and rolling mills, the IRC5 platform with DSQC1032 I/O handles high-temperature robotic tasks including ladle handling, billet marking, and surface inspection. The module’s thermal tolerance and EMI resistance are critical in these environments where radiated interference from high-current bus systems is intense.

Port Logistics and Heavy Lifting: Automated crane and gantry systems in port terminals use analog I/O for load cell feedback, wind speed monitoring, and positioning accuracy. The DSQC1032 supports these applications where a single I/O fault can halt container throughput across an entire terminal berth.

Safety and Quality FAQ

Q1: Does the ABB DSQC1032 (3HAC058665-001) come with a support terms?
Yes. Every DSQC1032 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This support terms covers functional defects identified under normal operating conditions consistent with ABB IRC5 installation specifications. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each DSQC1032 undergoes a full functional test prior to dispatch. This includes analog channel signal verification, backplane communication handshake confirmation, surge protection integrity check, and visual inspection for connector and PCB condition. Units that do not pass all test criteria are not shipped — ensuring that every module received is operationally verified.

Q3: Is the DSQC1032 compatible with all IRC5 controller variants?
The DSQC1032 (3HAC058665-001) is designed for the ABB IRC5 controller platform, including the IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller variants. Compatibility with specific robot models and software versions should be confirmed against the ABB IRC5 product manual or by contacting KNMKS technical support with your controller serial number and RobotWare version.

Q4: Can KNMKS support long-term spare parts supply for the DSQC1032?
Yes. KNMKS maintains stock of the DSQC1032 and related IRC5 I/O modules to support planned maintenance programs, emergency replacements, and multi-unit spare parts kits. For facilities managing fleets of IRC5 robots, we offer scheduled supply agreements to ensure critical spare availability without reliance on spot-market sourcing. Contact our team to discuss your long-term spare parts requirements.
