ABB DSQC1007 3HAC13398-2 Spare Part for Factory Uptime

Overview

ABB DSQC1007 3HAC13398-2 Spare Part for Factory Uptime

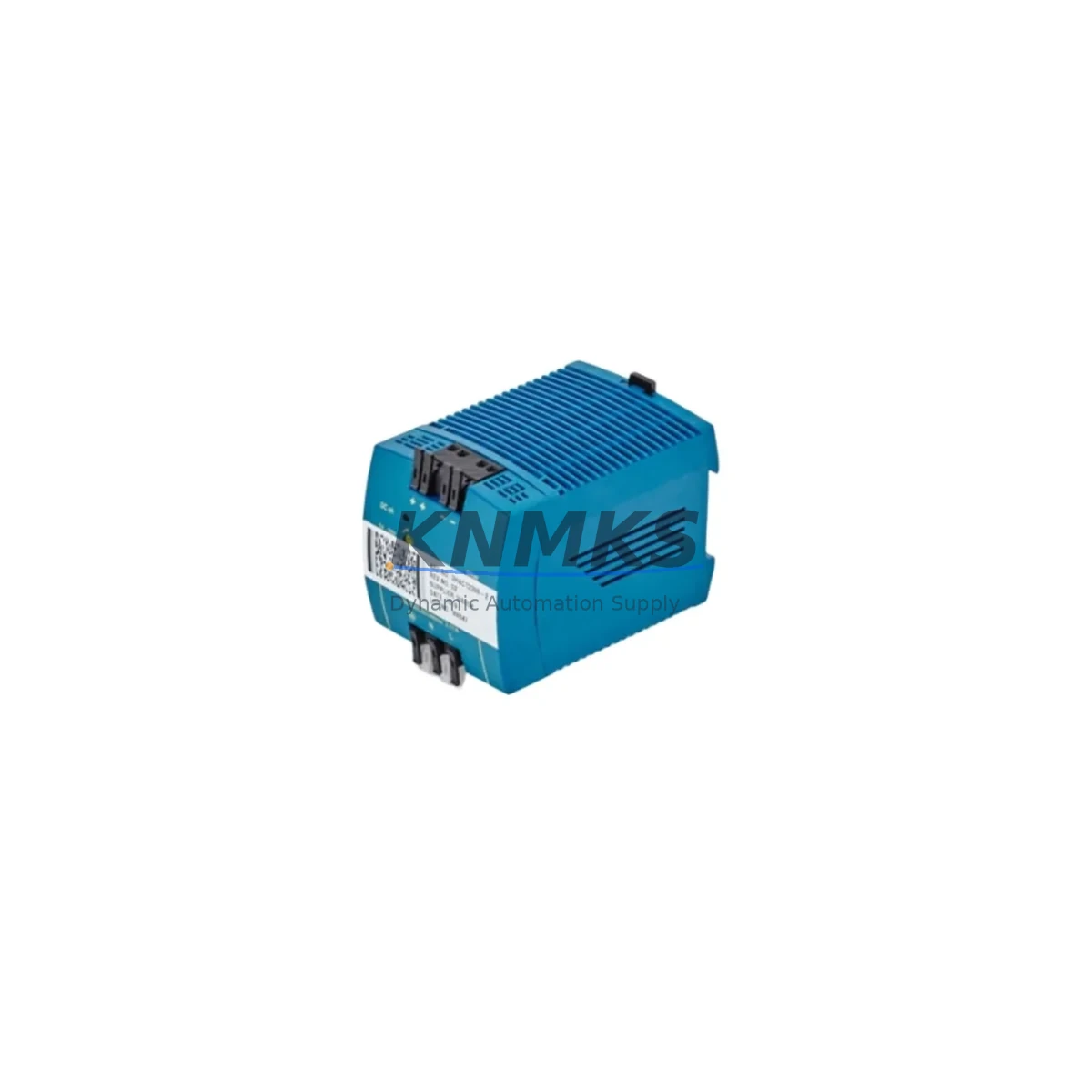

The ABB DSQC1007 (3HAC13398-2) is the original power supply unit designed for the ABB IRC5 robot controller family. In high-throughput manufacturing environments — automotive body shops, arc welding cells, material handling lines, and precision assembly stations — the IRC5 controller is the nerve center of robotic motion. When the DSQC1007 power supply fails, the entire robot axis comes to a halt. Sourcing a verified, pre-tested replacement unit is the fastest path back to production. KNMKS stocks the DSQC1007 3HAC13398-2 as a ready-to-ship spare, fully tested before dispatch and backed by a support terms confirmed by quotation, so your maintenance team can restore uptime with confidence.

Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building a strategic spare parts buffer for a multi-robot cell, the DSQC1007 is a critical line item. Its role in regulating DC bus voltage and supplying stable power to the IRC5 drive modules means that any degradation — capacitor aging, inrush current stress, or thermal cycling fatigue — directly threatens axis availability. Proactive replacement during planned downtime is always preferable to reactive sourcing during a production emergency.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DSQC1007 3HAC13398-2 is rarely an isolated task. A thorough IRC5 cabinet inspection during the same maintenance window significantly reduces the risk of repeat downtime. Maintenance engineers should simultaneously verify the condition of the DSQC663 (3HAC026253-001) axis computer board, which coordinates motion commands and communicates directly with the power supply over the IRC5 backplane. A degraded axis computer can mask or mimic power supply faults, leading to misdiagnosis.

The DSQC609 (3HAC14178-1) I/O unit and DSQC652 (3HAC025917-001) digital I/O board should be inspected for loose terminal connections and signal integrity, particularly in high-vibration welding environments where connector fatigue is common. While the cabinet is open, check the DSQC679 (3HAC026254-001) teach pendant interface unit — a faulty FlexPendant connection can generate spurious error codes that are incorrectly attributed to the power supply.

For cells running DeviceNet or PROFIBUS fieldbus, the DSQC658 (3HAC025784-001) DeviceNet board or equivalent communication module should be seated firmly and its status LEDs verified. Communication faults during power cycling are a common symptom of marginal power supply output. Additionally, inspect the IRC5 main contactor and 24 VDC fuse block — blown fuses or a worn contactor coil can cause the DSQC1007 to appear faulty when the root cause lies upstream in the power distribution circuit.

For facilities managing large IRC5 fleets, consider stocking the DSQC1007 alongside the DSQC663 axis computer and DSQC609 I/O unit as a three-part emergency kit. This approach covers the three most common IRC5 hardware failure modes and enables same-shift restoration without waiting for international freight.

Site Replacement Workflow

Step 1 — Safe Isolation: Place the IRC5 controller in manual mode and execute a controlled stop. Isolate mains power at the cabinet disconnect and verify zero-energy state with a voltage tester before opening the cabinet door.

Step 2 — Fault Logging: Before removing the DSQC1007, record all active error codes from the FlexPendant event log. Cross-reference against ABB fault code documentation to confirm the power supply is the primary fault source, not a downstream drive module or axis computer.

Step 3 — Module Removal: Disconnect the DC bus connectors and signal harness from the DSQC1007. Note the cable routing and connector orientation — incorrect reconnection is a leading cause of post-maintenance faults. Remove the module from its backplane slot using the standard IRC5 extraction procedure.

Step 4 — Replacement Installation: Insert the new DSQC1007 3HAC13398-2 into the backplane slot. Reconnect all harnesses in the documented sequence. Verify that the module firmware revision is compatible with the installed IRC5 system software version (RobotWare). If a firmware update is required, perform it before returning the robot to automatic mode.

Step 5 — Commissioning Check: Restore mains power and observe the DSQC1007 status LEDs during boot. Confirm that all axes initialize without error. Run a slow-speed test cycle before returning the cell to full production speed. Document the replacement in the maintenance log with the new module serial number and installation date.

This workflow applies equally to planned overhauls and emergency replacements. Having a pre-tested DSQC1007 on the shelf reduces the critical path from fault detection to production restoration to under two hours in most IRC5 installations.

Spare Parts Support FAQ

Q1: Is the DSQC1007 3HAC13398-2 compatible with all IRC5 controller variants?
The DSQC1007 is designed for the ABB IRC5 platform and is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted controllers. Compatibility with specific robot models (IRB 1600, IRB 2600, IRB 4600, IRB 6640, and related series) should be verified against the installed RobotWare version and cabinet hardware revision. Contact KNMKS with your controller serial number for confirmation before ordering if you have any uncertainty.

Q2: How is the DSQC1007 tested before shipment?
Every DSQC1007 unit shipped by KNMKS undergoes a functional power-on test to verify output voltage stability and module communication. Units that do not pass the test are not dispatched. This pre-shipment verification is included at no additional cost and is part of our standard quality process for all IRC5 spare parts.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of delivery. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or use outside the specified operating environment. In the event of a support terms claim, KNMKS will arrange replacement or repair. Contact [email protected] with your order reference and a description of the fault.

Q4: Can KNMKS support long-term or recurring supply of the DSQC1007 for multi-site maintenance programs?
Yes. KNMKS supports blanket order arrangements and scheduled replenishment for maintenance teams managing multiple IRC5 installations. If your facility operates a 12-month or 36-month spare parts program, we can reserve stock and provide scheduled delivery to align with your planned maintenance windows. Contact [email protected] or call +86 18359268345 to discuss volume pricing and supply agreements.
