ABB DSDP170 57160001-ADF Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DSDP170 57160001-ADF Maintenance-Proven Spare Part for Factory Uptime

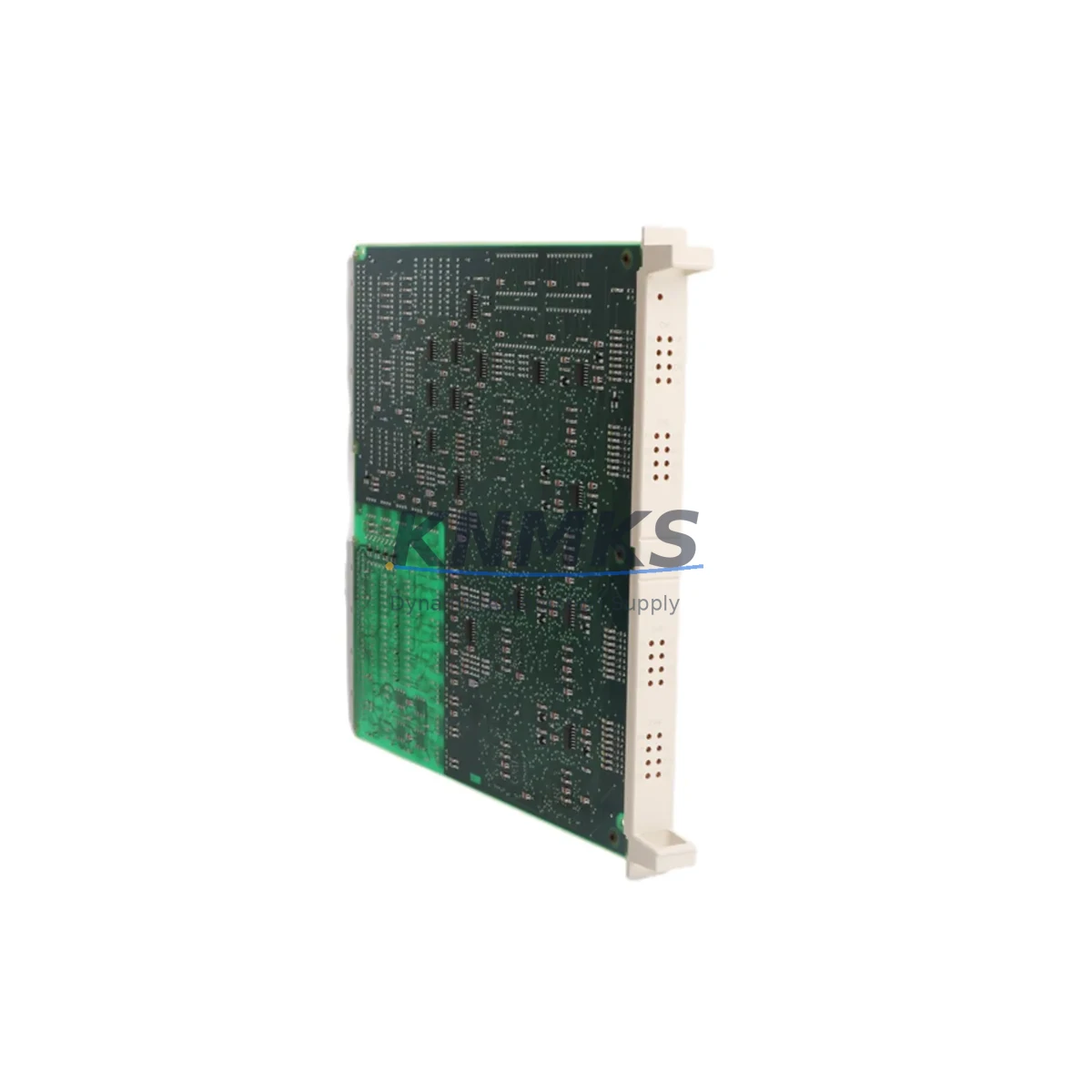

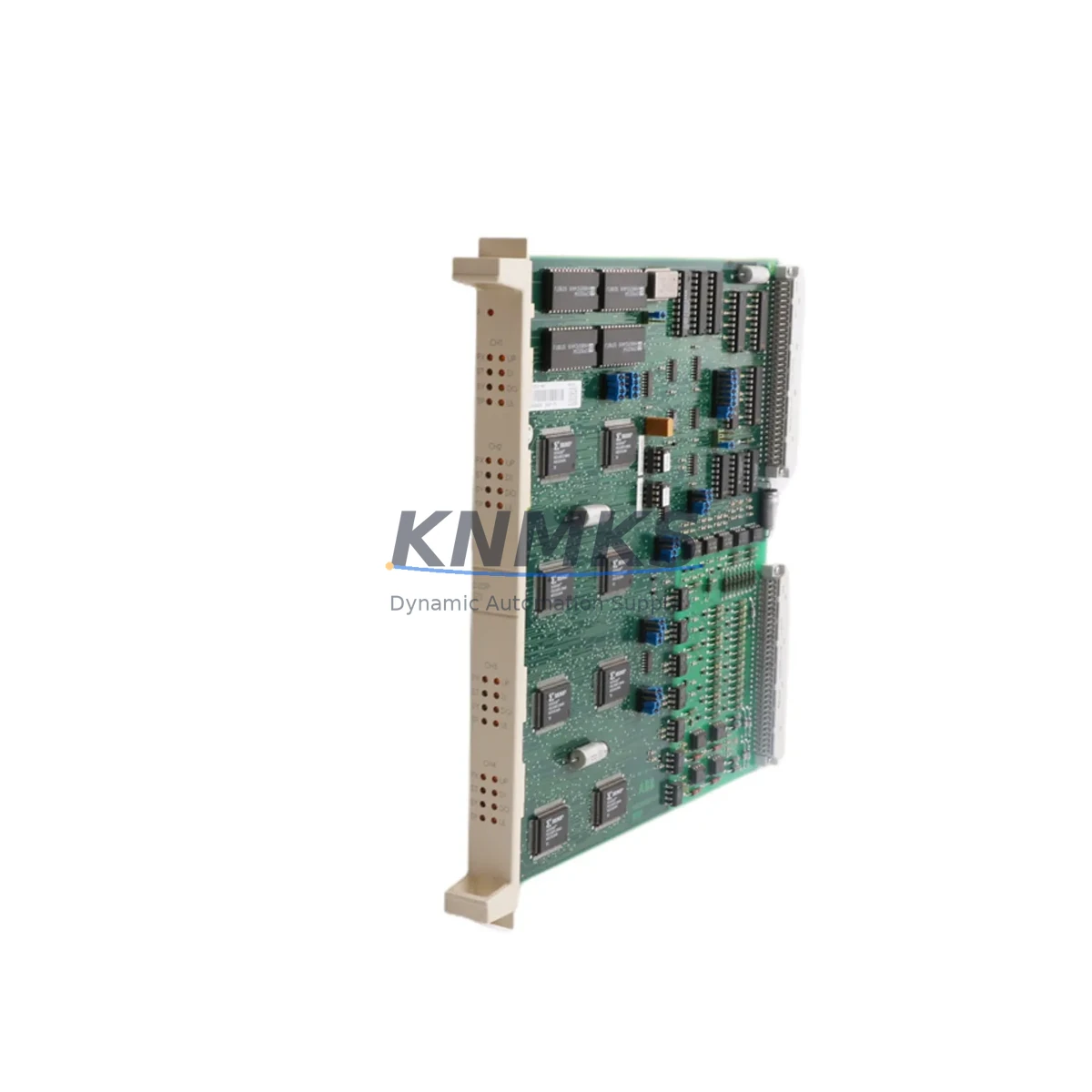

The ABB DSDP170 57160001-ADF is a pulse counter and encoder interface module designed for ABB’s DSCS distributed control system platform. As a critical I/O interface component, it handles high-speed pulse signal acquisition from encoders, flow meters, and position sensors — making it indispensable in continuous process industries including pulp and paper, power generation, chemical processing, and heavy manufacturing. When this module fails or degrades, the consequences are immediate: loss of position feedback, erratic speed control, and unplanned production downtime. Maintaining a verified spare in your parts inventory is the most reliable strategy for rapid recovery.

At KNMKS, every DSDP170 57160001-ADF unit is sourced from original ABB supply channels, individually tested for signal integrity and communication handshake with the DSCS backplane, and shipped with a support terms confirmed by quotation. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford lead-time uncertainty on critical DCS spares.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The DSDP170 57160001-ADF sits at the intersection of motion feedback and process control logic. In a typical DSCS control cabinet, it receives encoder signals from drive systems and transmits counted pulse data to the DCS controller for speed regulation, flow totalization, or position tracking. When planning a replacement or annual inspection, maintenance engineers should treat this module as part of a broader system health review — not an isolated swap.

Begin by verifying the DSCS backplane and subrack for bent connector pins, oxidation, or mechanical damage before inserting the replacement DSDP170. A faulty backplane slot will damage a new module within hours. Next, inspect the DSCS power supply module (such as the DSDP110 or DSDO115 series) to confirm stable 24 VDC rail voltage — encoder interface circuits are sensitive to supply ripple and undervoltage conditions.

Check the field wiring terminal blocks connecting encoder cables to the DSDP170 input terminals. Loose terminations or shielding breaks are a leading cause of intermittent pulse count errors that are often misdiagnosed as module failure. If the encoder itself is a suspect, verify it independently before committing to a module replacement. In systems where the DSDP170 interfaces with variable frequency drives, also inspect the signal isolation barrier or galvanic isolator in the encoder feedback loop — ground loops between the drive cabinet and DCS panel are a known source of noise-induced count errors.

For sites running older DSCS configurations, it is advisable to maintain a paired spare of the DSDP170 alongside the DSDI110 digital input module and DSDO115 digital output module, as these three modules share the same subrack and are often replaced together during major corrective maintenance events. If your system includes a DSDP140 or DSDP150 in adjacent slots, verify that the backplane communication bus is intact after any module swap — a corrupted bus segment can cause false alarms across multiple I/O channels.

For facilities with annual planned shutdowns, we recommend pre-staging a tested DSDP170 spare at least 30 days before the maintenance window. This allows time for procurement verification, incoming inspection, and any compatibility confirmation with your DCS configuration software before the shutdown begins.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the DSDP170 57160001-ADF, record the current module address, slot position, and any active alarm codes in the DCS historian. Take a photograph of the wiring and terminal assignments for reference during reinstallation.

Step 2 — Power down the subrack: Follow your site’s lockout/tagout procedure. For hot-swap capable DSCS racks, confirm with your system documentation whether the DSDP170 supports live insertion — if uncertain, power down the affected subrack to avoid backplane damage.

Step 3 — Remove and inspect: Extract the module using the ejector levers. Inspect the backplane connector for damage. Clean the slot contacts with approved contact cleaner if oxidation is visible.

Step 4 — Insert the replacement DSDP170: Seat the new module firmly until the ejector levers click. Verify the module address switch settings match the original configuration before powering up.

Step 5 — Restore and verify: Power up the subrack and confirm the DCS controller recognizes the module. Clear any residual alarms and verify live pulse count data matches expected encoder output. Run a short functional test before returning the loop to automatic control.

This workflow applies equally to emergency replacements and planned maintenance swaps. Having a pre-tested DSDP170 from KNMKS on hand reduces the total replacement time from hours to under 30 minutes in most site scenarios.

Spare Parts Support FAQ

Q1: Is the DSDP170 57160001-ADF compatible with all DSCS subrack configurations?
The DSDP170 57160001-ADF is designed for ABB DSCS subrack installations. Compatibility depends on the specific DSCS generation and backplane revision at your site. We recommend confirming your subrack model and slot assignment with your DCS documentation before ordering. KNMKS technical support can assist with compatibility verification based on your system configuration details.

Q2: How is each unit tested before shipment?
Every DSDP170 unit shipped by KNMKS undergoes functional verification including backplane connector inspection, signal path continuity check, and communication handshake testing where applicable. Units that do not pass inspection are not shipped. A test report summary is available upon request for critical spare orders.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. In the event of a support terms claim, KNMKS will arrange replacement or repair with priority handling to minimize your downtime exposure.

Q4: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS maintains ongoing inventory of DSCS series modules including the DSDP170 to support customers with multi-site maintenance programs or annual spare parts budgets. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSDP170 57160001-ADF

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSDP170 57160001-ADF
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
