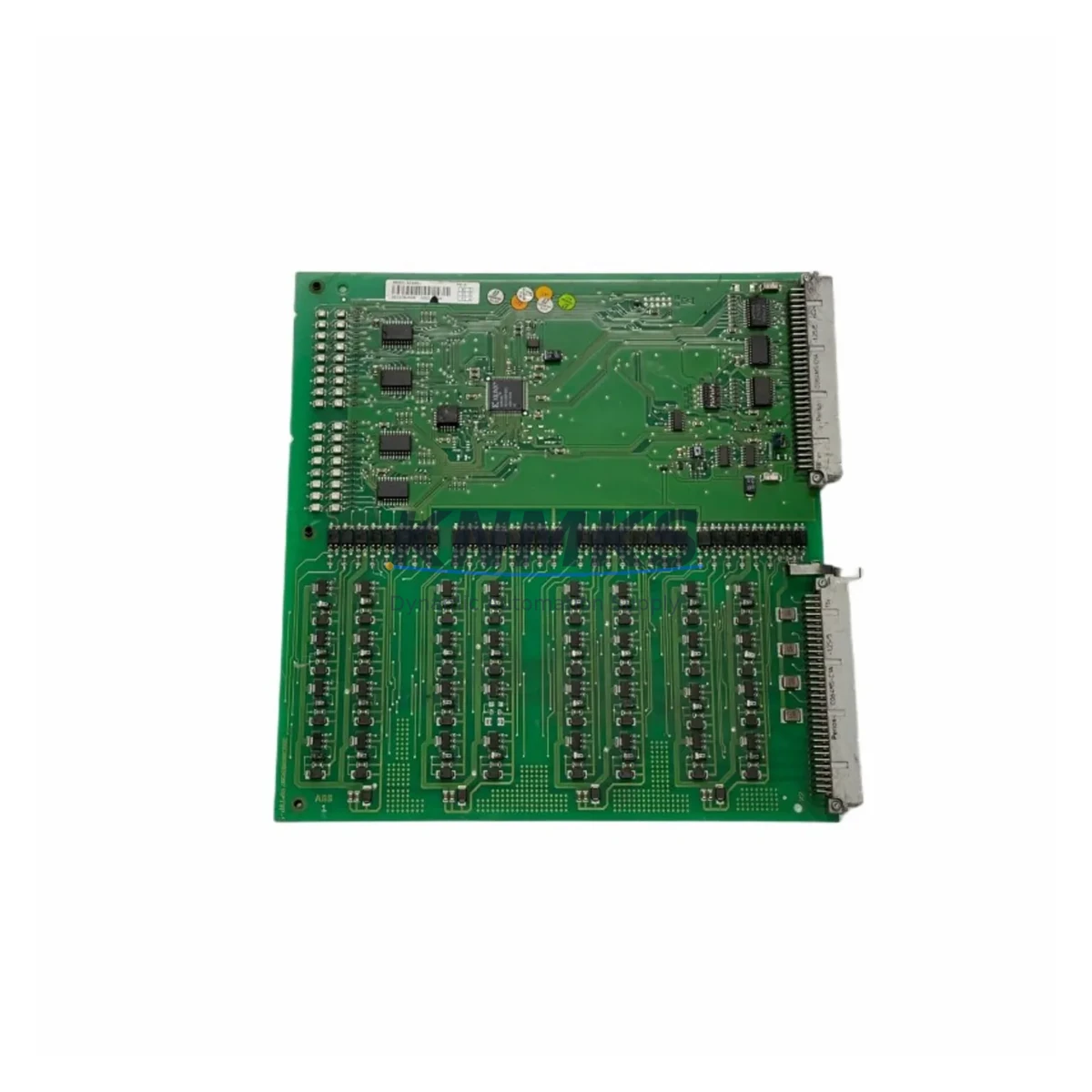

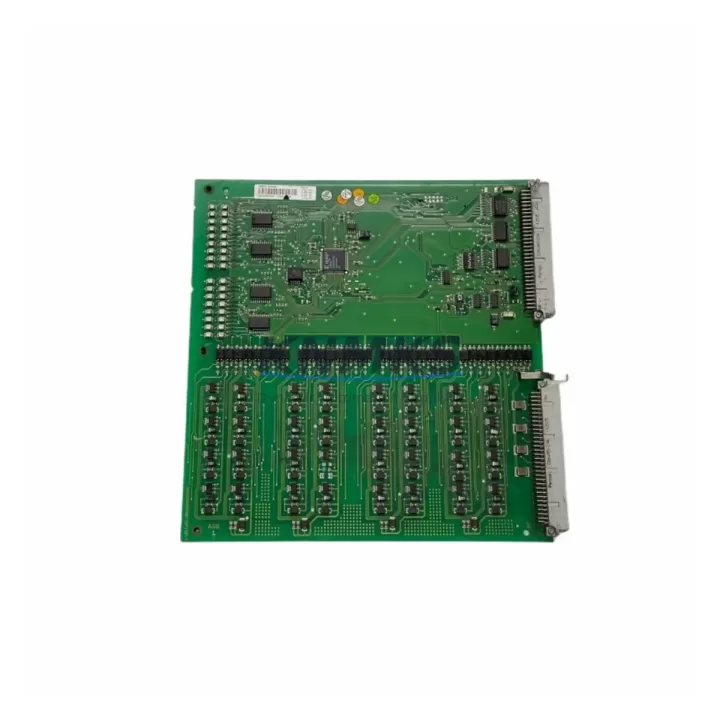

The ABB DSDO115A (part number 3BSE018298R1) is a 16-channel 24 VDC digital output module designed for the ABB AC500 PLC platform and Freelance DCS systems. As a maintenance-proven spare part, it supports continuous factory operation by enabling fast field replacement of failed or degraded output channels without requiring system reconfiguration or firmware changes. Sourced directly from authorized supply chains and subject to pre-shipment functional testing, each unit is backed by a support terms confirmed by quotation to reduce procurement risk and support long-term maintenance planning.

For maintenance engineers managing aging AC500 control cabinets, the DSDO115A is a critical line-item in any spare parts inventory. Output module failures are among the most common causes of unplanned downtime in discrete and process automation environments. Keeping a verified replacement on the shelf — pre-tested and ready to install — directly reduces mean time to repair (MTTR) and protects production continuity. For procurement engineers, long-term supply availability and documented compatibility with both AC500 and Freelance DCS architectures make this module a low-risk, high-value stocking decision.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DSDO115A in an AC500 control cabinet, a thorough site inspection of the surrounding electrical circuit is essential to prevent repeat failures and confirm system integrity. Begin by verifying the 24 VDC field power supply — modules such as the ABB CP-E 24/5.0 or equivalent DIN-rail power supply should be checked for output voltage stability and ripple, as undervoltage conditions are a leading cause of premature output module degradation.

Inspect the terminal unit (TU515 or TU516) for contact wear, corrosion, or mechanical damage before seating the replacement module. Review the field wiring connected to the output terminals: check for short circuits, ground faults, or overloaded channels that may have caused the original failure. If the cabinet includes a DSDI110A or DSDI115A digital input module on the same I/O bus, verify that input signal integrity has not been compromised by the same fault event.

For cabinets running mixed I/O configurations, also inspect any analog output modules (such as the DAAO01 or DAAO161) sharing the same backplane segment, as transient faults on the output bus can affect adjacent modules. Communication modules — including CI590-CS31-HA or CI501-PNIO — should be checked for active fault codes via the AC500 engineering tool (Automation Builder) before returning the system to service. If the system includes a CP600 or CP400 series HMI panel, confirm that the HMI’s I/O mapping for the affected output channels is restored and displaying correctly after module swap.

Fuse protection for the 24 VDC output circuit should be reviewed: replace any blown fuses with correctly rated types and document the event in the maintenance log. Signal isolators or relay output interfaces connected downstream of the DSDO115A should also be tested to confirm they are responding correctly to the restored output signals before resuming automated production sequences.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow site LOTO (Lockout/Tagout) procedures. Remove 24 VDC field power from the terminal unit before extracting the module.

Step 2 — Record configuration: Note the module slot address and any channel-specific configuration parameters in Automation Builder. For Freelance DCS systems, export the current I/O assignment before removal.

Step 3 — Remove the failed module: Disengage the module locking lever and slide the DSDO115A out of the terminal unit. Inspect the terminal unit contacts for damage.

Step 4 — Install the replacement: Seat the new DSDO115A firmly into the terminal unit until the locking lever engages. No firmware download is required — the AC500 CPU automatically recognizes the module type on power-up.

Step 5 — Restore power and verify: Re-energize the 24 VDC supply. Use Automation Builder or the Freelance engineering station to confirm all 16 output channels are active and fault-free. Perform a forced output test on critical channels before releasing the system to production.

Step 6 — Update maintenance records: Log the replacement date, module serial number, and test results. Schedule a follow-up inspection at the next planned maintenance window.

This workflow is compatible with both hot-swap-capable AC500 configurations and standard power-down replacement procedures, minimizing downtime regardless of site safety requirements.

Spare Parts Support FAQ

Q1: Is the DSDO115A 3BSE018298R1 compatible with all AC500 CPU variants?
The DSDO115A is designed for the ABB AC500 S500 I/O system and is compatible with PM5xx series CPUs (including PM554, PM564, PM573, PM583, PM592) as well as Freelance DCS controller stations that use the S500 I/O bus. Compatibility with specific firmware versions should be confirmed via ABB’s Automation Builder software prior to installation.

Q2: What pre-shipment testing is performed on each unit?
Each DSDO115A is subject to functional verification prior to dispatch, including output channel activation testing and backplane interface checks. Units that do not pass functional testing are not shipped. Test records are available upon request for quality-critical procurement.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or field wiring faults. Support requests are processed via direct contact with our sales team.

Q4: Can long-term supply be arranged for ongoing maintenance programs?
Yes. For maintenance programs requiring recurring supply of the DSDO115A or related AC500 I/O modules, long-term supply agreements can be arranged. Contact our team to discuss stocking commitments, lead times, and volume pricing for annual maintenance budgets.
