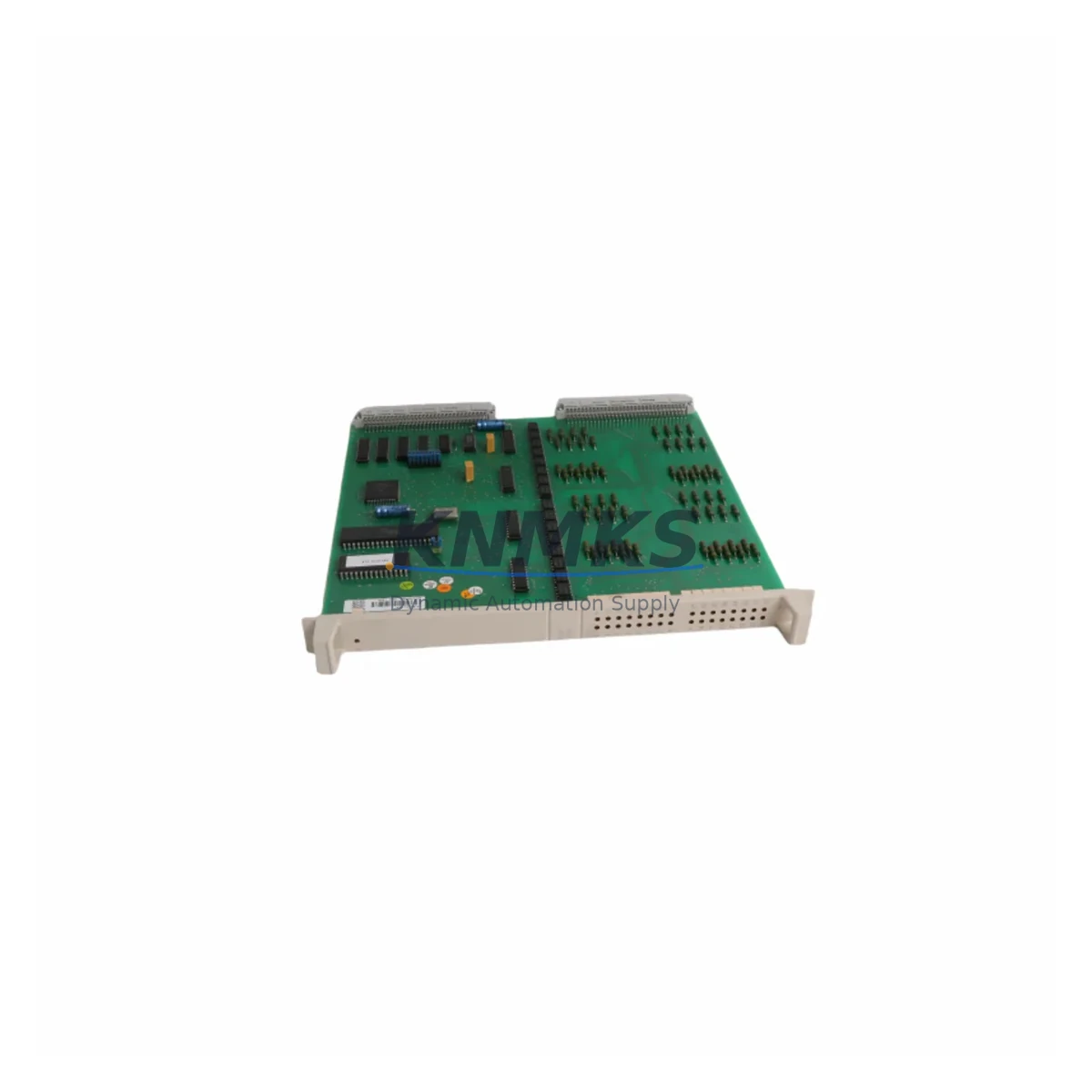

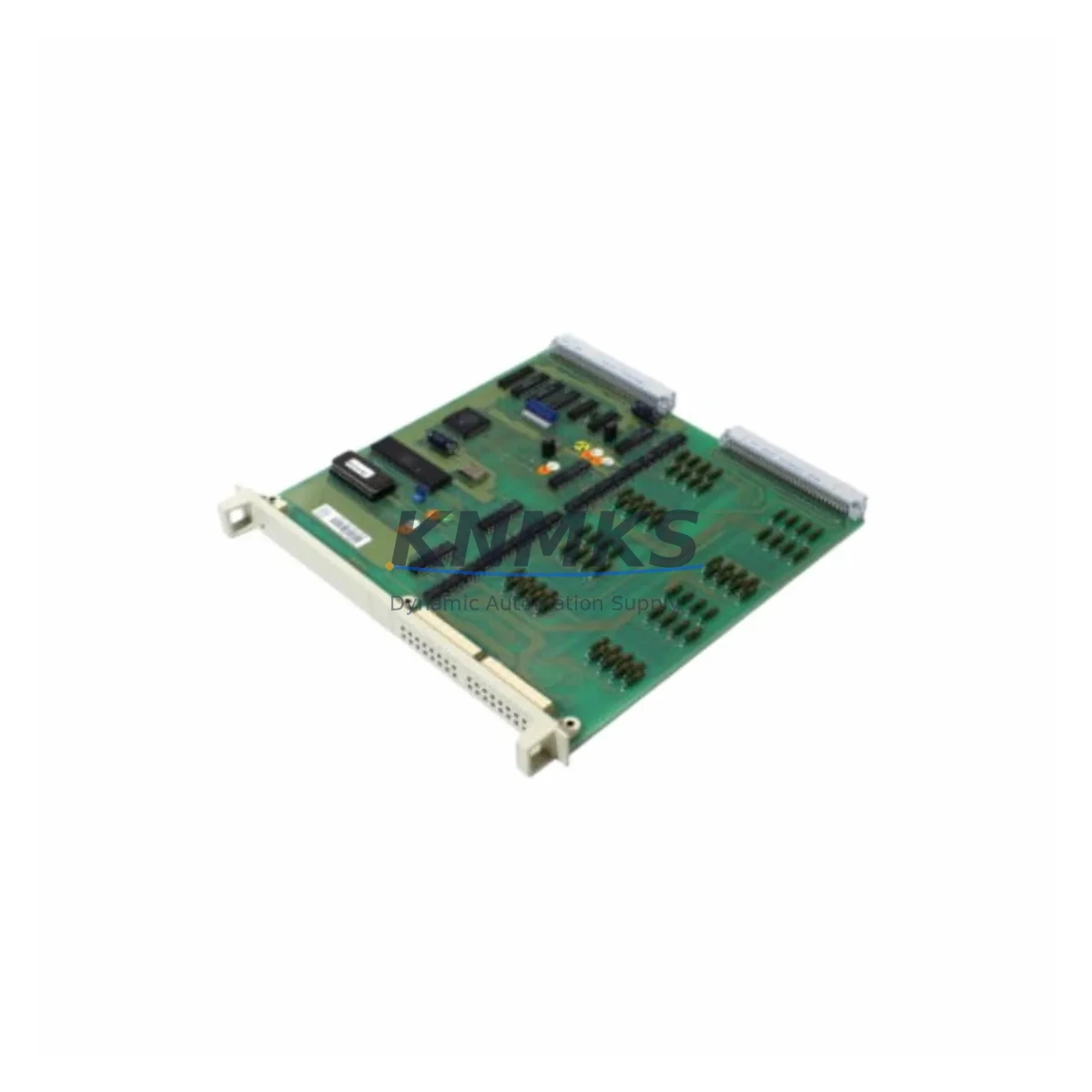

ABB DSDI120A Migration-Ready Digital Input Module

Overview

ABB DSDI120A Migration-Ready Digital Input Module: Legacy AC450 DCS Retrofit & Compatibility Upgrade

The ABB DSDI120A is a 32-channel digital input module engineered for the ABB AC450 Distributed Control System. As legacy AC450 installations approach end-of-support milestones, engineering teams managing scheduled outages, emergency replacements, and phased control system modernization projects increasingly rely on migration-ready spare parts to maintain operational continuity. The DSDI120A provides a verified drop-in replacement path for sites running original AC450 I/O racks, eliminating the need for full platform migration during interim upgrade phases.

Each DSDI120A unit supplied by KNMKS is pre-tested prior to shipment, covering channel-level signal integrity, backplane communication handshake, and firmware version alignment with the target AC450 processor module. This pre-shipment validation process is critical for sites where downtime windows are measured in hours, not days — particularly in power generation, chemical processing, oil & gas, and pulp & paper applications where the AC450 platform remains deeply embedded in control architecture.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful DSDI120A replacement within an operating AC450 system requires a structured pre-outage checklist. Before the maintenance window opens, engineers should pull the existing module’s DIP-switch address configuration and cross-reference it against the AC450 rack layout drawing. The DSDI120A shares the same S100 I/O bus backplane connector as other AC450 I/O modules — including the DSDO110A digital output module and the DSAI130A analog input module — meaning the physical extraction and re-insertion procedure is consistent across the I/O family, reducing technician retraining requirements.

Terminal block wiring is a common source of commissioning delay. The DSDI120A uses a 40-pin field termination unit; confirm that the existing FTU (Field Termination Unit) cable harness is compatible and that no field wiring has been re-routed since the original installation. Where field wiring documentation is incomplete, a channel-by-channel continuity check against the original I/O list is recommended before energizing the replacement module.

For sites planning a broader migration from AC450 to the ABB System 800xA platform, the DSDI120A serves as a bridge component during Phase 1 stabilization — keeping the existing I/O infrastructure operational while the new S800 I/O modules, AC800M controller, and CEX-Bus communication links are staged and tested in parallel. The DSDI120A’s continued operation during this phase protects the original control program logic from premature disruption, allowing engineers to validate the new platform against live process data before cutover.

Power supply capacity is another critical checkpoint. The AC450 rack power supply module — typically a DSQC604 or equivalent — must have sufficient headroom to support the replacement DSDI120A alongside all other installed modules. A rack power audit should be completed as part of the pre-outage planning package, particularly if additional I/O modules or a DSDP170 communication processor have been added to the rack since the original system commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during DSDI120A replacement begins with preparation, not execution. The most effective approach is to complete all pre-work — address documentation, wiring verification, firmware confirmation, and spare module pre-testing — before the maintenance window is opened. KNMKS pre-tests each DSDI120A unit against AC450 backplane communication protocols prior to dispatch, providing a tested-ready module that can be installed and powered up within the maintenance window without requiring bench validation on-site.

During the swap, the AC450 processor should be placed in a controlled hold state using the AC450 Engineering Tool to prevent spurious process alarms from propagating to the DCS operator station. Once the DSDI120A is seated and the FTU cable reconnected, a forced I/O scan from the engineering workstation confirms channel-level signal acquisition before the processor is returned to automatic control mode. This sequence protects the original ladder logic and function block program from unintended state changes during the hardware transition.

For sites using Operate IT or IndustrialIT SCADA layers, a brief HMI screen verification pass — confirming that all 32 input tags are displaying correctly and that no “module fault” alarms are active — completes the commissioning sequence. Total on-site installation time for a prepared team is typically under 30 minutes, making the DSDI120A replacement compatible with short planned outage windows common in continuous process industries.

Retrofit Support FAQ

Q1: Is the DSDI120A a direct replacement for the DSDI110A?
The DSDI120A and DSDI110A share the same AC450 S100 I/O bus interface and physical form factor. However, channel count and input voltage specifications may differ between variants. Always verify the original module’s label and the rack wiring diagram before ordering. KNMKS can assist with cross-reference confirmation based on your existing module part number and rack layout.

Q2: What firmware version is required on the AC450 processor for DSDI120A compatibility?
The DSDI120A is compatible with AC450 CPU firmware version 3.x and above. Firmware version can be confirmed via the AC450 Engineering Tool connected to the processor module. If the processor firmware is below the required version, a firmware update should be completed prior to installing the replacement I/O module to avoid communication initialization errors.

Q3: Does KNMKS provide a pre-shipment test report for the DSDI120A?
Yes. Each DSDI120A unit undergoes pre-shipment functional testing covering backplane communication, channel-level signal integrity, and DIP-switch address verification. A test report is available on request and can be included with the shipment documentation. All units are covered by a support terms confirmed by quotation from the date of dispatch.

Q4: What is the typical lead time and can KNMKS support emergency replacement orders?
KNMKS maintains multi-region stock of the DSDI120A to support both scheduled maintenance and emergency replacement scenarios. Standard orders are dispatched within 1–3 business days. Emergency dispatch with expedited freight is available — contact the sales team directly to confirm current stock availability and shipping options for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSDI120A

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSDI120A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
