ABB DSDI110AV1 Fail-Safe Digital Input for Industrial Reliability

Overview

ABB DSDI110AV1 Fail-Safe Digital Input for Industrial Reliability

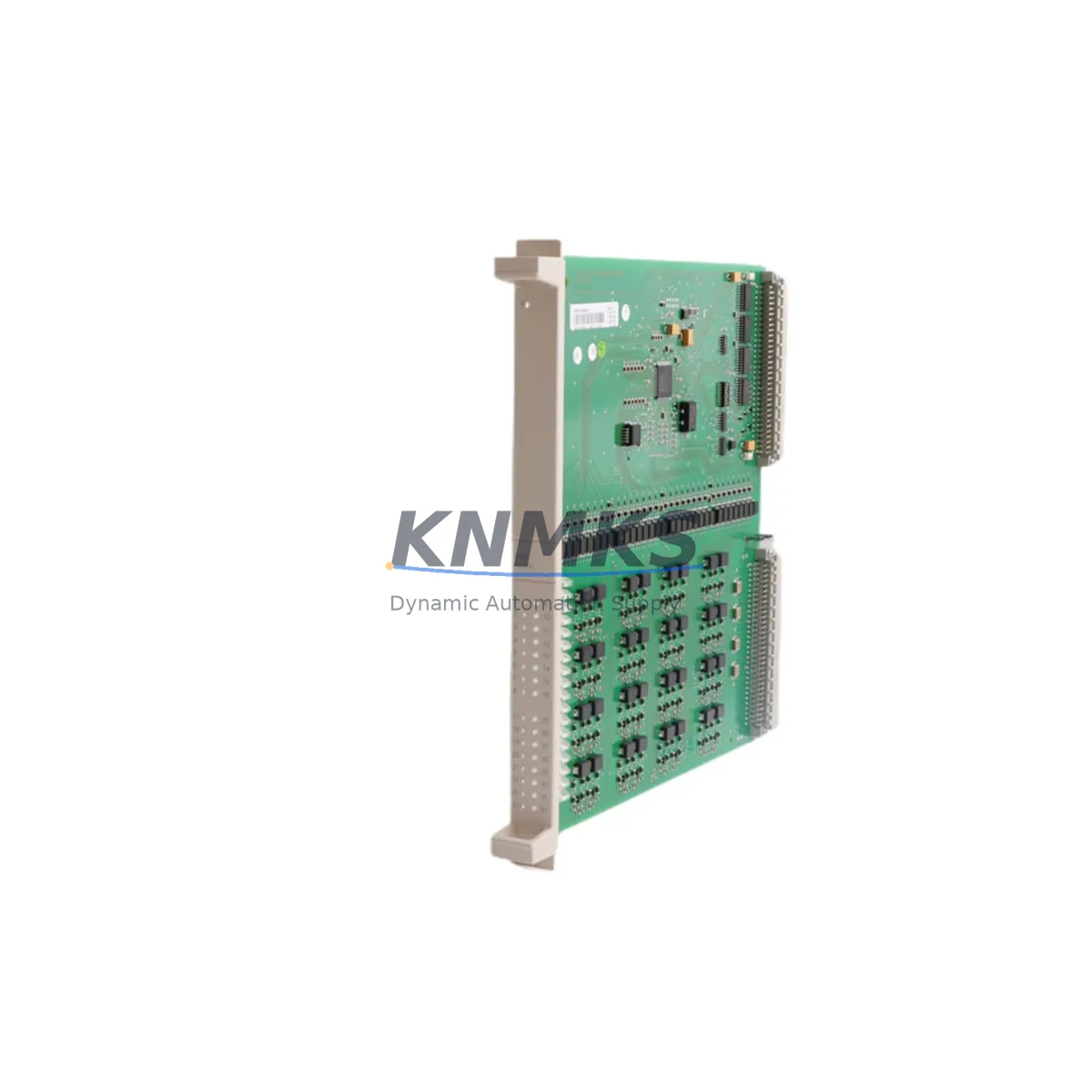

The ABB DSDI110AV1 (3BSE018295R1) is a safety-grade digital input module engineered for the AC500-S Safety PLC platform. Designed to meet the rigorous demands of continuous production environments, critical interlock circuits, and hazardous industrial sites, this module delivers fail-safe signal acquisition with certified reliability. Whether deployed in high-EMI switchgear rooms, dusty mining galleries, humid coastal substations, or high-temperature process control cabinets, the DSDI110AV1 maintains signal integrity and prevents unplanned shutdowns caused by input faults, signal drift, or communication anomalies.

In safety-critical applications where a single missed input signal can trigger cascading failures — from emergency shutdown system (ESD) misoperation to conveyor interlock bypass — the DSDI110AV1 provides the diagnostic coverage and redundancy architecture required by IEC 61508 and IEC 62061. Its dual-channel input design supports SIL 2 and SIL 3 safety functions, ensuring that field sensor states are accurately captured and transmitted to the AC500-S CPU without latency or data corruption, even under severe electrical noise conditions.

For control cabinet integrators and plant maintenance engineers, the DSDI110AV1 reduces commissioning risk through its plug-and-play compatibility with the AC500-S backplane and its self-diagnostic routines that continuously monitor input channel health, wiring faults, and short-circuit conditions. This eliminates the need for manual loop checks during scheduled maintenance windows and dramatically reduces mean time to repair (MTTR) when a field device fault occurs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust safety control cabinet built around the DSDI110AV1 requires a coordinated architecture of complementary modules. The ABB AC500-S PM573-ETH Safety CPU serves as the central processing unit, executing the safety application logic and communicating with the DSDI110AV1 over the high-speed internal bus. For digital output control — such as driving safety relays, solenoid valves, or motor contactors — the ABB DSDO110AV1 Fail-Safe Digital Output Module pairs directly with the DSDI110AV1 to form a complete safety I/O layer.

Power supply stability is critical in safety systems. The ABB CP-E 24/10.0 24 V DC Power Supply provides regulated, low-ripple power to the AC500-S rack, protecting the DSDI110AV1 from voltage sags and transient surges common in heavy industrial environments. For installations near variable-frequency drives (VFDs), arc furnaces, or large motor starters, adding an ABB OPIA01 Optical Fiber Communication Module eliminates ground-loop interference on the communication backbone, preserving data integrity between the safety CPU and remote I/O stations.

In cabinets where thermal management is a concern — particularly in foundry, cement, or offshore applications — the ABB TB521-ETH Terminal Base facilitates hot-swap module replacement without de-energizing the rack, minimizing exposure time during maintenance. For process plants requiring PROFIBUS or PROFINET integration between the AC500-S safety layer and a supervisory DCS, the ABB CI590-CS31-HA Communication Interface Module bridges the safety PLC to the plant-wide control network without compromising the safety partition.

Critical Industrial Safety Applications

Petrochemical & Refinery: The DSDI110AV1 is deployed in emergency shutdown systems (ESD) and burner management systems (BMS) where SIL 2/3-rated input acquisition from flame detectors, pressure switches, and gas sensors is mandatory. Its high diagnostic coverage prevents spurious trips caused by wiring faults while ensuring genuine hazard signals are never missed.

Electric Power Generation & Transmission: In turbine protection panels and substation automation cabinets, the module captures status signals from protection relays, circuit breakers, and transformer temperature sensors. Its EMI immunity ensures reliable operation adjacent to high-voltage busbars and switching equipment.

Mining & Mineral Processing: Conveyor interlock systems, crusher protection circuits, and ventilation safety loops in underground and open-pit mines rely on fail-safe digital inputs to prevent equipment damage and personnel injury. The DSDI110AV1 withstands the vibration, dust ingress, and humidity fluctuations typical of mining environments.

Water & Wastewater Treatment: Pump station protection, chemical dosing interlock, and overflow prevention systems benefit from the module’s ability to detect sensor faults in real time, preventing both under-dosing and catastrophic overflow events in municipal and industrial water facilities.

Metallurgy & Steel: In continuous casting lines and rolling mill control systems, the DSDI110AV1 monitors position sensors, hydraulic pressure switches, and cooling water flow switches. Its tolerance for high ambient temperatures and electromagnetic interference from induction furnaces makes it a preferred choice for harsh metallurgical environments.

Port & Marine: Ship-to-shore crane safety interlocks, ballast control systems, and cargo handling automation require certified safety I/O that can operate reliably in salt-air, high-humidity, and vibration-intensive conditions — all environments where the DSDI110AV1 has demonstrated long-term field reliability.

Safety and Quality FAQ

Q1: What support terms does the DSDI110AV1 carry?
Every DSDI110AV1 unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing prior to shipment to verify input channel integrity, communication bus response, and diagnostic self-test routines.

Q2: Is this module compatible with existing AC500-S safety PLC racks?
Yes. The DSDI110AV1 is fully compatible with the ABB AC500-S Safety PLC platform and installs directly onto standard AC500-S terminal bases. No firmware modification is required for integration with existing AC500-S CPU versions that support the DSDI110AV1 hardware revision.

Q3: How does KNMKS ensure long-term supply availability for this safety-critical component?
KNMKS maintains dedicated inventory of ABB AC500-S safety I/O modules, including the DSDI110AV1, to support both planned maintenance schedules and emergency replacement requirements. Our procurement network ensures continuity of supply even for modules that have reached end-of-standard-production, with lead times communicated transparently at the time of inquiry.

Q4: Can the DSDI110AV1 be used as a direct replacement for a failed module in a live safety system?
The DSDI110AV1 supports hot-swap replacement when used with compatible ABB terminal bases, allowing module exchange without full system de-energization in supported configurations. Prior to installation, KNMKS recommends verifying the replacement module’s hardware revision against the existing system configuration and consulting the AC500-S system manual for safety validation requirements applicable to your site’s functional safety management plan.
