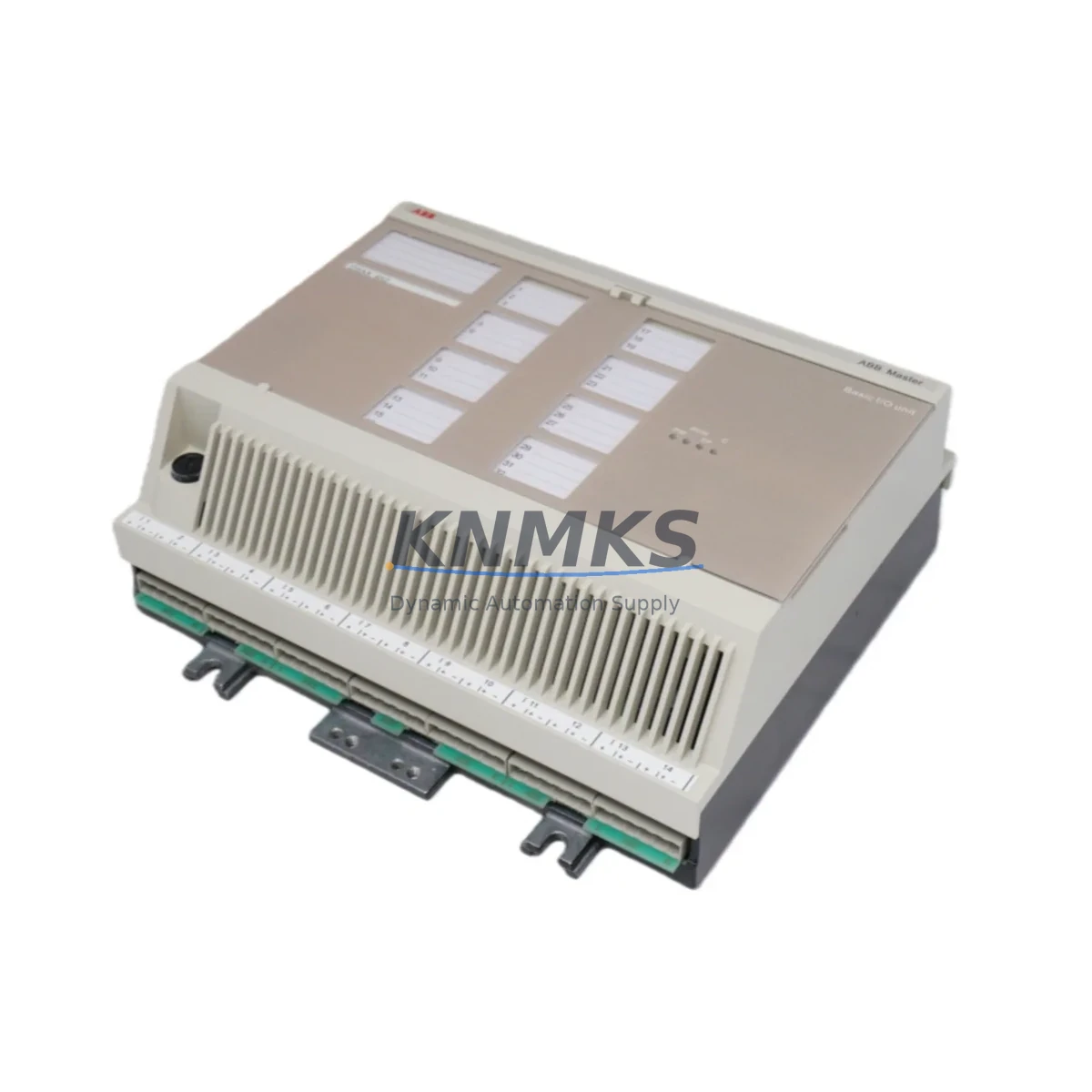

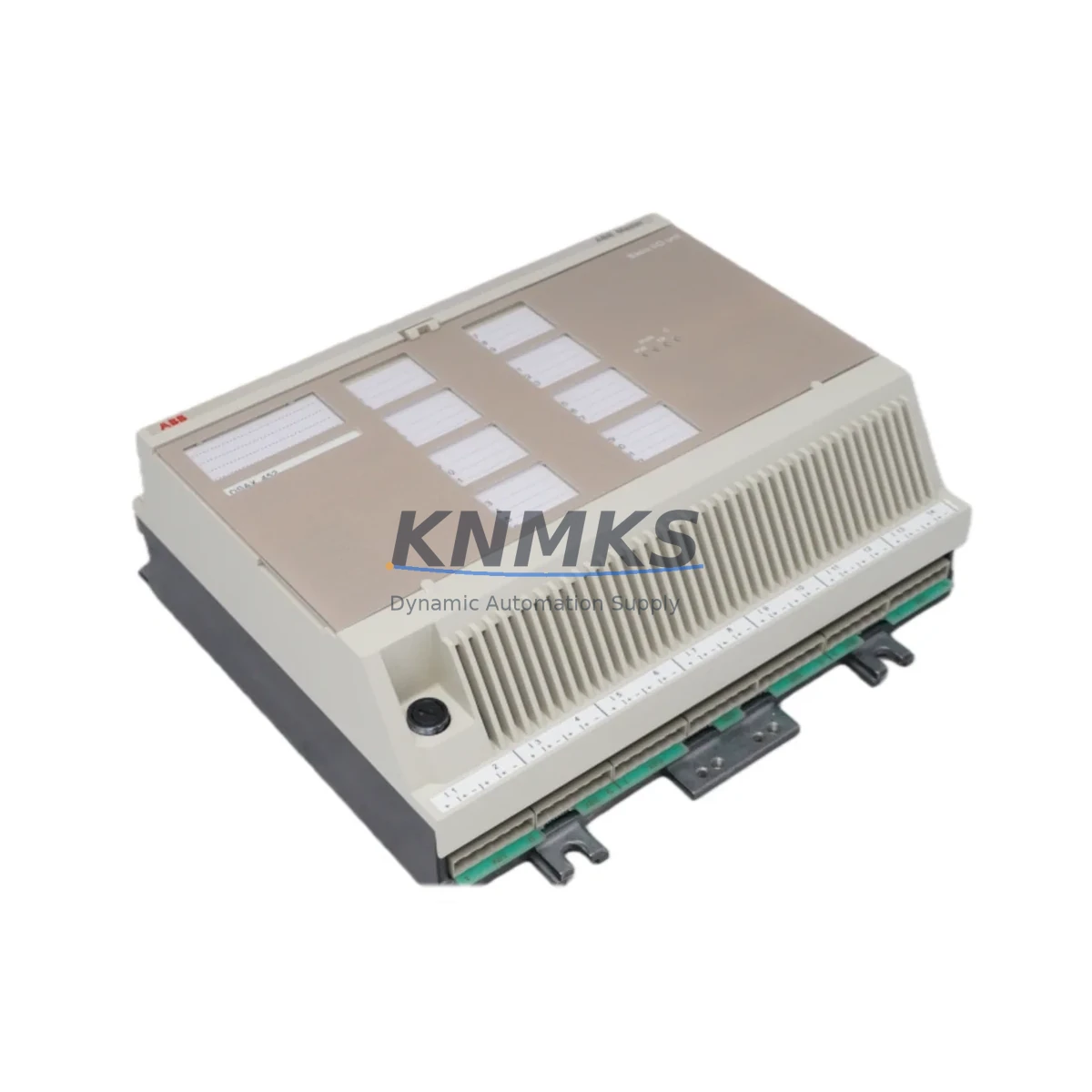

ABB DSAX452 5712289-A Migration-Ready Analog I/O Module

Overview

ABB DSAX452 5712289-A Migration-Ready Analog I/O Module: Legacy System Retrofit and Compatible Upgrade

The ABB DSAX452 5712289-A is a proven analog input/output module designed for the Advant MOD 300 Distributed Control System platform. As legacy MOD 300 installations approach end-of-support milestones and original spare parts become increasingly scarce, the DSAX452 5712289-A remains one of the most reliable drop-in replacement options available for engineers managing aging control infrastructure in energy, petrochemical, pulp and paper, and continuous process manufacturing environments.

This module supports direct substitution for failed or end-of-life DSAX452 units without requiring changes to the existing backplane wiring, terminal block layout, or controller address configuration. Engineers undertaking a control cabinet upgrade or partial DCS migration can integrate the DSAX452 5712289-A into an existing MOD 300 rack without modifying the Advant Controller 450 or AC 410 program logic, provided the firmware revision of the replacement module is compatible with the installed base software version. Verification of the firmware revision label on the module faceplate against the site’s MOD 300 system documentation is a mandatory pre-installation step.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSAX452 5712289-A retrofit begins well before the module arrives on site. The first step is a full audit of the existing MOD 300 rack configuration, including the number of occupied slots, the installed DSDP140 digital I/O modules sharing the same rack, and the load on the DSPU110 power supply unit feeding the backplane. If the rack is operating near its rated current capacity, adding or replacing a module without first verifying the power budget can cause intermittent faults across adjacent I/O channels.

Terminal block wiring should be documented with photographs before any module is removed. The DSAX452 uses a standard MOD 300 terminal unit, and field cables connected to the DSTC110 termination unit must be labeled and verified against the loop drawing before the replacement module is seated. In installations where the DSAX452 interfaces with a DSMB175 communication module or a DSCS140 serial communication board, the communication link status should be confirmed in the Advant Station 500 operator interface before and after the swap to ensure no address conflicts have been introduced.

For sites running parallel migration projects — for example, transitioning selected control loops from MOD 300 to an 800xA System 800xA environment — the DSAX452 5712289-A can continue to serve as the field I/O interface during the transition period, allowing engineers to migrate HMI graphics and control logic incrementally without forcing a full cutover. This phased approach significantly reduces the risk of unplanned process interruptions and allows the commissioning team to validate each migrated loop individually before decommissioning the legacy MOD 300 segment.

Where signal isolation is required between the field device and the DCS input channel — particularly in high-noise environments such as motor control centers or variable frequency drive cabinets — a signal isolator or signal conditioner should be installed in the field cable loop. This is especially important when replacing a module that previously included built-in isolation circuitry, as the DSAX452 5712289-A’s isolation specifications should be confirmed against the site’s electrical classification requirements.

Downtime Control During System Migration

Minimizing process downtime during a DSAX452 replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the engineering team should export the current MOD 300 controller configuration using the Advant Builder programming tool and store a verified backup on a separate offline medium. This backup preserves all function block parameters, analog scaling values, alarm setpoints, and I/O channel assignments associated with the DSAX452 module being replaced.

Where the process permits, individual analog loops connected to the DSAX452 should be placed in manual control mode at the Advant Station 500 operator station before the module is removed. This prevents the controller from generating spurious output commands to final control elements — such as control valves or variable speed drives — during the period when the I/O channel is offline. For critical loops where manual mode is not operationally acceptable, a field operator should be stationed at the final control element to maintain manual control locally during the swap.

The physical replacement of the DSAX452 5712289-A is a hot-swap-capable operation on most MOD 300 rack configurations, but this capability depends on the rack firmware version and the controller’s I/O redundancy configuration. Sites with non-redundant I/O should treat the replacement as a cold-swap and schedule it within a planned maintenance outage. After the new module is seated and the rack has completed its self-test sequence, each analog channel should be verified by injecting a known signal at the field terminal and confirming the correct engineering unit value at the operator station. This loop check procedure, documented against the site’s instrument index, provides the commissioning record required for post-maintenance sign-off.

Retrofit Support FAQ

Q: Is the ABB DSAX452 5712289-A a direct replacement for all DSAX452 variants?
A: The DSAX452 5712289-A is the primary catalog variant for the MOD 300 analog I/O module. It is compatible with standard MOD 300 rack slots and uses the same terminal unit interface as earlier DSAX452 builds. However, sites should confirm the hardware revision and firmware version of the installed unit against the replacement module before committing to a swap, as minor hardware revisions may affect calibration or channel configuration procedures.

Q: What commissioning steps are required after installation?
A: After seating the module and restoring power to the rack, perform a full loop check on all analog channels assigned to the DSAX452. Inject a 4–20 mA signal at each field terminal and verify the corresponding process variable reading at the Advant Station 500. Confirm alarm setpoints and scaling parameters match the pre-outage backup. Document all loop check results in the site’s maintenance management system before returning loops to automatic control.

Q: Can the DSAX452 5712289-A be used in a mixed MOD 300 / 800xA migration environment?
A: Yes. During a phased migration from MOD 300 to System 800xA, the DSAX452 5712289-A can continue to operate as the field I/O interface for loops that have not yet been migrated. The module communicates via the AF 100 fieldbus, which is supported by the MOD 300 controller during the transition period. Migrated loops can be progressively handed over to the 800xA I/O infrastructure without requiring the DSAX452 to be removed until the MOD 300 segment is fully decommissioned.

Q: What does the support terms confirmed by quotation cover, and what is the lead time for in-stock units?
A: The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. Units are tested prior to dispatch and shipped with a test report. In-stock units are typically dispatched within 1–3 business days. For urgent requirements, expedited shipping options are available. Contact admin@knmks.com or call +86 18359268345 to confirm current stock availability and lead time.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSAX452-5712289-A

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSAX452-5712289-A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
