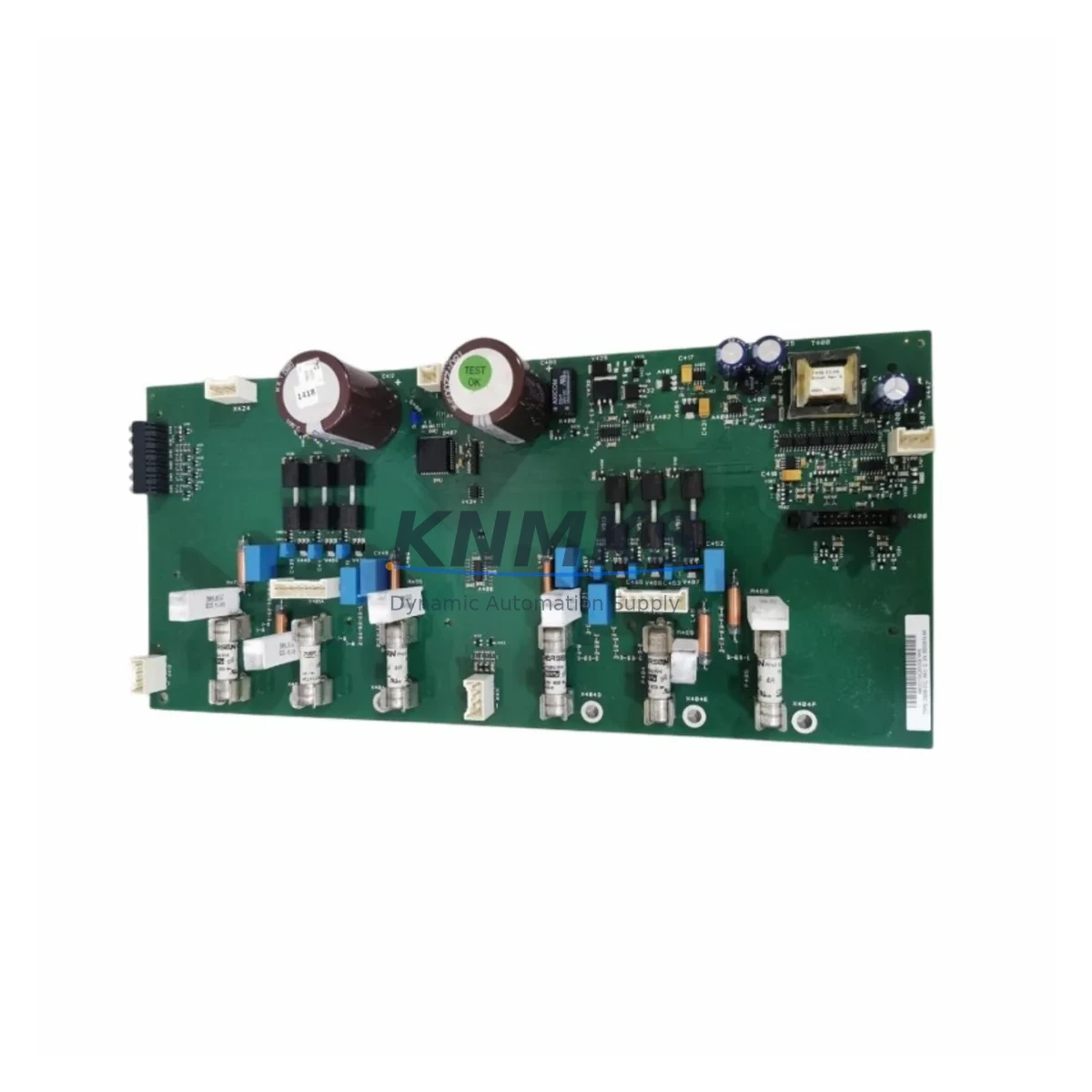

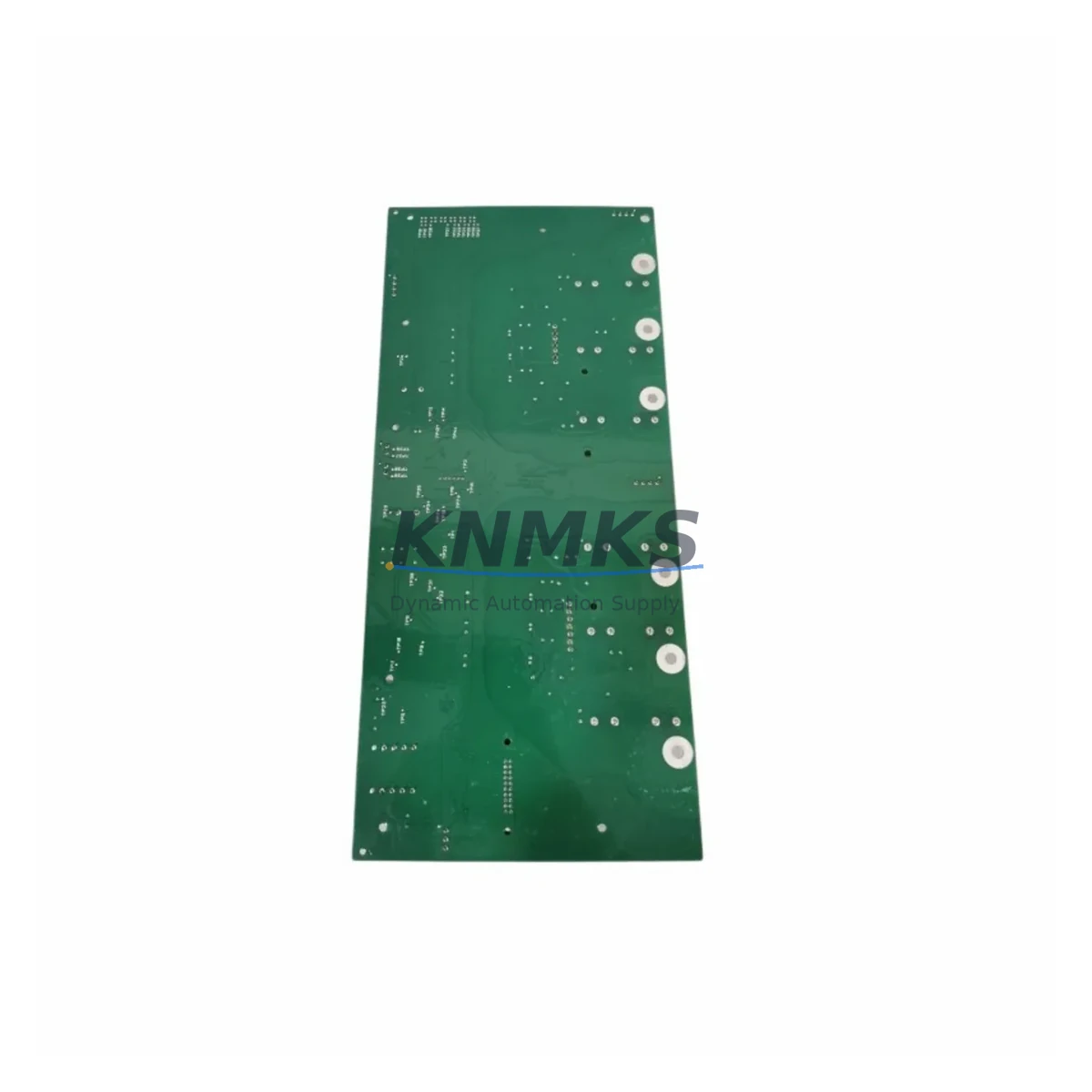

ABB DSAB-01C 64630199 Migration-Ready DC Drive Firing Card

Overview

ABB DSAB-01C 64630199 Migration-Ready DC Drive Firing Card for Legacy Control Systems

The ABB DSAB-01C (part number 64630199) is a thyristor firing card designed for use in ABB DCS series DC drive systems, including the DCS400 and DCS500 platforms. As legacy DC drive installations approach end-of-life or face discontinued spare parts availability, the DSAB-01C remains one of the most sought-after retrofit components for engineers tasked with extending the operational life of existing motor control infrastructure. Whether you are replacing a failed firing board in a running production line or pre-stocking critical spares for a planned maintenance window, this module provides a verified drop-in solution that minimizes engineering rework and commissioning time.

The DSAB-01C interfaces directly with the main thyristor bridge assembly within the DCS drive cabinet. Its primary function is to generate precisely timed gate pulses to the SCR (silicon-controlled rectifier) stack, controlling armature current and therefore motor speed and torque. When this card fails, the drive typically trips on a firing fault or phase loss alarm, bringing the motor to an uncontrolled stop. Having a pre-tested replacement on hand — or sourcing one from a supplier with documented outgoing test records — is essential for minimizing unplanned downtime in continuous process industries such as paper mills, steel rolling lines, extruder drives, and crane hoist systems.

Before installing the DSAB-01C as a replacement, engineers should verify several key parameters. First, confirm the DC bus voltage rating and armature current range of the existing drive matches the replacement card’s specification. Second, inspect the terminal block wiring layout on the existing card against the replacement to ensure pin-for-pin compatibility — particularly the synchronization voltage inputs (typically derived from the AC supply transformer secondary), the gate pulse output connectors to the thyristor stack, and the feedback signal lines returning to the main control board such as the SDCS-CON-4 or SDCS-CON-2 controller card. Third, check the firmware version on the drive’s main controller, as certain DSAB-01C hardware revisions are paired with specific SDCS-CON firmware releases; mismatches can cause erratic firing behavior or persistent fault codes.

In retrofit scenarios where the original DCS500 or DCS400 drive is being partially modernized — for example, replacing the control electronics while retaining the existing power stack and motor — the DSAB-01C is often installed alongside updated SDCS-PIN-51 pulse transformer boards and SDCS-POW-4 power supply modules. These components share the same backplane architecture and must be confirmed compatible before commissioning. If the retrofit also involves upgrading the HMI from a legacy panel to a modern touchscreen interface, verify that the drive’s serial communication link (typically DDCS fiber optic or RS-485 Modbus) is correctly mapped in the new HMI tag database before the first live run.

For installations involving I/O expansion — such as adding external speed reference inputs, torque limit signals, or digital status outputs to a SCADA system — the DSAB-01C retrofit is typically accompanied by reconfiguration of the SDCS-IOB-3 I/O extension board. Ensure that analog input scaling and digital output logic are re-validated after card replacement, as factory default parameters may not match the site-specific tuning stored in the original drive’s non-volatile memory. Always back up the drive parameter set using DriveWindow or a compatible parameter upload tool before removing the old firing card.

Installation space should be confirmed before ordering. The DSAB-01C occupies a dedicated slot within the DCS drive’s internal card cage. Verify that the replacement card’s PCB dimensions and connector positions match the original, particularly if the drive has been subject to any field modifications. Mounting hardware, standoffs, and ribbon cable assemblies should be inspected and replaced if signs of heat stress or corrosion are present.

All units supplied by KNMKS are subject to a documented outgoing functional test procedure that verifies gate pulse timing, synchronization signal integrity, and thermal performance under load simulation. Each unit ships with a test report and is covered by a support terms confirmed by quotation from the date of shipment. Stock is maintained to support urgent breakdown orders with same-day or next-business-day dispatch capability.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSAB-01C retrofit begins well before the replacement card arrives on site. Start by auditing the full drive cabinet: inspect the SDCS-POW-4 power supply module for capacitor aging and output voltage drift, as a degraded power supply is a common secondary cause of firing card failures. If the SDCS-POW-4 shows signs of wear, replace it concurrently to avoid a repeat failure within weeks of the firing card swap.

Next, review the SDCS-PIN-51 pulse transformer board, which sits between the DSAB-01C and the physical thyristor stack. Pulse transformer degradation can cause asymmetric firing angles even with a new firing card installed, leading to DC ripple, motor heating, and persistent current imbalance alarms. Replacing the SDCS-PIN-51 as a precautionary measure during a planned outage is strongly recommended for drives with more than ten years of continuous service.

If the retrofit scope includes upgrading the operator interface, verify that the SDCS-IOB-3 I/O extension board’s analog and digital channel assignments are documented before any wiring changes are made. In multi-drive systems — for example, a coordinated winder or draw roll line — the master/follower speed reference chain must be re-validated after any card replacement to prevent speed mismatch faults at startup. The DDCS fiber optic communication links between drives and the master controller should be inspected for connector cleanliness and signal level before the first test run.

For sites using a legacy programming cable (such as the NPBA-12 or NMBP-01 adapter) to connect a laptop running DriveWindow to the drive’s panel bus port, confirm that the cable and software version are compatible with the drive’s firmware before attempting a parameter upload or download. Corrupted parameter transfers are a leading cause of extended commissioning delays during retrofit projects.

Downtime Control During System Migration

Minimizing downtime during a DSAB-01C replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, upload and archive the complete drive parameter set — including all application macros, speed controller tuning values, and I/O function assignments — to a secure location. Label all wiring at the terminal blocks before disconnection, using the original wiring diagram as a reference. Photograph the existing card installation, connector positions, and any field-modified wiring before removal.

During the swap, handle the DSAB-01C with appropriate ESD precautions. Seat the replacement card firmly in the card cage slot and verify that all ribbon cable connectors are fully engaged before applying power. On first power-up, do not run the motor immediately — instead, navigate to the drive’s diagnostic menu and verify that the synchronization signal is detected and that no firing fault codes are active. Restore the archived parameter set before initiating any motor rotation.

For continuous process lines where even a brief unplanned stop carries significant production cost, consider maintaining a pre-tested DSAB-01C as a dedicated cold standby spare. KNMKS can supply pre-tested units with accompanying test documentation, allowing your maintenance team to execute a swap in under 30 minutes with confidence in the replacement unit’s functionality. This approach effectively converts an unplanned breakdown event into a planned maintenance action, protecting both production continuity and original program logic integrity.

Retrofit Support FAQ

Q1: Is the DSAB-01C 64630199 a direct replacement for the original ABB firing card in my DCS500 drive?
A: Yes, the DSAB-01C 64630199 is the correct firing card for ABB DCS400 and DCS500 series drives. Before installation, verify the hardware revision of your existing card and confirm firmware compatibility with your SDCS-CON controller card. No mechanical modifications are required for a standard slot replacement.

Q2: What commissioning steps are required after replacing the DSAB-01C?
A: After physical installation, restore the backed-up parameter set via DriveWindow or the drive’s keypad. Verify synchronization signal detection in the drive diagnostics, clear any latched fault codes, and perform a no-load test run before returning the drive to full production load. Check firing symmetry by monitoring armature current ripple during the test run.

Q3: How do I confirm wiring compatibility between the old and new firing cards?
A: Compare the terminal block layout and ribbon cable connector positions on the replacement card against the original using the ABB DCS drive hardware manual. Pay particular attention to the synchronization voltage input terminals and the gate pulse output connectors. If the original card has any field wiring modifications, document these before removal and replicate them on the replacement.

Q4: What support terms and testing documentation is provided with the DSAB-01C?
A: Every DSAB-01C supplied by KNMKS is functionally tested prior to shipment, covering gate pulse timing, synchronization signal response, and thermal performance. A test report is included with each unit. All units carry a support terms confirmed by quotation from the date of shipment. In-stock units are available for same-day or next-business-day dispatch to minimize your system downtime.
