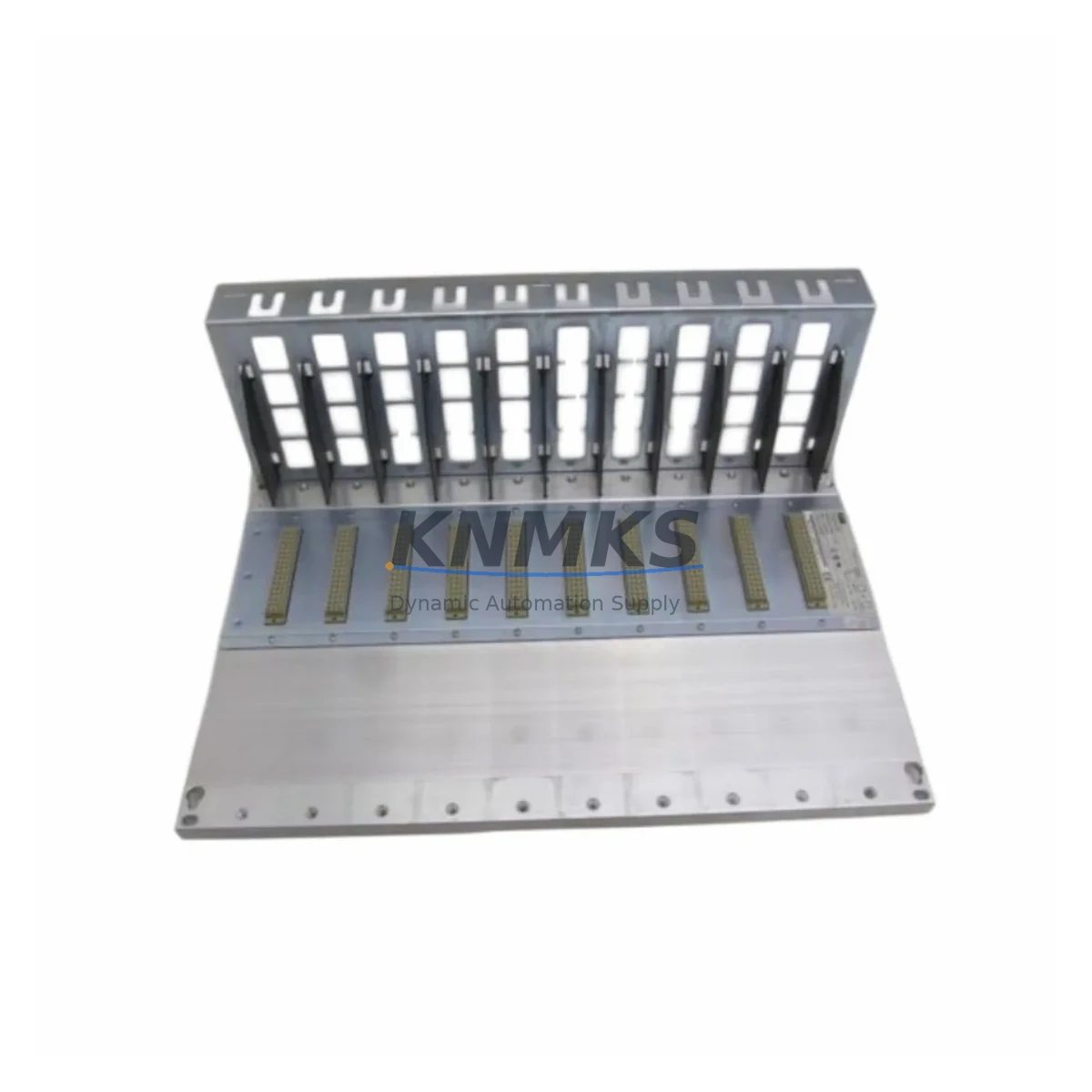

ABB DRA02 37411-4-0369673 Fail-Safe Backplane for Industrial Control

Overview

ABB DRA02 37411-4-0369673 Fail-Safe Backplane for Industrial Control Reliability

The ABB DRA02 37411-4-0369673 is a ruggedized backplane module engineered for the ABB AC500 PLC platform, designed to maintain uninterrupted control in the most demanding industrial environments. Whether deployed in petrochemical processing, power generation, mining operations, water treatment facilities, or continuous manufacturing lines, this backplane provides the structural and electrical foundation that keeps your control cabinet operating safely under load. Its robust design addresses the core failure modes that plague aging automation infrastructure: signal drift, power fluctuation, surge ingress, thermal stress, and vibration-induced connector fatigue.

In critical interlock circuits and high-availability control architectures, the integrity of the backplane is non-negotiable. The DRA02 37411-4-0369673 delivers low-impedance module-to-module communication paths, stable power distribution rails, and mechanically secure module seating — all essential for preventing nuisance trips, spurious outputs, and unplanned shutdowns. For facilities running 24/7 production cycles where even a 15-minute outage carries significant cost, this module represents a proven, stocked replacement that can be installed and commissioned without extended downtime.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. When integrating or replacing the DRA02 37411-4-0369673 backplane, the surrounding architecture must be evaluated holistically to ensure the fail-safe design intent is preserved end-to-end.

The backplane interfaces directly with the AC500 CPU modules such as the PM573 or PM591, which manage program execution and I/O scanning. Any instability in the backplane’s power distribution rail will manifest as CPU watchdog faults or I/O communication timeouts. Pairing the DRA02 with a properly rated ABB PS501 or equivalent AC500 power supply module ensures that inrush current during startup does not exceed the backplane’s rated capacity, protecting both the CPU and connected digital or analog I/O modules from voltage sag events.

On the I/O side, modules such as the ABB DC532 digital input module and DA501 analog input module rely on the backplane’s internal bus for both power and data. In high-EMI environments — common in motor control centers, variable frequency drive cabinets, and arc furnace control rooms — the backplane’s shielding and grounding architecture becomes the first line of defense against signal corruption. Supplementing the installation with signal isolators on analog loops and ferrite cores on communication cables further reduces the risk of false readings or interlock misoperation.

For cabinets operating in dusty, humid, or chemically aggressive atmospheres, the mechanical integrity of the backplane connector interface is critical. Corroded or oxidized backplane contacts are a leading cause of intermittent faults in legacy AC500 installations. Replacing a degraded backplane with a new DRA02 37411-4-0369673 restores full contact integrity and eliminates the diagnostic uncertainty that comes with aging connectors. Where communication modules such as the CM572-DP PROFIBUS master or CM589-PNIO PROFINET interface module are installed in the same rack, a clean backplane ensures deterministic cycle times and eliminates packet loss that could trigger safety shutdowns.

Critical Industrial Safety Applications

The DRA02 37411-4-0369673 is deployed across a wide range of safety-critical and continuous-process industries where control interruption carries operational, financial, or safety consequences.

Petrochemical and Refining: In process units handling flammable or toxic media, the AC500 platform with a reliable backplane foundation supports burner management systems, emergency shutdown logic, and compressor anti-surge control. The backplane’s ability to maintain stable I/O communication under high-temperature cabinet conditions — often exceeding 45°C ambient in summer — is essential for preventing spurious ESD activations.

Power Generation and Transmission: Turbine control panels, excitation systems, and substation automation cabinets demand backplane modules that can withstand high-frequency switching transients and ground potential rise events. The DRA02’s surge-tolerant design makes it suitable for these high-voltage proximity environments.

Mining and Mineral Processing: Conveyor drive control, crusher automation, and flotation cell management systems operate in environments with extreme vibration, coal dust, and moisture ingress. The DRA02’s mechanical robustness and sealed connector design support reliable operation in these conditions without requiring frequent maintenance interventions.

Water and Wastewater Treatment: Pump station automation, dosing control, and SCADA-connected remote I/O panels in water utilities require modules with long service life and resistance to condensation. The DRA02 supports multi-year continuous operation in these low-maintenance, remotely monitored installations.

Metallurgy and Steel: Rolling mill control, ladle furnace automation, and continuous casting systems expose control hardware to intense electromagnetic fields and thermal cycling. The backplane’s robust power rail design prevents the voltage ripple that can cause analog signal errors in precision process control loops.

Port and Marine Automation: Crane control systems, ship loading automation, and offshore platform control cabinets require modules certified for salt-air and high-humidity environments. The DRA02’s German-manufactured build quality meets the durability expectations of marine-grade industrial applications.

Safety and Quality FAQ

Q1: Does the DRA02 37411-4-0369673 come with a support terms, and what does it cover?
Yes. Every DRA02 37411-4-0369673 unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. All units undergo pre-shipment functional testing to verify backplane bus integrity, power rail continuity, and connector seating before dispatch.

Q2: Is this backplane compatible with all AC500 series modules?
The DRA02 37411-4-0369673 is designed for the ABB AC500 platform and is compatible with the standard range of AC500 CPU, digital I/O, analog I/O, and communication modules. For specific module combinations or mixed-generation AC500 installations, we recommend verifying the rack slot count and power budget against your existing configuration before ordering.

Q3: How quickly can this module be installed to minimize production downtime?
The DRA02 supports tool-free module insertion and DIN rail mounting, allowing an experienced technician to complete a backplane swap in under 30 minutes in a pre-planned maintenance window. Pre-staging the replacement unit, labeling all module positions, and backing up the CPU program before the swap are the key steps to keeping downtime under one hour in most installations.

Q4: What is the lead time and stock availability?
KNMKS maintains ready stock of the DRA02 37411-4-0369673. Standard orders ship within 3–5 business days. For urgent plant breakdowns or emergency replacement requirements, expedited dispatch is available — contact our sales team directly to confirm current inventory and fastest available shipping option.
