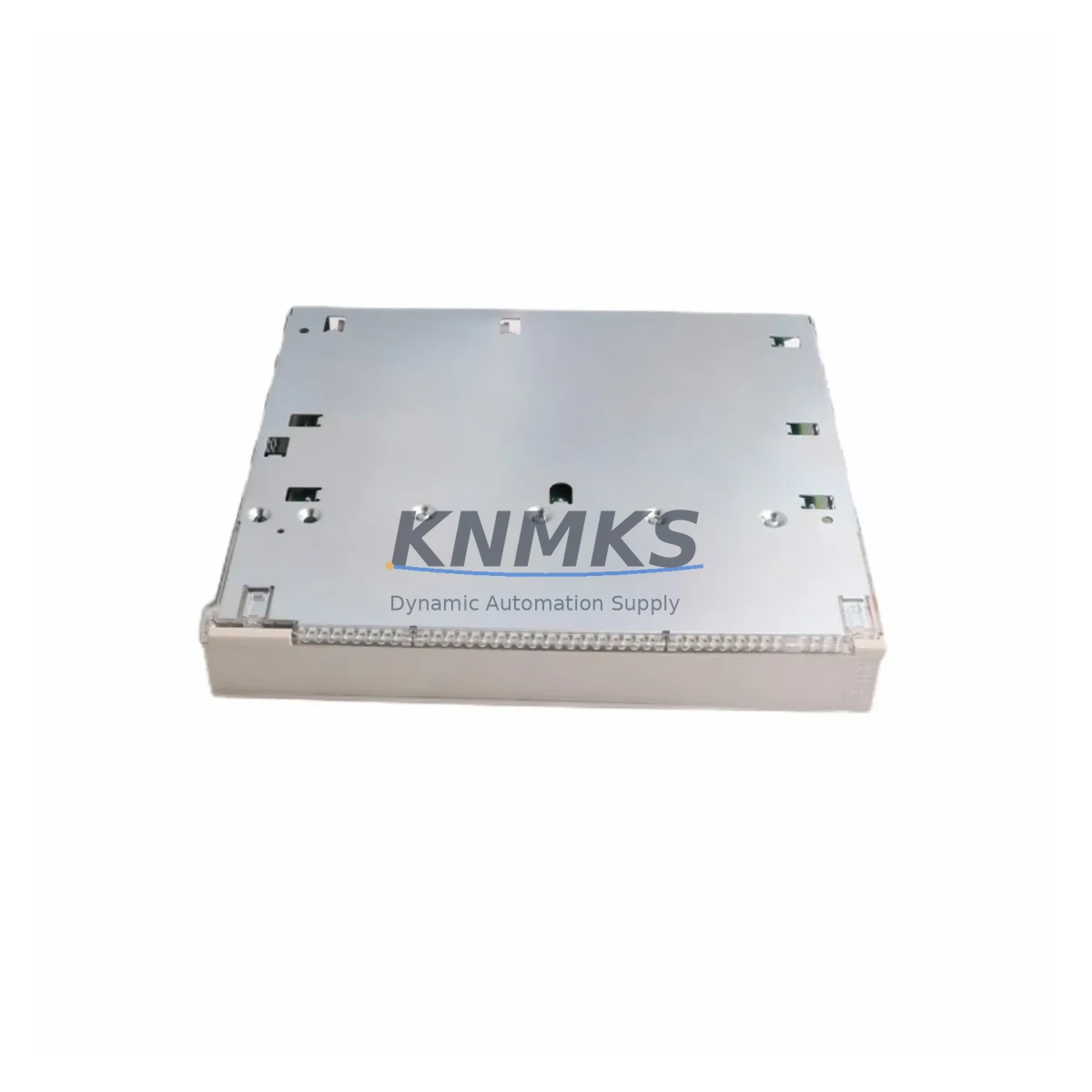

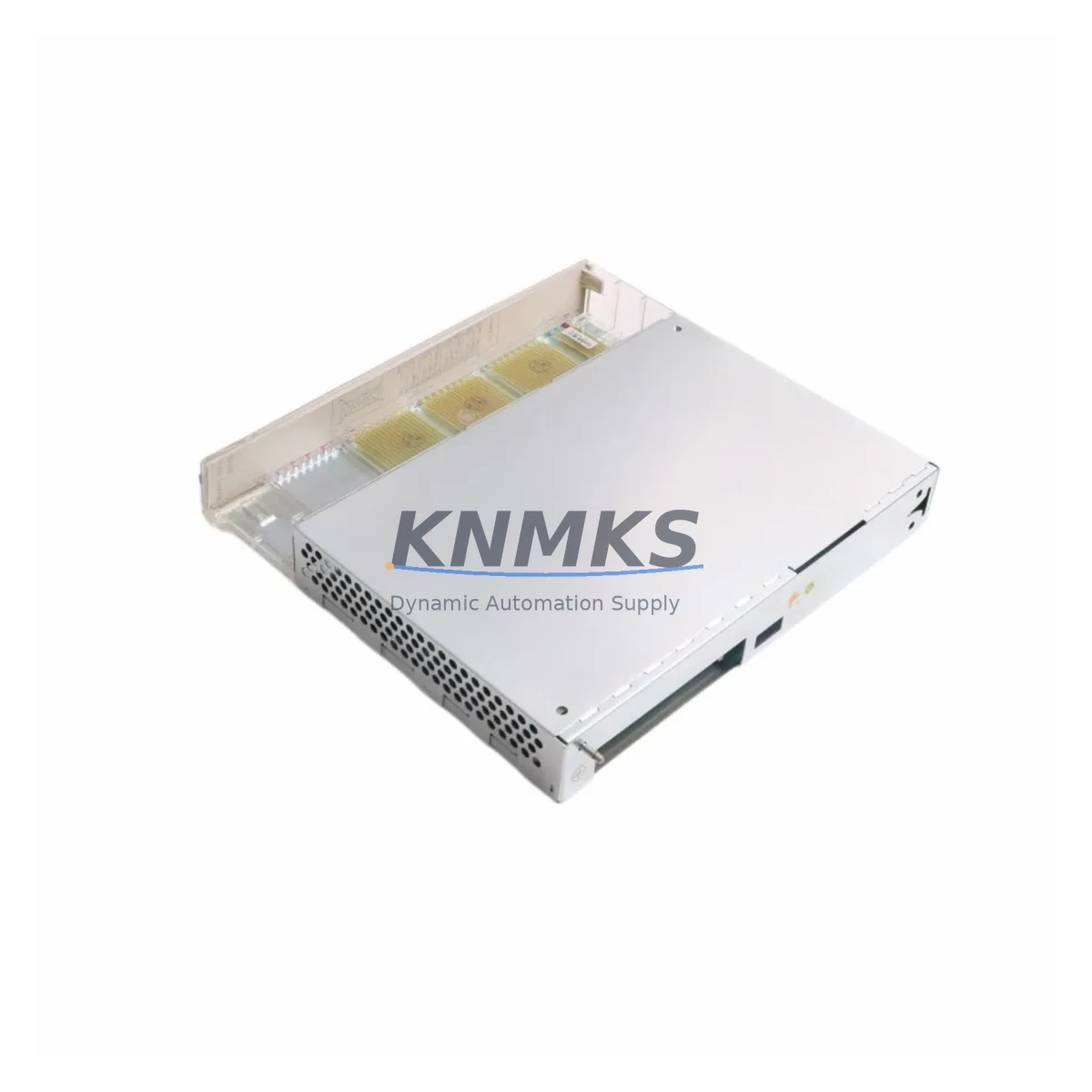

ABB DP620 3BHE300016R1 Migration-Ready Pulse Counter

Overview

ABB DP620 3BHE300016R1 Migration-Ready Pulse Counter for Legacy Control Systems

The ABB DP620 (part number 3BHE300016R1) is a high-performance pulse counter module designed for integration within the AC800PEC control platform. As legacy automation systems face end-of-life pressures, the DP620 has become a critical component in retrofit and modernization projects across power generation, process control, and industrial drive applications. Whether you are replacing a discontinued module, expanding an aging control cabinet, or migrating from an older ABB UNITROL or AC80 series platform, the DP620 3BHE300016R1 provides a verified, drop-in compatible upgrade path with minimal engineering overhead.

Sourced from authorized distribution channels and subject to full functional testing prior to shipment, each unit is backed by a support terms confirmed by quotation covering hardware defects and operational failures under normal industrial service conditions. Stock availability is maintained to support urgent replacement orders and planned maintenance shutdowns alike.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DP620 3BHE300016R1 into an existing control system requires a structured pre-installation review. Begin by auditing the AC800PEC rack configuration: confirm available slot positions, verify that the rack power supply module — typically an ABB SD802F or equivalent — has sufficient headroom to support the additional module load. Overloaded rack PSUs are a common cause of intermittent faults during post-retrofit commissioning.

Terminal wiring must be reviewed against the original I/O schedule. The DP620 accepts pulse input signals from encoders, flow meters, and turbine speed sensors. Confirm signal voltage levels, cable shielding continuity, and grounding topology before reconnecting field cables. Where the original installation used an older ABB AI810 analog input module or a DI810 digital input module in a workaround configuration, the DP620 provides a purpose-built replacement that eliminates signal conditioning workarounds and simplifies the control program logic.

On the communication side, the DP620 participates in the PROFIBUS-DP network managed by the AC800PEC controller. Before installation, document the existing PROFIBUS segment: node addresses, baud rate, cable length, and termination resistor positions. If the system also includes an ABB CI854A PROFIBUS communication interface module or a CI840A fieldbus adapter, verify that the DP620 GSD file is correctly loaded into the engineering tool — typically ABB Control Builder — and that the module’s node address does not conflict with other devices on the segment.

For systems that include HMI integration via ABB Panel 800 or third-party SCADA, update the tag database to reflect any changes in I/O channel mapping introduced by the replacement module. Pulse counter scaling parameters, overflow handling, and reset logic should be verified in the application program before returning the system to automatic operation. Where the control cabinet also houses an ABB SDCS-CON-4 or similar drive control board communicating over the same backplane, confirm that module slot assignments do not create address conflicts.

Physical installation space should be confirmed before ordering. The DP620 occupies a standard AC800PEC module slot; however, in densely populated cabinets, adjacent modules and cable duct routing may require temporary relocation during installation. Plan for adequate clearance and confirm that the replacement module’s depth profile is compatible with the cabinet door closure.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary engineering objective in any legacy module replacement. For the DP620 3BHE300016R1, the recommended approach is a cold-swap procedure executed during a scheduled maintenance window. Prior to shutdown, export a full backup of the AC800PEC application program, including all function block parameters, PROFIBUS configuration, and HMI tag assignments. Store this backup on an offline engineering workstation to ensure rapid recovery in the event of an unexpected commissioning issue.

During the swap, label all field cables before disconnection and photograph the terminal block wiring layout. This documentation eliminates reconnection errors and accelerates the post-installation wiring verification step. Once the DP620 is seated in the rack and field cables are reconnected, power up the rack and allow the PROFIBUS network to re-establish communication before initiating the application program download.

Perform a live signal test on all pulse input channels before releasing the system to production. Compare live pulse counts against a known reference — such as a portable tachometer or flow calibrator — to confirm that scaling and offset parameters are correctly applied. Where the original program logic included watchdog timers or module health monitoring, verify that these functions are active and correctly configured for the replacement module.

By following a structured swap procedure, most DP620 replacements can be completed within a two- to four-hour maintenance window, preserving production continuity and reducing the risk of extended unplanned outages. All units supplied by KNMKS are pre-tested and shipped with a functional test report to support rapid on-site commissioning.

Retrofit Support FAQ

Q: Is the ABB DP620 3BHE300016R1 a direct replacement for the original module in my AC800PEC rack?
A: Yes. The DP620 3BHE300016R1 is designed as a direct slot-compatible replacement for existing DP620 units within the AC800PEC platform. No mechanical modification to the rack or backplane is required. Verify firmware version compatibility and re-import the GSD file in Control Builder before downloading the application program.

Q: What wiring checks are required before installing the replacement module?
A: Confirm terminal block pitch, signal polarity, cable shielding continuity, and grounding connections against the original I/O schedule. For pulse input signals from encoders or flow meters, verify that signal voltage levels are within the DP620’s specified input range. Reconnect field cables in sequence and perform a continuity check before powering the rack.

Q: How do I verify PROFIBUS-DP compatibility after installation?
A: Load the DP620 GSD file into ABB Control Builder and assign the correct PROFIBUS node address matching the original network configuration. After powering the rack, use the PROFIBUS diagnostic function in Control Builder to confirm that the module is online and communicating without errors. Check for address conflicts with other devices on the segment, including CI854A or CI840A communication modules.

Q: What support terms and pre-shipment testing does KNMKS provide for the DP620 3BHE300016R1?
A: Every DP620 3BHE300016R1 unit supplied by KNMKS undergoes functional testing prior to shipment and is accompanied by a test report. A support terms confirmed by quotation is provided from the date of shipment, covering hardware defects and operational failures under normal industrial service conditions. In-stock units are available for same-week dispatch to support urgent replacement requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DP620 3BHE300016R1

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DP620 3BHE300016R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
