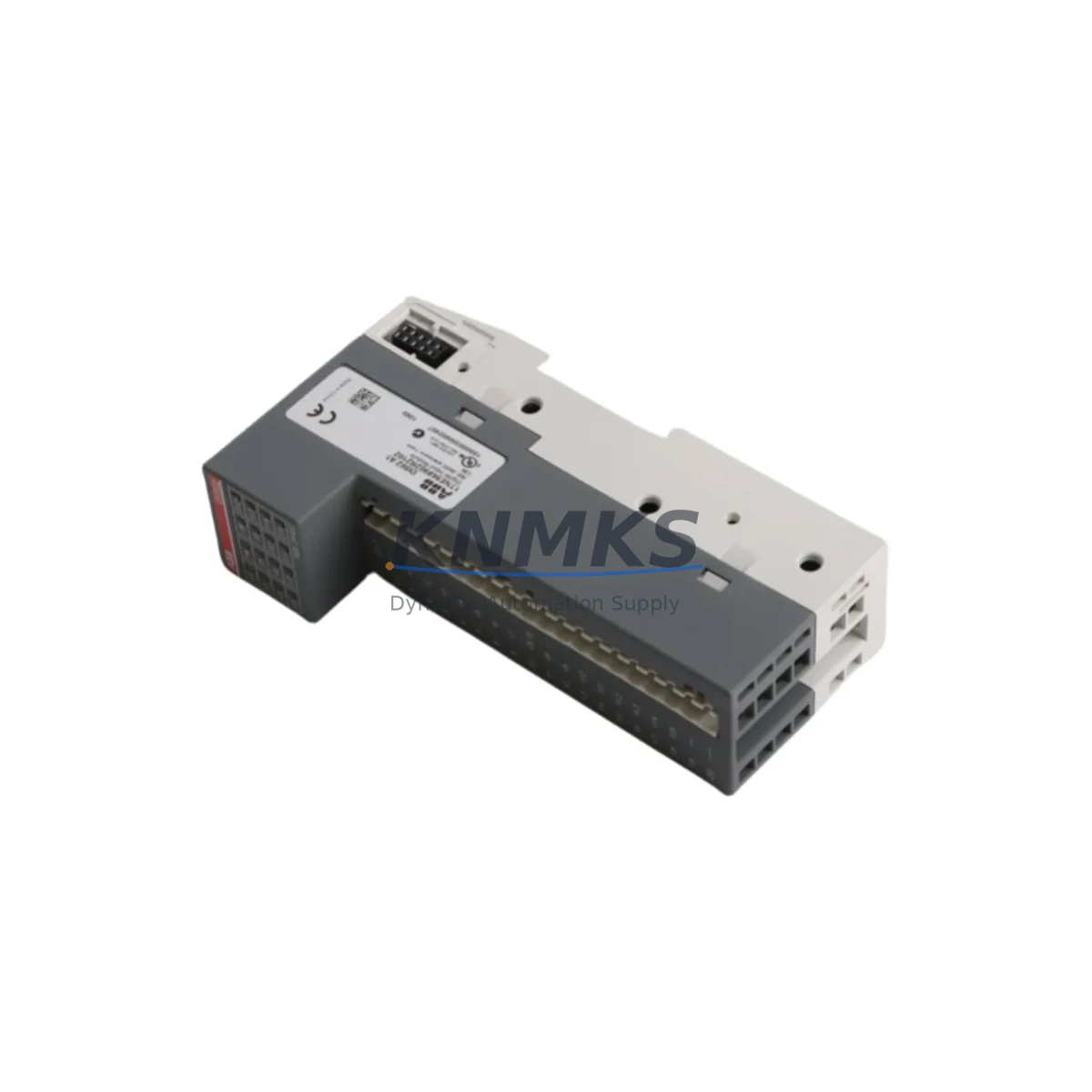

ABB DI562-A1 Fail-Safe Digital Input Module for Industrial Control

Overview

ABB DI562-A1 Fail-Safe Digital Input Module for Industrial Control Reliability

The ABB DI562-A1 (Part No. 1TNE968902R2102) is a 16-channel, 24 VDC fail-safe digital input module engineered for deployment within ABB AC500 and S500 safety PLC architectures. Designed to meet the rigorous demands of continuous production environments, critical interlock circuits, and high-consequence industrial control cabinets, this module delivers the signal integrity and fault-tolerance that safety engineers depend on when uptime is non-negotiable.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing cells, a single undetected input fault can cascade into unplanned shutdowns, equipment damage, or personnel hazards. The DI562-A1 addresses this risk through hardware-level diagnostics, channel-by-channel fault detection, and deterministic response behavior — ensuring that every field signal is accurately captured and validated before it reaches the control logic layer.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered safety control cabinet, the DI562-A1 operates as part of a coordinated protection architecture. It is typically paired with the ABB AC500-S Safety CPU (e.g., PM573-ETH), which processes the validated digital inputs and executes the safety program logic. Power to the module bus is supplied through a dedicated ABB S500 power supply module (e.g., PS501-POW), which provides regulated 24 VDC with built-in surge suppression — critical in environments where grid fluctuations or motor switching events introduce voltage transients that could corrupt input readings.

For cabinets installed near variable frequency drives, large contactors, or high-current bus bars, electromagnetic interference is a persistent threat to signal fidelity. The DI562-A1’s high EMC immunity rating reduces susceptibility to conducted noise, but best practice also calls for installing ABB surge protection devices (e.g., OVR series) on incoming field signal cables to clamp transient overvoltages before they reach the module terminals. In parallel, ABB CM series communication modules — such as the CM572-DP PROFIBUS interface — extend the safety network across distributed field stations without introducing latency that could compromise interlock response times.

Where the control cabinet must also manage motor starters or soft-starters in the same enclosure, thermal management becomes a reliability factor. Pairing the DI562-A1 installation with ABB cabinet climate control units or thermal monitoring relays ensures that ambient temperatures within the enclosure remain within the module’s rated operating range, preventing thermal-induced signal drift or premature component aging. Together, these components form a layered cabinet protection strategy that addresses electrical, thermal, and communication-layer risks simultaneously.

Critical Industrial Safety Applications

The DI562-A1 is deployed across a broad spectrum of safety-critical industries where control interruption carries severe operational or safety consequences:

Petrochemical & Refining: Used in emergency shutdown (ESD) systems and burner management systems (BMS) where SIL-rated digital inputs must reliably capture valve position feedback, flame detector signals, and pressure switch states under continuous process conditions with high ambient temperatures and corrosive atmospheres.

Electric Power Generation & Transmission: Integrated into turbine protection panels and substation automation systems, where the module’s deterministic fault detection prevents false trips or missed trip signals that could damage generating equipment or cause grid instability.

Mining & Mineral Processing: Installed in conveyor interlock systems, crusher protection circuits, and ventilation safety controls operating in high-dust, high-vibration environments. The module’s robust mechanical design and wide temperature tolerance ensure reliable operation in underground or open-pit conditions.

Water & Wastewater Treatment: Applied in pump station control panels and chemical dosing safety interlocks, where the module monitors flow switches, level sensors, and emergency stop inputs in humid, chemically aggressive environments.

Metallurgy & Steel Production: Deployed in rolling mill safety systems and furnace control panels, where high electromagnetic interference from induction heating equipment and large motor drives demands superior EMC performance from every I/O module in the safety loop.

Port & Marine Logistics: Used in crane safety systems and ship-to-shore equipment interlocks, where the module must maintain reliable input capture despite vibration, salt-laden air, and wide ambient temperature swings across day and night operating cycles.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB DI562-A1 (1TNE968902R2102)?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement coordination to minimize site downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every DI562-A1 unit undergoes a full functional test prior to dispatch, including channel-level input verification, power-on diagnostics, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the DI562-A1 compatible with existing ABB AC500 and S500 installations?
Yes. The DI562-A1 is fully compatible with the ABB AC500 and S500 modular PLC platform. It integrates directly into the S500 I/O bus without requiring additional adapters, and is supported by ABB’s Automation Builder engineering software for configuration and diagnostics. Compatibility with specific CPU firmware versions can be confirmed prior to order.

Q4: Can long-term and repeat supply be guaranteed for maintenance and spare-part programs?
KNMKS maintains dedicated stock of the DI562-A1 to support planned maintenance schedules, blanket orders, and emergency spare-part requirements. Long-term supply agreements are available for customers with ongoing replacement programs, ensuring continuity of supply without lead-time risk for critical safety system components.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DI562-A1-1TNE968902R2102
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DI562-A1-1TNE968902R2102
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
