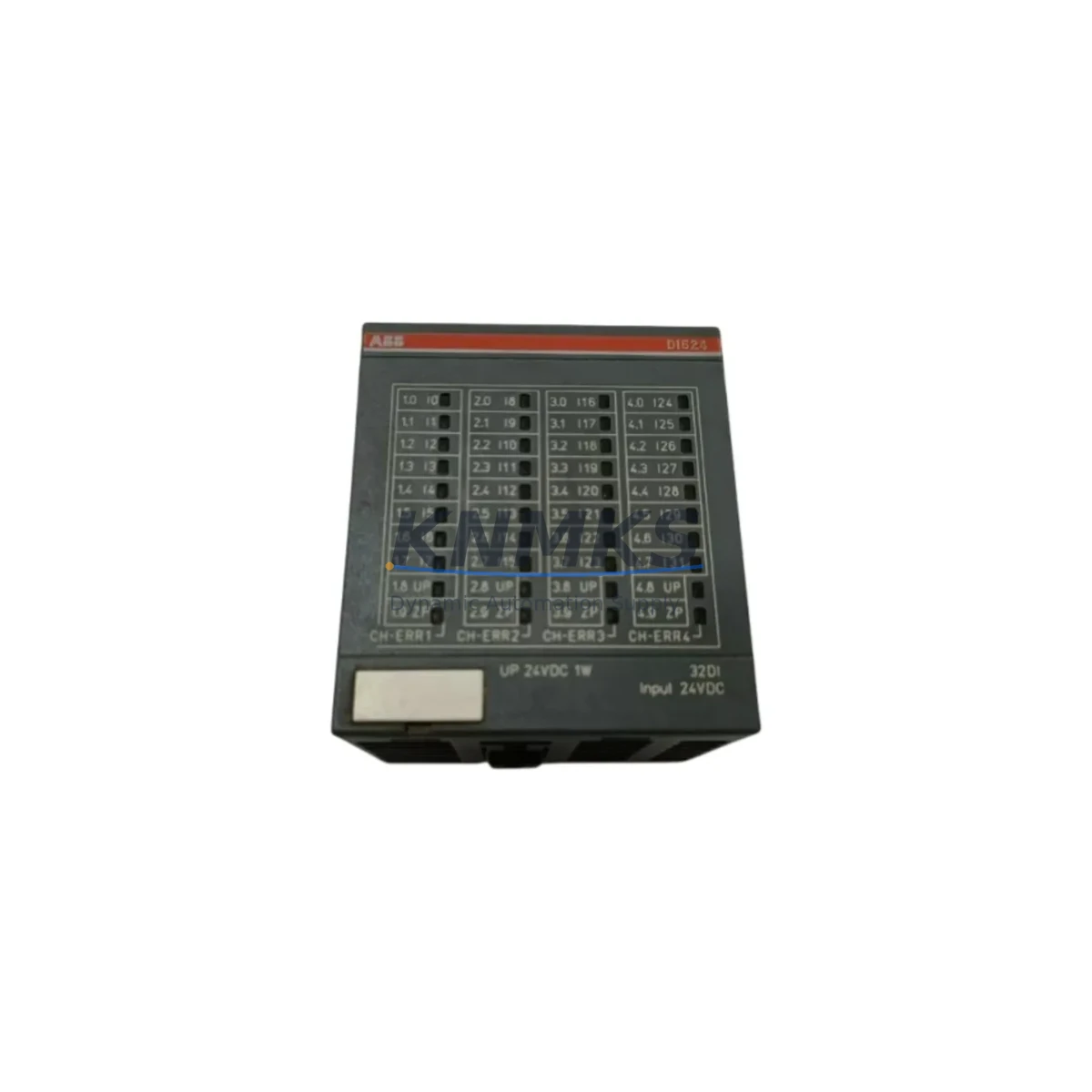

ABB DI524 B7 1SAP240000R0001 Fail-Safe Digital Input Module

Overview

ABB DI524 B7 1SAP240000R0001 Fail-Safe Digital Input Module: Fault-Proof Signal Integrity for Critical Industrial Control

In continuous production environments where a single missed signal can cascade into an unplanned shutdown, the ABB DI524 B7 (1SAP240000R0001) fail-safe digital input module delivers the signal acquisition reliability that safety-critical AC500 PLC architectures demand. Designed as a core component of ABB’s AC500-S Safety PLC platform, this 16-channel module captures discrete field signals with deterministic response times, ensuring that emergency stop circuits, safety interlocks, and protective relay feedback loops remain fully operational even under the harshest electrical and environmental conditions.

Industrial facilities in petrochemical processing, electric power generation, mining extraction, water treatment, metallurgy, port logistics, and continuous manufacturing share a common vulnerability: digital input modules that drift, latch incorrectly, or fail silently under electromagnetic interference, voltage transients, or thermal stress. The DI524 B7 addresses each of these failure modes through hardware-level diagnostics, cross-channel monitoring, and robust surge suppression — providing the control system with verified, fail-safe input states at every scan cycle.

When deployed in high-EMI environments — such as variable frequency drive cabinets, arc furnace control rooms, or high-voltage switchgear panels — the DI524 B7’s galvanic isolation and shielded signal conditioning prevent noise-induced false triggering that could cause spurious actuator responses or mask genuine fault conditions. In dusty, humid, or high-vibration field installations, the module’s industrial-grade housing and conformal-coated PCB maintain signal accuracy across the full operating temperature range, eliminating the signal drift that plagues consumer-grade I/O in demanding process environments.

Within a complete AC500-S safety cabinet, the DI524 B7 works in close coordination with complementary modules to form a layered protection architecture. The ABB DO524 B7 (1SAP224000R0001) fail-safe digital output module handles actuator command channels, while the ABB AI523 (1SAP250200R0001) analog input module monitors process variables such as pressure, temperature, and flow. Power integrity for the entire safety rack is maintained by the ABB CP502 (1SAP140100R0270) AC500 CPU module, which orchestrates safety program execution and watchdog supervision. Surge and transient protection at the cabinet entry point is typically provided by dedicated DIN-rail surge protective devices, and field wiring termination is managed through ABB’s TB521 terminal base, which mates directly with the DI524 B7 to ensure secure, vibration-resistant connections in mobile or high-shock installations such as ship engine rooms or mining conveyors.

For safety interlock systems requiring IEC 61508 SIL compliance, the DI524 B7’s self-diagnostic routines continuously verify channel integrity, detecting open-circuit, short-circuit, and cross-fault conditions before they can propagate to the safety logic layer. This proactive fault detection capability is essential in emergency shutdown (ESD) systems, burner management systems (BMS), and fire and gas (F&G) detection panels, where input module failures must be identified and annunciated within the required diagnostic test interval.

KNMKS maintains verified stock of the ABB DI524 B7 1SAP240000R0001 with full pre-shipment functional testing, ensuring that every unit dispatched meets ABB factory specifications. Each module is covered by a support terms confirmed by quotation against manufacturing defects, with long-term supply continuity supported through established procurement channels — critical for facilities managing multi-year maintenance contracts or blanket spare-part orders for aging AC500 installations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust safety control cabinet built around the DI524 B7 integrates multiple protection layers to guard against the full spectrum of industrial fault modes. At the power supply level, an ABB CP502 CPU module provides centralized program execution with integrated watchdog supervision, while a dedicated 24 V DC safety power supply with redundant output ensures that loss of a single supply rail does not compromise the safety I/O bus. Field signal cables entering the cabinet pass through surge protective devices rated for IEC 61643-11 Category C2, preventing lightning-induced transients from reaching the DI524 B7’s input terminals.

On the output side, the ABB DO524 B7 fail-safe digital output module drives safety relays, solenoid valves, and motor contactors with the same SIL-rated integrity as the input layer, forming a complete safety loop from sensor to actuator. Analog process variables — pressure transmitter signals, thermocouple inputs, and 4–20 mA flow measurements — are acquired by the ABB AI523 analog input module, which feeds process data to the CPU for safety function calculations. Communication between the safety rack and the plant DCS or SCADA system is handled via PROFIBUS-DP or Modbus TCP interface modules, with watchdog-supervised communication timeouts ensuring that a network fault triggers a safe-state output rather than a frozen last-value condition. The ABB TB521 terminal base provides the mechanical and electrical interface between the DI524 B7 and field wiring, with cage-clamp terminals rated for vibration resistance in mobile and high-shock installations.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the DI524 B7 monitors emergency shutdown valve position feedback, gas detector relay outputs, and high-pressure interlock switches — applications where a missed input state change can result in catastrophic process release. The module’s SIL 3 capability satisfies the functional safety requirements of IEC 61511 process safety instrumented systems without requiring additional voted input architectures in many single-channel applications.

In electric power generation and substation control, the DI524 B7 captures protection relay trip signals, circuit breaker auxiliary contacts, and transformer Buchholz relay outputs, providing the safety PLC with verified discrete status for automatic reclosing inhibit and load-shedding interlock functions. Its high EMI immunity is essential in environments where high-voltage switching generates broadband interference that can corrupt conventional digital input modules.

In mining and mineral processing, the module monitors conveyor belt misalignment switches, pull-cord emergency stops, and crusher overload relay contacts across extended cable runs subject to ground potential differences and induced interference from large motor drives. In water and wastewater treatment plants, it captures pump seal failure signals, high-level float switch inputs, and chlorine dosing interlock contacts in humid, chemically aggressive environments where corrosion resistance and conformal coating are prerequisites for long-term reliability.

In port and maritime applications — including ship engine room automation and crane control systems — the DI524 B7’s vibration resistance and wide operating temperature range ensure continuous signal integrity during vessel motion and extreme ambient temperature swings, supporting uninterrupted cargo handling and propulsion safety interlock functions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB DI524 B7 1SAP240000R0001?
Every DI524 B7 unit supplied by KNMKS is covered by a support terms confirmed by quotation against manufacturing defects and functional failures. Support requests are supported with direct technical assistance and replacement dispatch to minimize control system downtime.

Q2: How is each module tested before shipment?
All DI524 B7 modules undergo full functional verification prior to dispatch, including channel-by-channel input response testing, diagnostic self-test confirmation, and visual inspection for physical integrity. This pre-shipment protocol ensures that units arrive ready for immediate installation and commissioning.

Q3: Is the DI524 B7 compatible with existing AC500 and AC500-S installations?
Yes. The DI524 B7 (1SAP240000R0001) is designed for the ABB AC500-S Safety PLC platform and is compatible with the TB521 terminal base and AC500-S CPU modules. Compatibility with specific firmware versions and safety program configurations should be verified against the ABB AC500-S system manual for the target installation.

Q4: Can KNMKS support long-term or blanket spare-part orders for this module?
Yes. KNMKS maintains ongoing procurement relationships to support multi-year maintenance contracts and blanket spare-part programs for AC500-S installations. Long-term supply agreements can be arranged to ensure availability of the DI524 B7 and complementary AC500-S I/O modules throughout the operational lifecycle of your safety system.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DI524 B7 1SAP240000R0001
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DI524 B7 1SAP240000R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
