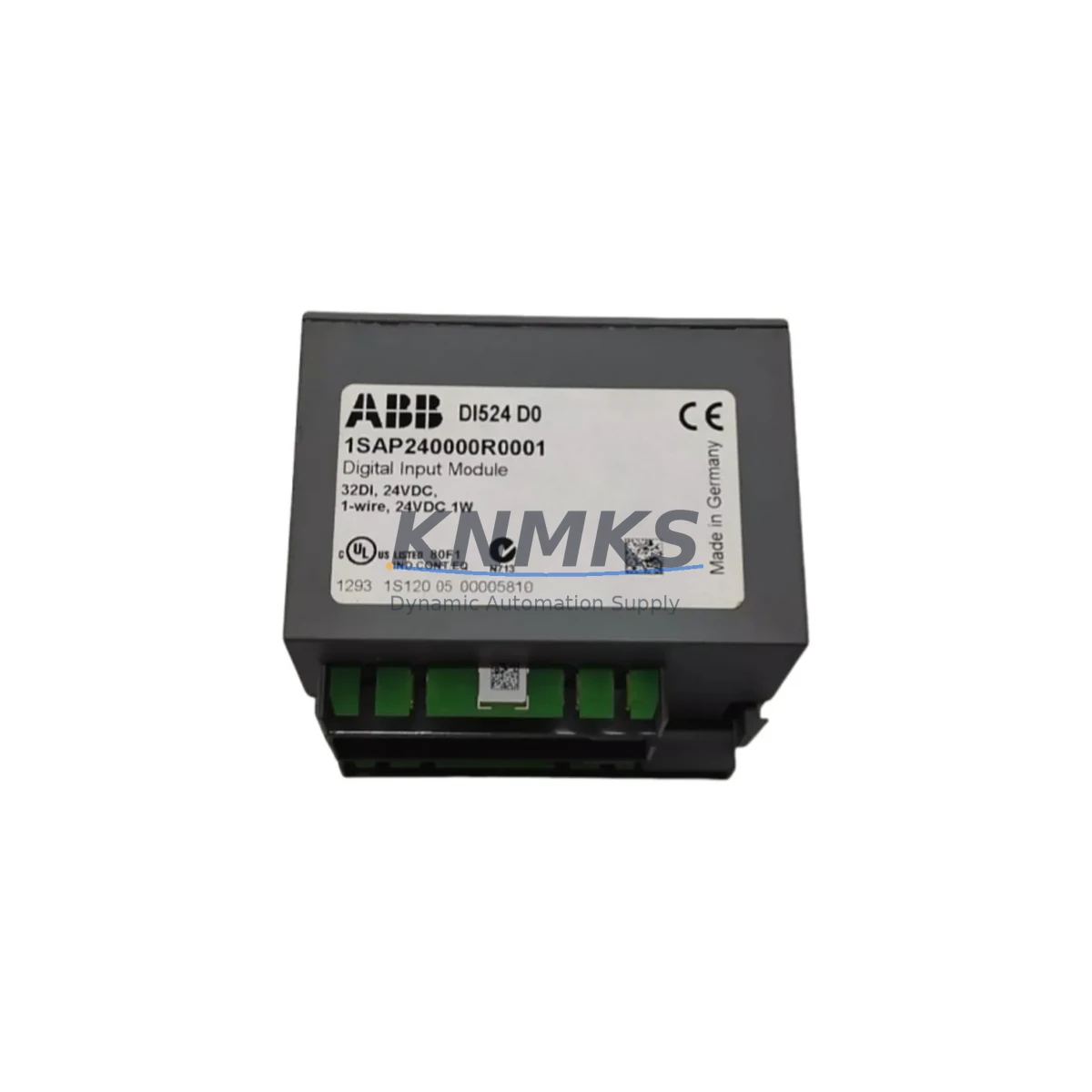

ABB DI524 1SAP240000R0001 Fail-Safe Digital Input Module

Overview

ABB DI524 1SAP240000R0001 Fail-Safe Digital Input Module: Fault-Proof Protection for Critical Industrial Control

The ABB DI524 (1SAP240000R0001) is a 32-channel, 24 VDC digital input module engineered for the AC500 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — from petrochemical processing lines and power generation switchgear to underground mining conveyors and continuous steel-rolling mills — this module delivers the fail-safe signal acquisition that modern safety-critical control architectures demand.

In high-stakes automation environments, a single missed or corrupted digital input can cascade into unplanned shutdowns, equipment damage, or personnel hazards. The DI524 addresses this risk at the hardware level. Its 32 galvanically isolated input channels maintain signal integrity even when the surrounding cabinet is subjected to high-frequency electromagnetic interference from variable-frequency drives, large contactors, or arc-flash events. Each channel is individually monitored for wire-break and short-circuit faults, ensuring that the AC500 CPU — whether a PM573, PM583, or PM595 — receives a verified, trustworthy signal state at every scan cycle.

Field installations in water treatment pump stations and port crane control rooms frequently expose I/O modules to condensation, salt-laden air, and vibration from heavy machinery. The DI524’s conformal-coated PCB and wide operating temperature range allow it to sustain continuous operation without signal drift or contact degradation that would otherwise force costly mid-shift maintenance interventions. When paired with the AC500’s TB521 or TB523 terminal base, the module slots into the backplane without tools, and the spring-clamp field wiring terminals resist loosening under sustained mechanical vibration — a common failure mode for screw-terminal alternatives in mobile or shipboard applications.

Control cabinet designers integrating the DI524 into safety interlock loops often combine it with the ABB DO524 (1SAP224000R0001) 32-channel digital output module to form a matched input/output layer on the same terminal base row, minimising wiring runs and cabinet footprint. For applications requiring analogue process variables alongside discrete safety signals — such as burner management systems or compressor surge protection — the ABB AI523 (1SAP250200R0001) analogue input module can be mounted adjacently on the same AC500 rack, sharing the same CPU scan and diagnostic framework. Power distribution within the cabinet is typically handled by an ABB CP-E 24/5.0 or CP-E 24/10.0 SMPS unit, whose regulated 24 VDC output feeds both the DI524 field supply and the sensor loop circuits, eliminating the voltage sag that can cause false-low readings on digital inputs during motor start transients.

In safety relay architectures where the DI524 feeds emergency-stop or light-curtain signals into a safety CPU, engineers frequently specify the ABB PNOZ X3 equivalent relay or ABB’s own Pluto safety controller as the downstream logic solver, with the DI524 providing the pre-processed, debounced digital status from field devices. For communication-intensive installations — PROFIBUS DP, Modbus TCP, or PROFINET — the AC500 communication modules such as the CM572-DP or CM579-ETHCAT sit on the same rack, and the DI524’s diagnostic data is surfaced through the fieldbus to the SCADA layer without additional gateways, reducing the latency that can mask intermittent field faults.

Every DI524 unit supplied by KNMKS undergoes a pre-shipment functional verification covering channel-by-channel input response, isolation resistance, and firmware revision confirmation. Units are shipped in anti-static packaging with original ABB labelling and are covered by a support terms confirmed by quotation against manufacturing defects. Stocked inventory supports same-week dispatch to customers in Asia-Pacific, the Middle East, and Europe, making the DI524 a dependable spare-part choice for maintenance teams operating under tight mean-time-to-repair targets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet design for continuous-process industries pairs the DI524 with complementary modules to create a layered protection architecture. The ABB DO524 (1SAP224000R0001) digital output module mirrors the DI524’s channel density and terminal base compatibility, enabling a compact, high-density I/O row that minimises inter-module wiring. Where analogue transmitters — pressure, temperature, or flow — feed into the same safety interlock, the ABB AI523 (1SAP250200R0001) analogue input module integrates seamlessly on the adjacent slot, sharing the CPU’s unified diagnostic scan.

Cabinet power quality is critical: the ABB CP-E 24/10.0 switched-mode power supply provides a stable, regulated 24 VDC bus that prevents the voltage sag during motor starts from pulling digital input readings below the logic-1 threshold. For surge protection at the field cable entry point, DIN-rail-mounted surge protective devices — such as the ABB OVR T2 series — clamp transient overvoltages before they reach the DI524’s input terminals, protecting channel isolation and extending module service life in lightning-prone outdoor substations. Communication integrity is maintained by the ABB CM579-ETHCAT EtherCAT communication module, which surfaces DI524 channel diagnostics to the SCADA layer in real time, enabling predictive maintenance teams to identify degrading field sensors before they cause a spurious trip.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the DI524 acquires discrete status signals from emergency shutdown valves, flame detectors, and gas detection systems, feeding the AC500 safety CPU with verified input states that drive SIL-rated interlock logic. The module’s EMI immunity prevents false trips caused by the high-frequency switching noise generated by large variable-speed pump drives common in crude transfer stations.

In power generation and substation control, the DI524 monitors breaker position feedback, protection relay trip outputs, and transformer tap-changer status. Its galvanic isolation prevents ground-loop currents — endemic in high-voltage switchyards — from corrupting the 24 VDC signal level and causing nuisance alarms or missed fault indications.

In underground mining and tunnelling operations, the DI524 is deployed in conveyor belt safety interlock panels, monitoring belt-slip switches, pull-cord emergency stops, and fire suppression activation signals. The conformal-coated PCB resists the coal dust and high-humidity atmosphere that rapidly degrades unprotected electronics.

In water and wastewater treatment plants, the module collects discrete inputs from pump run/fault contacts, valve open/closed limit switches, and level float switches across multiple pump stations, enabling the AC500 to execute fail-safe sequencing logic that prevents dry-running or overflow events during communication dropouts.

In port and shipboard automation, the DI524 withstands the continuous vibration and salt-air corrosion of crane control cabinets and vessel engine rooms, maintaining reliable discrete signal acquisition for hatch cover interlocks, mooring winch limit switches, and fire damper position feedback.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, premature component failure, and firmware-related malfunctions under normal operating conditions as specified in the ABB AC500 system manual. KNMKS provides direct replacement or repair support; contact [email protected] to initiate a support terms claim.

Q2: What pre-shipment testing is performed on each DI524 unit?
Each unit undergoes a functional verification covering all 32 input channels for correct logic-level response, isolation resistance measurement between channel groups, and firmware revision confirmation against the current ABB release. Units failing any check are quarantined and not dispatched.

Q3: Is the DI524 1SAP240000R0001 compatible with all AC500 CPU generations?
The DI524 is compatible with AC500 V2 and V3 CPUs including the PM573, PM583, PM591, and PM595, when mounted on a TB521 or TB523 terminal base. Compatibility with the AC500-S safety CPU (PS501) should be confirmed against the ABB AC500-S system manual for SIL-rated applications.

Q4: Can KNMKS support long-term or blanket-order supply for maintenance programmes?
Yes. KNMKS maintains stocked inventory of the DI524 and related AC500 I/O modules to support planned maintenance schedules, annual shutdown kits, and blanket purchase orders. Contact [email protected] or +86 18359268345 to discuss volume pricing and reserved-stock arrangements.
