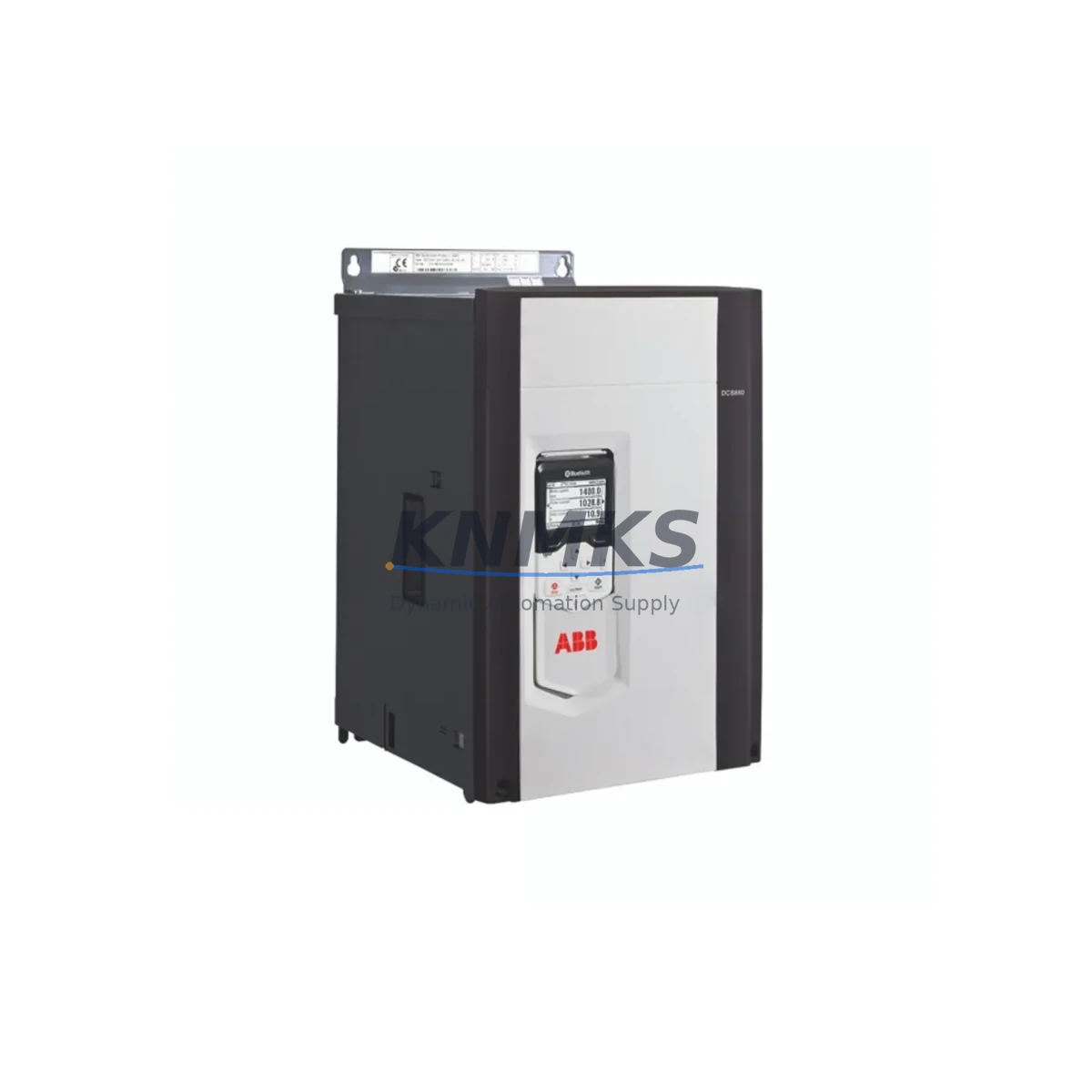

ABB DCS880-S01-0405-05X0 Migration-Ready DC Drive

Overview

ABB DCS880-S01-0405-05X0 Migration-Ready DC Drive for Legacy Control Systems

The ABB DCS880-S01-0405-05X0 is a 405A, 4-quadrant DC drive engineered as the direct migration-ready successor to the discontinued ABB DCS800 series. Designed for demanding industrial environments — including paper mills, metal processing lines, extruders, winders, and crane systems — this unit delivers full backward compatibility with existing armature and field wiring configurations, enabling engineers to execute a controlled retrofit without redesigning the control cabinet or replacing the motor.

When replacing a DCS800 unit with the DCS880-S01-0405-05X0, the first step is to verify the incoming AC supply voltage (typically 400–480 V AC, 3-phase) and confirm that the existing field supply circuit is compatible with the DCS880’s integrated field exciter output. The armature current rating of 405A must be cross-checked against the motor nameplate to ensure no derating is required under peak load conditions. Terminal block layouts between the DCS800 and DCS880 are largely compatible, but engineers should review the control terminal mapping — particularly for digital inputs DI1–DI6, analog inputs AI1–AI2, and relay outputs RO1–RO3 — against the DCS880 hardware manual before energizing.

The DCS880-S01-0405-05X0 supports PROFIBUS DP and PROFINET IO natively via optional fieldbus adapter modules (e.g., FPBA-01 for PROFIBUS, FENA-21 for PROFINET), making it fully compatible with existing Siemens S7-300/S7-400 PLC architectures and ABB AC500 controllers that previously communicated with the DCS800 over the same protocols. If the legacy system used an SDCS-COM-8 PROFIBUS board on the DCS800, the parameter dataset and drive profile (ABB Drives Profile or PROFIdrive) can be migrated to the DCS880 with minimal reconfiguration. Communication node addresses, baud rates, and telegram structures should be documented before decommissioning the old unit.

For sites running ABB Mint or third-party HMI panels (e.g., ABB CP600 series or Siemens TP700 Comfort), the DCS880’s parameter structure follows the same logical grouping as the DCS800, reducing the effort required to remap HMI display variables and alarm tags. Drive parameter sets can be exported from the DCS800 using DriveWindow Light and partially imported into the DCS880 via Drive Composer Pro, with manual verification of motor control parameters (Group 99: Motor Data) and speed reference scaling (Group 22: Speed Reference Selection).

Backplane and rack space requirements should be confirmed prior to installation. The DCS880-S01-0405-05X0 shares a similar footprint with the DCS800-S01-0405-05 but may require adjustment of cable entry points and cooling clearances. If the control cabinet includes an ABB SDCS-POW-4 power supply board or an SDCS-IOB-3 I/O extension board from the DCS800 era, these auxiliary boards are not forward-compatible with the DCS880 and must be replaced with DCS880-compatible I/O extension modules or external signal conditioning hardware.

Firmware version compatibility is critical: ensure the DCS880 ships with firmware ≥ 2.10 to support all standard macro configurations including Speed Control, Torque Control, and Process PID macros. Pre-shipment functional testing — including no-load motor run, speed reference tracking, and fieldbus communication verification — is performed on every unit before dispatch. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and component failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DCS800-to-DCS880 retrofit requires a structured pre-engineering phase. Begin by auditing the existing control cabinet for all ABB DCS800 auxiliary components: the SDCS-IOB-3 digital I/O extension board, SDCS-POW-4 internal power supply, and any SDCS-COM-8 fieldbus communication boards must be identified and scheduled for replacement or bypass. The DCS880-S01-0405-05X0 integrates many of these functions natively, reducing the total component count in the retrofit cabinet.

For sites where the DCS800 was paired with an ABB AC500 PLC (e.g., PM573 or PM591 CPU modules) over PROFIBUS, the existing GSD file and hardware configuration in Automation Builder should be updated to reflect the DCS880 device profile. The drive’s node address and baud rate settings are configured via Drive Composer Pro and must match the PLC’s hardware configuration before the first power-on. If the system includes an ABB ACSM1 or ACS880 inverter on the same PROFIBUS segment for coordinated axis control, the DCS880 can be integrated into the same network without disrupting the inverter’s communication cycle.

Signal isolation is a common requirement when retrofitting older DC drive systems. If the existing wiring uses unshielded analog cables for speed reference (±10 V) or current feedback signals, installing a signal isolator (e.g., a DIN-rail mounted 4–20 mA / ±10 V isolator) between the PLC analog output and the DCS880 AI terminals is strongly recommended to prevent ground loop interference. Similarly, if the legacy system used a pulse encoder (HTL or TTL) for closed-loop speed feedback, verify that the DCS880’s MTAC-01 pulse encoder interface module is installed and configured before commissioning.

Where the retrofit involves replacing multiple DCS800 drives in a multi-drive system (e.g., a paper machine with 8–12 DC drive sections), a phased replacement strategy — replacing one drive section per planned maintenance window — minimizes production risk. Each replaced section should be fully commissioned and verified in speed-follower or torque-follower mode before the next section is taken offline. The DCS880’s built-in oscilloscope function (via Drive Composer Pro) is invaluable for verifying speed reference tracking and current loop response during commissioning without requiring external test equipment.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS800-to-DCS880 migration requires preparation at three levels: documentation, pre-staging, and commissioning protocol. Before the maintenance window opens, all DCS800 parameter sets should be exported and archived. Motor nameplate data, encoder PPR values, field current setpoints, and speed reference scaling factors must be transcribed into the DCS880 commissioning checklist. A pre-staged DCS880-S01-0405-05X0 unit — with firmware loaded, motor data entered, and fieldbus address configured — can reduce in-cabinet installation time to under two hours for a single drive replacement.

During the switchover, the original DCS800 control wiring should be labeled and photographed before disconnection. The DCS880’s terminal layout is compatible with the DCS800’s control wiring in most configurations, but any rewiring should be verified against the DCS880 hardware manual (document 3AXD50000025062) before energizing. After power-on, perform a no-load motor identification run (ID Run) using Drive Composer Pro to allow the DCS880 to auto-tune its current controller to the connected motor. This step is mandatory for optimal closed-loop performance and should not be skipped even when motor data is entered manually.

To protect existing program logic in the upstream PLC, the drive should be kept in LOCAL control mode during initial commissioning, preventing the PLC from issuing run commands until the drive’s speed and torque responses have been verified manually. Once the drive is confirmed operational in LOCAL mode, transfer to REMOTE (fieldbus) control and verify that all PLC-commanded speed references, torque limits, and fault acknowledgment signals are functioning correctly before returning the production line to automatic operation. This staged handover approach ensures that the original control logic is preserved and that no unintended motor starts occur during the commissioning phase.

Retrofit Support FAQ

Q1: Is the DCS880-S01-0405-05X0 a direct drop-in replacement for the DCS800-S01-0405-05?
The DCS880-S01-0405-05X0 is the designated migration-ready successor to the DCS800-S01-0405-05 and shares the same armature current rating (405A), supply voltage range, and frame size. Control terminal mapping is largely compatible, but engineers should review the DCS880 hardware manual for any terminal reassignments before installation. The SDCS-COM-8 PROFIBUS board used in the DCS800 must be replaced with the FPBA-01 adapter for the DCS880.

Q2: Can the DCS880 communicate with my existing Siemens S7 PLC over PROFIBUS without reconfiguring the PLC program?
In most cases, yes — provided the DCS880 is configured to use the same ABB Drives Profile telegram structure (Telegram 1 or Telegram 20) as the DCS800. The PLC program’s drive function blocks (e.g., FB283 or SINA_SPEED) may require minor parameter updates to reflect the new GSD file, but the core logic and speed reference scaling typically remain unchanged.

Q3: What pre-shipment testing is performed on the DCS880-S01-0405-05X0?
Every unit undergoes a full functional test prior to dispatch, including power-on self-test, no-load output voltage verification, fieldbus communication check (where applicable), and firmware version confirmation. Units are shipped with a test report and are covered by a support terms confirmed by quotation against manufacturing defects and component failure under normal operating conditions.

Q4: Is stock available for immediate dispatch, and what is the lead time for urgent replacement orders?
Stock is maintained across multiple regional warehouses to support emergency replacement requirements. Standard orders are dispatched within 1–3 business days. For urgent breakdown situations, expedited dispatch options are available — contact our sales team directly to confirm current stock levels and arrange priority shipping to your site.
