ABB DCF804-0050 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DCF804-0050 Maintenance-Proven Spare Part for Factory Uptime

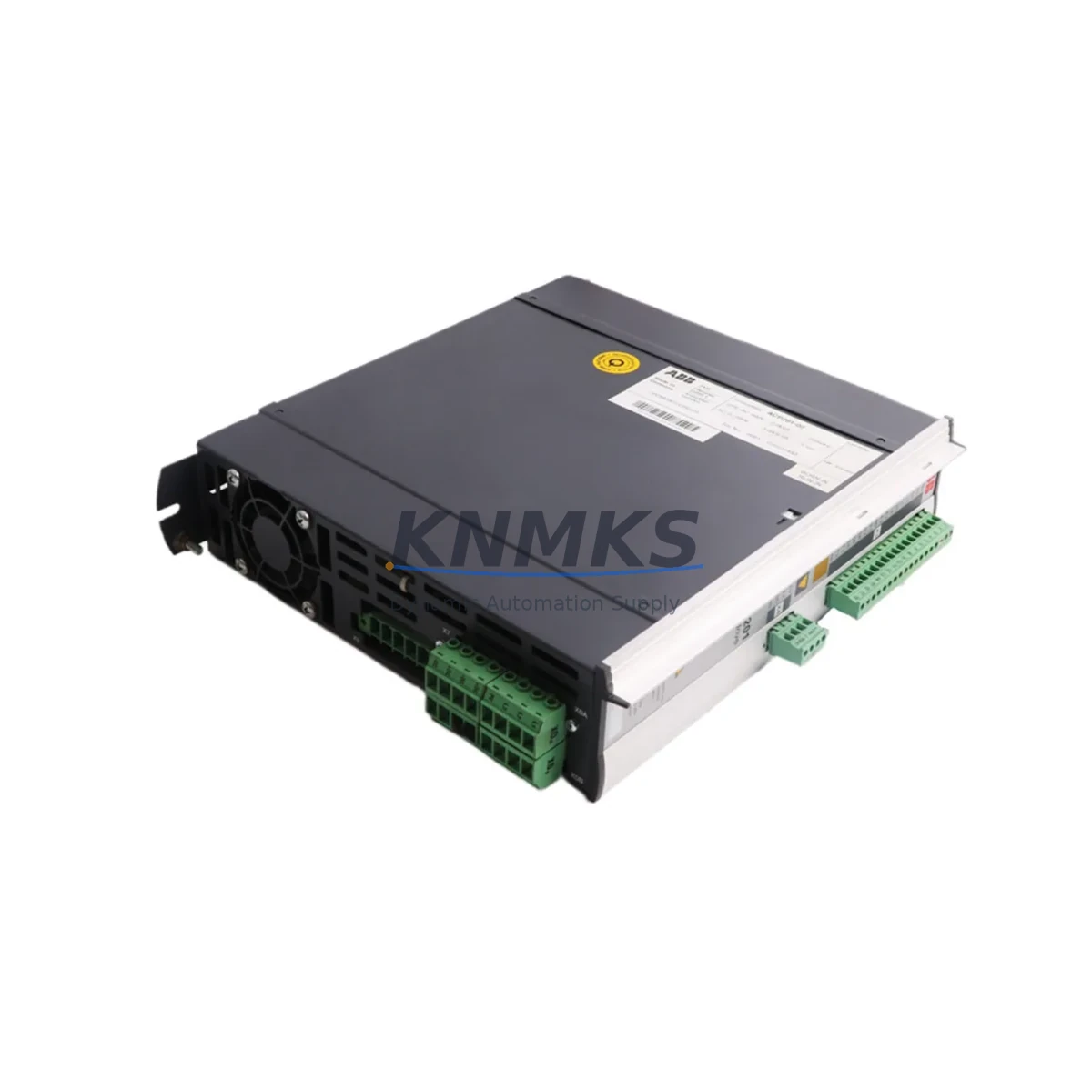

The ABB DCF804-0050 (part number 3ADT209026R0002) is an original external field exciter module engineered for the ABB DCS800 series DC drive platform. Designed to regulate and supply the field current to DC motors, this module is a critical component in high-availability drive systems deployed across petrochemical plants, steel mills, paper machines, port cranes, mining hoists, and water treatment facilities. When this module fails or degrades, the entire DC drive train is at risk of unplanned shutdown — making a validated, stock-backed spare essential for any maintenance-conscious operation.

At KNMKS, every DCF804-0050 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Our global logistics infrastructure ensures rapid dispatch to minimize your mean time to repair (MTTR) and protect production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCF804-0050 field exciter is flagged during routine inspection or fails during operation, experienced maintenance engineers know that the fault rarely exists in isolation. The field exciter sits at the intersection of the power supply circuit, the motor field winding, and the DCS800 drive control logic — meaning a thorough site assessment must extend beyond the module itself.

Start by verifying the upstream AC supply feeding the exciter. A degraded or undersized power supply can cause repeated field exciter faults even after module replacement. If your cabinet uses an ABB SDCS-POW-4 power supply board or equivalent, inspect it for capacitor aging, thermal stress marks, or output voltage drift before reinstalling a new DCF804-0050.

Next, check the SDCS-CON-4 control board — the brain of the DCS800 drive. Field exciter faults are often logged as drive-level alarms on this board, and a corrupted parameter set or firmware mismatch can prevent the new exciter from initializing correctly. Confirm that the drive firmware version is compatible with the DCF804-0050 hardware revision before commissioning.

Inspect all field wiring between the exciter output terminals and the DC motor field terminals. Insulation breakdown, loose terminations, or corroded lugs in the field circuit can cause intermittent faults that mimic exciter failure. Use a megohmmeter to verify field winding insulation resistance before energizing the replacement module.

For sites running the DCS800 in a redundant or multi-drive configuration, also review the SDCS-COM-8 or DDCS fiber communication boards. A communication fault between the master drive and the field exciter can trigger protective shutdowns that appear as exciter failures in the event log. Replacing the DCF804-0050 without resolving a communication fault will result in repeat downtime.

Finally, review the cabinet’s fuse and protection coordination. The field circuit should be protected by appropriately rated semiconductor fuses or MCBs. Blown or weakened fuses in the field exciter supply circuit are a common root cause of exciter damage and should be replaced as a matter of course during any DCF804-0050 swap. Terminal blocks and DIN rail mounting hardware should also be inspected for heat discoloration or mechanical fatigue, particularly in high-cycle or high-ambient-temperature environments.

Procurement engineers planning annual or biennial maintenance shutdowns should consider stocking the DCF804-0050 alongside the SDCS-CON-4 control board, SDCS-POW-4 power supply, and a set of field circuit fuses as a coordinated spare kit. This approach eliminates the risk of a secondary failure extending downtime after the primary repair is complete.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the DCS800 drive cabinet and apply LOTO procedures. Verify zero voltage at the field exciter input terminals using a calibrated multimeter before proceeding.

Step 2 — Document Existing Configuration: Record the drive parameter set (particularly field current reference, field weakening curve, and exciter enable parameters) using the ABB DriveWindow or DCS800 keypad before removing the old module. This prevents parameter loss during replacement.

Step 3 — Module Removal: Disconnect field output cables, AC supply cables, and the control interface connector from the DCF804-0050. Label all cables before removal. Unmount the module from the cabinet panel or DIN rail.

Step 4 — Inspection and Cleaning: Inspect the mounting area for heat damage, contamination, or moisture ingress. Clean the cabinet interior and verify that ventilation paths are unobstructed before installing the replacement unit.

Step 5 — Install Replacement DCF804-0050: Mount the new module, reconnect all cables in the documented sequence, and verify torque on all power terminals per ABB installation specifications.

Step 6 — Parameter Restore and Commissioning: Restore the saved parameter set to the DCS800 drive. Perform a no-load field current test to verify exciter output before reconnecting the motor load. Confirm field current ramp-up behavior matches the pre-fault baseline.

Step 7 — Return to Service: Gradually restore load and monitor drive diagnostics for the first 30 minutes of operation. Log the replacement in the site maintenance record and update the spare parts inventory accordingly.

This workflow is compatible with legacy DCF803 replacement scenarios. The DCF804-0050 is a direct functional replacement for earlier field exciter variants used in DCS500 and DCS600 migration projects, making it a versatile choice for sites managing mixed-generation drive fleets.

Spare Parts Support FAQ

Q1: Is the DCF804-0050 compatible with all DCS800 drive frame sizes?
The DCF804-0050 is designed for use with the ABB DCS800 series and is compatible across multiple frame sizes where an external field exciter is specified. Compatibility depends on the motor field current requirement and the drive configuration. KNMKS recommends confirming the drive’s field exciter specification in the DCS800 hardware manual or contacting our technical team with your drive nameplate data before ordering.

Q2: How does KNMKS verify the condition of DCF804-0050 units before shipment?
Every unit undergoes pre-shipment functional testing to verify output current capability, control interface response, and thermal performance. Units that do not meet original ABB performance specifications are not dispatched. A test report is available upon request for critical applications.

Q3: What is the support terms coverage and what does it include?
All DCF804-0050 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range. Our technical team provides post-sale support to assist with installation and commissioning queries.

Q4: Can KNMKS support long-term or repeat supply of the DCF804-0050 for multi-site maintenance programs?
Yes. KNMKS maintains stock of the DCF804-0050 and supports blanket order arrangements for customers managing multi-site or multi-year maintenance programs. We can coordinate scheduled shipments aligned with your planned maintenance windows, reducing procurement lead time and ensuring spare availability when it matters most. Contact our sales team to discuss a tailored supply agreement.
