ABB DCF506-0520-51-0000000 Spare Part for Factory Uptime

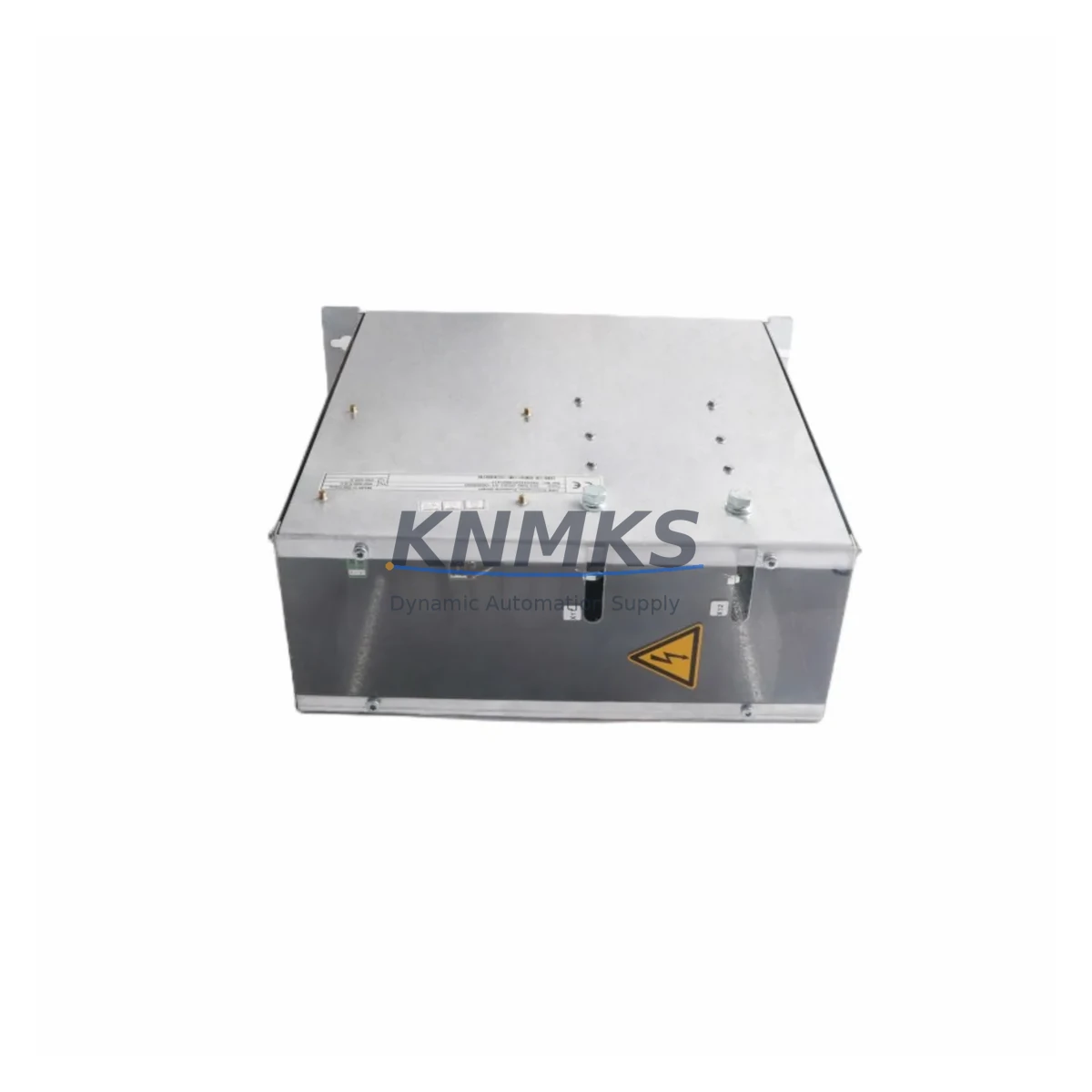

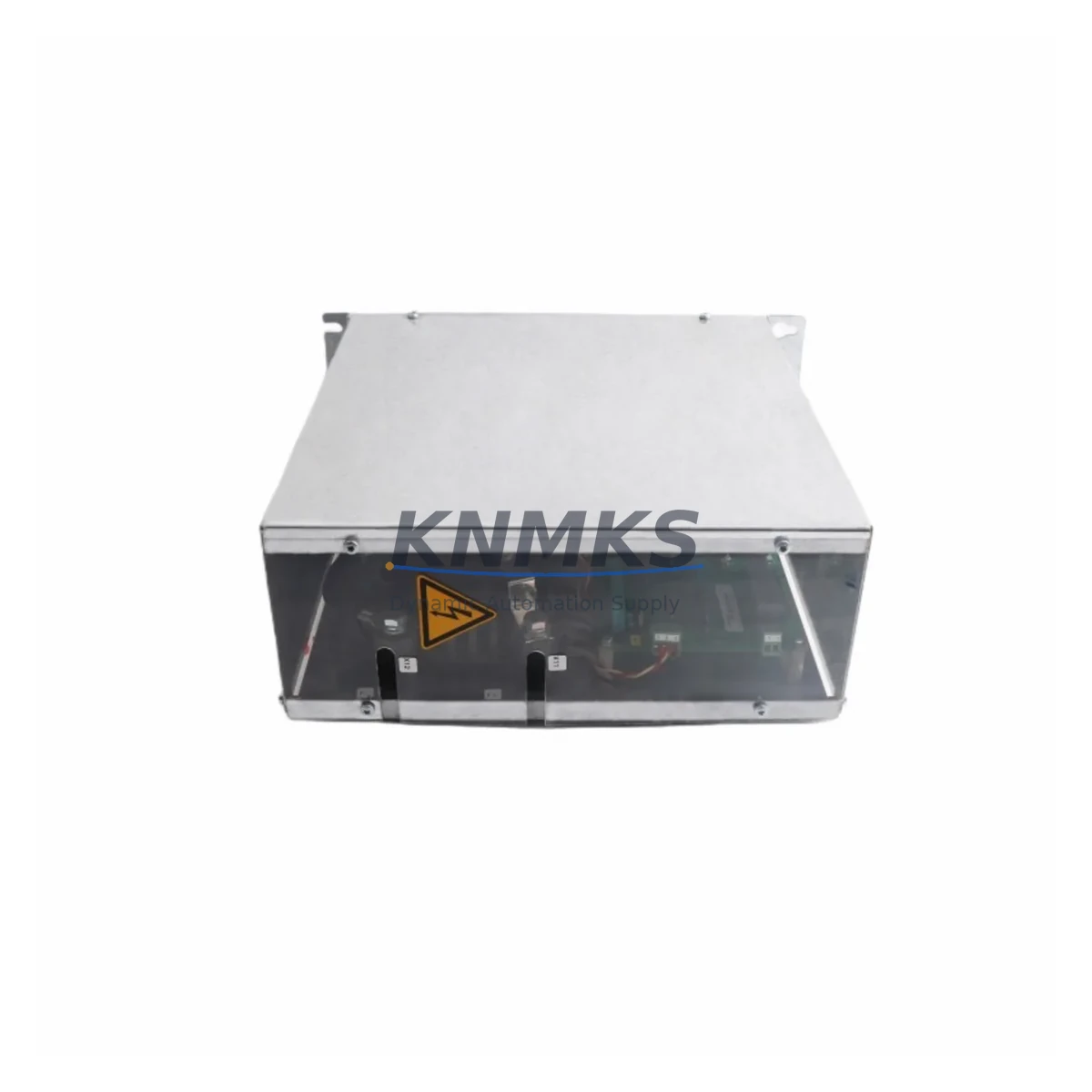

The ABB DCF506-0520-51-0000000, also identified as the SDCS-FEP-1 Field Excitation Panel, is a critical control board within the ABB DCS500 series DC drive platform. Designed for demanding industrial environments, this board governs field excitation regulation — a function that directly determines motor flux stability, torque response, and overall drive reliability. When this component fails or degrades, the result is uncontrolled motor behavior, drive fault trips, and unplanned production downtime. Stocking a verified original spare is the most effective insurance against extended outages in DC motor-driven production lines.

At KNMKS, every DCF506-0520-51-0000000 unit is sourced from authorized supply chains, individually tested prior to shipment, and backed by a support terms confirmed by quotation. Our inventory is maintained to support both emergency replacement orders and planned annual maintenance programs for facilities operating DCS500 drives in paper mills, steel plants, crane systems, extruder lines, and other continuous-process industries.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Field excitation board failures in DCS500 drives rarely occur in isolation. When a DCF506-0520-51-0000000 is flagged for replacement during a scheduled inspection or emergency fault response, maintenance engineers should treat the event as a trigger for a broader cabinet audit. The field excitation circuit interacts directly with the main control board (SDCS-CON-2 or SDCS-CON-4), the power interface board (SDCS-PIN-205), and the gate driver board (SDCS-DSL-4). Any of these boards may exhibit latent degradation if the field excitation fault was caused by an upstream power anomaly or sustained overcurrent condition.

Beyond the drive boards themselves, the field wiring harness and field terminal block connections should be inspected for insulation breakdown, loose crimps, or corrosion — particularly in high-humidity or high-vibration environments. The DC bus fuses and field circuit protection fuses (typically 10–25 A fast-blow types) should be checked and replaced as a precaution. If the drive cabinet includes an SDCS-AMC-DC or similar communication adapter for PROFIBUS or Modbus connectivity, verify that the communication link is re-established cleanly after board replacement, as field excitation faults can sometimes corrupt drive parameter memory.

For facilities running multiple DCS500 drives in parallel — common in multi-motor crane or winder applications — it is advisable to maintain at least one DCF506-0520-51-0000000 on-site as a hot spare. Pairing this with a spare SDCS-CON-2 control board and a set of field fuses creates a compact emergency kit that covers the majority of DCS500 field-side failure modes. Annual maintenance schedules should include thermal imaging of the drive cabinet, torque-check of all terminal connections, and a functional test of the field excitation output under no-load conditions.

Site Replacement Workflow

Replacing the DCF506-0520-51-0000000 on-site is a straightforward procedure for qualified drive maintenance personnel, but requires careful sequencing to avoid secondary damage. Begin by recording all drive parameters using the ABB DriveWindow or DCS500 keypad before powering down — field excitation board replacement may reset certain calibration values depending on firmware version. Isolate the drive from the AC supply and verify zero voltage on the DC bus using a calibrated meter before opening the cabinet.

Remove the field excitation board by disconnecting the backplane connector and any field wiring terminals. Inspect the backplane connector pins for burn marks or deformation before installing the replacement DCF506-0520-51-0000000. After installation, restore power and perform a field current calibration sequence as described in the DCS500 Hardware Manual (3ADW000379). Verify field current feedback matches the setpoint before returning the drive to automatic control. Document the replacement in the site maintenance log, including the serial number of the replaced board and the date of installation.

For legacy DCS500 installations where the original firmware is no longer supported, KNMKS can advise on compatible replacement strategies and cross-reference alternative ABB spare part numbers that maintain electrical and functional compatibility with the existing drive hardware.

Spare Parts Support FAQ

Q1: Is the DCF506-0520-51-0000000 compatible with all DCS500 drive variants?
The SDCS-FEP-1 field excitation panel is designed for use across the DCS500 series, including DCS501, DCS502, DCS503, and DCS504 variants. Compatibility depends on the drive’s rated field current and firmware version. KNMKS recommends providing your drive nameplate data and existing board serial number when placing an order so we can confirm exact compatibility before shipment.

Q2: What testing is performed before shipment?
Every DCF506-0520-51-0000000 dispatched by KNMKS undergoes a pre-shipment functional test that verifies board power-up, excitation output regulation, and communication interface integrity. A test report is available upon request. Units that do not pass testing are not shipped.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the specified environmental parameters. In the event of a support terms claim, KNMKS will arrange replacement or repair at no additional cost to the customer.

Q4: Can KNMKS support long-term supply for ongoing maintenance programs?
Yes. KNMKS maintains standing inventory of DCS500 series spare boards and can support blanket purchase orders, annual supply agreements, and emergency call-off arrangements. For facilities with multiple DCS500 drives, we recommend establishing a preferred supplier agreement to ensure priority access to critical spares and guaranteed lead times.
