ABB DCF503B0050-000000X Migration-Ready Field Excitation for DCS800

Overview

ABB DCF503B0050-000000X Migration-Ready Field Excitation for DCS800

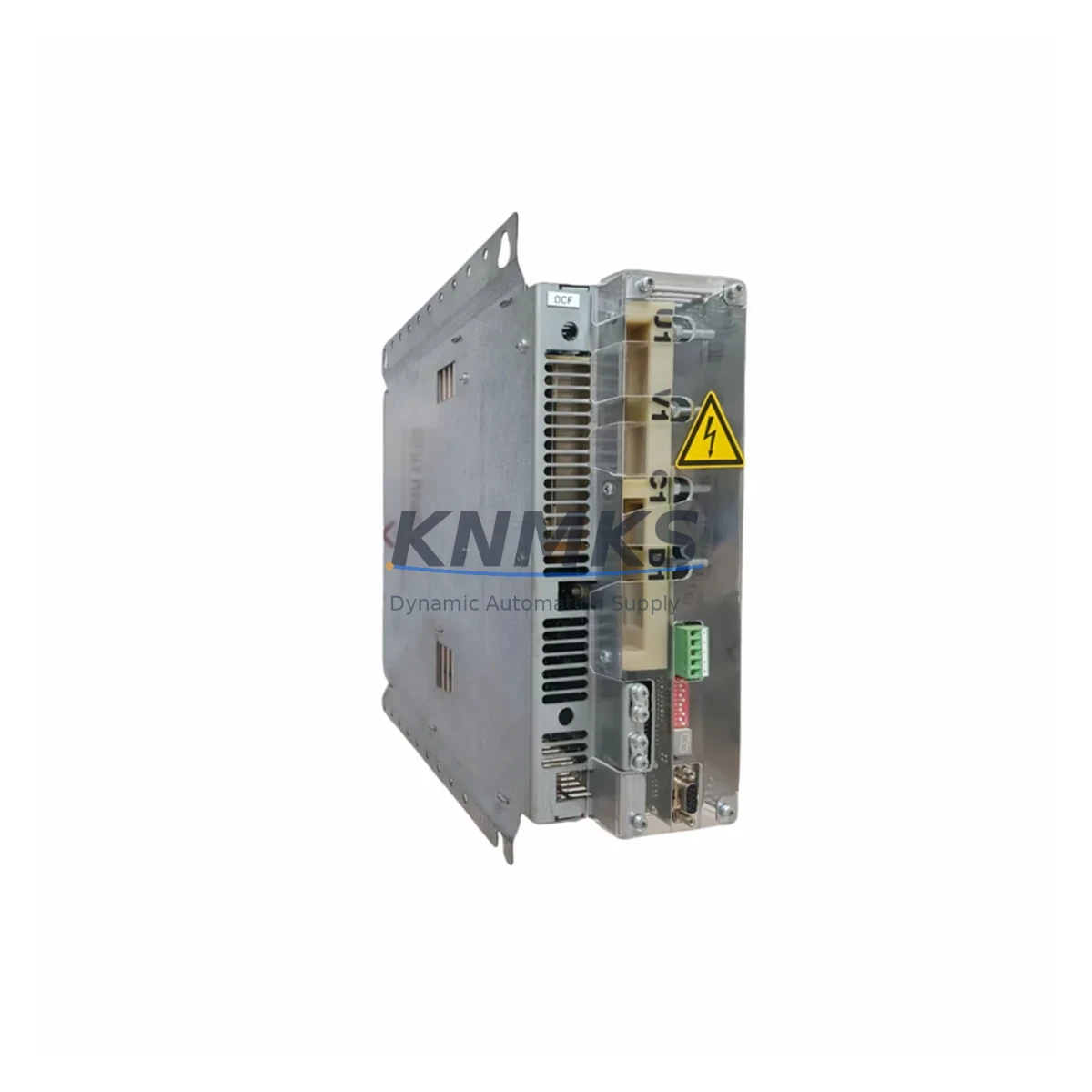

The ABB DCF503B0050-000000X is a migration-ready field excitation module engineered for the DCS800 series DC drive platform. As legacy DC drive installations across process industries face increasing pressure from discontinued support, aging firmware, and unavailable spare parts, the DCF503B0050-000000X provides a verified drop-in replacement path that preserves existing control architecture while restoring full field excitation capability. This module is designed to serve both emergency replacement scenarios and planned retrofit programs, offering compatibility with the DCS800 drive’s internal rack, backplane interface, and SDCS-CON-4 control board ecosystem.

For maintenance engineers managing aging DC drive cabinets, the DCF503B0050-000000X eliminates the need for full drive replacement by restoring field excitation regulation without disturbing the armature control loop. The module interfaces directly with the DCS800’s internal field excitation circuit, maintaining the original thyristor bridge topology and supporting both single-phase and three-phase field supply configurations. Before installation, engineers should verify field supply voltage rating, confirm terminal block wiring against the original DCF503 series layout, and validate that the SDCS-CON-4 firmware version supports the replacement module’s parameter set. Firmware version mismatches between the control board and the field excitation module are a common source of commissioning delays and should be resolved prior to energization.

In retrofit planning, the DCF503B0050-000000X is frequently deployed alongside the SDCS-CON-4 control board, which manages the closed-loop field current regulation and communicates drive status to the DCS800’s main processor. Engineers replacing the field excitation module should also audit the SDCS-PIN-51 pulse transformer board, as degraded pulse isolation can cause erratic field current behavior even after a successful module swap. Where the original installation includes a SDCS-FEX-2 field excitation extension, compatibility with the DCF503B0050-000000X should be confirmed against the DCS800 hardware manual revision in use at the site.

Communication protocol continuity is a critical consideration during field excitation module replacement. The DCS800 platform supports PROFIBUS-DP, Modbus RTU, and ABB’s DDCS fiber-optic link. When the DCF503B0050-000000X is installed as part of a broader drive modernization that includes upgrading the fieldbus adapter — such as replacing an RPBA-01 PROFIBUS adapter with an FENA-21 Ethernet/IP module — the field excitation parameters must be re-mapped in the drive’s parameter list to ensure the SCADA or DCS host receives accurate field current feedback. HMI screens referencing field excitation status signals should be updated to reflect any parameter address changes introduced during the migration.

For installations where the DCS800 drive cabinet also houses an SDCS-AMC-DC-1 application module or a SDCS-DSL-4 serial link board, the physical installation space for the DCF503B0050-000000X should be confirmed against the cabinet’s slot allocation before ordering. The module occupies a dedicated slot in the DCS800’s internal rack, and slot conflicts with expansion boards are a documented issue in multi-axis or multi-drive cabinet configurations. Weight and cooling airflow requirements should also be reviewed, as the DCF503B0050-000000X’s thermal dissipation profile must be accommodated within the cabinet’s existing ventilation design.

All DCF503B0050-000000X units supplied by KNMKS are subject to pre-shipment functional testing under simulated field excitation load conditions. Each unit is verified for thyristor gate trigger response, field current regulation accuracy, and thermal performance prior to dispatch. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Multi-unit orders for planned retrofit programs are supported with coordinated dispatch scheduling to align with planned maintenance windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan for the DCF503B0050-000000X begins with a full audit of the DCS800 cabinet’s slot configuration. In cabinets where the SDCS-CON-4 control board, SDCS-PIN-51 pulse transformer board, and SDCS-AMC-DC-1 application module are all present, slot allocation must be mapped before the replacement module is ordered. Engineers should also document the existing field excitation wiring at the terminal block, noting field supply voltage, field current setpoint, and any external field weakening resistor values, as these parameters must be re-entered into the DCS800’s parameter list after the module swap.

Where the retrofit scope extends beyond the field excitation module to include a fieldbus adapter upgrade — for example, replacing an RPBA-01 PROFIBUS-DP adapter with an FENA-21 Ethernet/IP module to align with a plant-wide network modernization — the parameter migration must be planned in sequence. The SDCS-DSL-4 serial link board, if present, should be evaluated for continued use or replacement as part of the same maintenance window to avoid a second planned outage. I/O signal mapping between the DCS800 and the plant DCS or SCADA system should be validated in simulation before the drive is returned to service.

For sites operating multiple DCS800 drives in a coordinated multi-drive configuration, the field excitation module replacement on one drive must be coordinated with the control system to prevent unintended load sharing imbalances during the commissioning phase. The RDCO-04 DDCS fiber-optic communication board, where installed, should be checked for signal integrity after the module swap, as physical disturbance of the internal rack can affect fiber connector seating.

Downtime Control During System Migration

Minimizing downtime during DCF503B0050-000000X replacement requires advance preparation of the replacement module, pre-verified against the site’s DCS800 firmware version and parameter backup. Before the planned outage, engineers should export the full DCS800 parameter set using the DriveWindow or Drive Composer tool, preserving the field excitation setpoints, field current limits, and field weakening curve data. This parameter backup serves as the restoration baseline if commissioning reveals unexpected behavior after the module swap.

During the physical replacement, the DCS800’s field supply should be isolated and verified de-energized before the DCF503B0050-000000X is removed from the rack. The replacement module should be seated firmly in the rack slot and the terminal block wiring reconnected in sequence, following the original wiring diagram. After energization, field current should be monitored at the drive’s diagnostic display and compared against the pre-outage baseline to confirm the replacement module is regulating correctly before the drive is returned to automatic control.

For sites where continuous process operation is critical, a pre-tested spare DCF503B0050-000000X held in local inventory provides the fastest recovery path in the event of an unplanned field excitation failure. KNMKS supports standing inventory arrangements for planned retrofit programs, with coordinated dispatch to align with scheduled maintenance windows and minimize the risk of extended unplanned downtime.

Retrofit Support FAQ

Q: Is the DCF503B0050-000000X a direct drop-in replacement for the original ABB field excitation module in the DCS800?
A: Yes. The DCF503B0050-000000X is designed as a direct rack-compatible replacement for the original DCF503 series field excitation module in the DCS800 platform. No mechanical adapter or wiring modification is required for standard installations. Firmware version compatibility with the SDCS-CON-4 control board should be confirmed prior to installation.

Q: What commissioning steps are required after installing the DCF503B0050-000000X?
A: After physical installation, the DCS800’s field excitation parameters should be verified against the pre-outage parameter backup. Field current setpoint, field current limit, and field weakening curve values should be confirmed at the drive’s parameter interface. If a fieldbus adapter was also replaced during the same maintenance window, signal address mapping to the DCS or SCADA host should be validated before returning the drive to automatic control.

Q: Does KNMKS provide pre-shipment testing for the DCF503B0050-000000X?
A: Yes. All units are subject to pre-shipment functional testing covering thyristor gate trigger response, field current regulation accuracy, and thermal performance under simulated load conditions. Test records are available on request. Each unit is supplied with a support terms confirmed by quotation from the date of dispatch.

Q: Can KNMKS supply multiple DCF503B0050-000000X units for a planned retrofit program?
A: Yes. Multi-unit orders are supported with coordinated dispatch scheduling to align with planned maintenance windows. Contact [email protected] or +86 18359268345 to discuss inventory availability, lead times, and retrofit program support.
