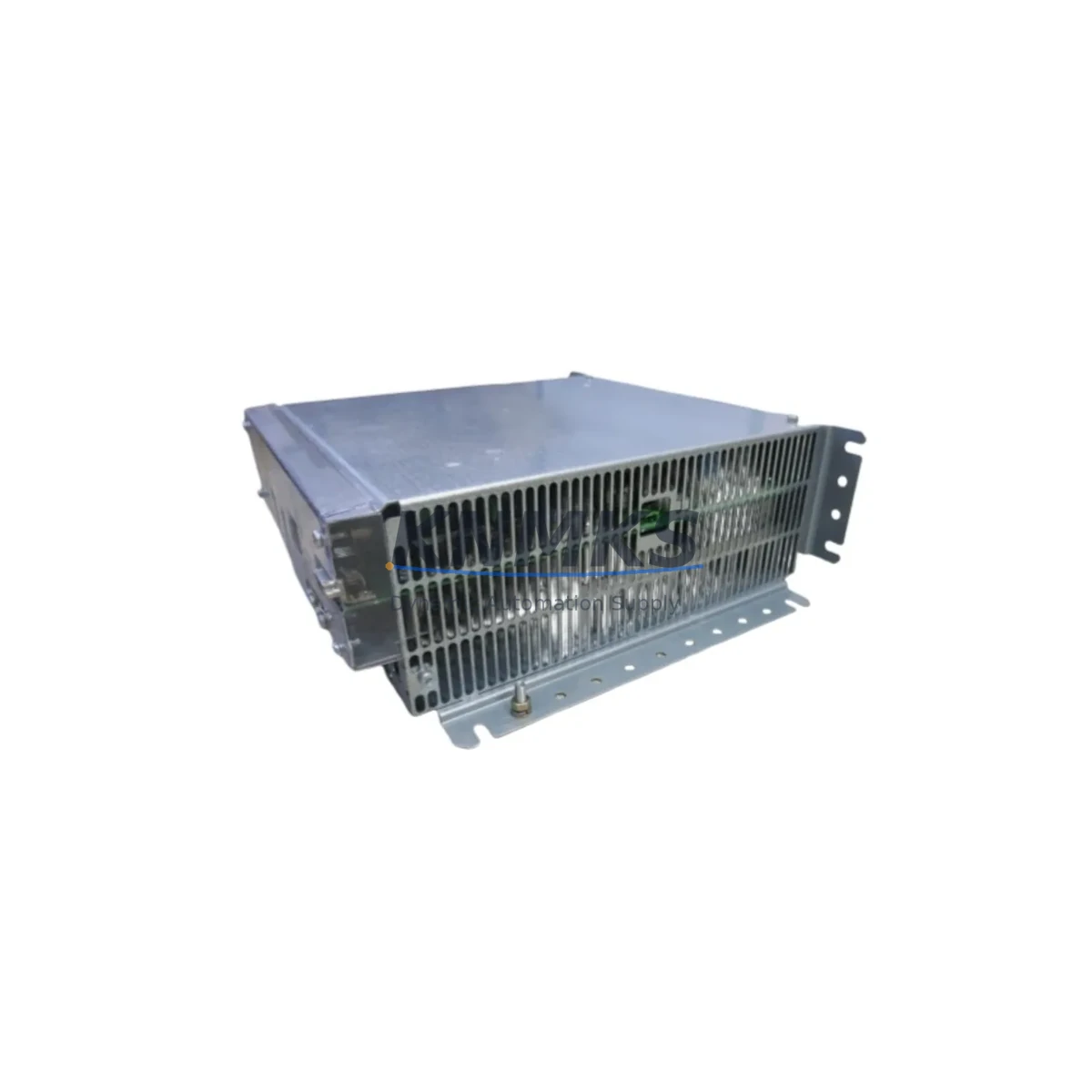

ABB DCF503A0050-0000000 Fail-Safe DC Drive Governor

Overview

ABB DCF503A0050-0000000 Fail-Safe DC Drive Governor: Fault Protection and Critical Industrial Field Reliability

The ABB DCF503A0050-0000000 is a precision DC drive governor module from ABB’s renowned DCS800 series, engineered for fail-safe operation in the most demanding industrial control environments. Designed to deliver uninterrupted motor speed regulation and torque control, this module is a cornerstone component in critical control cabinets where unplanned downtime, signal drift, or control loop interruption carry severe operational and safety consequences.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical smelters, port crane systems, and marine propulsion control rooms — the DCF503A0050-0000000 provides the stable, fault-tolerant DC drive governance that keeps processes running safely within defined parameters. Its robust architecture addresses the full spectrum of field hazards: high electromagnetic interference (EMI), voltage surges, power fluctuations, ambient dust and moisture ingress, elevated temperature cycling, and mechanical vibration.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The DCF503A0050-0000000 is most effective when deployed as part of a coordinated control cabinet protection strategy. In high-load DC drive cabinets, it works in concert with the ABB DCS800 main converter unit to maintain closed-loop speed regulation even under sudden load transients or supply voltage dips. Upstream power quality is typically ensured by ABB SACE Tmax series molded-case circuit breakers, which provide short-circuit and overload protection before power reaches the drive governor stage.

For cabinets operating in high-EMI environments — such as those adjacent to large AC motors, welding equipment, or variable-frequency drives — the addition of ABB EMC line filters (type ACF or equivalent) on the input side significantly reduces conducted interference that could otherwise cause signal drift or spurious fault trips in the governor module. On the communication side, the DCF503A0050-0000000 supports ABB DDCS fiber-optic communication adapters, which provide galvanic isolation between the drive and the supervisory control system, eliminating ground loop interference in long-distance cabinet-to-control-room wiring runs.

In safety-critical interlock circuits, the governor module is frequently paired with ABB Pluto safety PLCs or equivalent safety relay modules that monitor drive status outputs and trigger controlled shutdown sequences upon detection of overspeed, overcurrent, or loss-of-feedback conditions. For thermal management within the control cabinet, ABB cabinet cooling units or thermostat-controlled fan assemblies maintain the ambient temperature within the module’s rated operating range, preventing thermal derating or premature component aging in high-ambient installations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where DC-driven pumps, compressors, and agitators must maintain precise speed under varying viscosity loads, the DCF503A0050-0000000 provides the closed-loop governor stability that prevents runaway conditions and process upsets. Its surge protection capability is essential in facilities where lightning strikes or capacitor bank switching events generate transient overvoltages on the DC bus.

Power Generation & Utilities: Coal handling conveyors, cooling water pump drives, and auxiliary motor control systems in power stations rely on fail-safe DC governor modules to maintain output during grid disturbances. The DCS800 platform’s proven fault-ride-through capability makes the DCF503A0050-0000000 a trusted choice for utility-grade reliability requirements.

Mining & Mineral Processing: Hoist drives, crusher drives, and conveyor systems in underground and open-pit mining operations subject DC drive components to extreme vibration, dust ingress, and wide temperature swings. The DCF503A0050-0000000’s robust mechanical design and sealed connector interfaces maintain reliable operation in these harsh conditions, reducing unplanned stoppages that carry significant safety and productivity costs.

Water & Wastewater Treatment: Pump station motor control in water treatment facilities demands continuous, unattended operation. The governor module’s ability to maintain stable speed regulation under varying head pressure and flow conditions — without operator intervention — is critical to maintaining treatment capacity and regulatory compliance.

Metallurgy & Steel Mills: Rolling mill main drives and ladle crane hoists operate under extreme dynamic load cycles. The DCF503A0050-0000000 supports the fast torque response and regenerative braking control required in these applications, while its thermal tolerance ensures reliable operation in the elevated ambient temperatures typical of steelmaking environments.

Port Cranes & Marine Systems: Container crane slew drives and ship propulsion control systems require DC governor modules that can withstand salt-laden air, humidity, and the mechanical shock loads associated with heavy lift operations. The DCS800 series governor’s proven field record in port and marine applications makes the DCF503A0050-0000000 a reliable spare and replacement component for these installations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DCF503A0050-0000000?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified DC drive governor function within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed on this module?
Every DCF503A0050-0000000 unit undergoes a full functional inspection and visual quality check before dispatch. This includes verification of connector integrity, board-level visual inspection for damage or contamination, and confirmation of part number and revision markings against the order specification. Units that do not pass inspection are not shipped.

Q3: Is this module compatible with existing DCS800 drive systems and ABB fieldbus adapters?
Yes. The DCF503A0050-0000000 is a genuine ABB DCS800 series component and is fully compatible with the DCS800 drive platform, including DDCS fiber-optic communication adapters, PROFIBUS-DP interface modules, and ABB’s DriveWindow configuration software. Always verify the firmware revision of your existing DCS800 system against ABB’s compatibility matrix before installation.

Q4: Can you support long-term or blanket order supply for ongoing maintenance programs?
Yes. We maintain stock of the DCF503A0050-0000000 and can support scheduled blanket orders for planned maintenance programs, capital spares inventories, and multi-site procurement contracts. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your maintenance schedule.
