ABB DAI01 P37131-4-0369628 Migration-Ready Analog Input – Model DAI01 P37131-4-0369628

Overview

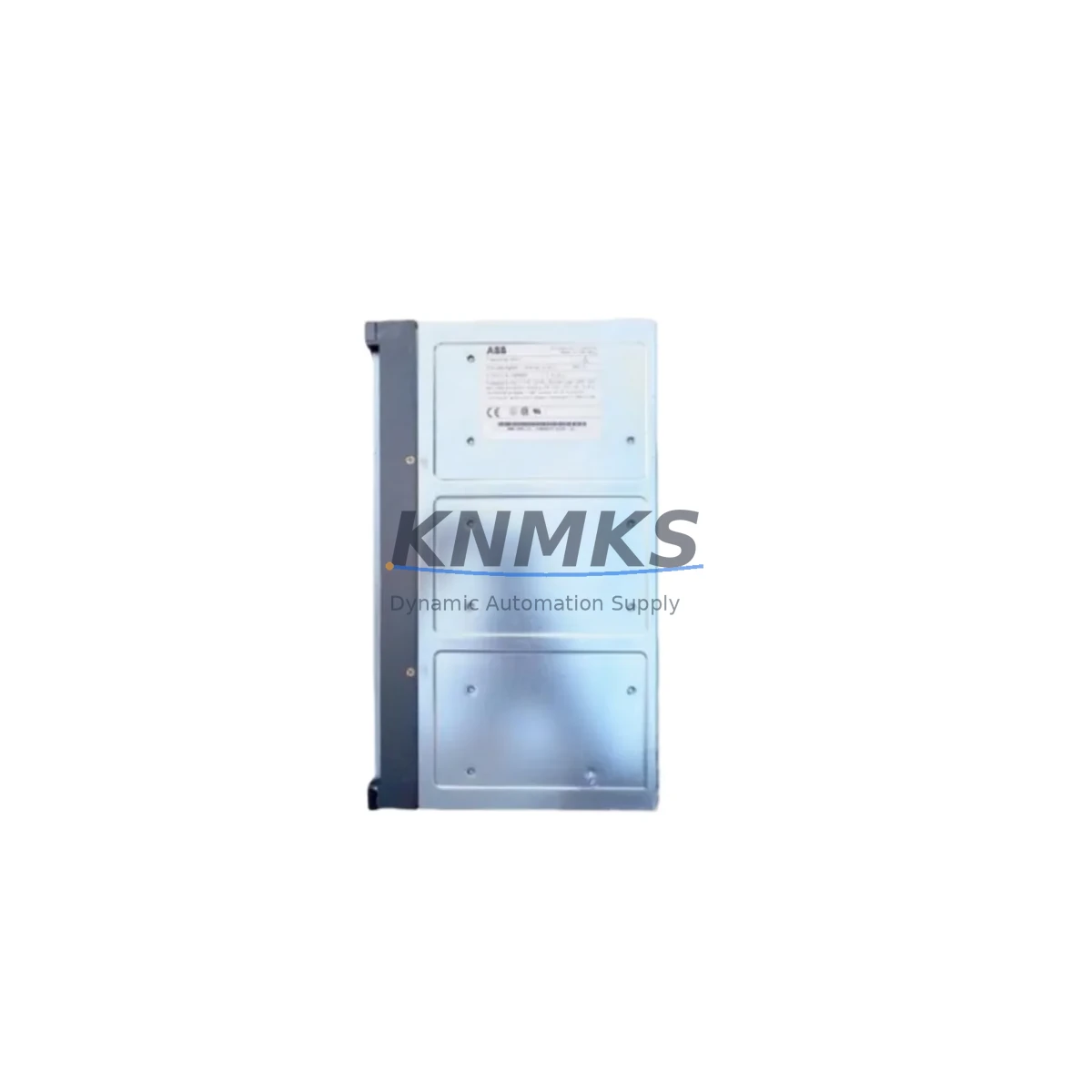

ABB DAI01 P37131-4-0369628 Migration-Ready Analog Input for Legacy Control Systems

The ABB DAI01 P37131-4-0369628 is an 8-channel analog input module designed for the ABB AC500 and S500 PLC platform. As legacy control systems approach end-of-life and original spare parts become increasingly difficult to source, the DAI01 serves as a critical migration-ready replacement for aging analog input infrastructure across process automation, machine control, and panel-mounted PLC applications. Whether you are managing a planned retrofit or responding to an unplanned failure of a discontinued module, the DAI01 P37131-4-0369628 provides a direct, wiring-compatible upgrade path that minimizes engineering rework and reduces total downtime exposure.

Engineered to integrate seamlessly within the AC500 S500 I/O expansion architecture, this module supports standard analog signal types including 4–20 mA and 0–10 V inputs, making it compatible with the majority of field transmitters already installed in legacy control cabinets. The terminal wiring layout follows the established S500 convention, which means existing field cables can typically be reconnected without modification — a significant advantage when working under tight maintenance windows or in facilities where rewiring documentation is incomplete.

For system integrators and maintenance engineers managing multi-generation PLC environments, the DAI01 P37131-4-0369628 is fully addressable within the AC500 programming environment using Automation Builder. Module address configuration follows the standard S500 backplane slot assignment, and no firmware patching is required when replacing a like-for-like DAI01 unit in an existing rack. This compatibility extends to HMI tag mapping — existing SCADA and HMI screen references to analog input channels remain valid after module swap, provided the replacement module occupies the same rack slot position.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DAI01 P37131-4-0369628 into an existing control system begins with a structured pre-retrofit assessment. Before removing the legacy module, engineers should document the current rack slot assignment, verify the S500 backplane bus version, and confirm that the AC500 CPU — typically a PM573, PM583, or PM595 — is running a firmware version compatible with the DAI01 module type. In most AC500 installations, the CPU firmware is already aligned, but this step is essential in systems that have not been updated in several years.

Terminal block wiring should be photographed and labeled prior to disconnection. The DAI01 uses the standard S500 terminal assignment, and in the majority of retrofit cases, the existing TB521 or TB523 terminal base can be reused directly, eliminating the need to re-terminate field cables. This is particularly valuable in installations where field wiring runs are long or where cable identification labels have degraded over time.

For systems where the analog input module is part of a larger I/O expansion chain — for example, alongside digital input modules such as the DI524 or digital output modules such as the DO524 — the DAI01 replacement does not affect the addressing or operation of adjacent modules on the same backplane. The S500 bus architecture handles module identification automatically at power-up, and the AC500 CPU will recognize the replacement DAI01 without requiring a full program download in most configurations.

Where the control system includes a communication interface module such as the CI590-CS31-HA or a PROFIBUS DP adapter, the analog input data from the DAI01 will continue to be mapped through the existing communication layer without reconfiguration. This is a critical consideration for distributed control architectures where the S500 I/O rack is located remotely from the main CPU panel. Engineers should also verify that the power supply module — such as the ABB PS501 or equivalent 24 VDC supply — provides sufficient current budget after the module swap, particularly in fully populated racks.

In retrofit projects involving HMI panel upgrades alongside the module replacement, it is advisable to validate analog input scaling parameters in the Automation Builder project file before going live. Channel gain and offset values configured for the original module are retained in the CPU program and will apply immediately to the replacement DAI01, ensuring that process variable displays on the operator panel remain accurate from first power-up.

Downtime Control During System Migration

Minimizing production downtime during an analog input module replacement requires preparation that begins well before the maintenance window opens. For the DAI01 P37131-4-0369628, the physical swap procedure is straightforward: the S500 module design allows hot-swap in some AC500 configurations, but this should be confirmed against the specific CPU and firmware version in use before attempting live replacement. In systems where hot-swap is not supported, a cold-swap procedure — powering down the rack, replacing the module, and restoring power — typically takes under 15 minutes when the replacement module is on-site and pre-tested.

To protect the original program logic during migration, a full project backup should be exported from Automation Builder and stored offline before any hardware changes are made. This backup preserves all I/O configuration, analog scaling, communication settings, and HMI variable bindings. If the replacement module triggers an unexpected configuration mismatch at startup, the backup allows rapid restoration without requiring re-engineering of the control logic.

Field commissioning after module installation should include a channel-by-channel analog input verification using a calibrated signal source or loop calibrator. Each of the 8 channels should be stimulated at 4 mA (0%) and 20 mA (100%) to confirm correct scaling and signal integrity before returning the system to automatic control. This step also validates that the terminal wiring reconnection is correct and that no channels have been inadvertently transposed during the swap.

For facilities operating continuous processes where even brief interruptions carry significant cost, it is recommended to maintain at least one DAI01 P37131-4-0369628 as a dedicated cold standby spare. Given the increasing scarcity of legacy S500 analog input modules in the secondary market, securing inventory in advance of a failure event is a practical risk management measure that directly supports spare parts lifecycle extension programs.

Retrofit Support FAQ

Q: Is the DAI01 P37131-4-0369628 a direct drop-in replacement for the original ABB DAI01 in an S500 rack?
A: Yes. The DAI01 P37131-4-0369628 is a direct replacement for the standard ABB DAI01 analog input module within the S500 I/O system. It occupies the same rack slot, uses the same terminal base, and is recognized by the AC500 CPU without program modification in a like-for-like swap scenario.

Q: Does the replacement module require firmware updates or re-commissioning in Automation Builder?
A: In most cases, no firmware update or re-commissioning is required. The AC500 CPU identifies the DAI01 automatically via the S500 backplane. However, if the existing project file was configured for a specific hardware revision, it is advisable to compare the module hardware version against the project configuration in Automation Builder before closing the maintenance window.

Q: What pre-shipment testing is performed on the DAI01 P37131-4-0369628?
A: Each unit undergoes functional testing prior to dispatch to verify analog input channel operation, signal accuracy, and backplane communication integrity. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions.

Q: What is the lead time and stock availability for the DAI01 P37131-4-0369628?
A: This module is held availability confirmed by RFQ for immediate dispatch. For volume requirements or long-term spare parts programs, contact our sales team to discuss inventory reservation and scheduled delivery options.
