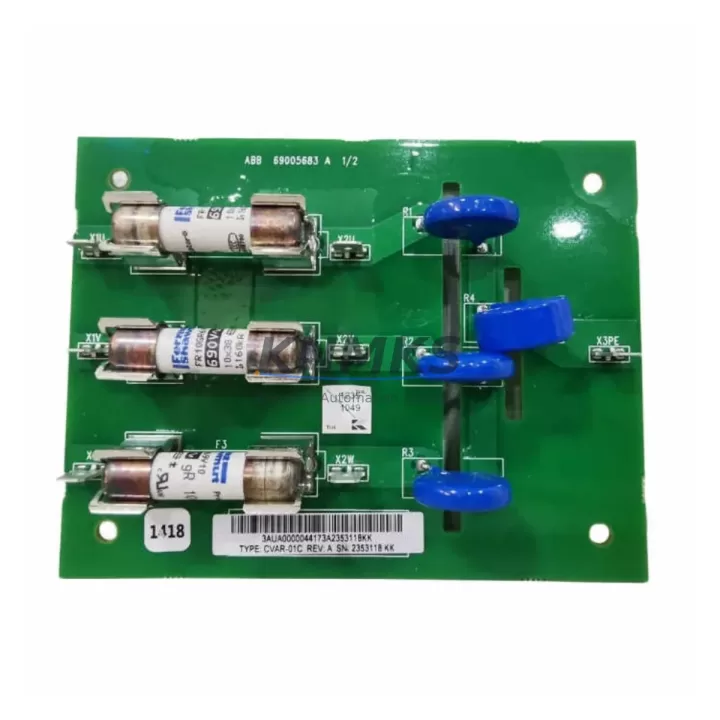

The ABB CVAR-01C is a drive control board engineered for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across process automation, material handling, and heavy manufacturing environments. As a maintenance-proven spare part, the CVAR-01C plays a central role in sustaining drive performance, protecting motor assets, and enabling rapid fault recovery when unplanned downtime threatens production continuity.

For maintenance engineers managing aging ACS800 installations, the CVAR-01C represents a critical line item in any structured spare parts inventory. Its function as the primary control interface within the drive cabinet means that a failed or degraded board can halt an entire production line. Stocking a verified replacement unit — tested before shipment and backed by a support terms confirmed by quotation — is the most cost-effective insurance against extended downtime events.

Procurement engineers sourcing CVAR-01C replacements should confirm compatibility with their specific ACS800 drive frame size and firmware revision. ABB’s ACS800 platform spans multiple hardware generations, and the CVAR-01C is designed to integrate with the drive’s backplane architecture, ensuring signal continuity across the I/O interface, fieldbus communication layer, and internal power distribution bus. Before finalizing a replacement order, cross-reference the drive’s type designation plate and confirm the control board revision matches the installed base.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for any ACS800 drive installation should treat the CVAR-01C as part of a broader control cabinet health strategy. When a CVAR-01C replacement is scheduled or triggered by a fault event, maintenance engineers should simultaneously inspect the following components to prevent cascading failures and ensure full system restoration:

The AINT-02C or AINT-14C inverter control board operates in close coordination with the CVAR-01C and should be checked for thermal stress or communication errors during the same maintenance window. The APBU-44C or APBU-12C pulse encoder interface unit should be verified for signal integrity if the drive controls a speed-regulated motor. For drives using fieldbus communication, the RDCO-01C or RDCO-03C DDCS communication module should be inspected to confirm the fiber-optic link remains intact after board replacement.

On the power side, the ACS800 OINT-01C optical interface board and associated DC bus capacitor bank should be assessed for capacitance degradation — a common root cause of control board stress in older installations. The 24 VDC auxiliary power supply feeding the control section must be verified within tolerance (±5%) before powering up a replacement CVAR-01C, as undervoltage conditions during initialization can corrupt firmware parameters.

Terminal block wiring integrity — particularly on the X1 and X2 control terminal strips — should be inspected for loose connections, oxidation, or insulation breakdown. Signal isolators on analog input channels (4–20 mA or 0–10 V) should be tested to confirm clean signal delivery to the new control board. Finally, the drive’s panel bus connection to the ACS800 CDP312R control panel or ACS-AP-I assistant control panel should be reseated to ensure parameter upload and drive commissioning can proceed without communication errors.

Site Replacement Workflow

Replacing the CVAR-01C on-site follows a structured sequence designed to minimize drive downtime and protect surrounding system components. Begin by recording all drive parameters using the CDP312R control panel or DriveWindow Light PC tool — parameter backup is essential before any control board swap, as replacement boards ship without site-specific configuration.

De-energize the ACS800 drive fully, observing the DC bus discharge time (minimum 5 minutes after main power isolation) before opening the drive cabinet. Ground the technician and work surface before handling the CVAR-01C to prevent electrostatic discharge damage. Disconnect all ribbon cables and terminal block connectors from the existing board, noting their positions for reinstallation. Remove the board from the backplane mounting, install the replacement CVAR-01C, and reconnect all cables in reverse order.

After mechanical installation, restore auxiliary 24 VDC power first and verify the control panel communicates with the drive before restoring main AC power. Reload the saved parameter set and perform a no-load test run to confirm motor control response. This workflow is compatible with all ACS800 frame sizes where the CVAR-01C is the designated control board, and it preserves full system compatibility without requiring firmware upgrades in most standard replacement scenarios. Documented replacement procedures reduce mean time to repair (MTTR) and support audit-ready maintenance records for ISO 9001 and IEC 62443 compliance environments.
