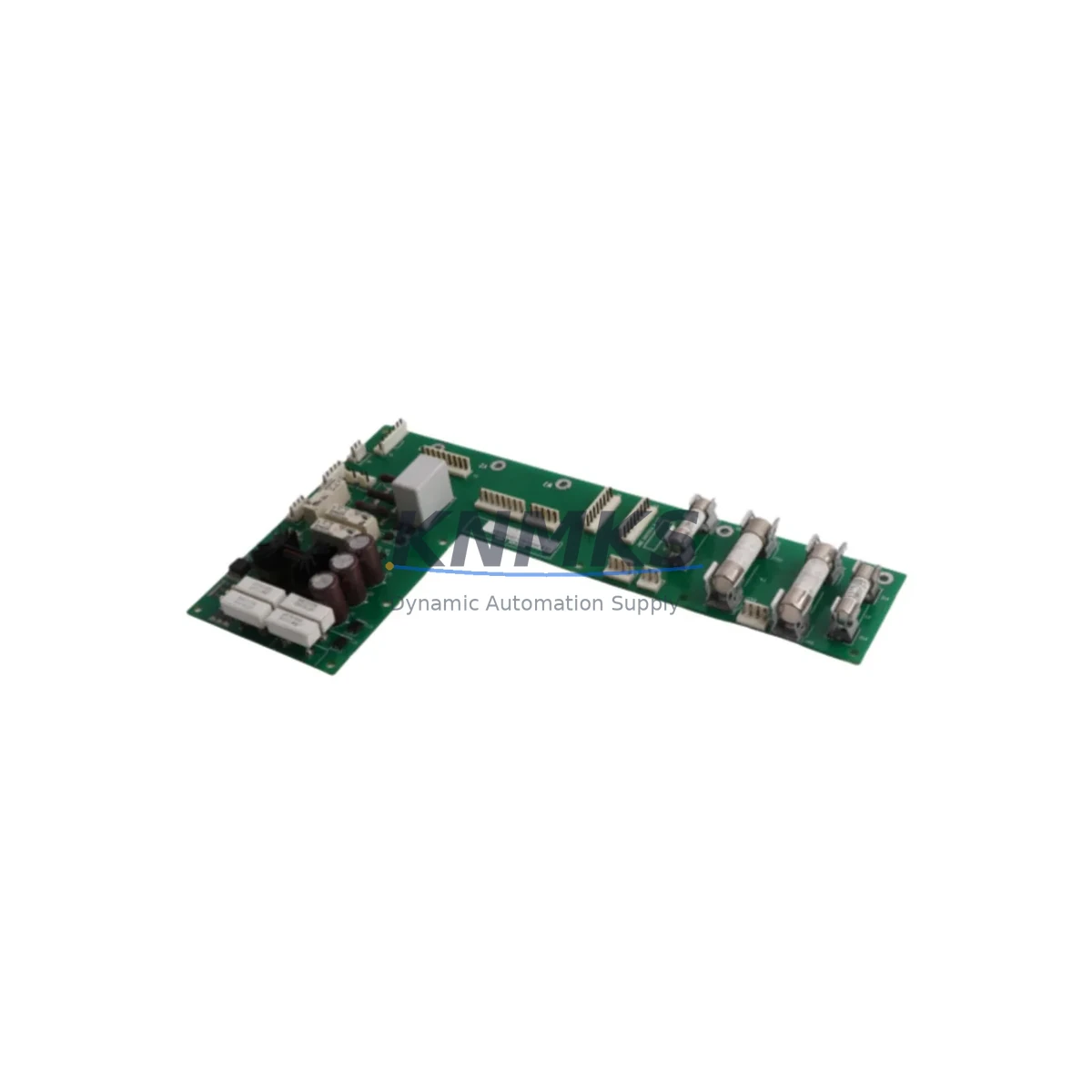

ABB CMRB-11C 3AUA0000054682 Fail-Safe Drive Control Board

Overview

ABB CMRB-11C 3AUA0000054682 Fail-Safe Drive Control Board: Fault-Tolerant Reliability for Critical Industrial Sites

The ABB CMRB-11C (Part No. 3AUA0000054682) is the dedicated control board for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed drive families across heavy industry. Engineered to sustain continuous motor control under demanding electrical and environmental conditions, the CMRB-11C serves as the central intelligence of the ACS800 drive, managing speed reference processing, torque control loops, I/O interfacing, and fieldbus communication. When this board fails, the entire drive goes offline. That is why sourcing a verified, pre-tested replacement with a documented support terms confirmed by quotation is not optional — it is a plant uptime requirement.

In continuous production environments — petrochemical reactors, mineral processing conveyors, water treatment pump stations, steel rolling mills, and port crane systems — an unplanned ACS800 drive fault can cascade into a full line shutdown within seconds. The CMRB-11C is the component that prevents that cascade. Its onboard signal conditioning circuits maintain stable speed and torque references even when supply voltage fluctuates by ±10%, and its isolated I/O architecture suppresses common-mode noise from adjacent high-power switching equipment. For sites operating in high electromagnetic interference zones — near large transformers, VFD banks, or arc furnaces — this isolation is the difference between reliable operation and chronic nuisance tripping.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The CMRB-11C does not operate in isolation. In a properly engineered ACS800 control cabinet, it works in concert with a suite of supporting components that collectively define the drive’s fault tolerance. The APOW-01C power supply board (3AUA0000013031) provides the regulated 24 VDC rail that the CMRB-11C depends on; a degraded APOW board is frequently the root cause of CMRB-11C resets and parameter memory corruption. Replacing both boards together during a planned maintenance window eliminates the risk of a secondary failure within weeks of the primary repair.

On the gate driver side, the AINT-02C inverter control board handles IGBT firing signals and DC bus monitoring. If the CMRB-11C reports overcurrent or DC bus overvoltage faults that cannot be cleared by parameter adjustment, the AINT board’s gate drive circuits should be inspected in parallel. Similarly, the RDCO-03C DDCS fiber optic communication board is critical for multi-drive systems using ABB’s distributed drive control architecture — a faulty RDCO board can cause the CMRB-11C to lose its master reference signal, triggering emergency stop sequences that appear to originate from the control board itself.

For cabinet thermal management, the ACS800 fan assembly and associated thermistor inputs monitored by the CMRB-11C must be verified during any board replacement. Elevated cabinet temperatures above 45°C accelerate electrolytic capacitor aging on the control board and reduce MTBF significantly. In dusty or humid environments — cement plants, paper mills, coastal installations — the IP54 or IP55 drive enclosure kit provides the first line of defense, while the CMRB-11C’s conformal coating option offers secondary protection against condensation-induced leakage currents. For sites with aggressive surge exposure from nearby lightning protection systems or large motor switching, an ABB-compatible surge protection device (SPD) installed on the 24 VDC control power rail prevents transient energy from reaching the CMRB-11C’s sensitive logic circuits.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the ACS800 with CMRB-11C controls compressor trains, boiler feed pumps, and cooling tower fans in safety-instrumented system (SIS) architectures. The board’s deterministic response to emergency stop (E-stop) commands — with configurable deceleration ramps — ensures that motor coast-to-stop or controlled ramp-down behavior complies with process safety requirements under IEC 61511. Any control board replacement in these zones requires documented pre-commissioning testing and parameter backup verification.

In mining and mineral processing, CMRB-11C-equipped drives manage conveyor belt tensioning, crusher motor soft-start sequences, and slurry pump flow control. The board’s ability to maintain torque accuracy within ±2% across the full speed range is essential for preventing belt slip events that can damage mechanical couplings and trigger unplanned shutdowns lasting multiple shifts. Spare board availability — with a committed support terms confirmed by quotation — is a standard requirement in mine maintenance contracts.

In water and wastewater treatment, ACS800 drives with CMRB-11C boards control high-duty-cycle submersible pumps and aeration blowers that must run continuously for weeks without interruption. The board’s fieldbus integration with PROFIBUS-DP or Modbus RTU allows SCADA systems to monitor drive health parameters in real time, enabling predictive maintenance before a fault escalates to a process violation. In port and marine applications, the CMRB-11C manages crane hoist and trolley drives where precise speed control and fast fault response are safety-critical — a control board failure during a lift cycle is a personnel safety event, not merely a production loss.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the CMRB-11C 3AUA0000054682?
The support terms confirmed by quotation cover all manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions present at the time of shipment. It does not cover damage caused by incorrect installation, overvoltage events beyond rated limits, or physical impact. Support requests are processed with full RMA support and replacement dispatch within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed before the board is dispatched?
Every CMRB-11C unit undergoes a full functional test on a live ACS800 drive test bench prior to shipment. This includes power-up verification, parameter memory read/write cycling, I/O channel continuity checks, and fieldbus communication handshake testing. A test report is available upon request for quality-critical procurement processes.

Q3: Is this board compatible with all ACS800 drive variants, and how do I confirm compatibility?
The CMRB-11C 3AUA0000054682 is compatible with the ACS800-01, ACS800-02, ACS800-04, and ACS800-07 single-drive variants. Compatibility with multi-drive (ACS800-17, ACS800-37) and regenerative configurations should be confirmed against the drive’s existing control board part number and firmware revision. Contact our technical team with your drive nameplate data for a confirmed compatibility check before ordering.

Q4: What is the lead time if the board is not availability confirmed by RFQ, and do you support long-term supply agreements?
Current stock is available for same-day or next-day dispatch. For planned maintenance programs or multi-unit procurement, we support long-term supply agreements with reserved buffer stock, fixed pricing, and priority dispatch commitments. This is particularly relevant for sites operating fleets of ACS800 drives where a single CMRB-11C failure model applies across multiple units.
