ABB CINT-4421C Migration-Ready Gate Driver for ACS800

Overview

ABB CINT-4421C Migration-Ready Gate Driver for ACS800: Legacy System Retrofit & Compatibility Upgrade

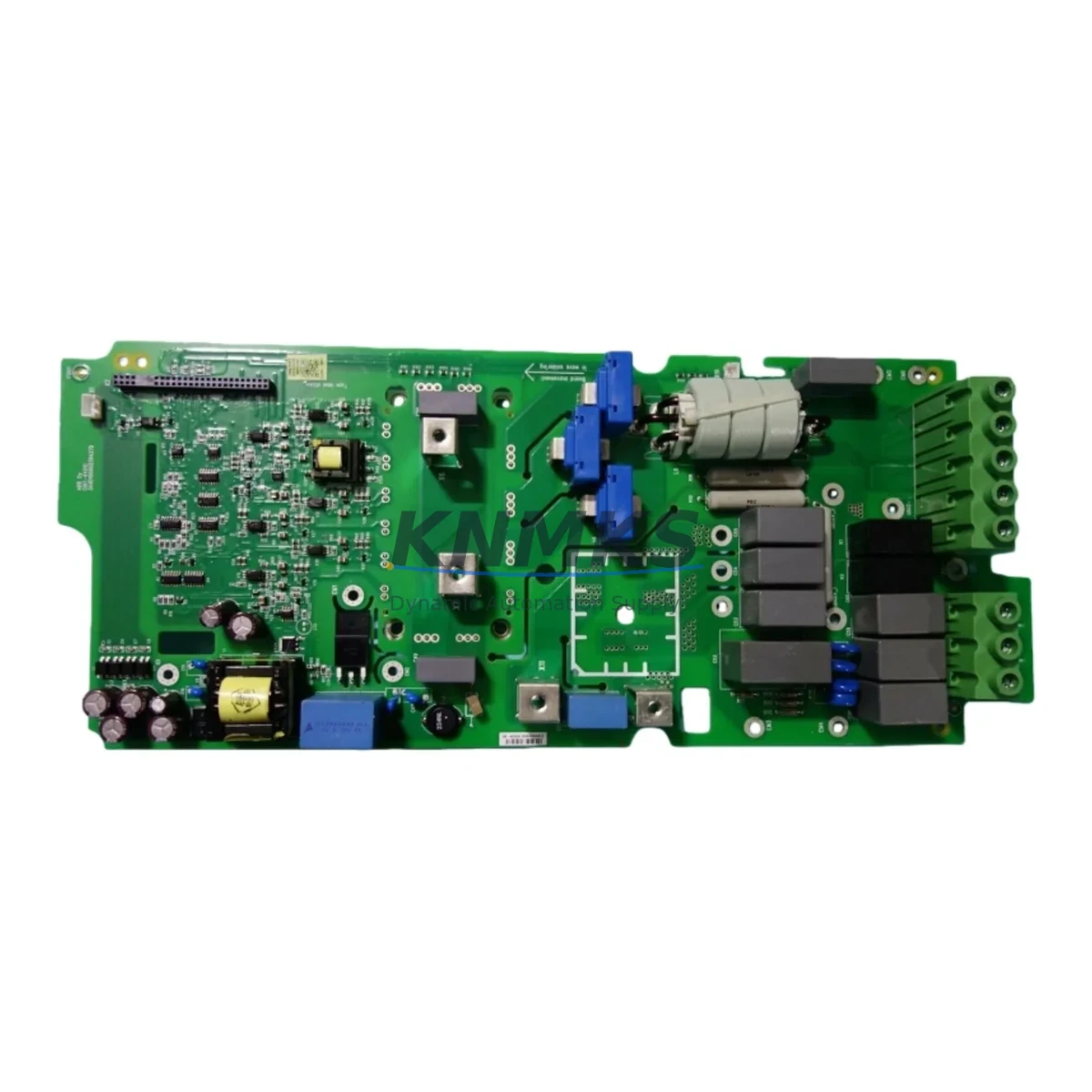

The ABB CINT-4421C is a gate driver card engineered for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across energy, petrochemical, manufacturing, and infrastructure sectors. As the ACS800 series approaches end-of-life and spare parts become increasingly scarce, the CINT-4421C remains a critical component for engineers managing legacy drive systems, executing planned retrofits, or responding to unplanned drive failures on active production lines.

This gate driver card interfaces directly with the IGBT power module stack within the ACS800 drive cabinet, providing the isolated gate pulse signals required for precise inverter switching. When a gate driver fails — typically presenting as overcurrent trips, asymmetric phase output, or IGBT fault codes — the CINT-4421C is the targeted replacement that restores drive function without requiring a full drive replacement or control system overhaul.

Each unit supplied by KNMKS is sourced from verified industrial channels, inspected against ABB’s original hardware specification, and dispatch-tested prior to shipment. Stock is maintained to support both emergency breakdown orders and planned maintenance schedules.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the CINT-4421C within an operational ACS800 installation requires a structured approach that accounts for the full drive system architecture — not just the gate driver card in isolation. Before initiating the replacement, engineers should perform a complete parameter backup using DriveWindow or DriveStudio software, capturing all application-specific motor control parameters, speed references, torque limits, and I/O configurations stored in the RMIO-11C main control board.

The ACS800 drive cabinet typically integrates several interdependent modules that must be evaluated during any gate driver replacement. The AINT-02C or AINT-14C auxiliary interface board manages the communication path between the control section and the power section — any fault in this interface can be misdiagnosed as a gate driver failure, so verifying the auxiliary board’s integrity before ordering a CINT-4421C replacement is recommended. Similarly, the APOW-01C power supply module provides the internal DC supply rails that feed the gate driver; a degraded power supply can cause repeated gate driver failures and should be inspected as part of the root cause analysis.

For drives operating within a networked automation environment, the RDCO-02C or RDCO-04C DDCS fiber optic communication board links the ACS800 to upstream ADVANT or AC500 controllers via optical fiber. During a gate driver replacement, the fiber connections should be protected from mechanical stress and the communication link verified post-installation before returning the drive to automatic control mode. In multi-drive cabinet configurations using the NDBU-95C branching unit for DDCS daisy-chain topology, the entire drive chain should be monitored during commissioning to confirm that the replaced drive re-establishes its node address correctly.

Where the ACS800 drives a critical process — such as a compressor, pump, or conveyor in a continuous production environment — pre-staging the replacement CINT-4421C and preparing a documented switching procedure allows the physical replacement to be completed within a single planned maintenance window, typically under two hours for an experienced drive technician. For installations where the ACS800 is paired with an ABB ACS600 or ACS550 drive on the same control bus, the replacement sequence should be coordinated to avoid disrupting shared I/O or interlocking signals that span multiple drives.

Downtime Control During System Migration

Minimizing production downtime during a CINT-4421C replacement begins with preparation completed before the drive is de-energized. The existing drive program logic — including application macros, PID configurations, and any custom function block programming stored in the RMIO control board — should be exported and archived. If the ACS800 is operating under a fieldbus control mode using a RPBA-01 PROFIBUS adapter or RCAN-01 CANopen adapter, the fieldbus node configuration and parameter mapping should be documented so that communication can be restored immediately after the gate driver swap.

During the physical replacement, the drive must be fully de-energized and the DC bus discharged before accessing the power section. The CINT-4421C is secured to the power module with a defined torque specification; over-tightening the mounting hardware can stress the PCB and cause latent failures. After installation, a controlled pre-charge sequence should be performed before enabling the drive output, allowing the DC bus capacitors to charge gradually and confirming that no fault codes are generated during energization.

Post-replacement commissioning should include a no-load motor run to verify gate pulse symmetry across all three phases, followed by a loaded test at reduced speed before returning to full production speed. If the ACS800 is configured for direct torque control (DTC), re-running the motor identification routine ensures that the drive’s internal motor model is correctly calibrated to the connected motor after the gate driver replacement. Maintaining a commissioning log that records the replacement date, firmware version, parameter checksum, and test results provides a traceable maintenance record that supports future troubleshooting and support requests.

Retrofit Support FAQ

Q: Is the CINT-4421C a direct replacement for all ACS800 gate driver variants?
A: The CINT-4421C is the standard gate driver card for the ACS800 single drive series. Compatibility depends on the specific ACS800 power rating and hardware revision. Please provide your drive type code (found on the drive nameplate) when placing your order so we can confirm the correct part number before shipment.

Q: Does the replacement require any firmware update or parameter re-entry?
A: In most cases, the CINT-4421C replacement does not require a firmware update, as the gate driver does not store drive parameters. However, a motor ID run is recommended after installation. All drive parameters remain stored in the RMIO control board and are preserved during the gate driver swap, provided the control board is not disturbed.

Q: How is the unit tested before shipment?
A: Each CINT-4421C unit undergoes a pre-dispatch functional inspection covering visual integrity, connector condition, and basic electrical continuity. Units are packaged in anti-static ESD-safe materials and shipped with a test record. The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of shipment.

Q: What is your stock availability and lead time?
A: KNMKS maintains stock of the CINT-4421C to support both emergency and planned procurement. Standard orders are processed within 1 business day. For large quantity requirements or long-term supply agreements, contact our sales team to discuss inventory reservation and scheduled delivery arrangements.

—
