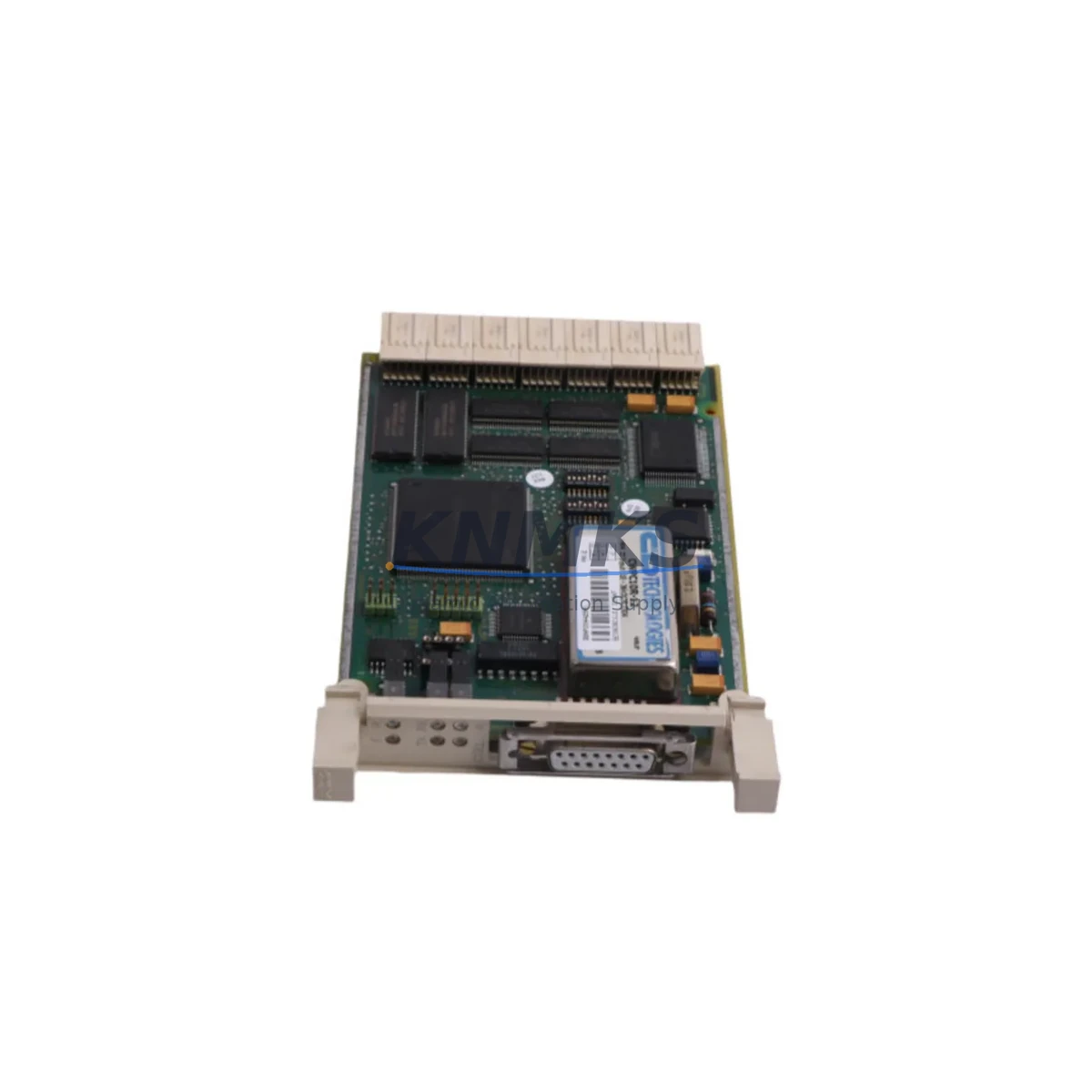

ABB CI547 3BNP004429R1 Fail-Safe PROFIBUS DP Module

Overview

ABB CI547 3BNP004429R1 Fail-Safe PROFIBUS DP Module: Fault Protection and Critical Industrial Field Reliability

The ABB CI547 3BNP004429R1 is a PROFIBUS DP master/slave communication module engineered for the ABB AC500 PLC platform, purpose-built to sustain uninterrupted control loop integrity in the most demanding industrial environments. Designed to operate as a deterministic fieldbus interface within safety-critical architectures, the CI547 delivers robust protection against the full spectrum of field-level hazards — including signal drift, electromagnetic interference, power transients, surge impulses, and communication anomalies — that routinely threaten continuous production uptime.

In high-stakes control cabinets where the AC500 CPU modules such as the PM573 or PM591 coordinate process-critical I/O across distributed field devices, the CI547 serves as the hardened communication backbone. Its galvanically isolated PROFIBUS DP interface prevents ground loop interference from propagating into the control network, while its surge-clamped bus termination protects against voltage spikes that commonly occur during motor starts, arc flash events, or lightning-induced transients on long cable runs. This makes the CI547 an essential component in any control cabinet where reliability cannot be compromised.

The module’s design addresses the real-world failure modes that cause unplanned shutdowns: bus collisions from noise-induced bit errors, watchdog timeout faults from communication latency, and address conflicts from misconfigured slave devices. The CI547 supports both master and slave operating modes, enabling flexible integration into existing PROFIBUS DP networks without requiring topology redesign. Its onboard diagnostic LEDs and GSD-file-based configuration allow maintenance engineers to rapidly identify fault conditions and restore communication without specialized tooling — a critical advantage during emergency maintenance windows.

For installations in harsh environments — including dusty mineral processing plants, humid coastal facilities, high-vibration compressor stations, or high-temperature furnace control rooms — the CI547’s wide operating temperature range and conformal-coating-ready construction ensure sustained performance where standard communication modules fail prematurely. When paired with the ABB TU515 or TU516 terminal units and housed within a properly grounded AC500 control cabinet, the CI547 maintains signal integrity even under continuous mechanical vibration and thermal cycling stress.

Supply chain continuity is a critical concern for facilities operating legacy PROFIBUS DP networks. The CI547 3BNP004429R1 is maintained in verified stock with rapid global dispatch capability, ensuring that emergency replacement scenarios — where a failed communication module threatens an entire production line — can be resolved within the shortest possible lead time. Every unit undergoes pre-shipment functional testing covering bus communication, address recognition, diagnostic response, and power-on self-test sequences before dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A resilient AC500-based control cabinet demands more than a single high-quality communication module — it requires a coordinated protection strategy across every layer of the control architecture. The CI547 3BNP004429R1 operates most effectively when integrated alongside complementary ABB AC500 components that collectively eliminate single points of failure.

At the power supply layer, the ABB CP604 or CP605 power supply modules provide regulated 24 VDC with active overvoltage and short-circuit protection, ensuring that voltage transients on the incoming supply rail do not propagate into the CI547’s logic circuitry. Upstream, ABB SACE surge protective devices on the cabinet’s incoming power feed provide the first line of defense against lightning-induced surges and switching transients from large motor loads sharing the same distribution panel.

At the I/O layer, ABB DA501 or DA502 digital I/O modules connected via the AC500 backplane rely on the CI547 to maintain deterministic PROFIBUS DP scan cycles. Any communication interruption at the CI547 level directly impacts the ability of these I/O modules to execute interlock logic and safety shutdown sequences. For analog process signals — pressure, temperature, flow — the ABB AI523 analog input module depends on stable PROFIBUS DP communication to deliver accurate process variable data to the CPU without scan-cycle jitter that could trigger spurious alarms or missed trip conditions.

At the CPU layer, the ABB PM573-ETH or PM591 CPU modules execute the control program and rely on the CI547 to maintain real-time communication with remote PROFIBUS DP slave devices. Watchdog timeout parameters configured in the CPU must be aligned with the CI547’s bus cycle time to prevent nuisance faults during high-traffic network conditions. For installations requiring redundant communication paths, the CI547 can be deployed alongside an ABB CM589-PNIO PROFINET module to provide a secondary communication channel, ensuring that a single fieldbus fault does not isolate the entire distributed I/O network.

Critical Industrial Safety Applications

The ABB CI547 3BNP004429R1 is deployed across a wide range of critical industrial sectors where communication reliability directly determines process safety and production continuity.

In petrochemical and refinery facilities, the CI547 supports PROFIBUS DP networks connecting emergency shutdown (ESD) valve actuators, flame and gas detectors, and high-integrity pressure protection systems (HIPPS). Communication integrity at the fieldbus level is a prerequisite for SIL-rated safety function execution, and the CI547’s galvanic isolation prevents ground potential differences between field instruments and the control room from corrupting safety-critical signals.

In power generation and substation automation, the CI547 enables reliable communication between AC500 PLCs and PROFIBUS DP-connected protection relays, transformer tap changers, and switchgear control units. The module’s ability to sustain communication at 12 Mbps in high-EMI environments — where large transformers and bus bars generate intense magnetic fields — makes it the preferred choice for substation control cabinet upgrades.

In mining and mineral processing, where conveyor systems, crushers, and flotation cells operate under continuous heavy load with frequent motor starts, the CI547 maintains PROFIBUS DP communication integrity despite the severe voltage transients and ground noise generated by variable frequency drives (VFDs) and soft starters sharing the same electrical infrastructure.

In water and wastewater treatment, the CI547 connects distributed pump stations, valve actuators, and flow meters across extended PROFIBUS DP cable runs — often exceeding 1,000 meters — where signal attenuation and noise pickup are primary reliability concerns. Its auto-baud-rate detection simplifies network commissioning and reduces the risk of configuration errors during maintenance.

In metallurgical and steel production environments, where furnace control systems operate at extreme temperatures and the control cabinet ambient temperature regularly approaches the upper operating limit, the CI547’s thermal design ensures sustained communication without derating or premature failure.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB CI547 3BNP004429R1?
Every CI547 3BNP004429R1 unit is supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes technical diagnosis, replacement dispatch, and documentation for maintenance records.

Q2: What pre-shipment testing is performed on each unit?
Each CI547 undergoes a structured pre-shipment test protocol covering: power-on self-test verification, PROFIBUS DP bus communication at multiple baud rates, diagnostic response validation, address recognition confirmation, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the CI547 3BNP004429R1 compatible with all AC500 CPU generations?
The CI547 is designed for the ABB AC500 PLC platform and is compatible with AC500 V2 and V3 CPU modules including the PM573, PM591, PM592, and PM595 series when used with appropriate terminal units (TU515 or TU516). Compatibility with specific firmware versions should be verified against the ABB AC500 system compatibility matrix for the target installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. The CI547 3BNP004429R1 is maintained in verified stock with multi-region inventory to support both emergency replacement and planned maintenance procurement programs. For facilities managing large AC500 installed bases, standing supply agreements and reserved stock arrangements are available to eliminate lead-time risk for critical spare parts.
