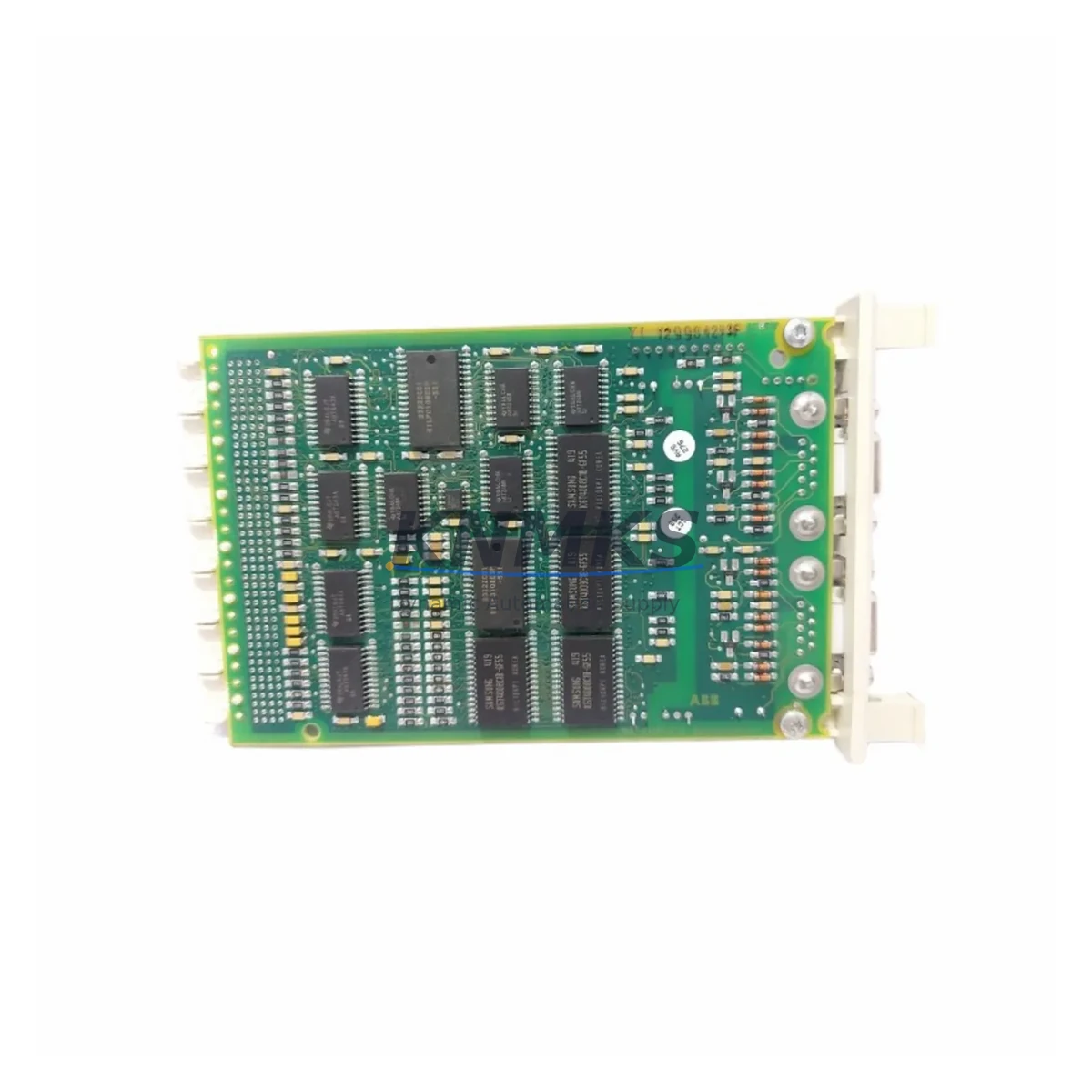

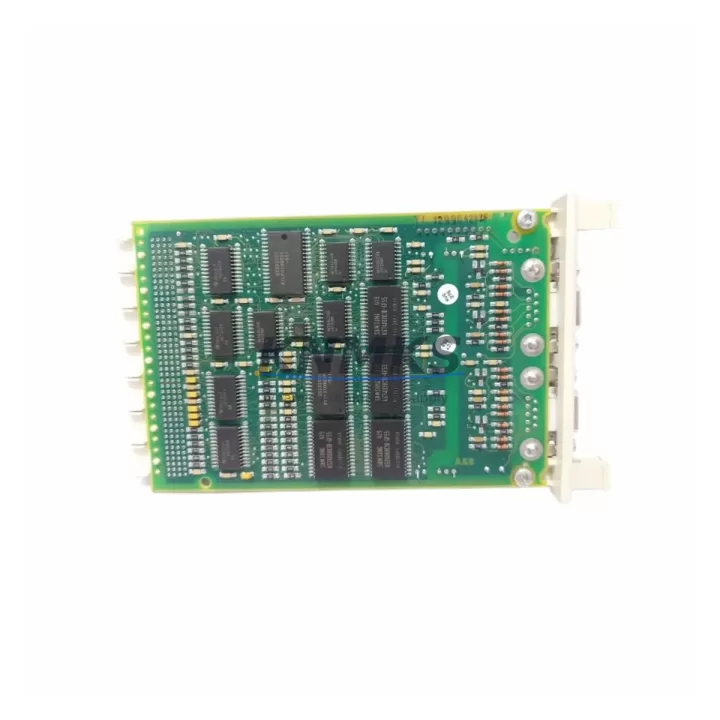

ABB CI545V01 Fail-Safe Ethernet Module for AC500 Control

Overview

ABB CI545V01 Fail-Safe Ethernet Module for AC500 Control

The ABB CI545V01 (part number 3BUP001181R1) is a dedicated Ethernet communication module engineered for the AC500 PLC platform, designed to maintain uninterrupted control network integrity in the most demanding industrial environments. Whether deployed in continuous process manufacturing, critical safety interlocks, or high-density control cabinets subject to heavy electromagnetic interference, the CI545V01 delivers the communication reliability that modern industrial safety architectures demand. Its robust design directly addresses the root causes of unplanned downtime: signal drift, network packet loss, surge-induced communication faults, and thermal stress inside enclosed control panels.

In petrochemical plants, power generation facilities, mining operations, and water treatment stations, a single communication failure between the PLC CPU and field devices can trigger cascading process shutdowns or, worse, unsafe operating states. The CI545V01 is built to prevent exactly these scenarios. Its EMI-hardened circuitry complies with IEC 61000-4 series immunity standards, ensuring stable Ethernet communication even when installed adjacent to variable frequency drives, high-current contactors, or large motor starters that generate significant conducted and radiated interference. Signal integrity is maintained without requiring additional shielding infrastructure, reducing both installation complexity and long-term maintenance burden.

Thermal management is a persistent challenge in densely populated control cabinets. The CI545V01 operates reliably across an extended temperature range, tolerating the elevated ambient conditions common in cabinets housing multiple AC500 CPU modules, PM573 or PM591 processor units, and associated I/O expansion racks. When paired with the AC500’s modular architecture, the CI545V01 slots directly into the communication bus without requiring firmware reconfiguration, enabling rapid spare-part replacement during unplanned maintenance windows — a critical advantage when every minute of downtime carries measurable production cost.

Surge and transient protection is another key reliability factor. Industrial Ethernet networks in heavy manufacturing environments are routinely exposed to voltage transients from switching operations, ground potential differences between cabinet sections, and lightning-induced surges on cable runs. The CI545V01’s internal protection circuitry absorbs these transients before they can corrupt communication frames or damage the module’s interface hardware, preserving the integrity of PROFINET or Modbus TCP data exchanges between the AC500 controller and upstream SCADA systems or downstream distributed I/O nodes such as the TU515 or TU531 terminal units.

For facilities operating under functional safety requirements — IEC 61508 or IEC 62061 frameworks — the CI545V01 supports the communication layer of safety-rated control loops. When integrated with ABB’s AC500-S safety CPU variants, it provides the deterministic, low-latency Ethernet backbone required for safety function response times. This makes it directly applicable to emergency shutdown systems, burner management, and rotating machinery protection circuits where communication latency or packet loss cannot be tolerated.

Long-term spare parts availability is a documented concern for maintenance engineers managing aging DCS and PLC infrastructure. KNMKS maintains verified stock of the CI545V01 3BUP001181R1 with a committed support terms confirmed by quotation on every unit shipped. Each module undergoes pre-shipment functional verification — communication link establishment, port integrity check, and bus interface validation — before dispatch, eliminating the risk of receiving a non-functional spare during a critical maintenance event.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. The CI545V01 performs at its best when the surrounding cabinet architecture is engineered for fault tolerance. In a typical AC500-based control panel, the CI545V01 works in concert with the PM591 or PM595 CPU module, which handles the primary PLC logic execution. Stable 24VDC power delivery to the communication bus is critical; the ABB CP604 or equivalent AC500 power supply module should be sized with sufficient headroom to prevent voltage sag during peak I/O scan cycles, as power instability is a leading cause of spurious communication resets.

On the I/O side, digital and analog expansion modules connected via the AC500 internal bus — such as the DC532 digital I/O module or AX522 analog module — depend on the CI545V01 to relay process data upstream without latency spikes. In high-vibration environments such as mining conveyors or offshore platforms, terminal unit selection matters: TU515 or TU531 screw-clamp terminal units provide the mechanical retention needed to prevent intermittent connections that can mimic communication faults. For cabinets in dusty or humid environments, maintaining positive-pressure ventilation and using conformal-coated variants where available further extends the operational life of the entire communication stack including the CI545V01.

Where the control network extends beyond the cabinet to field junction boxes or remote I/O panels, industrial-grade managed Ethernet switches with port-level surge protection should be installed at the cabinet egress point. This prevents externally induced transients from reaching the CI545V01’s Ethernet ports, preserving the module’s long-term reliability without requiring premature replacement.

Critical Industrial Safety Applications

The CI545V01 is deployed across a broad spectrum of safety-critical industrial sectors. In petrochemical and refinery operations, it serves as the communication backbone for emergency shutdown (ESD) systems, where the AC500-S platform relies on deterministic Ethernet communication to execute safety functions within defined response times. Any communication delay or packet loss in this context is unacceptable, and the CI545V01’s EMI-hardened design ensures the ESD logic controller maintains continuous contact with field safety valves and pressure transmitters.

In electric power generation and substation automation, the module supports SCADA integration for turbine control and protection relay coordination. The ability to maintain stable Modbus TCP or PROFINET communication during high-voltage switching events — which generate significant electromagnetic transients — is a direct operational requirement that the CI545V01 meets by design.

Mining and mineral processing environments present extreme challenges: high dust loading, vibration from crushers and conveyors, and wide temperature swings between day and night shifts. The CI545V01’s robust construction and wide operating temperature tolerance make it a proven choice for conveyor drive control panels and ore processing automation systems where replacement logistics are complex and downtime costs are high.

In water and wastewater treatment facilities, continuous process availability is a public safety obligation. The CI545V01 enables reliable communication between AC500 PLCs managing pump stations, chemical dosing systems, and filtration controls, ensuring that process upsets are detected and responded to without communication-induced blind spots.

Metallurgical and steel mill applications subject control equipment to intense radiated EMI from arc furnaces and induction heating systems. The CI545V01’s IEC 61000-4 compliance provides the immunity margin needed to sustain reliable PLC-to-SCADA communication in these environments, supporting both production continuity and personnel safety interlocks.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the CI545V01 3BUP001181R1?
Every CI545V01 unit shipped by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed with priority turnaround to minimize impact on production schedules.

Q2: What pre-shipment testing is performed on each module?
Each CI545V01 undergoes a functional verification protocol before dispatch: Ethernet port link establishment, bus interface communication check, and visual inspection for physical integrity. This eliminates the risk of receiving a DOA (dead-on-arrival) spare during a critical maintenance event.

Q3: Is the CI545V01 compatible with all AC500 CPU variants?
The CI545V01 is designed for the ABB AC500 platform and is compatible with PM573, PM591, and PM595 CPU families. For AC500-S safety applications, compatibility with the specific safety CPU firmware version should be confirmed against ABB’s published compatibility matrix. KNMKS technical support can assist with compatibility verification prior to order.

Q4: Can long-term supply agreements be arranged for ongoing spare parts requirements?
Yes. KNMKS supports multi-site maintenance programs with scheduled supply agreements for critical spare parts including the CI545V01. Long-term agreements covering 12–36 month supply horizons are available, providing inventory security for facilities with zero-tolerance downtime requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

CI545V01 3BUP001181R1
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB CI545V01 3BUP001181R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
