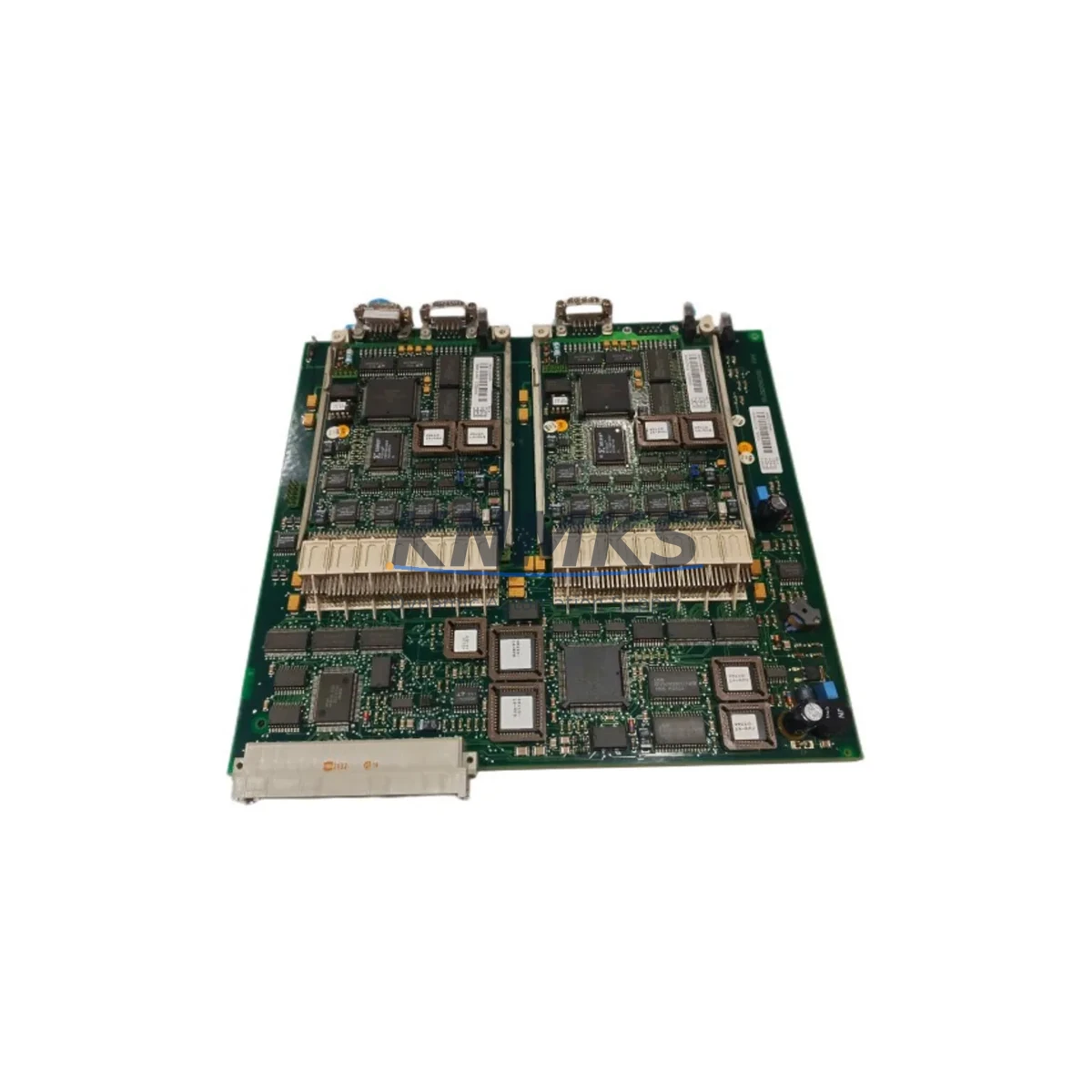

ABB CI532V04 Fail-Safe PROFIBUS DP Module AC500

Overview

ABB CI532V04 Fail-Safe PROFIBUS DP Module AC500: Fault Protection and Critical Industrial Field Reliability

In continuous production environments where control interruption is not an option, the ABB CI532V04 PROFIBUS DP communication module delivers the fail-safe fieldbus connectivity that modern industrial control systems demand. Engineered as part of ABB’s proven AC500 PLC platform, the CI532V04 is purpose-built to maintain deterministic, low-latency communication between the central controller and distributed I/O nodes — even under the most demanding field conditions including high electromagnetic interference, heavy vibration, wide temperature swings, and environments prone to dust ingress or condensation.

The CI532V04 supports the full PROFIBUS DP protocol stack, enabling cyclic and acyclic data exchange with up to 125 slave devices per segment. Its robust hardware design incorporates galvanic isolation on the fieldbus interface, protecting the AC500 CPU backplane from surge events, ground loops, and transient voltage spikes that are common in heavy industrial switchgear cabinets. This isolation barrier is a critical line of defense in petrochemical control rooms, power plant auxiliary systems, and mining conveyor interlocks — anywhere where a single communication fault can cascade into an unplanned shutdown or, worse, a safety incident.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable PROFIBUS DP segment is only as strong as the ecosystem surrounding it. In a well-engineered AC500 control cabinet, the CI532V04 operates in close coordination with several complementary components that collectively eliminate single points of failure across the communication, power, and I/O layers.

On the power supply side, the ABB CP604 24VDC power supply module provides regulated, low-ripple DC power to the AC500 backplane, ensuring that voltage fluctuations from heavy motor starts or capacitor bank switching do not propagate into the communication module’s logic circuits. Upstream of the cabinet, a properly rated surge protection device (SPD) on the incoming AC feed prevents lightning-induced transients from reaching the control system at all.

For distributed I/O at the field level, the CI532V04 typically communicates with ABB DC532 digital I/O modules or AI523 analog input modules mounted on remote I/O stations. These modules handle the physical signal conditioning — filtering, scaling, and fault detection — before passing clean process values back to the AC500 CPU over the PROFIBUS segment managed by the CI532V04. In safety-critical interlocks such as emergency shutdown (ESD) loops or fire-and-gas detection circuits, the integrity of this data path is non-negotiable.

Communication redundancy is another key consideration. In high-availability architectures, the CI532V04 may be paired with a second communication module in a redundant master configuration, supported by the ABB PM591 or PM592 CPU modules which offer hot-standby redundancy. Should the primary CPU or communication path fail, the standby system assumes control within milliseconds — preventing the kind of process upset that costs facilities hours of lost production and significant restart costs.

Cable shielding and termination discipline are equally important. PROFIBUS DP segments using the CI532V04 should be terminated with active bus terminators at both ends of the segment, and cable shields should be grounded at a single point to prevent ground loop currents from inducing noise into the data lines. In environments with heavy variable-frequency drives (VFDs) or large contactors, additional ferrite cores on the PROFIBUS cable near the cabinet entry point further suppress common-mode interference that could cause communication retries or CRC errors.

Critical Industrial Safety Applications

The ABB CI532V04 has established a strong track record across the most demanding industrial sectors where control system reliability directly impacts personnel safety, environmental compliance, and asset protection.

In petrochemical and refinery operations, the CI532V04 serves as the fieldbus backbone connecting the AC500 PLC to distributed safety instrumented system (SIS) I/O, pressure transmitters, and solenoid valve positioners in process shutdown circuits. Its galvanic isolation and surge tolerance are essential in facilities where long cable runs between the control room and field junction boxes expose the PROFIBUS segment to induced voltages from adjacent high-voltage power cables.

In electric power generation and substation automation, the module enables reliable communication between the AC500 controller and protection relays, bay controllers, and transformer monitoring units. The ability to sustain 12 Mbps communication rates without data corruption in the presence of high-frequency switching transients from power electronics makes the CI532V04 a preferred choice for auxiliary control systems in thermal and hydroelectric plants.

In mining and mineral processing, where conveyor systems, crushers, and flotation cells operate continuously in dusty, vibration-intensive environments, the CI532V04’s compliance with IEC 60068 environmental standards ensures that the communication link between the AC500 CPU and remote motor control centers (MCCs) remains stable across multi-year operational cycles without requiring recalibration or replacement.

In water and wastewater treatment facilities, the module supports SCADA-integrated pump station control, chemical dosing automation, and effluent monitoring — applications where a communication dropout could result in regulatory non-compliance or environmental discharge incidents. The CI532V04’s deterministic cycle time ensures that the AC500 CPU receives fresh process data within every PLC scan cycle, enabling tight closed-loop control of flow rates and chemical feed ratios.

In port and maritime logistics, the module is deployed in crane control systems and ship-to-shore equipment where the combination of salt air, vibration, and high-power motor drives creates one of the harshest electrical environments in industrial automation. Its robust mechanical design and sealed connector interface maintain signal integrity even after years of continuous outdoor cabinet exposure.

Safety and Quality FAQ

Q1: What support terms coverage does the CI532V04 carry?
Every CI532V04 unit supplied by KNMKS is backed by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and firmware-related communication faults. Support requests are processed with priority turnaround to minimize your site downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Each CI532V04 undergoes a full functional test prior to dispatch, including PROFIBUS DP communication verification, backplane interface continuity check, and visual inspection for physical damage. Units are shipped in anti-static packaging with individual test records available upon request for quality-critical installations.

Q3: Is the CI532V04 compatible with all AC500 CPU generations?
The CI532V04 is compatible with ABB AC500 PM5xx-series CPUs and above, including the PM571, PM581, PM591, and PM592. It is not compatible with the legacy AC31 or S500 platforms. If you are integrating into an existing AC500 system, please confirm your CPU firmware version to ensure full PROFIBUS DP V2 feature support.

Q4: Can KNMKS support long-term supply and emergency replacement needs?
Yes. KNMKS maintains standing inventory of the CI532V04 and key AC500 communication and I/O modules to support both planned maintenance schedules and emergency breakdown replacements. Same-day dispatch is available for in-stock items, and our technical team can assist with cross-reference verification if you are replacing a module from a different PROFIBUS DP master family.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

CI532V04
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB CI532V04
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
