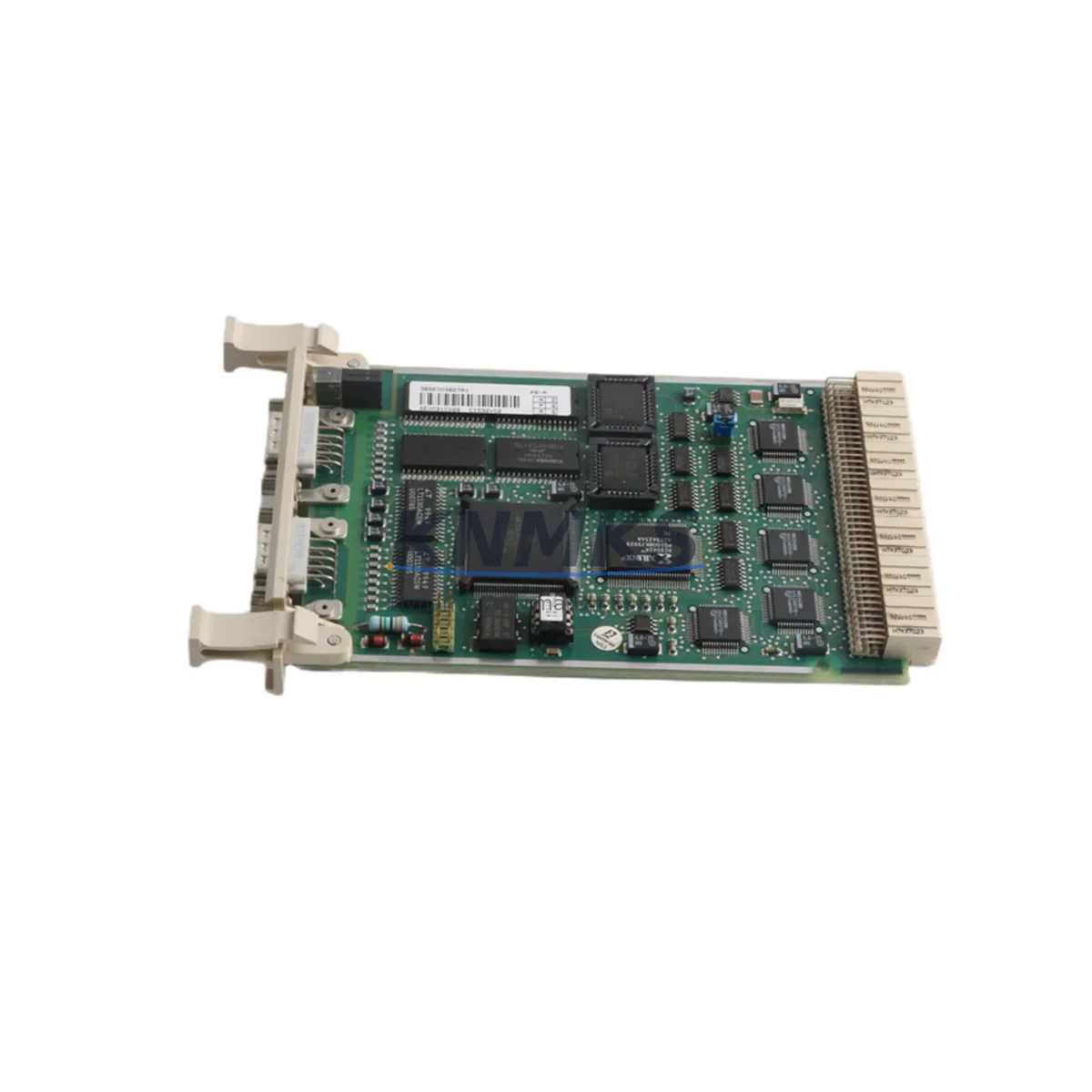

ABB CI532V02 3BSE003827R1 Migration-Ready Modbus Module

Overview

ABB CI532V02 3BSE003827R1 Migration-Ready Modbus Module for Legacy Control Systems

The ABB CI532V02 (Part No. 3BSE003827R1) is a Modbus RTU/ASCII communication module designed for the ABB AC500 PLC platform. As legacy serial-based control architectures reach end-of-life, the CI532V02 serves as a proven, drop-in migration solution for facilities transitioning away from discontinued communication hardware. Whether you are replacing a failed serial interface card, upgrading a legacy control cabinet, or extending the service life of an existing AC500 installation, the CI532V02 provides the protocol compatibility and physical form factor required for a low-risk retrofit.

The module mounts directly onto the AC500 CPU backplane — compatible with PM571, PM581, PM591, and PM595 processor modules — and requires no additional adapter hardware for standard rack installations. Before proceeding with replacement, engineers should verify the backplane slot assignment, confirm the module address configured in the original PLC program, and review the terminal wiring layout against the existing field cable schedule. Power supply capacity on the rack must also be assessed: the CI532V02 draws from the internal bus, and adding or replacing communication modules in a populated rack may affect the total current budget of the PS501 or PS560 power supply units already installed.

For sites running mixed serial and Ethernet architectures, the CI532V02 handles Modbus RTU and Modbus ASCII on RS-232 and RS-485 physical layers, making it compatible with a wide range of legacy field devices including variable frequency drives, energy meters, temperature controllers, and third-party I/O stations that predate Ethernet-based fieldbus adoption. If the target system also requires Profibus DP or HART integration alongside Modbus, the CI532V02 can coexist in the same rack with modules such as the CI501 Profibus DP master or CI541 HART interface, provided slot and power budgets are respected.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CI532V02 retrofit begins well before the module arrives on site. The first step is extracting and archiving the existing PLC program from the AC500 CPU — typically a PM581 or PM591 — using PS501 Control Builder Plus or the CoDeSys-based programming environment. This backup preserves the original Modbus master/slave configuration, including station addresses, function codes, polling intervals, and exception handling routines that govern communication with downstream field devices.

Terminal wiring is the next critical checkpoint. The CI532V02 uses a fixed terminal block layout for RS-485 connections (TD+, TD−, RD+, RD−, GND), and any deviation from the original wiring diagram — particularly on multi-drop RS-485 networks — can introduce bus contention or signal reflection. Engineers should verify termination resistor placement at both ends of the RS-485 segment and confirm that cable shielding is grounded at a single point to prevent ground loops.

For control cabinets that also house SM560 digital I/O modules, TU515 or TU516 terminal units, or DC532 counter modules, the physical installation space must be measured before ordering. The CI532V02 occupies one slot on the AC500 local bus, and cabinets with fully populated racks may require slot reallocation or a secondary rack expansion using an TA526 expansion adapter. If the retrofit also involves upgrading the HMI layer — for example, replacing a legacy CP600 panel with a CP635 or CP651 touch panel — the Modbus variable mapping in the HMI project must be re-validated against the updated PLC symbol table to prevent screen data mismatches after cutover.

Communication link integrity should be tested under load before the system goes live. Use a Modbus diagnostic tool or the built-in communication diagnostics in PS501 to verify that all slave devices respond within the configured timeout window. If the site uses a programming cable such as the TK501 USB-to-serial adapter for local CPU access, ensure it remains available during commissioning for real-time program monitoring and online variable forcing during the initial run-in period.

Downtime Control During System Migration

Minimizing production downtime during a CI532V02 replacement requires a structured cutover plan. Where process conditions allow, the preferred approach is a hot-standby swap: the new module is pre-configured offline with the correct Modbus parameters, and the physical swap is executed during a scheduled maintenance window — typically under 30 minutes for a single-module replacement in an accessible cabinet.

Before powering down the rack, document the current process state: record all analog setpoints, digital output states, and any active interlocks that may need to be manually held during the transition. If the AC500 CPU supports online program download (available on PM591 and PM595 with appropriate firmware), the Modbus configuration can be updated without a full CPU restart, further reducing the impact on connected field devices.

For systems where continuous control is mandatory — such as those managing conveyor drives, HVAC compressors, or process heating loops — consider deploying a temporary bypass relay or manual control station on critical outputs before initiating the swap. This preserves field-side control continuity even if the PLC communication bus is briefly interrupted. After the CI532V02 is seated and powered, perform a full Modbus poll cycle verification before releasing the system back to automatic control, and retain the original module as a spare for at least one full production cycle to cover any latent compatibility issues.

Retrofit Support FAQ

Q1: Is the CI532V02 (3BSE003827R1) a direct replacement for older ABB AC500 serial communication modules?
Yes. The CI532V02 is designed as a form-fit-function replacement for legacy ABB AC500 Modbus serial communication modules. The backplane connector, slot dimensions, and software driver interface are compatible with existing AC500 rack installations. Confirm the firmware version of your CPU module (PM571/PM581/PM591/PM595) is at or above the minimum supported release listed in the CI532V02 hardware manual before installation.

Q2: What commissioning steps are required after installing the CI532V02?
After physical installation, open the existing PS501 or CoDeSys project and verify that the module is recognized in the hardware configuration tree. Confirm the Modbus port settings (baud rate, parity, stop bits, station address) match the original configuration. Perform a full communication test by polling all configured slave devices and checking for error-free responses before returning the system to automatic mode.

Q3: Can the CI532V02 operate on both RS-232 and RS-485 networks?
Yes. The CI532V02 supports both RS-232 (point-to-point) and RS-485 (multi-drop, up to 32 nodes) physical layers. The interface is selected via hardware jumper or software configuration depending on the firmware version. For RS-485 installations, ensure proper bus termination (120 Ω at each end) and verify that the cable length does not exceed the RS-485 specification for the baud rate in use.

Q4: What does the support terms confirmed by quotation cover, and how is stock availability managed?
All CI532V02 units shipped by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Stock is maintained for immediate dispatch; for large-quantity or project-based orders, contact our sales team to confirm lead times and reserve allocation. Replacement or refund is provided for any unit confirmed defective within the confirmed support period.
