ABB CBHX165C 5R 414 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB CBHX165C 5R 414 Maintenance-Proven Spare Part for Factory Uptime

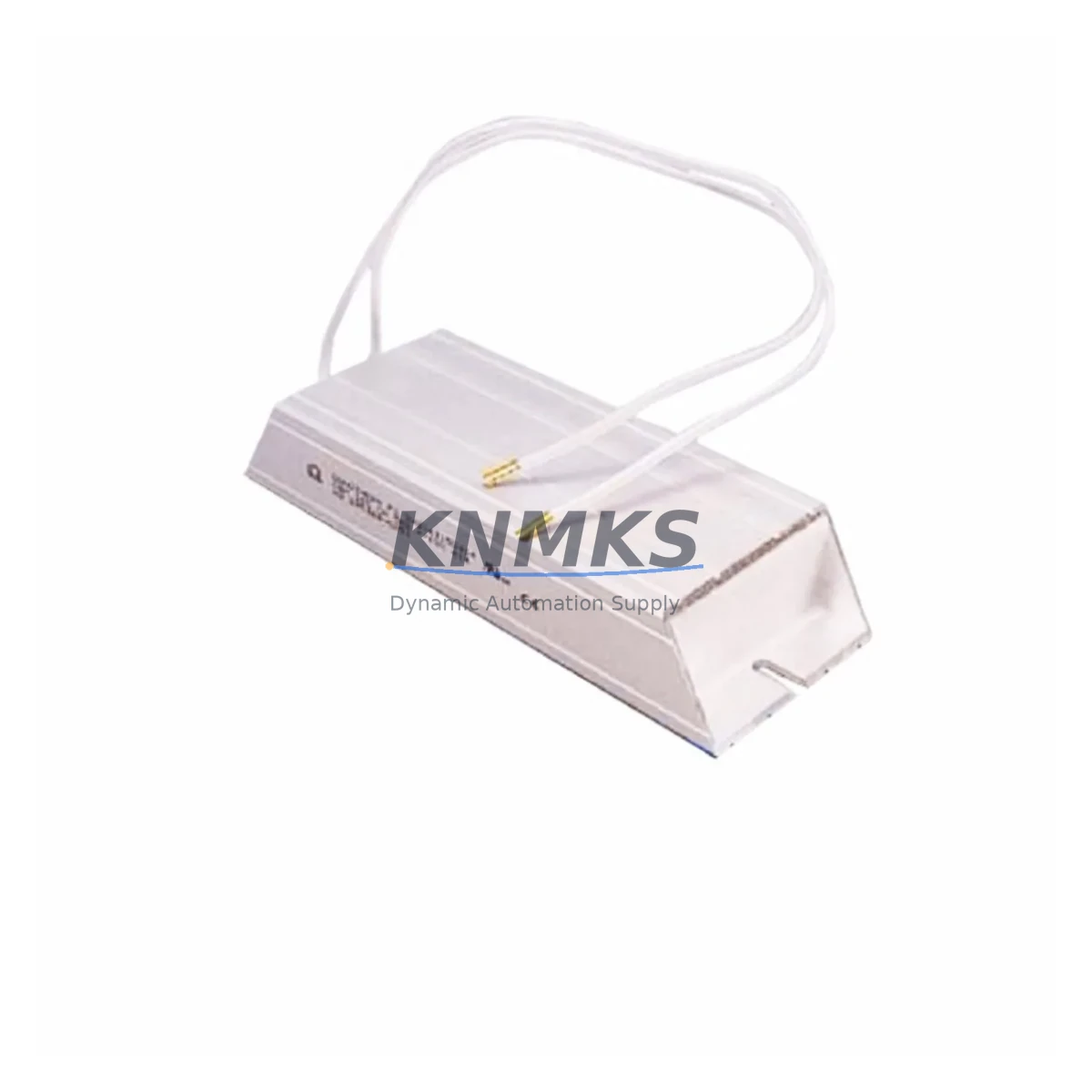

The ABB CBHX165C 5R 414 is an original DC bus pre-charge resistor engineered for ABB ACS800 series variable frequency drives. In industrial facilities where drive-controlled motors govern conveyor lines, compressors, pumps, and hoisting equipment, the pre-charge resistor is a critical protection component — it limits inrush current during DC bus energization, preventing capacitor stress and protecting the IGBT power module stack from surge damage at startup. When this component degrades or fails, the drive will typically fault on startup, refuse to energize, or trigger overcurrent protection events, resulting in immediate production stoppage.

Sourced directly from ABB’s authorized supply chain, the CBHX165C 5R 414 is manufactured to OEM specifications with a rated resistance of 5Ω and a power dissipation rating suited to the ACS800 drive platform. Each unit shipped by KNMKS undergoes pre-dispatch electrical verification — resistance tolerance, insulation integrity, and terminal condition are confirmed before packaging. Units are dispatched with full traceability documentation and covered by a support terms confirmed by quotation against manufacturing defects.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing ACS800 drive systems, replacing the CBHX165C 5R 414 pre-charge resistor is rarely an isolated task. A failed or degraded pre-charge resistor is often a symptom of broader DC bus stress — and a thorough site inspection during the replacement window will prevent repeat failures and reduce future unplanned downtime.

Begin by inspecting the DC bus capacitor bank within the ACS800 drive. Pre-charge resistors that have failed due to thermal overload frequently indicate that the capacitors have been subjected to repeated high-inrush events, which accelerates electrolytic degradation. If capacitor ESR values are elevated or the capacitors show physical swelling, they should be replaced concurrently. Similarly, the pre-charge contactor or relay — which switches the resistor in and out of circuit during startup — should be tested for contact wear and proper actuation timing; a slow or sticky contactor will cause the resistor to carry current longer than designed, shortening its service life.

The IGBT power module (such as the ABB RINT series gate driver board or the relevant IGBT stack for the ACS800 frame size) should be inspected for gate drive signal integrity and thermal compound condition. A compromised power module can generate abnormal DC bus transients that stress the pre-charge circuit. Inspect the ACS800 control board (RMIO or RDCO series) for fault history logs — repeated pre-charge faults logged over weeks or months indicate a systemic issue rather than a one-off component failure.

On the input side, verify the input line reactor or EMC filter is intact and that input fuses (typically gG or aR class, sized per the drive’s input current rating) are within specification. A blown or weakened input fuse can cause asymmetric phase loading that stresses the rectifier bridge and, indirectly, the DC bus pre-charge circuit. The rectifier diode bridge should be checked for forward voltage balance across all six diodes.

For facilities running multiple ACS800 drives in a common DC bus configuration, also inspect the DC bus connection busbars and terminal blocks for oxidation, loose torque, or thermal discoloration — these are leading indicators of high-resistance joints that generate localized heating and can damage nearby components including the pre-charge resistor assembly. Maintaining a stocked spare of the CBHX165C 5R 414 alongside a spare RINT-series gate driver board and a set of input fuses ensures that the most common ACS800 failure modes can be resolved within a single maintenance shift, minimizing production impact.

Site Replacement Workflow

Step 1 — Isolation and discharge: Isolate the ACS800 drive from mains supply using the upstream isolator or circuit breaker. Wait a minimum of 5 minutes (or per the drive’s local safety label) for the DC bus capacitors to discharge below 50 VDC. Verify with a calibrated DC voltmeter across the DC bus terminals (U+ / U−) before opening the drive enclosure.

Step 2 — Document existing configuration: Photograph the existing wiring, terminal labeling, and component orientation before removal. Note any fault codes displayed on the ACS800 control panel (CDP312R or similar) and record them for root cause analysis.

Step 3 — Remove the failed resistor: Disconnect the two terminals of the CBHX165C 5R 414. Inspect the terminal screws and wiring insulation for heat damage. If the wiring shows discoloration or brittleness, replace the wire segments before installing the new resistor.

Step 4 — Install the replacement unit: Mount the new CBHX165C 5R 414 in the original bracket position. Torque terminal screws to the specified value (refer to the ACS800 hardware manual for the relevant frame size). Ensure the resistor body is not in contact with adjacent components or cable bundles.

Step 5 — Verify and recommission: Restore power and observe the drive’s startup sequence. The ACS800 should complete the pre-charge cycle without fault. Confirm via the drive’s diagnostic menu that DC bus voltage rises smoothly to the expected level. Log the replacement in the site maintenance record with the new part’s serial number and invoice date to anchor the support terms confirmed by quotation period.

This workflow is compatible with all ACS800 frame sizes that use the CBHX165C 5R 414 resistor assembly. For legacy installations where the original mounting bracket has corroded or deformed, KNMKS can advise on compatible bracket alternatives to ensure a clean, code-compliant installation.

Spare Parts Support FAQ

Q1: Is the CBHX165C 5R 414 compatible with all ACS800 frame sizes?
The CBHX165C 5R 414 is used across multiple ACS800 frame sizes where ABB specifies this resistor value and form factor. Before ordering, confirm your drive’s frame size and hardware manual part list to ensure this is the correct pre-charge resistor for your specific unit. KNMKS’s technical team can assist with cross-referencing your drive’s serial number and hardware revision if needed.

Q2: How do I verify the part is genuine ABB before installation?
All units supplied by KNMKS are sourced from ABB’s authorized distribution network. Each part ships with original ABB labeling, part number markings, and a KNMKS inspection certificate confirming pre-dispatch electrical testing. If you require additional traceability documentation for your site’s incoming inspection process, contact [email protected] prior to ordering.

Q3: What is your long-term supply commitment for this part?
KNMKS maintains buffer stock of high-demand ACS800 spare parts including the CBHX165C 5R 414 to support customers with ongoing maintenance contracts and annual shutdown schedules. For facilities managing fleets of ACS800 drives, we recommend establishing a blanket order or consignment stock arrangement to guarantee availability and lock in pricing. Contact our team to discuss volume and lead-time commitments.

Q4: What does the support terms confirmed by quotation cover, and how is a claim processed?
The support terms confirmed by quotation cover manufacturing defects confirmed by technical inspection — including resistor open-circuit failure, terminal defect, or out-of-tolerance resistance under normal operating conditions. Support requests are initiated by contacting [email protected] with the invoice number, installation date, and a description of the fault. KNMKS will arrange replacement dispatch or credit upon confirmation. Support terms does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the component’s rated parameters.
