ABB CAI10 Fail-Safe Analog Input for AC500 Reliability

Overview

ABB CAI10 Fail-Safe Analog Input for AC500 Reliability

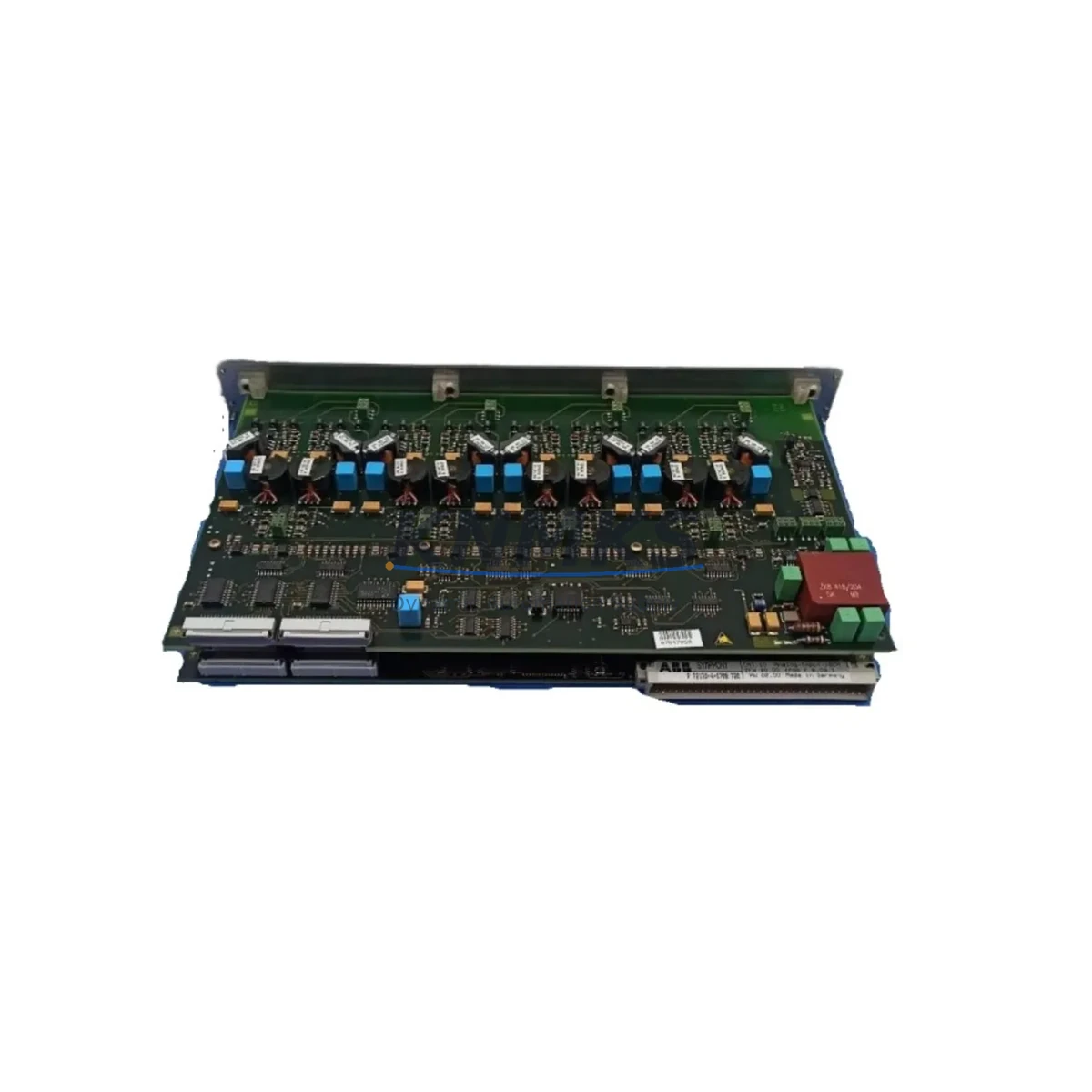

The ABB CAI10 is an 8-channel analog input module engineered for the AC500 and S500 distributed I/O platform, delivering fail-safe signal acquisition in the most demanding industrial control environments. Designed to sustain continuous production without compromise, the CAI10 addresses the core vulnerabilities that cause unplanned shutdowns: signal drift, electromagnetic interference, surge-induced measurement errors, and communication anomalies between field instruments and the PLC controller.

In critical process industries — petrochemical plants, power generation facilities, metallurgical smelters, and continuous manufacturing lines — analog signal integrity is non-negotiable. A single corrupted 4–20 mA or 0–10 V reading can trigger a false interlock, mask a genuine process deviation, or cause a cascade shutdown across an entire production unit. The CAI10 is built to eliminate these failure modes through hardware-level EMI shielding, galvanic isolation per channel, and robust surge protection that absorbs transient spikes before they reach the measurement circuit.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The CAI10 does not operate in isolation — its fail-safe performance depends on a coherent control cabinet architecture where every component is selected for mutual compatibility and collective resilience. In a typical AC500-based control cabinet, the CAI10 works alongside the ABB PM554-T-ETH CPU module, which handles program execution and Ethernet-based SCADA communication. Power to the I/O bus is supplied through a dedicated ABB CP-E 24/10.0 power supply unit, which provides regulated 24 VDC with active power factor correction and overload protection — critical for preventing voltage sag that can corrupt analog readings during motor starts or heavy load switching.

For digital interlock signals that accompany the analog measurement loop, the ABB CD522 digital combination I/O module is commonly installed in the same S500 rack, enabling coordinated analog-digital safety logic within a single backplane. In high-vibration environments such as compressor stations or mining conveyors, the ABB TA521 terminal adapter provides secure field wiring termination that resists loosening under mechanical stress, protecting the signal path from the field junction box all the way to the CAI10 input circuit.

Where the control cabinet is exposed to high electromagnetic interference — common in variable-frequency drive (VFD) enclosures or near large transformer banks — supplementary ABB SACE surge protection devices are installed on the incoming power rail to prevent conducted transients from reaching the I/O modules. For cabinets in humid coastal or chemical plant environments, thermal management accessories maintain internal temperature within the CAI10’s rated operating range, preventing condensation-induced insulation degradation and measurement offset drift.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The CAI10 is deployed in continuous process control loops monitoring pressure transmitters, flow meters, and temperature sensors across distillation columns and reactor vessels. Its galvanic isolation prevents ground loop currents — a persistent problem in large-scale process plants — from introducing measurement errors that could mask overpressure or overtemperature conditions. In safety instrumented systems (SIS), the CAI10 feeds analog process values to the AC500 CPU for comparison against safety setpoints, supporting IEC 61511 functional safety requirements.

Power Generation and Substation Control: In thermal and hydroelectric power plants, the CAI10 monitors generator excitation current, turbine bearing temperature, and cooling water flow. Its EMI hardening is essential in switchgear rooms where high-voltage switching generates intense electromagnetic transients. The module’s 16-bit resolution ensures that small deviations in generator output parameters are detected before they escalate into protection relay trips.

Mining and Mineral Processing: Conveyor belt load cells, crusher motor current sensors, and flotation cell level transmitters all feed into CAI10 modules installed in dusty, vibration-intensive surface and underground control rooms. The module’s wide operating temperature range and vibration rating allow it to function reliably in environments where standard I/O modules fail prematurely.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the CAI10 to monitor chlorine dosing pumps, pH sensors, and flow totalizers. In these applications, long cable runs from remote field instruments introduce significant noise pickup; the CAI10’s input filtering and surge protection maintain measurement accuracy across cable distances exceeding 500 meters.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting operations, the CAI10 monitors cooling water temperature, hydraulic pressure, and electrode positioning feedback. The extreme electromagnetic environment generated by EAF operations demands the highest level of analog input shielding — a requirement the CAI10 meets through its hardware-level EMI suppression architecture.

Port and Marine Applications: Ship-to-shore crane control systems and vessel engine room automation use the CAI10 in AC500 PLCs to monitor hydraulic system pressures, motor temperatures, and fuel flow rates. The module’s tolerance for humidity and salt-laden air makes it suitable for marine-grade control panels where corrosion resistance is a primary selection criterion.

Safety and Quality FAQ

Q1: What support terms coverage does the ABB CAI10 carry?
Every CAI10 unit shipped by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, premature component failure, and functional non-conformance to ABB’s published specifications. Support requests are processed with priority turnaround to minimize control system downtime.

Q2: What pre-shipment testing is performed on each CAI10 unit?
Each CAI10 undergoes functional verification prior to dispatch, including channel-by-channel analog input accuracy checks, isolation resistance measurement, and bus communication handshake testing with an AC500 CPU. Units that do not meet ABB’s original factory acceptance criteria are quarantined and not shipped.

Q3: Is the CAI10 compatible with all AC500 CPU generations?
The CAI10 is compatible with the full AC500 V2 and V3 CPU range, including PM554, PM564, PM573, PM583, PM592, and PM595 series processors, as well as all S500 expansion racks. Configuration is performed through ABB Automation Builder (formerly PS501 Control Builder Plus) with no hardware modification required.

Q4: Can KNMKS support long-term supply for ongoing maintenance programs?
Yes. KNMKS maintains regional buffer stock of the CAI10 and related AC500 I/O modules to support blanket-order programs and scheduled maintenance shutdowns. For facilities with annual turnaround requirements, we offer reserved allocation agreements that guarantee availability without lead-time risk. Contact [email protected] or +86 18359268345 to discuss your supply program.
