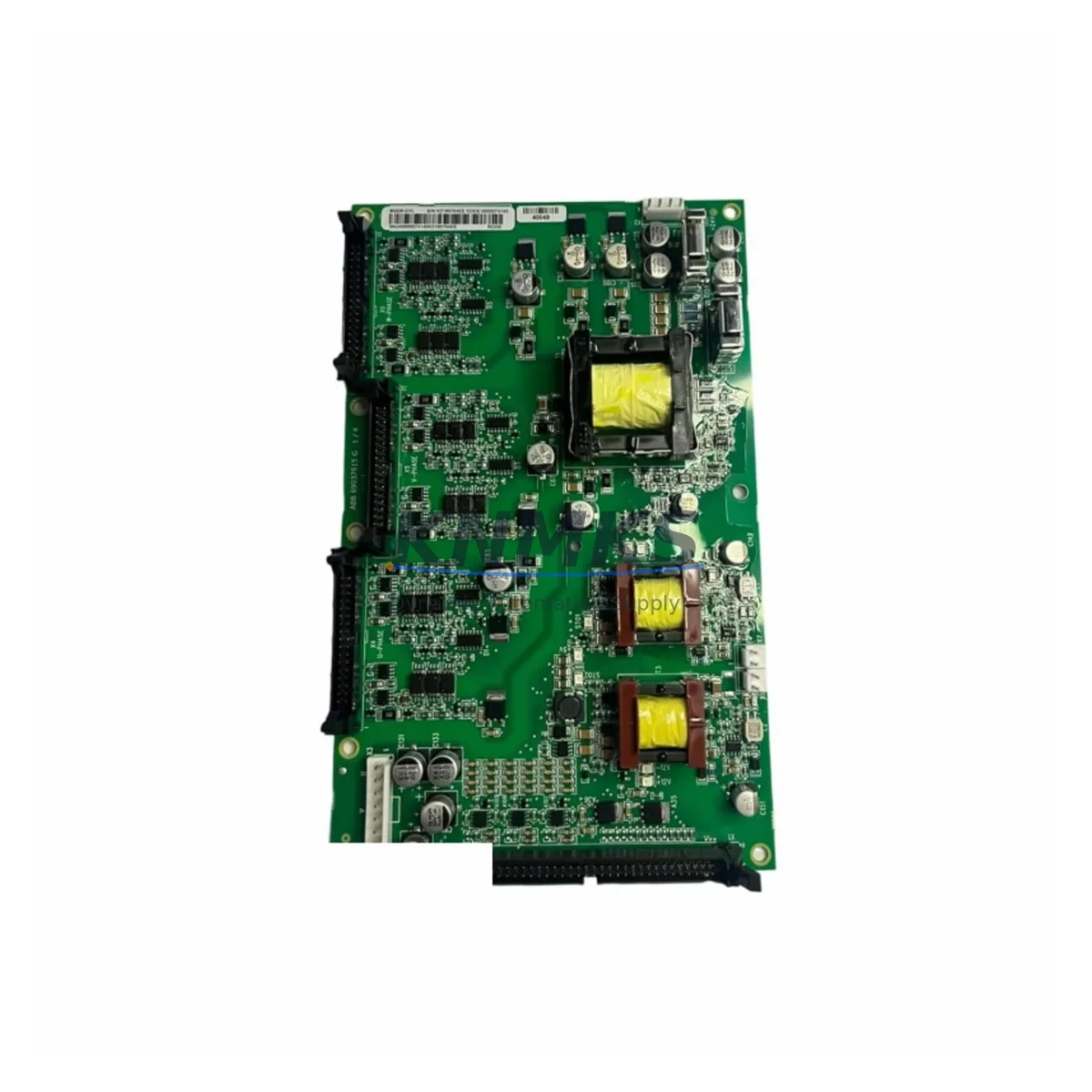

ABB BGDR-01C 3AUA0000074145 Migration-Ready Gate Driver

Overview

ABB BGDR-01C 3AUA0000074145 Migration-Ready Gate Driver: Legacy ACS800 System Retrofit & Compatibility Upgrade

The ABB BGDR-01C (part number 3AUA0000074145) is a gate driver board engineered for the ACS800 series of medium-voltage AC drives. As ABB progressively phases out legacy ACS800 drive components, maintenance engineers and automation managers face increasing pressure to source verified replacement boards that preserve existing drive functionality without requiring full drive replacement. The BGDR-01C addresses this challenge directly: it is a migration-ready gate driver that slots into the original ACS800 power unit frame, restoring IGBT switching control without modifications to the main power circuit or control wiring harness.

In retrofit scenarios, the BGDR-01C is typically deployed when the original gate driver exhibits symptoms such as IGBT overcurrent faults, asymmetric phase output, erratic switching frequency, or drive trips that cannot be resolved through parameter adjustment or firmware reload. Before replacement, engineers should verify the DC bus voltage level, confirm that the IGBT module itself (commonly the ABB 5SNA0750G650300 or equivalent stack) is not damaged, and check that the fiber optic signal cables connecting the gate driver to the control board—such as the AINT-02C or AINT-11C interface board—are intact and properly seated.

Compatibility with the ACS800 control platform also requires attention to the RDCU-02C or RDCU-12C drive control unit firmware version. In systems running older DTC (Direct Torque Control) firmware, the gate driver timing parameters are fixed in the control unit; upgrading the BGDR-01C without verifying firmware compatibility can result in drive fault codes such as FF6A or FF52. It is recommended to document the existing firmware version from the drive’s parameter list (parameter 33.01) before initiating any board swap.

For plants operating multiple ACS800 units in a common DC bus configuration, replacing the BGDR-01C on one inverter unit requires careful coordination with the adjacent rectifier unit and the BAMU-01C or BAMU-02C bus adapter module. The gate driver replacement should be performed with the DC bus fully discharged—confirmed by measurement, not assumption—and the BAMU interlock verified before re-energization. This is particularly critical in regenerative drive configurations where the BAMU manages bidirectional power flow.

Panel builders and system integrators retrofitting older ACS800 cabinets should also account for the physical installation envelope. The BGDR-01C mounts on the IGBT stack assembly within the power module frame; torque specifications for the mounting hardware must be followed precisely to ensure thermal contact between the gate driver and the heatsink interface. In high-ambient-temperature installations, confirm that the cabinet cooling fan assembly—often the AGPS-21C or AGPS-11C power supply board that drives the fan—is functional before commissioning the replacement board.

Signal integrity on the fiber optic links between the BGDR-01C and the AINT interface board is a common source of post-replacement faults. Inspect all fiber connectors for contamination or physical damage, and verify that the optical power budget is within specification using a fiber optic power meter if available. In legacy installations where the fiber cables have been routed alongside high-voltage conductors for extended periods, replacement of the fiber harness as a precautionary measure is advisable.

Each BGDR-01C unit supplied by KNMKS undergoes pre-shipment functional testing under simulated drive load conditions, with gate pulse timing verified against ABB factory specifications. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Stock is maintained across multiple regional warehouses to support emergency replacement requirements with rapid global dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan for ACS800 gate driver replacement should begin with a full drive audit: extract the fault log, document all active parameters, and photograph the existing wiring and fiber routing before any disassembly. The BGDR-01C replacement is typically one element of a broader drive restoration that may also involve inspection of the AINT-02C interface board for damaged fiber ports, verification of the RDCU-02C control unit battery (for parameter memory retention), and functional check of the AGPS-11C auxiliary power supply that feeds the gate driver logic circuits.

In multi-axis systems where the ACS800 drives share a common control network via DDCS (Distributed Drive Control System) fiber ring, replacing the gate driver on one unit requires that the DDCS ring remain intact or be properly looped out during the replacement procedure. The RDCU control unit manages DDCS node addressing; after board replacement, confirm that the drive’s node address (parameter 70.01) is correctly set and that the master controller—often a AC800M or AC80 PLC—re-establishes communication with the replaced drive unit without requiring a full network restart.

For legacy installations where the ACS800 is integrated with an older Panel 800 or Advant OCS HMI system, the HMI drive status displays should be verified post-replacement to confirm that all drive status bits, fault codes, and analog feedback signals are correctly mapped. In some configurations, the HMI reads drive data via a PROFIBUS DP adapter (RPBA-01) or DeviceNet adapter (RDNA-01) mounted in the drive’s option slot; these adapters should be reseated and their communication parameters verified as part of the commissioning checklist.

Downtime Control During System Migration

Minimizing unplanned downtime during ACS800 gate driver replacement requires preparation before the maintenance window opens. A complete parameter backup should be extracted from the RDCU control unit using DriveWindow Light or DriveStudio software and stored on a laptop that will be available on-site during the replacement. This backup allows rapid parameter restoration if the replacement board requires a control unit reset or if parameter memory is lost during the swap.

Where production schedules permit only a narrow maintenance window, pre-staging the replacement BGDR-01C in the correct orientation, with fiber connectors pre-cleaned and mounting hardware pre-torqued to hand-tight, reduces the time the drive is de-energized. In critical process applications—such as compressor drives, extruder drives, or winder drives—coordinate with the process control team to confirm that the upstream PLC (such as an AC500 or S7-300 series controller) has the drive in a controlled stop state and that any interlock permissives are satisfied before isolation.

Post-replacement commissioning should follow a structured sequence: power-up with the motor disconnected if possible, verify gate pulse output on all phases using the drive’s built-in diagnostics, reconnect the motor, and perform a no-load run before returning to full production load. Document the commissioning results and update the plant maintenance record with the replacement date, board serial number, and firmware version confirmed at commissioning.

Retrofit Support FAQ

Q1: Is the BGDR-01C a direct drop-in replacement for all ACS800 variants?
The BGDR-01C is compatible with the standard ACS800 single drive and multidrive power unit configurations that use the same IGBT stack mounting interface. Confirm the drive’s power unit type code (found on the drive nameplate) against the BGDR-01C compatibility list before ordering. For ACS800-04 or ACS800-07 variants, verify the specific gate driver part number required for that frame size.

Q2: What pre-shipment testing is performed on each unit?
Each BGDR-01C is functionally tested under simulated gate drive conditions prior to shipment. Gate pulse timing, fiber optic signal integrity, and logic supply voltage are verified against ABB factory specifications. A test record is available upon request.

Q3: How do I verify wiring and fiber connections after installation?
After installing the BGDR-01C, inspect all fiber optic connectors for cleanliness and secure seating. Verify that the fiber cables are routed away from high-voltage conductors. Use the ACS800 drive’s built-in diagnostics (accessible via the CDP control panel or DriveWindow) to confirm that gate pulse signals are being received correctly on all phases before energizing the motor circuit.

Q4: What does the support terms confirmed by quotation cover, and what is the stock availability?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. KNMKS maintains multi-region stock of the BGDR-01C to support emergency replacement requirements. Contact the sales team for current stock confirmation and lead time for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

BGDR-01C 3AUA0000074145
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB BGDR-01C 3AUA0000074145
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
