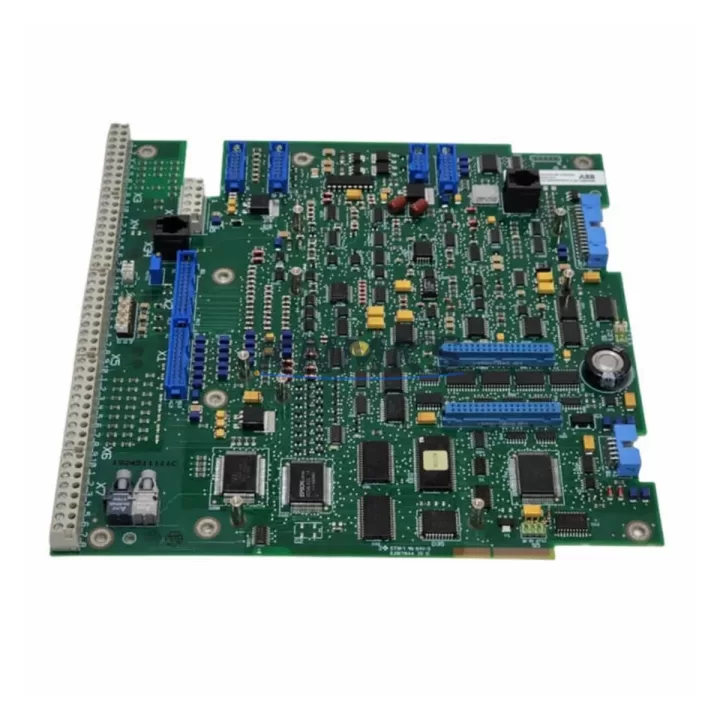

ABB BGAD-12C Migration-Ready Excitation Trigger Board

Overview

ABB BGAD-12C Migration-Ready Excitation Trigger Board for Legacy Control Systems

The ABB BGAD-12C is a migration-ready excitation trigger board engineered for direct replacement in ABB DCS Drive series legacy drive systems. As ABB progressively phases out support for older DCS Drive hardware, engineering teams managing scheduled outages, emergency replacements, or full control cabinet upgrades increasingly rely on verified drop-in alternatives to maintain production continuity. The BGAD-12C addresses this need with a pre-tested, warehouse-stocked module backed by a support terms confirmed by quotation and fast global dispatch.

Before committing to a replacement, engineers must confirm several critical parameters: the DC bus voltage rating, gate pulse timing compatibility with the existing thyristor or IGBT stack, terminal block pinout alignment, and the physical mounting footprint within the drive cabinet. The BGAD-12C retains the original connector layout and board dimensions of the legacy DCS Drive excitation trigger assembly, significantly reducing re-wiring risk during retrofit. Where the original board interfaced with the ABB SDCS-CON-4 control board via a dedicated ribbon connector, the BGAD-12C maintains this interface standard, preserving existing program logic and field bus communication links without requiring PLC-side software changes.

In multi-drive installations, the BGAD-12C is commonly deployed alongside the ABB SDCS-POW-4 power supply board and SDCS-IOB-3 I/O expansion board, both of which share the same DCS Drive backplane architecture. When upgrading a full drive stack, teams should also verify the firmware version loaded on the SDCS-CON-4 to ensure pulse-width modulation parameters remain within the trigger board’s accepted range. Mismatched firmware revisions are a leading cause of post-replacement instability in excitation circuits, particularly in high-inertia DC motor applications such as paper mills, steel rolling lines, and marine propulsion systems.

For sites running ABB’s DriveWindow or DriveWindow Light commissioning software, the BGAD-12C replacement does not require re-parameterization of the drive’s excitation group settings, provided the motor nameplate data and field current reference values are preserved from the original configuration backup. Engineers should capture a full parameter set export via DriveWindow before powering down the legacy board, and restore it immediately after the BGAD-12C is seated and the drive is re-energized. This approach protects the HMI screen configurations and trend logging setpoints that operations teams depend on for daily monitoring.

In retrofit planning scenarios where the control cabinet also houses an ABB RDCO-03 DDCS communication module or an RDNA-01 DeviceNet adapter, the BGAD-12C swap can be completed without disturbing the fieldbus wiring harness. The excitation trigger board operates independently of the communication layer, meaning PROFIBUS, DeviceNet, or Modbus RTU links to the plant DCS remain active throughout the board exchange — a critical advantage for minimizing unplanned downtime in continuous-process industries.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful BGAD-12C retrofit begins with a structured pre-outage checklist. First, confirm the drive cabinet’s available installation space and verify that the backplane slot assigned to the excitation trigger board is free of mechanical damage or corrosion. In older DCS Drive cabinets, the SDCS-POW-4 power supply board and SDCS-IOB-3 I/O board are typically mounted in adjacent slots; their presence should be documented before any board is removed to avoid accidental disconnection of shared power rails.

Next, record the existing field current reference value and excitation group parameters from the SDCS-CON-4 control board using DriveWindow. This parameter export serves as the restoration baseline after the BGAD-12C is installed. If the site uses an ABB RDCO-03 DDCS fiber-optic communication module for master-follower drive coordination, note the node address and baud rate settings, as these are stored on the control board and will not be affected by the trigger board swap — but should be verified post-commissioning to confirm the communication link re-established correctly.

For sites where the drive feeds a DC motor with a separate field winding controller, also inspect the field winding terminal connections (F1/F2) at the drive output terminals. The BGAD-12C’s gate pulse timing is factory-calibrated to the DCS Drive’s standard field weakening curve; if the motor’s field resistance deviates significantly from the original design value, a brief field current trim may be required during commissioning using DriveWindow’s excitation tuning wizard.

Where the control cabinet also contains an ABB RDNA-01 DeviceNet adapter or a third-party signal isolator on the analog reference input, these components remain fully operational during the BGAD-12C exchange. The trigger board’s analog input interface is isolated from the fieldbus layer, ensuring that the plant DCS continues to receive speed and torque feedback signals without interruption throughout the replacement procedure.

Downtime Control During System Migration

Minimizing downtime during a BGAD-12C replacement requires preparation that begins well before the scheduled outage window. The most effective approach is to pre-stage the replacement board at the site, confirm its function-test certificate, and prepare a printed copy of the parameter export from DriveWindow. This allows the physical swap to be completed within a single shift, with re-commissioning and test run completed before the outage window closes.

During the outage, follow a strict sequence: isolate the drive from the AC supply and DC bus, discharge the DC link capacitors per ABB’s lockout/tagout procedure, remove the legacy BGAD-12C, seat the replacement board, reconnect the ribbon cable to the SDCS-CON-4, and restore power in a controlled ramp sequence. Do not attempt to restore the drive to full load immediately; run a no-load excitation test first to confirm the field current reaches the reference value within the expected ramp time.

If the site’s HMI displays excitation fault codes after the replacement, the most common cause is a gate pulse phase offset that can be corrected via DriveWindow’s trigger angle calibration function without requiring a second outage. Keeping a laptop with DriveWindow pre-installed and the parameter backup file accessible at the cabinet significantly reduces the risk of extended downtime due to commissioning delays. With proper preparation, most BGAD-12C replacements in DCS Drive systems are completed with less than four hours of total downtime, including test run and handover to operations.

Retrofit Support FAQ

Q1: Is the BGAD-12C a direct drop-in replacement for the original ABB DCS Drive excitation trigger board?
Yes. The BGAD-12C retains the original board dimensions, mounting hole pattern, ribbon connector interface, and terminal block pinout of the legacy DCS Drive excitation trigger assembly. No mechanical modifications or re-wiring are required for a standard replacement.

Q2: Does replacing the BGAD-12C require changes to the drive’s PLC program or HMI screens?
No. The excitation trigger board operates at the hardware level and does not interact with the PLC program logic or HMI configuration. Provided the SDCS-CON-4 parameter set is backed up and restored correctly via DriveWindow, all program logic, HMI screens, and trend logging setpoints remain intact after the replacement.

Q3: What pre-shipment testing is performed on the BGAD-12C before delivery?
Each BGAD-12C unit undergoes function testing prior to dispatch, verifying gate pulse generation, trigger timing, and board-level power supply integrity. A test certificate is included with the shipment. All units are covered by a support terms confirmed by quotation from the date of delivery.

Q4: What is the typical lead time and stock availability for the BGAD-12C?
The BGAD-12C is maintained in multi-region stock to support both emergency replacements and scheduled outage planning. Standard dispatch is available for in-stock units, with expedited shipping options for critical downtime situations. Contact our team to confirm current stock levels and delivery timelines for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

BGAD-12C

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB BGAD-12C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
