ABB BCU-02 Migration-Ready Drive Control Unit for ACS800

Overview

ABB BCU-02 Migration-Ready Drive Control Unit for ACS800: Legacy System Migration & Compatible Upgrade

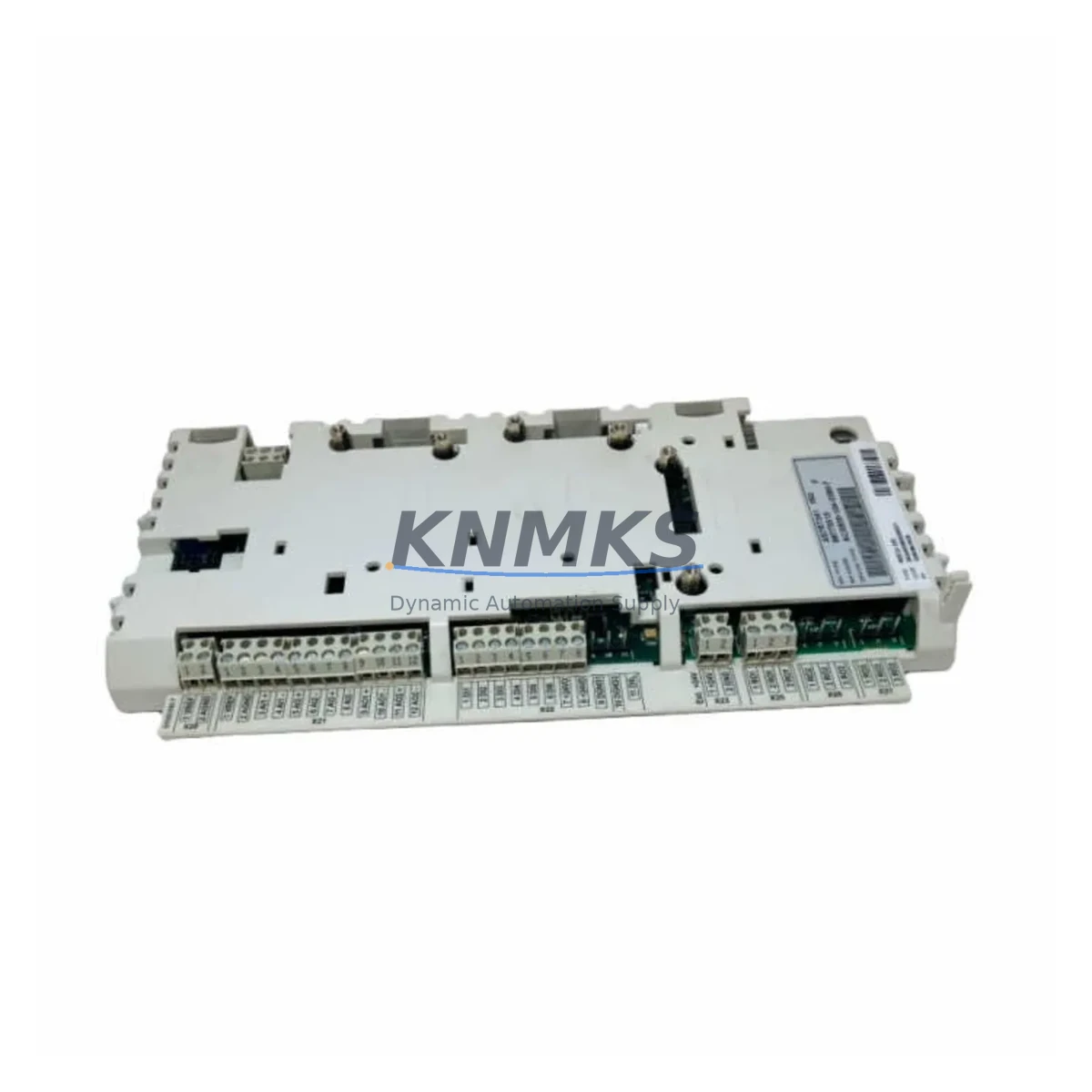

The ABB BCU-02 is a migration-ready drive control unit engineered as a direct replacement for the RDCU-02C and legacy BCU-series boards used across the ACS800 single-drive and multi-drive platform. As ABB progressively phases out older control board variants, facilities operating ACS800 frequency converters face increasing pressure to source verified, drop-in compatible replacements that preserve existing program logic, fieldbus configurations, and I/O wiring without requiring full drive replacement or extended downtime.

The BCU-02 retains the same backplane connector layout, firmware boot sequence, and parameter memory architecture as its predecessors, making it the preferred choice for maintenance engineers managing aging production lines, compressor stations, pump control panels, and crane drive systems. Whether you are replacing a failed unit in an emergency shutdown scenario or executing a planned spare parts lifecycle extension, the BCU-02 delivers verified compatibility with the ACS800 control cabinet ecosystem.

Each unit supplied by KNMKS undergoes pre-shipment functional testing, ships with a support terms confirmed by quotation, and is supported by technical documentation covering terminal wiring, firmware version alignment, and fieldbus parameter restoration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful BCU-02 integration into an existing ACS800 installation requires a structured pre-replacement audit. Before removing the failed or end-of-life control board, maintenance teams should document all active parameter groups using DriveWindow Light or the ACS800 CDP control panel, paying particular attention to application macro selection, speed reference scaling, and PID configuration blocks that govern process-critical behavior.

In multi-drive cabinet configurations — particularly those using the ACS800-04 inverter module or ACS800-07 cabinet drive — the BCU-02 interfaces with the drive’s internal RMIO backplane. Engineers should confirm that the RAIO-01 analog I/O extension module and any installed RDIO-01 digital I/O module retain their original slot positions and address jumper settings, as these are not automatically re-detected after a control board swap.

For installations using fieldbus communication, the existing RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter can be retained on the BCU-02 without hardware modification. However, the fieldbus node address, baud rate, and telegram type must be re-verified in parameter group 51 (Ext Comm Module Data) after the replacement board is powered up. In PROFIBUS networks, the GSD file and PLC I/O mapping remain unchanged, minimizing PLC-side reconfiguration.

Where the legacy system includes an ACS800 application program loaded as a custom macro (e.g., crane control, winder, or pump-fan application), the application program file must be re-uploaded via DriveWindow if the BCU-02 ships without a pre-loaded application. KNMKS technical support can advise on firmware version alignment prior to shipment to reduce on-site programming time.

For HMI-connected installations using ABB CP600 or third-party SCADA panels communicating via Modbus TCP or PROFIBUS, no HMI screen modifications are required provided the drive parameter addresses and scaling factors are preserved during parameter restoration. Verify communication link status on the HMI after drive re-energization before releasing the system to production.

Physical installation requires standard ESD precautions. The BCU-02 mounts into the ACS800 control board slot without tools beyond a standard screwdriver. Confirm that the internal 24 VDC SMPS output is within tolerance before inserting the new board, and inspect the backplane connector for bent pins or contamination that may have contributed to the original board failure.

Downtime Control During System Migration

Unplanned drive control board failures in continuous process environments — including water treatment, paper mills, material handling conveyors, and HVAC central plant — demand rapid response with minimal production impact. The BCU-02’s drop-in compatibility with the ACS800 platform eliminates the need for drive cabinet rewiring, PLC program modification, or HMI reconfiguration, compressing the replacement window to the time required for parameter restoration and communication verification.

For facilities maintaining a spare parts inventory strategy, stocking one BCU-02 per critical ACS800 drive reduces mean time to repair (MTTR) to under two hours in most single-drive applications. In multi-drive systems where a single BCU-02 failure can cascade to process shutdown, pre-staged replacement boards with pre-loaded firmware and backed-up parameter files further reduce recovery time.

KNMKS maintains ready stock of BCU-02 units to support emergency procurement with same-day dispatch capability for urgent orders. All units are tested prior to shipment and accompanied by a test report confirming functional verification of the control board’s communication interfaces, I/O channels, and power supply regulation. The support terms confirmed by quotation provides post-installation assurance, covering the critical period following a retrofit during which latent issues are most likely to surface.

For planned maintenance windows, KNMKS recommends scheduling BCU-02 replacement during scheduled production stops, using the downtime to simultaneously inspect the drive’s DC bus capacitors, gate driver boards, and cooling fan assemblies — components that share the same service life profile as the control board in high-cycle applications.

Retrofit Support FAQ

Q1: Is the ABB BCU-02 a direct replacement for the RDCU-02C?
Yes. The BCU-02 is the designated successor to the RDCU-02C in the ACS800 control board family. It uses the same backplane connector, supports the same I/O extension modules (RAIO-01, RDIO-01), and is compatible with the same fieldbus adapters (RPBA-01, RMBA-01, RDNA-01). Parameter backup and restoration via DriveWindow is required to preserve application configuration.

Q2: Do I need to modify my PLC program or HMI screens after replacing the BCU-02?
No PLC or HMI modifications are required if the parameter file is correctly restored and the fieldbus node address is re-confirmed. The drive’s communication interface behavior is governed by parameters, not hardware — provided the same fieldbus adapter is retained, the PLC I/O mapping and HMI tag addresses remain valid.

Q3: What firmware version should the BCU-02 have for my ACS800 application?
Firmware version requirements depend on the application program (standard, crane, winder, pump-fan, etc.) and the drive type code. Contact KNMKS with your drive nameplate type code and current application program version before ordering to confirm firmware alignment. Pre-loading of specific firmware versions is available on request.

Q4: What does the support terms confirmed by quotation cover, and how is it claimed?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a support terms claim, contact [email protected] with the order reference, unit serial number, and a description of the fault symptom. KNMKS will arrange return logistics and replacement dispatch upon fault confirmation.
