ABB BCU-02 3AUA0000110429 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB BCU-02 3AUA0000110429 Maintenance-Proven Spare Part for Factory Uptime

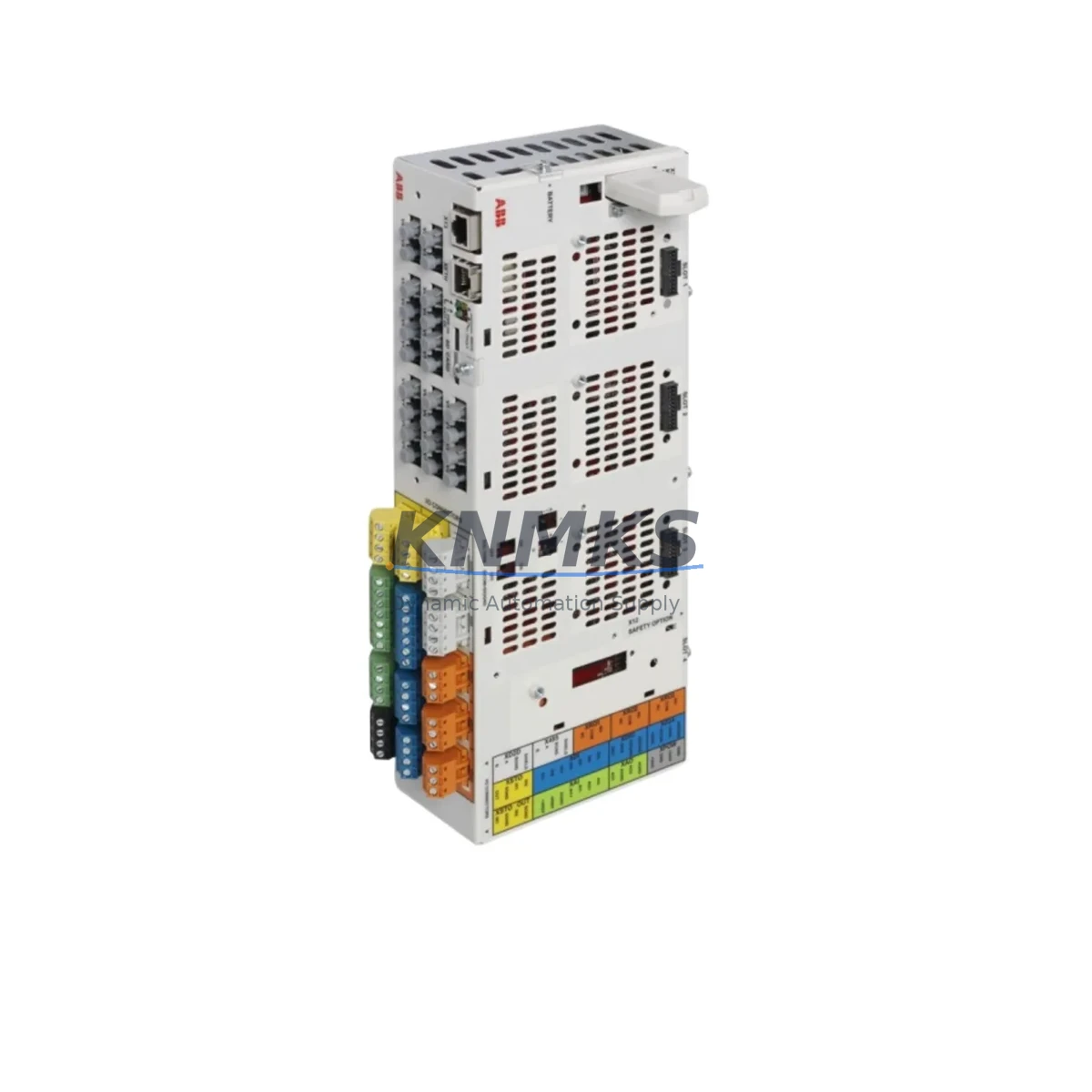

The ABB BCU-02 (part number 3AUA0000110429) is the original drive control unit designed for the ACS800 series variable frequency drives, widely deployed across petrochemical plants, power generation facilities, water treatment stations, mining operations, and port automation systems. As the central intelligence of the ACS800 drive, the BCU-02 manages motor control algorithms, I/O coordination, fieldbus communication, and fault diagnostics. When this unit fails or degrades, the entire drive becomes inoperable — making a validated, stock-backed spare essential for any maintenance program targeting continuous production uptime.

At KNMKS, every BCU-02 3AUA0000110429 unit is sourced as an original ABB component, subjected to pre-shipment functional verification, and dispatched with a support terms confirmed by quotation. Our inventory is maintained to support both emergency breakdown replacements and planned annual overhaul schedules, ensuring your procurement team can secure parts without lead-time risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BCU-02 failure is identified during routine drive diagnostics or an unplanned shutdown, experienced maintenance engineers know that the control unit rarely fails in isolation. A thorough site inspection should accompany any BCU-02 replacement to prevent repeat failures and reduce the risk of secondary damage to connected systems.

Begin by inspecting the AINT-02 or AINT-11 inverter control board, which interfaces directly with the BCU-02 and is subject to the same thermal and electrical stress cycles. Verify the integrity of the APOW-01 power supply board that feeds the control section — a degraded APOW-01 is a common root cause of BCU-02 brownout faults and should be replaced proactively during any BCU-02 swap. Check the RDCO-01 or RDCO-03 DDCS fiber optic communication module for contamination or connector fatigue, as communication errors between the BCU and inverter modules frequently precede control unit failures.

Inspect all I/O terminal blocks and signal wiring on the drive’s X1 and X2 connectors for corrosion, loose crimps, or insulation breakdown — particularly in high-humidity or chemically aggressive environments. If the drive is integrated into a DCS or SCADA system via PROFIBUS-DP or Modbus RTU, validate the fieldbus adapter (e.g., RPBA-01 or RMBA-01) and its termination resistors before commissioning the replacement BCU-02. For drives controlling critical motors, also verify the encoder feedback module (RTAC-01 or RTAC-02) and its cable shielding, as encoder signal degradation can trigger false overcurrent trips on a newly installed control board.

Procurement engineers building annual spare parts kits for ACS800 fleets should consider stocking the BCU-02 alongside the APOW-01 power supply, AINT inverter board, and at least one fieldbus adapter module per drive type in the facility. This three-component kit covers the majority of ACS800 control-section failures and enables same-shift restoration without waiting for international freight.

Site Replacement Workflow

Step 1 — Isolation and Safety: De-energize the ACS800 drive and wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify bus voltage with a calibrated meter before opening the drive cabinet. Lock out / tag out per site LOTO procedures.

Step 2 — Fault Documentation: Before removing the BCU-02, record all active and historical fault codes from the drive panel or connected HMI (e.g., ACS800 control panel CDP312R or PC tool DriveWindow). Photograph wiring and connector positions for reference during reinstallation.

Step 3 — BCU-02 Removal: Disconnect all ribbon cables, fiber optic links, and I/O connectors from the BCU-02 in sequence. Note the orientation of the DDCS fiber connectors (TX/RX) to avoid reversal on reinstallation. Remove the board mounting screws and extract the unit carefully to avoid ESD damage to adjacent boards.

Step 4 — Parameter Backup and Restore: If the drive’s parameter set was stored on the original BCU-02 memory, restore parameters from a backup file via DriveWindow or the CDP312R panel before powering up. For ACS800 drives with application macros, verify macro selection and motor data entries match the original configuration.

Step 5 — Commissioning and Verification: Power up the drive in local control mode and verify no fault codes are active. Run a motor identification (ID run) if required by the application. Confirm fieldbus communication is re-established with the DCS or PLC before returning the drive to automatic control.

This workflow supports a target restoration time of under 4 hours for a trained maintenance team with the spare BCU-02 on hand, minimizing production loss and avoiding the extended downtime associated with waiting for emergency freight.

Spare Parts Support FAQ

Q1: Is the BCU-02 3AUA0000110429 compatible with all ACS800 drive frame sizes?
The BCU-02 is the standard control unit for the ACS800 single-drive series across multiple frame sizes (R2 through R8 and larger cabinet drives). Compatibility depends on the specific ACS800 variant and firmware revision. Please provide your drive’s full type code (found on the nameplate) when ordering to allow our technical team to confirm exact fit before shipment.

Q2: What is included in the pre-shipment test for the BCU-02?
Each unit undergoes functional verification including power-up self-test, I/O channel continuity check, fieldbus communication handshake simulation, and visual inspection for component-level damage. A test report is available upon request and accompanies units supplied for critical infrastructure projects.

Q3: How should the BCU-02 be stored if purchased as a long-term spare?
Store in original ESD-safe packaging in a dry, temperature-controlled environment (10°C to 35°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or vibration sources. Inspect annually and power-cycle the unit if stored for more than 24 months to maintain capacitor health.

Q4: What is the support terms coverage and what does it include?
KNMKS provides a support terms confirmed by quotation from the date of shipment covering manufacturing defects and functional failure under normal operating conditions. The support terms includes free replacement or repair. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range. Our technical team is available to assist with failure analysis and support requests.
