ABB BAMU-01C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB BAMU-01C Maintenance-Proven Spare Part for Factory Uptime

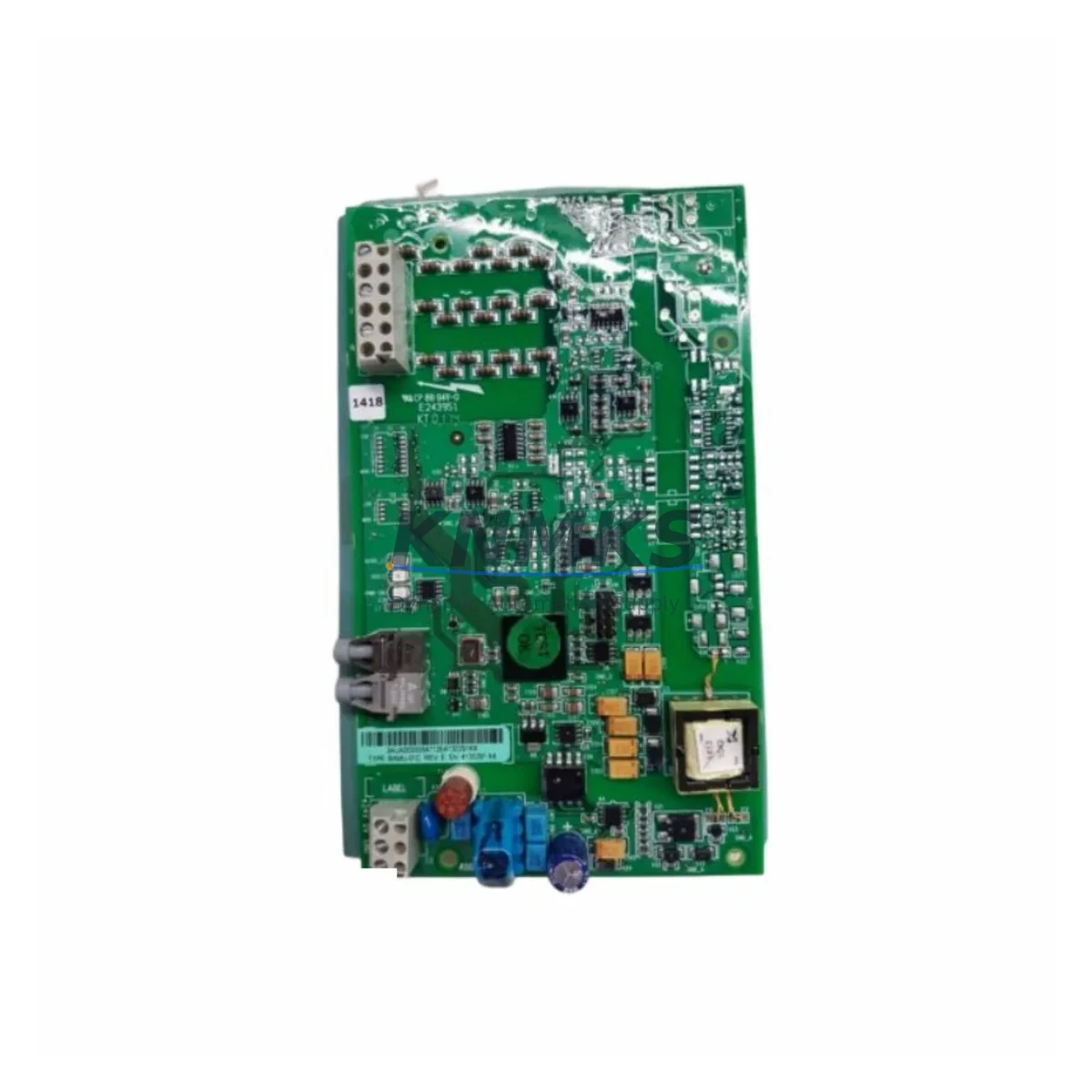

The ABB BAMU-01C is a drive control circuit board engineered for the ACS800 series variable frequency drives. In industrial facilities where production continuity is non-negotiable, maintaining a verified spare of the BAMU-01C in your MRO inventory is a proven strategy for minimizing unplanned downtime. Whether you are managing a paper mill, a water treatment plant, a cement production line, or a heavy-duty conveyor system, the ACS800 drive platform is a cornerstone of motor control — and the BAMU-01C board is a critical functional component within that architecture.

Maintenance engineers and procurement teams working with ABB ACS800 drives understand that control board failures are among the most disruptive fault events on the plant floor. Unlike mechanical wear components, a failed drive control board typically results in a complete drive shutdown, halting the motor and the process it drives. Having a tested, original BAMU-01C spare on hand allows your team to execute a board-level swap within a single maintenance window, restoring full drive functionality without waiting for extended lead times from distribution channels.

This listing covers an original ABB BAMU-01C control board, sourced from verified supply channels, inspected prior to shipment, and backed by a support terms confirmed by quotation covering manufacturing defects and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BAMU-01C control board fault is identified during routine drive diagnostics or an unplanned shutdown event, the replacement procedure should be treated as part of a broader drive health assessment. Experienced maintenance engineers know that a control board failure rarely occurs in isolation — it is often accompanied by stress on adjacent components within the same drive cabinet or electrical circuit.

Before completing the BAMU-01C swap, your team should inspect and verify the condition of the following associated components. The APBU-44C pulse encoder interface unit and RDCO-03 DDCS communication module are frequently installed alongside the BAMU-01C in ACS800 configurations and should be checked for communication faults or signal integrity issues. The AINT-02C inverter control board, which works in close coordination with the BAMU-01C in the drive’s control hierarchy, should be tested for fault codes and parameter integrity before the drive is recommissioned.

On the power supply side, verify the APOW-01C auxiliary power supply board output voltages are within specification, as undervoltage conditions on the 24 VDC rail are a known contributor to control board stress in ACS800 drives. Inspect all terminal block connections on the control wiring harness for corrosion, loose crimps, or thermal discoloration — particularly on the I/O signal terminals connected to the BAMU-01C. If the drive cabinet includes a RAIO-01 analog I/O extension module, confirm that its signal references are stable and that no ground loops are present on the analog input channels.

For facilities running ACS800 drives in networked configurations, the RDNA-01 DeviceNet adapter module or equivalent fieldbus adapter should be checked for communication timeout errors that may have been masked by the control board fault. Finally, inspect the drive’s main fuses and input circuit breaker for signs of thermal stress, and verify that the cooling fan assembly is operating correctly — overheating is a primary cause of premature control board degradation in high-ambient industrial environments.

Procurement engineers should consider stocking a minimum of one BAMU-01C spare per ACS800 drive cluster, particularly in facilities where the drives operate in critical process loops with no bypass capability. Long-term supply continuity is supported through our established sourcing network, with consistent availability for both current production and legacy ACS800 hardware revisions.

Site Replacement Workflow

Replacing the BAMU-01C in the field follows a structured procedure to ensure safe installation and full drive recovery. Begin by isolating the ACS800 drive from mains power and allowing the DC bus capacitors to fully discharge — confirm with a calibrated voltage meter before opening the drive enclosure. Document the existing drive parameter set using the ACS800 control panel or DriveWindow software before removing the faulty board, as some parameter data may be stored on the control board itself depending on firmware version and memory card configuration.

Remove the faulty BAMU-01C by disconnecting all ribbon cables and connector harnesses in sequence, noting their positions for reinstallation. Install the replacement BAMU-01C, reconnect all harnesses, and restore power. Perform a full parameter restore from your saved backup, then run a no-load motor test to verify drive output before reconnecting the process load. Confirm that all fault codes are cleared and that the drive’s I/O signals are responding correctly to the control system commands.

This workflow is applicable whether you are replacing a failed board on an emergency basis or performing a scheduled swap during a planned maintenance window. The BAMU-01C’s board-level replaceability is one of the key serviceability advantages of the ACS800 platform, allowing maintenance teams to restore drive functionality without replacing the entire drive unit — a significant cost saving in high-power drive applications.

Spare Parts Support FAQ

Q1: Is the BAMU-01C compatible with all ACS800 hardware revisions?
The BAMU-01C is designed for the ACS800 series, but compatibility can vary across hardware revisions and firmware versions. Before ordering, provide your drive’s full type code and hardware revision number so we can confirm the correct board variant for your application. We recommend cross-referencing the ABB ACS800 hardware manual for your specific drive rating.

Q2: How is the BAMU-01C tested before shipment?
Each BAMU-01C unit undergoes a functional inspection prior to dispatch, covering visual examination for physical damage, connector integrity checks, and where applicable, bench-level power-on verification. Our support terms confirmed by quotation cover manufacturing defects and functional performance from the date of shipment.

Q3: What is your lead time and long-term supply availability for the BAMU-01C?
We maintain stock of BAMU-01C boards to support both urgent replacement needs and planned MRO procurement cycles. Standard orders are processed and dispatched promptly. For facilities requiring long-term supply agreements or bulk procurement for multi-drive installations, contact our sales team to discuss scheduled supply arrangements.

Q4: Can the BAMU-01C be used to replace older or discontinued ABB drive control boards?
In some cases, the BAMU-01C may serve as a compatible replacement for earlier ABB ACS800 control board variants, subject to hardware and firmware compatibility verification. Our technical team can assist with cross-reference analysis based on your existing drive configuration. We do not recommend installing any control board without confirming compatibility with your specific drive type code and revision.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

BAMU-01C
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB BAMU-01C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
