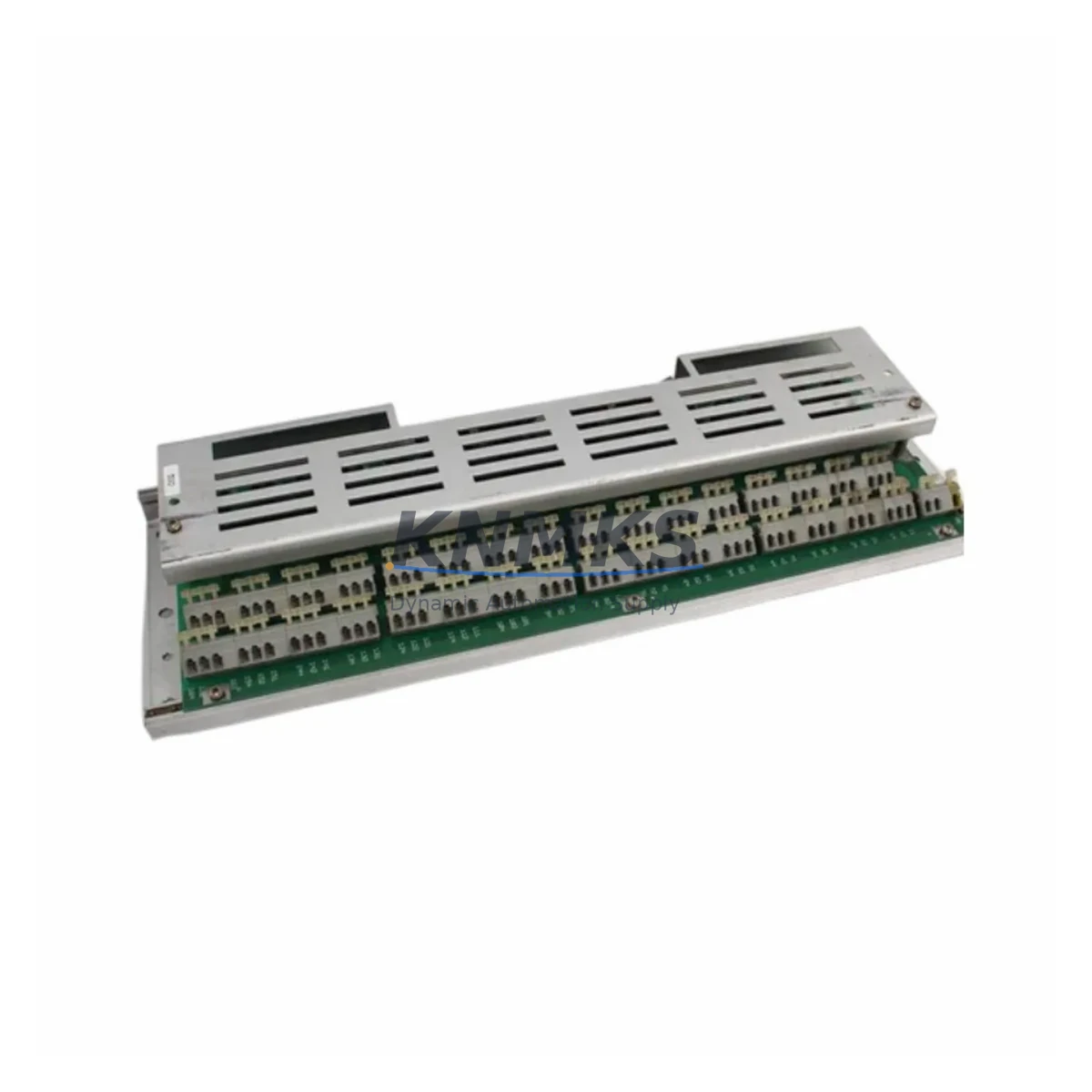

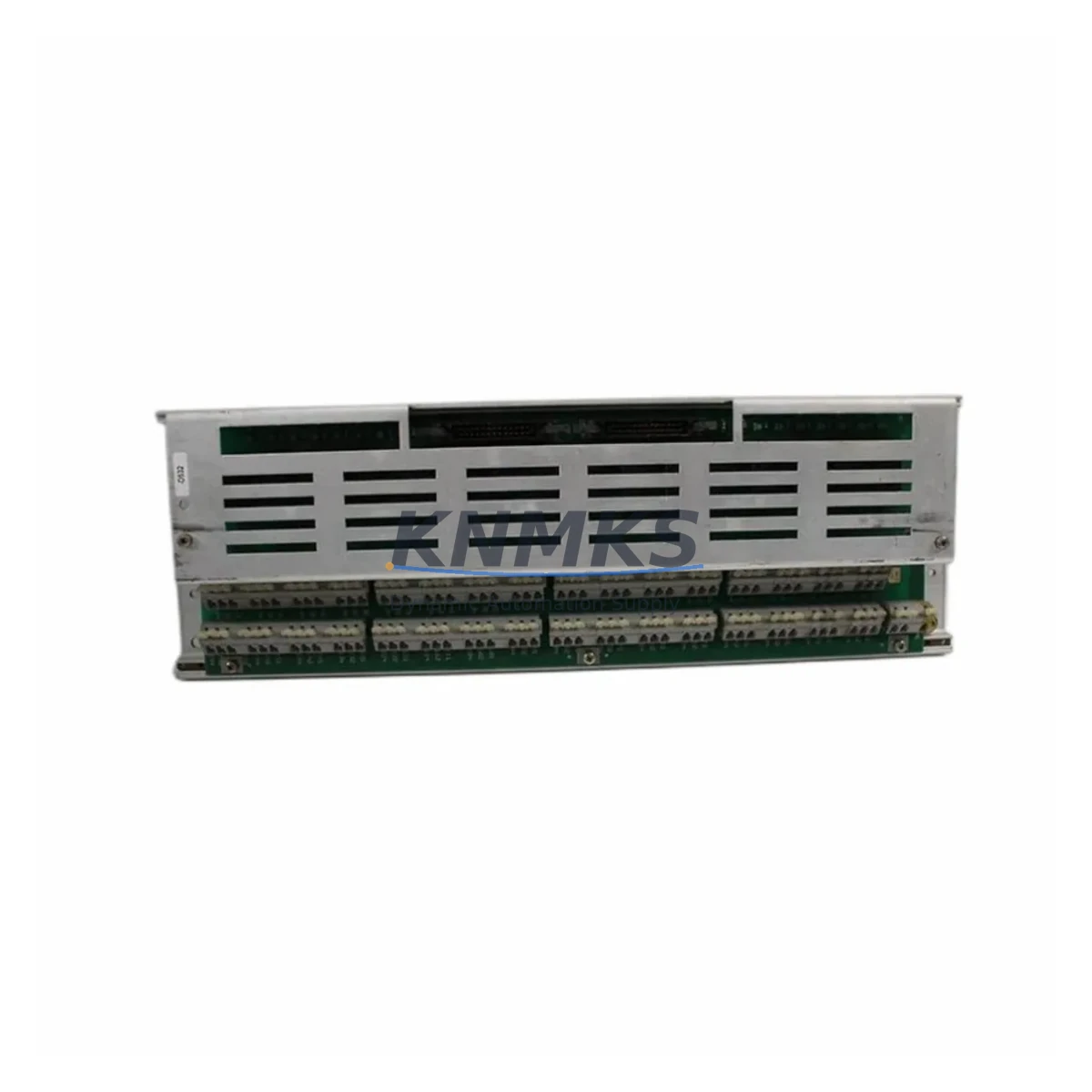

ABB AR-C093-AE01 HIEE300690R0001 Migration-Ready Relay Output Card

Overview

ABB AR-C093-AE01 HIEE300690R0001 Migration-Ready Relay Output Card for Legacy Control Systems

The ABB AR-C093-AE01 (HIEE300690R0001) is a relay output card engineered for the ABB HIEE300 Series distributed control system platform. As legacy DCS installations approach end-of-life, this module serves as a direct migration-ready replacement for facilities managing aging relay output infrastructure across process automation, power generation, oil and gas, and chemical plant environments. With verified cross-compatibility across the HIEE300 rack architecture, this card supports seamless substitution without requiring full system redesign, making it a preferred choice for maintenance engineers and automation integrators executing phased control system upgrades.

Each AR-C093-AE01 unit is pre-shipment tested under load conditions to confirm relay contact integrity, output channel isolation, and backplane communication stability. Stock is maintained across multiple warehouse locations to support emergency replacement scenarios and planned shutdown maintenance windows. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the AR-C093-AE01 within an active HIEE300 DCS environment requires a structured approach that accounts for the full I/O chain from field device to control logic. Before removal of the legacy relay output card, engineers should document the existing terminal block wiring layout, confirm the module slot address within the rack, and verify that the replacement card’s relay contact ratings match the field load requirements — particularly for inductive loads such as solenoid valves and motor contactors.

In systems where the HIEE300 rack also houses an ABB HIEE300690R0002 or similar adjacent I/O module, care must be taken to avoid disturbing neighboring backplane connections during card extraction. The rack’s power supply module — often an ABB HIEE300 series PSU — should be confirmed as capable of supporting the relay output card’s coil energization current without exceeding the rail’s total load budget. If the installation is part of a broader migration toward the ABB AC800M controller platform, the relay output card’s tag database should be exported from the legacy engineering workstation before any hardware changes are made.

For facilities transitioning from Advant OCS to System 800xA, the AR-C093-AE01 can serve as an interim I/O module while the control strategy is migrated in phases. During this period, the existing PROFIBUS DP or INSUM communication links should remain active to preserve field device connectivity. If the upgrade path includes expanding digital output capacity, supplementary ABB DO modules or signal isolators may be added to adjacent rack slots without disrupting the relay output card’s operation. Programming cables compatible with the ABB engineering workstation should be on hand to support any required firmware updates or address reconfiguration during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during relay output card replacement begins with pre-staging the AR-C093-AE01 as a verified spare before the maintenance window opens. The replacement unit should be bench-tested against the known relay contact configuration to confirm channel count, coil voltage, and contact rating before it enters the control cabinet. Where the process permits, a partial bypass strategy — using hardwired relay logic to maintain critical output signals during card swap — can reduce the risk of process interruption.

Once the replacement card is installed and seated in the HIEE300 rack, the DCS should be brought online in a controlled sequence: first confirming backplane communication acknowledgment, then verifying each relay output channel against the HMI faceplate display, and finally confirming field device response through loop checks. Any discrepancy in module address assignment or tag mapping should be resolved before returning the loop to automatic control. For systems with redundant I/O configurations, the switchover to the replacement card can be executed without a full process shutdown by activating the redundant path first and then replacing the faulted module. Maintaining a documented commissioning checklist — covering wiring verification, address confirmation, firmware version logging, and relay contact test results — ensures audit-ready records and supports future maintenance cycles.

Retrofit Support FAQ

Q: Is the AR-C093-AE01 a direct drop-in replacement for other HIEE300 relay output cards?
A: The AR-C093-AE01 (HIEE300690R0001) is designed for the HIEE300 rack architecture and is compatible with standard HIEE300 slot assignments. Before installation, confirm the relay contact configuration and module address match the legacy card’s settings. Minor firmware or address adjustments may be required depending on the DCS revision in use.

Q: What commissioning steps are required after installing the replacement card?
A: After seating the card in the rack, verify backplane communication acknowledgment in the DCS engineering workstation, confirm relay output channel mapping against the existing tag database, perform loop checks on all connected field devices, and validate HMI display states. A cold-swap procedure is recommended for first-time installation to avoid address conflicts.

Q: How is the unit tested before shipment?
A: Each AR-C093-AE01 unit undergoes pre-shipment functional testing covering relay contact continuity, output channel isolation, and backplane interface integrity. Test records are available upon request. All units are supplied with a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and stock availability?
A: The AR-C093-AE01 is maintained availability confirmed by RFQ across multiple warehouse locations to support both emergency replacement and planned maintenance schedules. Standard dispatch is within 1–3 business days. Contact our team for current stock confirmation and expedited shipping options for critical downtime situations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AR-C093-AE01-HIEE300690R0001

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AR-C093-AE01-HIEE300690R0001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
