ABB APC700PAN Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB APC700PAN Maintenance-Proven Spare Part for Factory Uptime

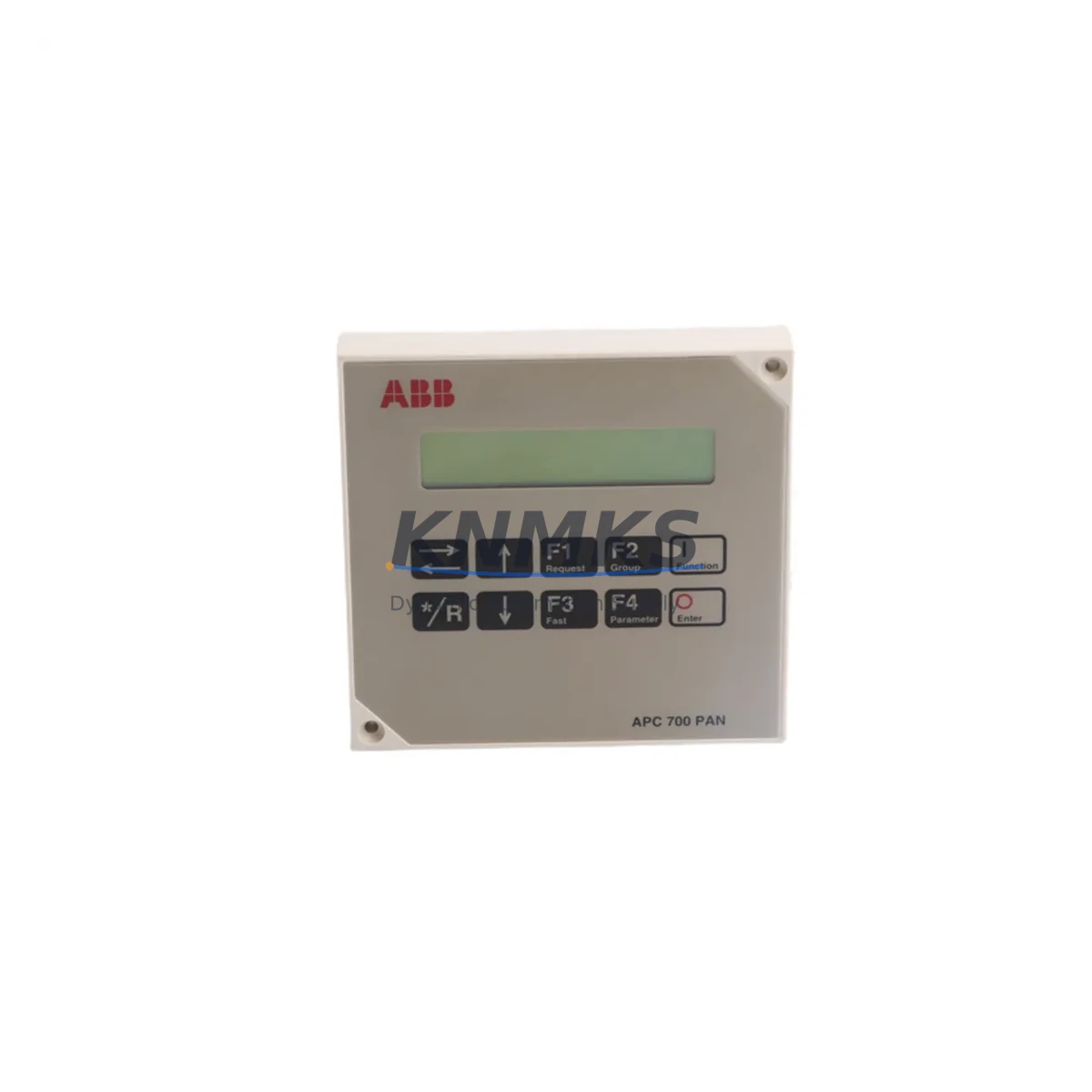

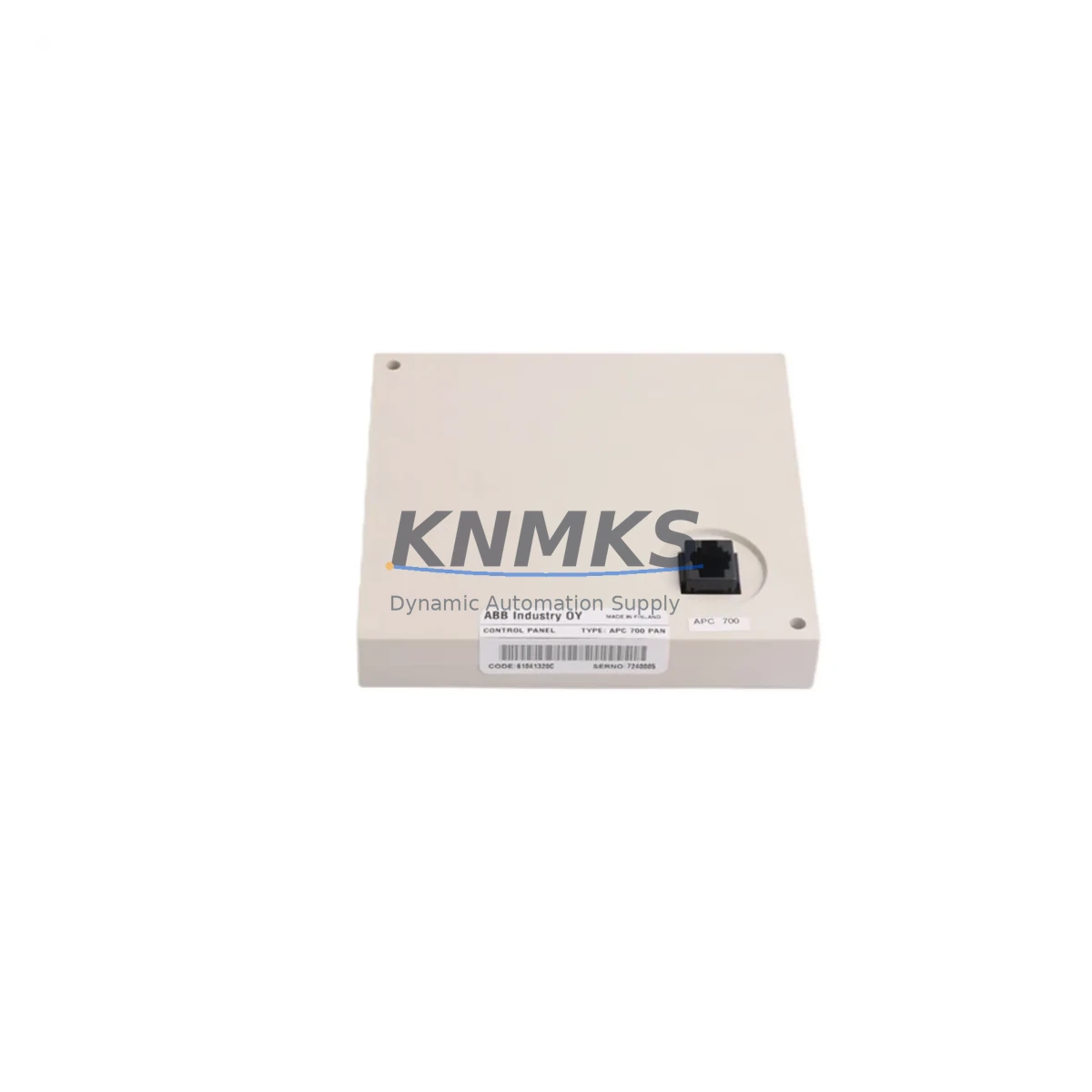

The ABB APC700PAN is an original spare part designed for the ABB APC700 series industrial control panel platform — a widely deployed automation architecture found in process manufacturing, power distribution, and discrete production environments. For maintenance engineers managing aging control infrastructure, sourcing a verified APC700PAN replacement is a critical step in reducing unplanned downtime and sustaining production continuity.

Whether you are responding to an emergency fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory, the ABB APC700PAN delivers the original electrical specifications, form factor, and firmware compatibility required for seamless field replacement. Each unit supplied by KNMKS is sourced from authorized channels, inspected against ABB factory standards, and tested prior to shipment — backed by a support terms confirmed by quotation.

Procurement engineers working with long-lifecycle ABB APC700 installations will find the APC700PAN particularly valuable as a lifecycle extension component. ABB’s APC700 platform has a broad installed base across European and Asian industrial facilities, and original spare availability directly impacts the total cost of ownership for these systems. Stocking the APC700PAN as a critical spare reduces mean time to repair (MTTR) and eliminates the risk of extended lead times during production-critical failures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB APC700PAN in the field is rarely an isolated task. Experienced maintenance engineers know that a control panel fault often signals stress across adjacent components in the same electrical circuit or cabinet. When servicing an APC700PAN, a thorough site inspection should include the following associated components:

• ABB APC700 Power Supply Module — Verify input voltage stability and output rail integrity. A degraded power supply is a common root cause of control panel failures and should be tested or replaced concurrently.
• I/O Expansion Modules (APC700 series) — Check all digital and analog I/O modules for signal integrity, loose terminal connections, and error flags in the diagnostic log before returning the system to service.
• Communication Interface Modules — If the APC700 system uses PROFIBUS, Modbus, or Ethernet-based communication, inspect the relevant communication module for firmware version compatibility after panel replacement.
• Terminal Blocks and Wiring Harnesses — Inspect all terminal block connections within the control cabinet for corrosion, thermal damage, or loose crimps. Faulty terminations are a leading cause of intermittent faults that can be misdiagnosed as panel failures.
• Fuses and Circuit Protection — Replace any blown or aged fuses in the APC700 cabinet during the same maintenance window. Fuse degradation often accompanies panel-level faults and is inexpensive insurance against repeat failures.
• Signal Isolators and Relay Modules — For systems with mixed-voltage I/O or long cable runs, verify that signal isolators and interposing relays are functioning within specification. These components protect the APC700PAN from field-side transients and should be part of any comprehensive maintenance checklist.

Building a cabinet-level spare parts kit — including the APC700PAN alongside the above components — is a best practice for facilities operating ABB APC700 systems in critical production roles. KNMKS can assist procurement teams in assembling multi-part spare kits with consolidated lead times and single-invoice purchasing.

Site Replacement Workflow

Field replacement of the ABB APC700PAN should follow a structured procedure to minimize downtime and ensure system integrity:

1. Fault Isolation: Use the APC700 diagnostic interface or HMI to confirm the APC700PAN as the fault source. Document all active alarms and system status before de-energizing.
2. Safe De-energization: Follow lockout/tagout (LOTO) procedures. Isolate the control cabinet from all power sources including UPS backup circuits.
3. Physical Replacement: Remove the faulty APC700PAN following ABB’s mechanical removal sequence. Install the replacement unit, ensuring all connectors, backplane contacts, and mounting hardware are fully seated.
4. Compatibility Verification: Confirm that the replacement APC700PAN matches the firmware revision and hardware variant required by the installed APC700 system. Contact KNMKS if variant clarification is needed prior to ordering.
5. Functional Test: Re-energize the cabinet in a controlled sequence. Verify all I/O signals, communication links, and HMI displays return to normal operating status before resuming production.
6. Documentation: Update the maintenance log with the replacement date, part serial number, and post-replacement test results. This record supports support requests and future maintenance planning.

KNMKS supplies the ABB APC700PAN with a pre-shipment test report on request, enabling maintenance teams to validate the part before installation and reduce the risk of a second downtime event caused by a defective replacement.

Spare Parts Support FAQ

Q1: Is the ABB APC700PAN supplied by KNMKS an original ABB part?
Yes. KNMKS sources the APC700PAN from verified supply channels. Each unit is inspected for authenticity, physical condition, and electrical function prior to shipment. A support terms confirmed by quotation is provided from the date of shipment.

Q2: How do I confirm compatibility between the APC700PAN and my installed APC700 system?
Provide your existing panel’s full part number, hardware revision, and firmware version to our sales team at admin@knmks.com. We will cross-reference against ABB’s APC700 compatibility matrix and confirm suitability before order confirmation.

Q3: Can KNMKS support long-term or repeat procurement of the APC700PAN for multi-site operations?
Yes. KNMKS maintains ongoing sourcing relationships to support long-lifecycle ABB APC700 installations. We can accommodate blanket purchase orders, scheduled releases, and multi-site consolidated shipments. Contact our team to discuss volume pricing and inventory reservation options.

Q4: What is included with each APC700PAN shipment?
Each unit is shipped with protective packaging, a shipment inspection record, and a support terms confirmed by quotation certificate. Pre-shipment functional test reports are available on request. All export documentation, including country of origin (Germany) declarations, is provided for customs clearance.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

APC700PAN

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB APC700PAN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
