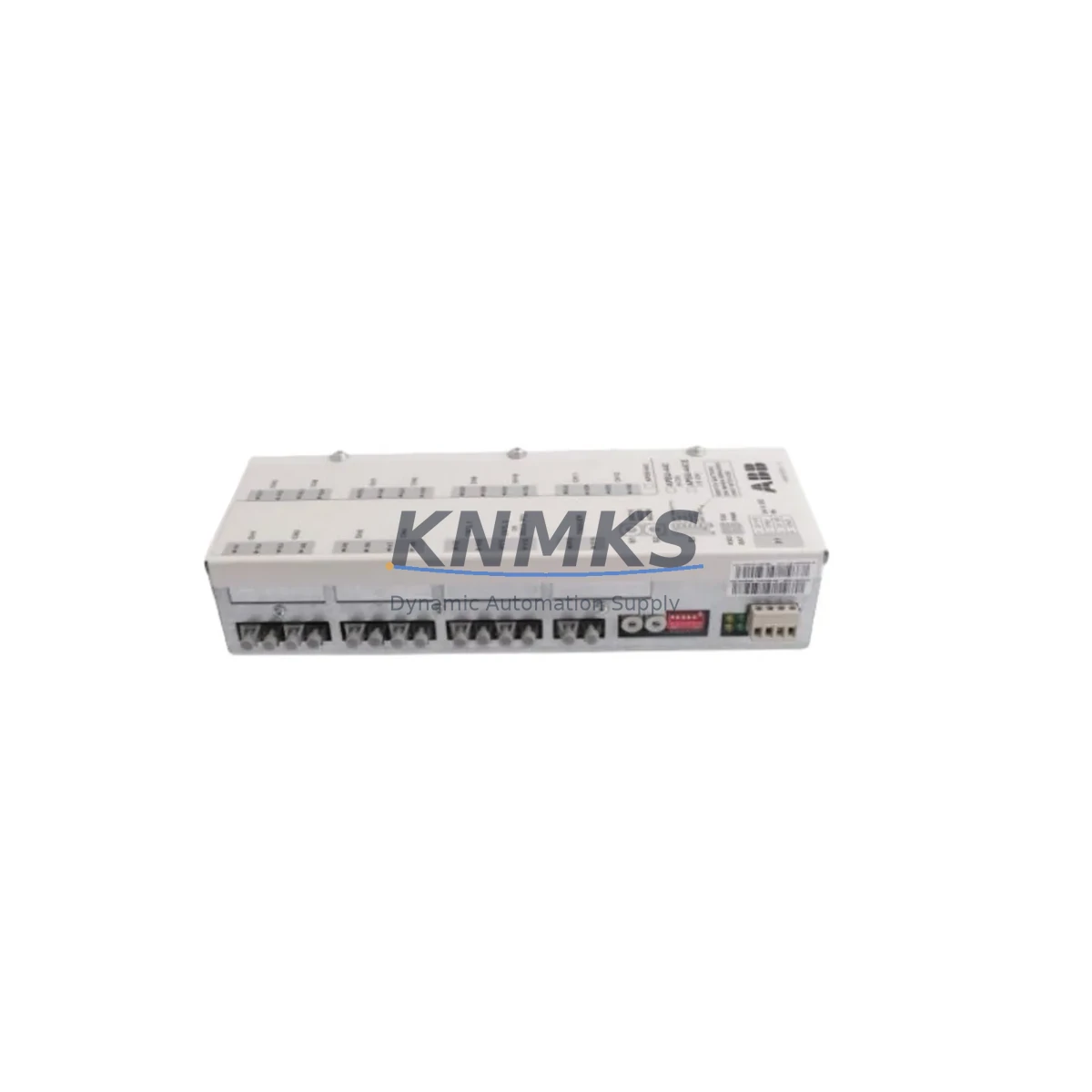

ABB APBU-44C 64669982 Fail-Safe DDCS Branching Unit

Overview

ABB APBU-44C 64669982 Fail-Safe DDCS Branching Unit: Fault Protection for Critical Industrial Control Reliability

The ABB APBU-44C (Part No. 64669982) is a high-integrity DDCS (Distributed Drive Control System) fiber optic branching unit engineered for fail-safe communication between ABB AC500 PLCs and ACS-series variable speed drives. In continuous production environments where control interruption is not an option — including petrochemical processing, power generation, metallurgical plants, and heavy-duty manufacturing — the APBU-44C delivers the signal isolation, surge immunity, and communication redundancy that safety-critical drive networks demand.

Fiber optic transmission eliminates ground loop interference and provides galvanic isolation between the controller and drive nodes, directly addressing the risk of signal drift and communication anomalies caused by high electromagnetic interference (EMI) in large control cabinets. Where copper-based fieldbus links are vulnerable to voltage transients, inductive coupling from motor starters, and common-mode noise from variable frequency drives, the APBU-44C’s optical channels remain immune — sustaining reliable DDCS ring or star topology communication even under the most demanding electrical environments.

Designed for installation in industrial control cabinets alongside ABB ACS800, ACS880, and ACS580 drive systems, the APBU-44C supports up to four fiber optic channels, enabling branched multi-drive architectures without signal degradation. This makes it an essential component in coordinated multi-axis motion control, synchronized conveyor systems, and high-power pump and compressor stations where any communication fault can trigger unplanned shutdowns or unsafe drive states.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered ABB drive control cabinet, the APBU-44C does not operate in isolation — it is part of a layered protection architecture. The DDCS branching unit sits at the communication backbone, but its reliability depends on the integrity of the surrounding system. Power supply stability is foundational: ABB CP series AC500 power supply modules provide regulated 24 VDC to the PLC rack and I/O modules, and any ripple or dropout at this layer can cause false communication resets that the APBU-44C’s optical link would otherwise prevent at the signal level.

On the drive side, ABB RDCO-03 or RDCO-04 DDCS communication option boards installed in ACS800 or ACS880 drives serve as the fiber optic endpoints that connect to the APBU-44C’s branching ports. Ensuring these option boards are correctly seated and their fiber connectors are clean and properly latched is critical to maintaining the low bit-error-rate that DDCS topology requires for safe torque and speed reference transmission.

For cabinet thermal management — a key factor in communication reliability under sustained heavy load — ABB’s cabinet fan and filter units, combined with proper cable segregation between power and signal wiring, prevent the thermal cycling and condensation that can degrade fiber connector performance over time. In high-dust or high-humidity environments such as cement plants, mining headframes, or coastal port facilities, maintaining positive cabinet pressure and regular filter maintenance directly extends the service life of the APBU-44C and associated drive communication hardware.

Where the DDCS network interfaces with higher-level SCADA or DCS systems, ABB CI502-PNIO or CI504-PNIO PROFINET adapter modules on the AC500 PLC provide the Ethernet gateway, while the APBU-44C handles the deterministic, low-latency fiber optic layer to the drives — ensuring that a network-level disturbance at the SCADA interface does not propagate into the drive control loop and cause uncontrolled deceleration or torque loss in safety-critical applications.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous area drive systems controlling pumps, compressors, and agitators, the APBU-44C’s galvanic isolation prevents ground fault currents from propagating through the DDCS network — a critical safety requirement where a single communication fault could trigger emergency shutdown sequences or, worse, mask a genuine fault condition.

Power Generation and Utilities: Boiler feed pump drives, induced draft fan drives, and cooling water pump systems in thermal power stations rely on uninterrupted DDCS communication for coordinated speed control. The APBU-44C’s fiber optic architecture ensures that high-voltage switching transients from generator breakers and bus transfers do not corrupt drive reference signals.

Metallurgy and Steel Mills: Rolling mill main drives and coiler/decoiler systems operate under extreme electromagnetic environments generated by large DC bus systems and thyristor converters. The APBU-44C provides the communication isolation layer that keeps the AC500 PLC’s speed and torque commands intact regardless of the electrical noise floor in the mill’s power distribution system.

Water and Wastewater Treatment: Multi-pump variable speed drive systems in water treatment facilities benefit from the APBU-44C’s ability to branch DDCS communication to multiple ACS drives from a single PLC channel — simplifying cabinet wiring, reducing potential fault points, and enabling coordinated pump sequencing with full PLC supervision.

Mining and Mineral Processing: Conveyor drive systems, crusher drives, and slurry pump stations in underground and surface mining operations are subject to vibration, dust ingress, and wide temperature swings. The APBU-44C’s robust fiber optic design and panel-mount form factor make it well-suited for installation in sealed control enclosures in these demanding environments.

Safety and Quality FAQ

Q1: Does the ABB APBU-44C 64669982 come with a support terms?
Yes. Every APBU-44C unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify fiber optic channel integrity and communication performance before dispatch.

Q2: Is this unit compatible with all ABB ACS-series drives?
The APBU-44C is designed for use with ABB drives and controllers that support the DDCS fiber optic protocol, including the ACS800, ACS880, ACS580, ACS600 series, and AC500 PLC systems equipped with DDCS communication capability. Compatibility with specific drive firmware versions should be confirmed against the ABB APBU-44C hardware manual (3AFE64486853).

Q3: How does the APBU-44C protect against communication faults in high-EMI environments?
By using fiber optic transmission, the APBU-44C eliminates all conducted interference paths between the PLC and drive nodes. Electromagnetic fields from motor cables, bus bars, and switching devices cannot induce errors in optical signals, making this unit inherently superior to copper-based fieldbus alternatives in high-EMI industrial environments.

Q4: Can KNMKS support long-term spare parts supply for the APBU-44C?
Yes. KNMKS maintains in-stock inventory of the APBU-44C (64669982) and supports long-term spare parts programs for industrial customers with planned maintenance schedules. For volume requirements, scheduled delivery agreements, or replacement support for discontinued ABB drive communication components, contact our technical sales team directly.
