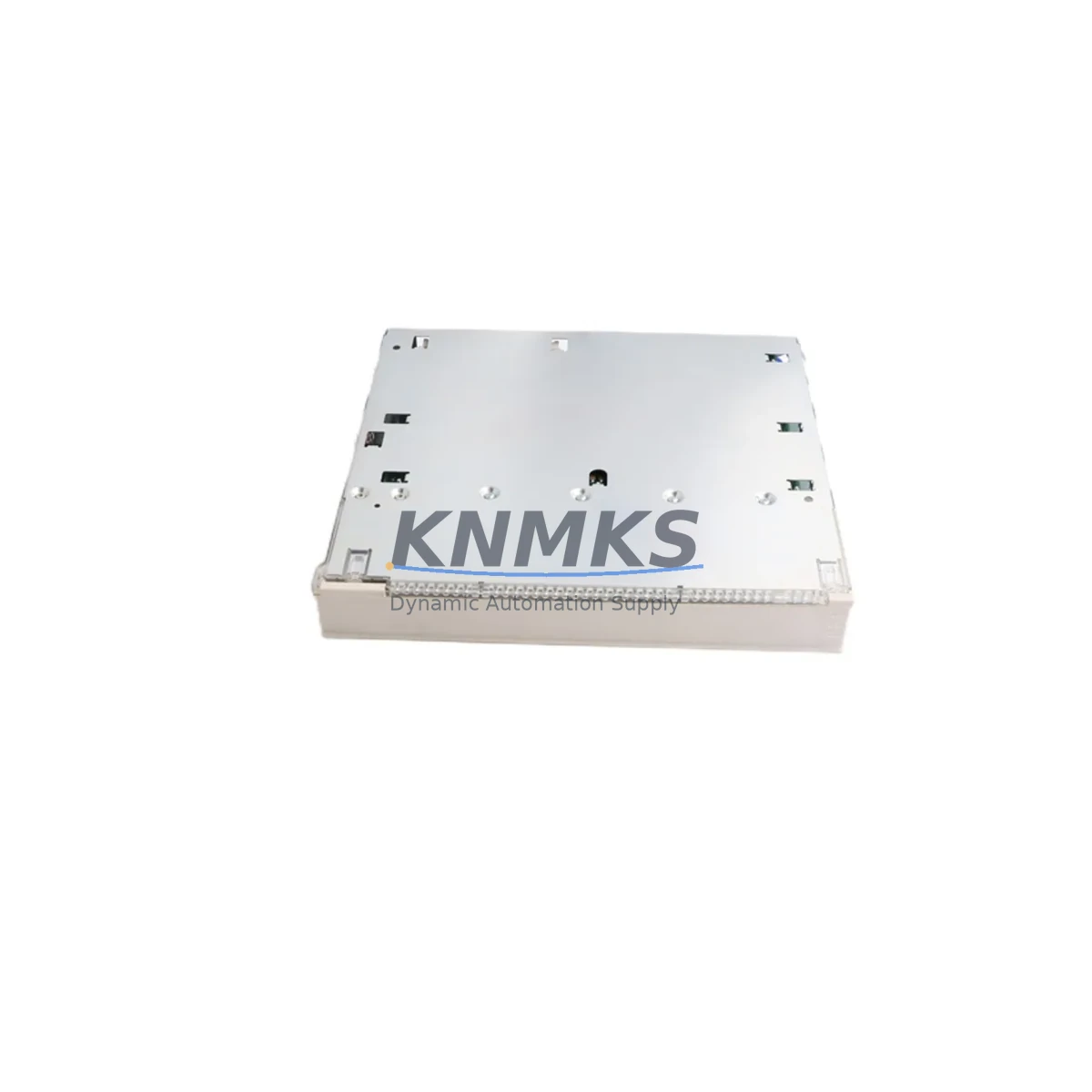

ABB AO610 3BHT300008R1 Fail-Safe Analog Output Module

Overview

ABB AO610 3BHT300008R1 Fail-Safe Analog Output Module: Fault-Tolerant Signal Control for Critical Industrial Environments

The ABB AO610 (3BHT300008R1) is an 8-channel analog output module engineered for the ABB AC500 PLC platform, purpose-built to deliver uninterrupted, precision signal control in the most demanding industrial environments. Whether deployed in continuous process manufacturing, critical safety interlocks, or high-density control cabinets subject to electrical noise, thermal stress, and mechanical vibration, the AO610 provides the fail-safe output integrity that modern industrial operations require.

In industries where a single signal deviation can trigger unplanned shutdowns, equipment damage, or safety incidents, the AO610’s robust analog output architecture ensures that each of its eight channels maintains accurate 4–20 mA or 0–10 V output under fluctuating load conditions, power transients, and electromagnetic interference. Its hardware design incorporates channel-level isolation and surge suppression, protecting downstream field devices — including control valves, variable frequency drives, and positioners — from voltage spikes and ground loop interference that are endemic to heavy industrial sites.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the AO610 3BHT300008R1 as part of a hardened control cabinet architecture requires a layered approach to signal integrity and power quality. In high-EMI environments — such as those found adjacent to large motor drives, arc furnaces, or high-frequency welding equipment — the AO610 should be paired with the ABB AC500 CPU module (e.g., PM573 or PM591) to ensure deterministic scan-cycle execution and synchronized analog output updates. The CPU’s integrated diagnostics continuously monitor module health, flagging output deviations before they propagate to field devices.

For power supply resilience, the AO610 relies on a stable 24 V DC bus. Pairing it with an ABB CP-E 24/10.0 or equivalent DIN-rail power supply with active power factor correction and output buffering ensures that voltage dips during motor starts or load switching do not cause analog output drift or module resets. In cabinets with high inrush loads, an additional capacitive hold-up module on the 24 V rail provides ride-through during brief supply interruptions — a critical safeguard in continuous process lines where even a 20 ms output glitch can cause a control valve to misposition.

Communication integrity between the AO610 and the supervisory SCADA or DCS layer is maintained through the AC500’s fieldbus interface modules. Whether the site uses PROFIBUS DP, Modbus TCP, or EtherNet/IP, the AC500 communication modules (such as the CI590-CS31-HA or CM589-PNIO) provide redundant path options and watchdog-supervised data exchange. If communication is lost, the AO610 can be configured to hold last output value or drive to a defined safe state — a fundamental fail-safe behavior for interlock-critical loops.

In cabinets subject to thermal stress, the AO610 should be installed with adequate vertical clearance and, where necessary, supplemented by forced-air cooling or thermostat-controlled cabinet fans. Thermal management directly impacts long-term analog accuracy and component lifespan, particularly in foundry, cement, or glass manufacturing environments where ambient temperatures routinely approach the module’s rated ceiling.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation, reactor temperature control, and pressure regulation loops, the AO610 drives control valve positioners with the signal stability required to maintain process variables within tight safety envelopes. Its surge-protected outputs withstand the high ground noise levels common in large petrochemical complexes, reducing the risk of spurious valve movements that could trigger emergency shutdowns or safety instrumented system (SIS) activations.

Power Generation and Substation Control: Turbine governor control, excitation system regulation, and boiler feedwater control all demand analog output modules with sub-millisecond update consistency and immunity to the intense electromagnetic fields generated by high-voltage switchgear. The AO610’s compliance with IEC 61000 EMC standards makes it a reliable choice for power plant DCS expansions and retrofit projects where legacy analog I/O is being replaced with modern AC500-based infrastructure.

Mining and Mineral Processing: Conveyor speed regulation, flotation cell level control, and crusher load management in underground and open-pit mining operations expose control hardware to extreme vibration, coal dust ingress, and wide temperature swings. The AO610’s robust mechanical design and sealed backplane connection maintain signal integrity in these conditions, supporting continuous production without the signal drift that can cause overload trips or material spillage.

Water and Wastewater Treatment: Dosing pump control, aeration blower speed regulation, and filter backwash sequencing in municipal and industrial water treatment plants require analog outputs that remain stable across long cable runs in high-humidity, chemically aggressive environments. The AO610’s channel isolation prevents ground loop errors that are particularly problematic in water treatment facilities where multiple field devices share common earth references.

Metallurgy and Steel Production: In electric arc furnace electrode regulation, rolling mill tension control, and continuous casting mold level control, the AO610 provides the high-resolution, low-drift analog outputs needed to maintain product quality and prevent equipment damage. Its ability to operate reliably in the intense EMI environment of a steelworks — where large thyristor drives and induction heaters generate broadband interference — is a key operational advantage.

Port Automation and Ship Loading: Crane hoist speed control, ship loader belt tension regulation, and ballast system management in port and marine environments demand analog output modules that resist salt-laden humid air and the mechanical shock of heavy lifting operations. The AO610’s compliance with IEC 60068 shock and vibration profiles supports reliable operation in these mechanically demanding applications.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB AO610 3BHT300008R1?
Every AO610 3BHT300008R1 unit shipped from KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and module-level faults confirmed through our pre-shipment testing process. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each AO610 module undergoes functional verification prior to dispatch, including power-on self-test confirmation, output channel continuity checks, and visual inspection for physical integrity. Units sourced from authorized distribution channels are verified against ABB’s original packaging and labeling standards. Test records are available upon request for quality-critical procurement processes.

Q3: Is the AO610 3BHT300008R1 compatible with all AC500 CPU generations?
The AO610 is designed for the ABB AC500 PLC platform and is compatible with the standard AC500 backplane and expansion rack architecture. Compatibility with specific CPU generations (V2, V3) and firmware versions should be confirmed against ABB’s AC500 system compatibility matrix. KNMKS technical support can assist with compatibility verification for your specific system configuration prior to order placement.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
KNMKS maintains stock of the AO610 3BHT300008R1 to support both immediate replacement needs and planned spare parts programs for industrial facilities with extended maintenance cycles. For customers managing multi-site AC500 installations or critical infrastructure with long equipment lifecycles, we offer reserved stock arrangements and advance procurement planning to ensure supply continuity independent of OEM production schedules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AO610 3BHT300008R1
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AO610 3BHT300008R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
