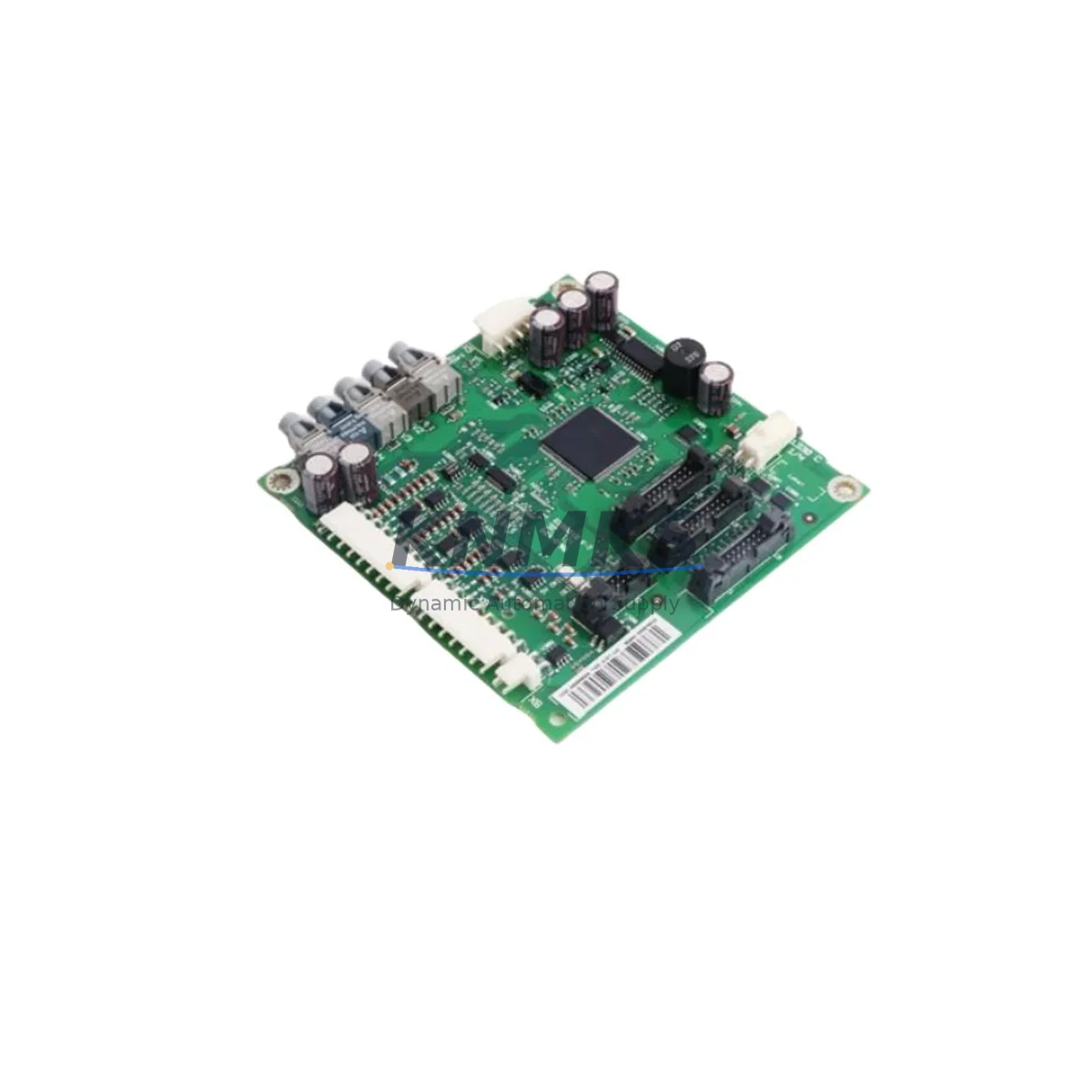

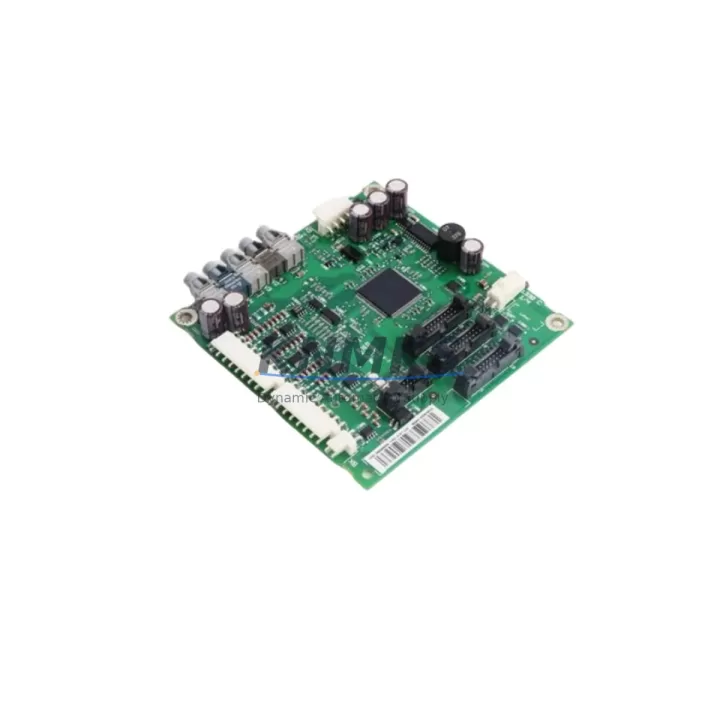

ABB AINT-14C 68685826 Migration-Ready Drive Interface Board

Overview

ABB AINT-14C 68685826 Migration-Ready Drive Interface Board for Legacy Control Systems

The ABB AINT-14C (part number 68685826) is a drive interface board designed for the ACS800 and DCS800 series variable speed drives. As legacy automation infrastructure ages and OEM support windows close, the AINT-14C has become a critical spare part for maintenance engineers managing retrofit projects, unplanned breakdowns, and phased system upgrades. Whether you are replacing a failed board in an active production line or pre-positioning stock for a multi-site modernization program, the AINT-14C delivers the electrical compatibility and mechanical fit required for a controlled, low-risk swap.

The board interfaces directly with the ACS800 drive’s main control unit, managing IGBT gate drive signals, fault feedback, and DC bus monitoring. During a retrofit or replacement, engineers must verify the firmware revision loaded on the replacement AINT-14C against the drive’s RMIO-11C or RMIO-02C main control board. Mismatched firmware versions can trigger fault codes F-0001 or F-0022 on startup, requiring a DriveWindow Light session to align parameter sets before the drive is returned to service. Confirming the firmware version prior to installation eliminates this risk and keeps commissioning time under two hours for a trained technician.

Terminal wiring on the AINT-14C follows the standard ACS800 gate drive harness layout. The 34-pin ribbon connector and the auxiliary 6-pin power header must be seated fully before the drive cabinet is energized. When working inside an ACS800-U31 or ACS800-U04 cabinet, confirm that the DC bus capacitors have fully discharged — typically 5 minutes after main power isolation — before handling the board. The installation space within the drive module is compact; confirm that no adjacent fiber optic cables to the RDCO-03C or RDCO-04C communication option board are pinched during reassembly.

For sites running PROFIBUS DP or Modbus RTU over the RDCO communication module, the communication link must be re-established after the board swap. The PLC or DCS — whether a Siemens S7-300, Allen-Bradley ControlLogix, or ABB AC500 — will typically detect a node loss during the swap window. Coordinating a brief process hold with the control room before the swap prevents nuisance alarms from propagating to the SCADA system and avoids unintended safety interlock trips.

In multi-drive systems where several ACS800 units share a common DC bus through an AINP-01C input section, replacing the AINT-14C on one drive requires isolating that drive from the common bus before work begins. The remaining drives on the bus can continue operating, which significantly reduces the production impact of the maintenance window. This architecture is common in paper mills, cement plants, and marine propulsion systems where continuous operation is a contractual requirement.

For engineers planning a broader migration from ACS800 to ACS880 architecture, the AINT-14C serves as a bridge component that extends the operational life of existing ACS800 hardware while the migration is phased in. The ACS880’s AINT-J board is not a direct pin-compatible replacement for the AINT-14C, so maintaining a stock of AINT-14C boards is essential for any site that cannot complete the full drive replacement in a single outage window. Pairing the AINT-14C with a stocked RMIO-11C main control board and an APOW-01C power supply board provides a comprehensive spare parts kit that covers the most common ACS800 failure modes.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AINT-14C retrofit begins with a complete audit of the drive cabinet’s current spare parts inventory. Beyond the AINT-14C itself, the most common companion components that should be on hand during an ACS800 retrofit include the RMIO-11C main control board, the APOW-01C auxiliary power supply board, and the RDCO-03C or RDCO-04C fieldbus communication module. In cabinets where the ACS800 is integrated with an ABB Panel Builder 800 HMI, the HMI’s drive parameter display pages should be verified after the board swap to confirm that all process variables — speed reference, current feedback, and fault history — are reading correctly from the drive.

For I/O-intensive applications, the AINT-14C swap should be coordinated with a review of the AIMA-01C I/O extension module wiring. Any analog or digital I/O signals routed through the extension module must be documented before the drive is de-energized, as the I/O configuration is stored in the RMIO control board’s parameter memory and will be retained across the board swap — provided the RMIO board itself is not replaced in the same maintenance window.

In retrofit projects where the control cabinet also houses a Siemens S7-300 or S7-400 PLC communicating with the ACS800 via PROFIBUS DP, the PLC’s hardware configuration in STEP 7 or TIA Portal should be exported and archived before the maintenance window begins. This ensures that if the PROFIBUS node address or GSD file parameters need to be re-confirmed after the swap, the reference configuration is immediately available without requiring a full re-engineering cycle.

Where the existing installation uses an AINP-01C common DC bus input section, the bus voltage must be confirmed at zero before the AINT-14C is removed. A clamp meter measurement at the DC bus terminals, combined with the drive’s internal voltage monitoring display, provides a dual-confirmation approach that satisfies most site safety procedures for work on live electrical equipment.

Downtime Control During System Migration

Minimizing unplanned downtime during an AINT-14C replacement requires preparation that begins before the maintenance window opens. The most effective approach is to pre-configure the replacement board’s firmware parameters offline using DriveWindow Light, loading the parameter backup file exported from the original drive. This eliminates the parameter re-entry step during the live swap and reduces the in-cabinet work time to the physical board exchange and connector re-seating — typically 20 to 40 minutes for a trained technician.

For production lines where even a brief drive stop is operationally significant, coordinating the swap with a scheduled process changeover or a planned shift break reduces the impact on output targets. In continuous process industries such as pulp and paper or chemical processing, the maintenance window should be aligned with a planned product grade change, which already requires a brief line stop and provides a natural opportunity for the board swap without additional production loss.

After the AINT-14C is installed and the drive is re-energized, a controlled no-load test run at reduced speed reference — typically 10% of rated speed — confirms that the gate drive signals are functioning correctly before the drive is returned to full process load. Monitoring the drive’s output current waveform during this test run, using the drive’s built-in oscilloscope function or an external power analyzer, provides early confirmation that the IGBT switching pattern is correct and that no latent wiring faults were introduced during the swap.

Maintaining a documented commissioning checklist for each AINT-14C replacement — covering firmware version confirmation, connector seating verification, no-load test results, and communication link re-establishment — creates an auditable maintenance record that supports both internal quality systems and external regulatory compliance requirements in industries such as food processing, pharmaceuticals, and energy generation.

Retrofit Support FAQ

Q: Is the AINT-14C 68685826 a direct replacement for the original ABB board in my ACS800 drive?
A: Yes. The AINT-14C 68685826 is a direct drop-in replacement for the original AINT-14C board in ACS800 and DCS800 series drives. The mechanical dimensions, connector layout, and electrical interface are identical to the original ABB specification. No hardware modifications to the drive cabinet are required.

Q: Do I need to re-enter all drive parameters after replacing the AINT-14C?
A: No. Drive parameters are stored on the RMIO-11C or RMIO-02C main control board, not on the AINT-14C. Replacing the AINT-14C alone does not affect the parameter set. However, you should verify the firmware revision on the replacement AINT-14C matches the drive’s existing firmware baseline using DriveWindow Light before returning the drive to service.

Q: What pre-shipment testing is performed on the AINT-14C before dispatch?
A: Each AINT-14C unit undergoes a functional test prior to shipment, verifying gate drive signal integrity, auxiliary power supply operation, and fault feedback circuit continuity. A support terms confirmed by quotation is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the AINT-14C 68685826?
A: Units are held availability confirmed by RFQ for immediate dispatch. For urgent breakdown requirements, same-day or next-day shipping is available to most destinations. For planned maintenance programs requiring multiple units or long-term supply agreements, contact our sales team to discuss inventory reservation and scheduled delivery arrangements.
