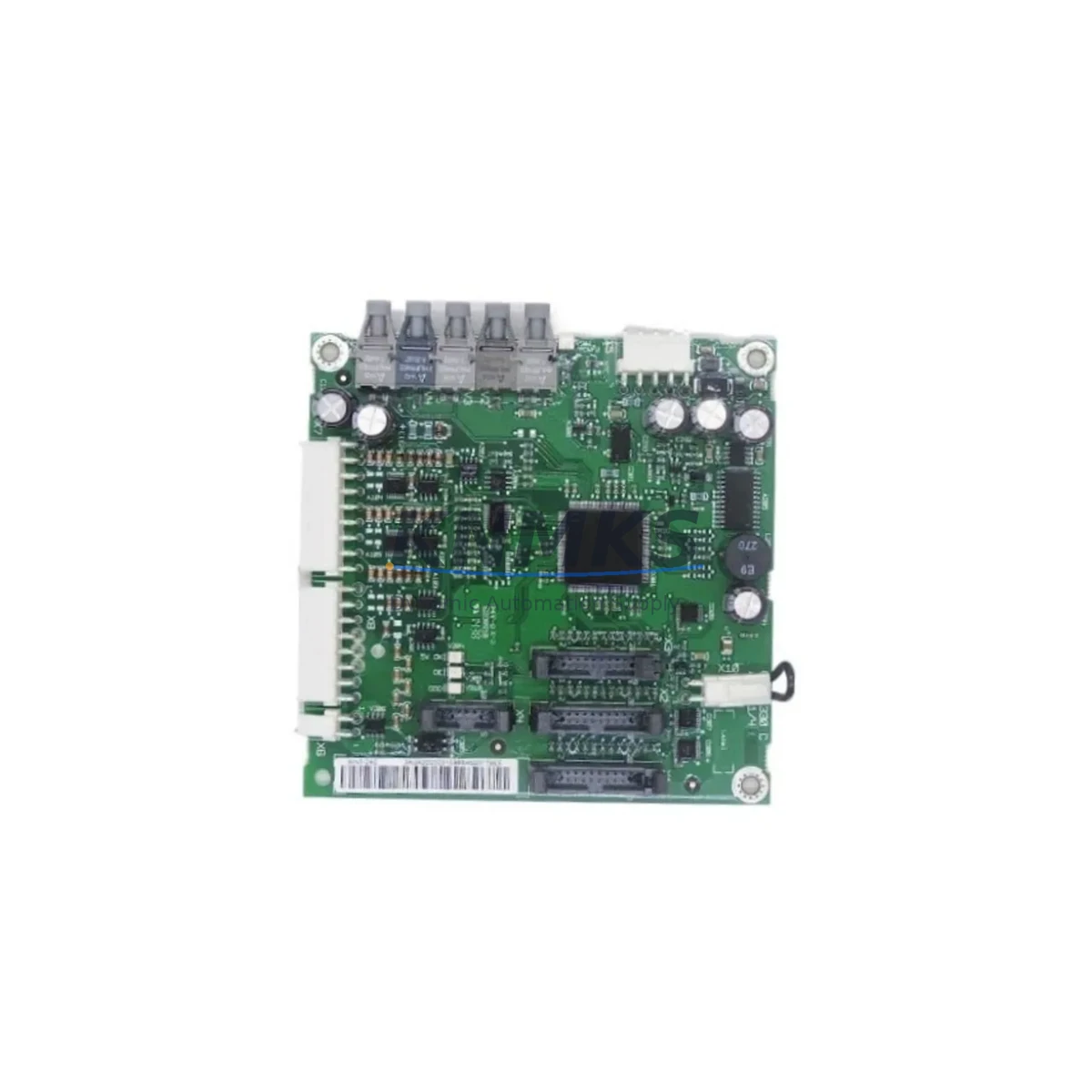

ABB AINT-12 Migration-Ready Interface for Legacy Control Systems

Overview

ABB AINT-12 Migration-Ready Interface for Legacy Control Systems

The ABB AINT-12 is a migration-ready interface board engineered for engineers and maintenance teams managing legacy ACS800 variable frequency drive installations. As industrial facilities face increasing pressure to modernize aging automation infrastructure while minimizing production disruption, the AINT-12 provides a reliable, drop-in compatible solution that bridges the gap between legacy control architectures and modern automation platforms. Whether you are replacing a failed board in a critical production line or executing a planned retrofit of an entire drive cabinet, the AINT-12 delivers the compatibility, traceability, and field-proven reliability that industrial environments demand.

The AINT-12 serves as the primary interface board within the ACS800 drive platform, managing communication between the drive’s control unit and external automation systems. In legacy installations, this board is frequently the first component to require replacement due to age-related degradation, firmware incompatibility following a control system upgrade, or physical damage from environmental exposure. Its role in coordinating I/O signal routing, fieldbus communication, and drive parameter management makes it a critical spare part for any facility operating ACS800 drives in continuous production environments.

When planning a retrofit or replacement, engineers must verify several key parameters before installation. Power supply capacity at the drive cabinet level should be confirmed to ensure the AINT-12 receives stable 24 VDC auxiliary power without voltage drop under load. Terminal wiring assignments must be cross-referenced against the original drive documentation, as wiring configurations can vary between ACS800 hardware revisions. Backplane interface compatibility should be confirmed against the specific ACS800 frame size in use, since the AINT-12 is designed for defined frame configurations and may require adapter considerations in mixed-generation cabinets.

Module addressing is another critical step during commissioning. The AINT-12 must be assigned the correct node address within the drive’s parameter set to ensure proper recognition by the master controller — whether that controller is a legacy ABB AC500 PLC, a third-party Siemens S7-series controller, or a modern DCS platform. Program compatibility should be validated by reviewing the existing drive parameter backup before replacement, ensuring that parameter sets can be restored to the new board without requiring full recommissioning from scratch. This is particularly important in installations where the ACS800 drive is integrated with an HMI panel — such as an ABB CP600 or a third-party SCADA terminal — where drive status displays, alarm mappings, and speed reference signals are tied to specific parameter addresses.

Communication link integrity is essential in networked drive installations. The AINT-12 supports DDCS (Distributed Drives Communication System) fiber optic communication, which is commonly used to link multiple ACS800 drives in master-follower configurations or to connect drives to an ABB NDPA-02 or NDPA-12 panel bus adapter. During replacement, the fiber optic connections must be carefully reseated and the communication channel parameters re-verified to prevent link faults that could trigger drive trips or production stops. In installations where the drive communicates via a fieldbus adapter — such as an NPBA-12 PROFIBUS adapter or an NEBA-01 EtherNet/IP adapter — the fieldbus node configuration must be re-confirmed after board replacement to restore full network visibility.

Installation space confirmation is straightforward for the AINT-12, as it is designed to mount directly within the ACS800 drive’s control section without requiring additional hardware modifications. However, in retrofit scenarios where the drive cabinet has been modified or where additional I/O extension modules have been added — such as an AIMA-01 I/O extension module or an AITC-02 thermistor protection module — the physical routing of signal cables and fiber optic links should be reviewed to ensure clearance and strain relief are maintained after board replacement.

Firmware version compatibility is a frequently overlooked aspect of AINT-12 replacement projects. The replacement board must be compatible with the firmware version running on the ACS800’s main control unit (RMIO board). Mismatched firmware versions can result in parameter set incompatibilities, communication faults, or drive startup failures. Before installation, confirm the firmware version of the existing RMIO board and verify that the replacement AINT-12 is compatible with that firmware generation. If a firmware upgrade is planned as part of the retrofit, it should be executed and validated before the AINT-12 replacement to isolate variables during commissioning.

All AINT-12 units supplied by KNMKS are sourced from verified supply chains, functionally tested prior to shipment, and covered by a support terms confirmed by quotation against manufacturing defects and functional failures. Stock availability is maintained to support both emergency replacement orders and planned retrofit projects, with fast international shipping to support global industrial operations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AINT-12 retrofit begins with a thorough audit of the existing ACS800 installation. The drive’s RMIO control board, which manages the core drive logic and parameter storage, must be assessed for firmware version and physical condition before the AINT-12 replacement is executed. In many legacy installations, the RMIO board and AINT-12 are replaced together as a preventive measure to eliminate the risk of a secondary failure shortly after the initial repair.

For facilities running multiple ACS800 drives in a coordinated system — such as a multi-drive line shaft or a coordinated conveyor system — the NDPA-12 panel bus adapter or DDCS master controller must be taken offline in a controlled sequence to prevent unintended drive trips across the network during the replacement window. The AIMA-01 I/O extension module, if installed, should be disconnected and reconnected in the correct sequence to avoid I/O address conflicts during drive restart.

In retrofit projects where the ACS800 is being integrated with a new PLC platform — such as migrating from a legacy ABB AC500 to a modern Siemens S7-1500 or Allen-Bradley ControlLogix — the fieldbus adapter selection becomes critical. The NPBA-12 PROFIBUS adapter or NEBA-01 EtherNet/IP adapter must be configured to match the new PLC’s network parameters, and the drive’s fieldbus parameter group must be updated to reflect the new master controller’s polling cycle and data word mapping. This integration work should be completed and validated in a test environment before live commissioning to minimize production downtime.

HMI integration is another area requiring careful planning. If the ACS800 drive’s status, speed reference, and fault history are displayed on an existing HMI panel — whether an ABB CP600, a Siemens TP700, or a third-party SCADA system — the HMI tag mapping must be verified against the restored parameter set after AINT-12 replacement. Drive fault codes, run/stop status bits, and speed feedback signals are typically mapped to specific parameter addresses that must remain consistent across the replacement to avoid HMI display errors or incorrect alarm triggers.

Downtime Control During System Migration

Minimizing downtime during an AINT-12 replacement requires a structured pre-replacement preparation protocol. Before the maintenance window begins, a full parameter backup of the ACS800 drive should be extracted using the ABB DriveWindow or DriveStudio software tool, or via a compatible memory backup unit if available for the installed drive revision. This backup serves as the restoration baseline and eliminates the need for full parameter recommissioning after board replacement.

The replacement sequence should be executed with the drive fully de-energized and locked out in accordance with site LOTO procedures. After physical installation of the replacement AINT-12, the parameter set should be restored from the backup before powering up the drive, followed by a controlled no-load test run to verify drive response, I/O signal integrity, and communication link status before reconnecting the load.

In installations where continuous process control is required, a hot-standby drive or bypass contactor arrangement should be activated before the maintenance window to maintain process continuity during the replacement. For multi-drive systems, the remaining drives should be confirmed in a stable operating state before isolating the drive under maintenance to prevent cascading faults across the control network.

Post-replacement commissioning should include verification of all fieldbus communication links, confirmation of correct node addressing, validation of I/O signal levels against the original commissioning records, and a full fault history clear before returning the drive to production service. A functional test report documenting the replacement, parameter restore, and commissioning results should be retained for maintenance records and support terms traceability.

Retrofit Support FAQ

Q: Is the AINT-12 a direct drop-in replacement for all ACS800 drive revisions?
A: The AINT-12 is designed for the ACS800 platform, but compatibility should be verified against the specific ACS800 frame size and hardware revision in your installation. Contact our technical team with your drive nameplate data for confirmation before ordering.

Q: Can the original drive parameters be restored to the replacement AINT-12 without full recommissioning?
A: Yes, provided a full parameter backup was extracted from the original drive before failure or replacement. The backup can be restored via DriveWindow or DriveStudio software, or via a compatible memory backup unit, significantly reducing commissioning time.

Q: What fieldbus protocols are supported with the AINT-12 in an ACS800 drive?
A: The ACS800 with AINT-12 supports fieldbus communication via optional adapter modules, including PROFIBUS DP (NPBA-12), EtherNet/IP (NEBA-01), DeviceNet, and Modbus RTU, depending on the adapter installed. The AINT-12 itself manages DDCS fiber optic communication natively.

Q: What support terms and pre-shipment testing is provided with the AINT-12?
A: All AINT-12 units supplied by KNMKS are functionally tested prior to shipment and covered by a support terms confirmed by quotation against manufacturing defects and functional failures. In-stock units are available for immediate dispatch to support both emergency and planned replacement projects.
