ABB AINT-02C Migration-Ready Drive Interface for ACS800

Overview

ABB AINT-02C Migration-Ready Drive Interface for ACS800

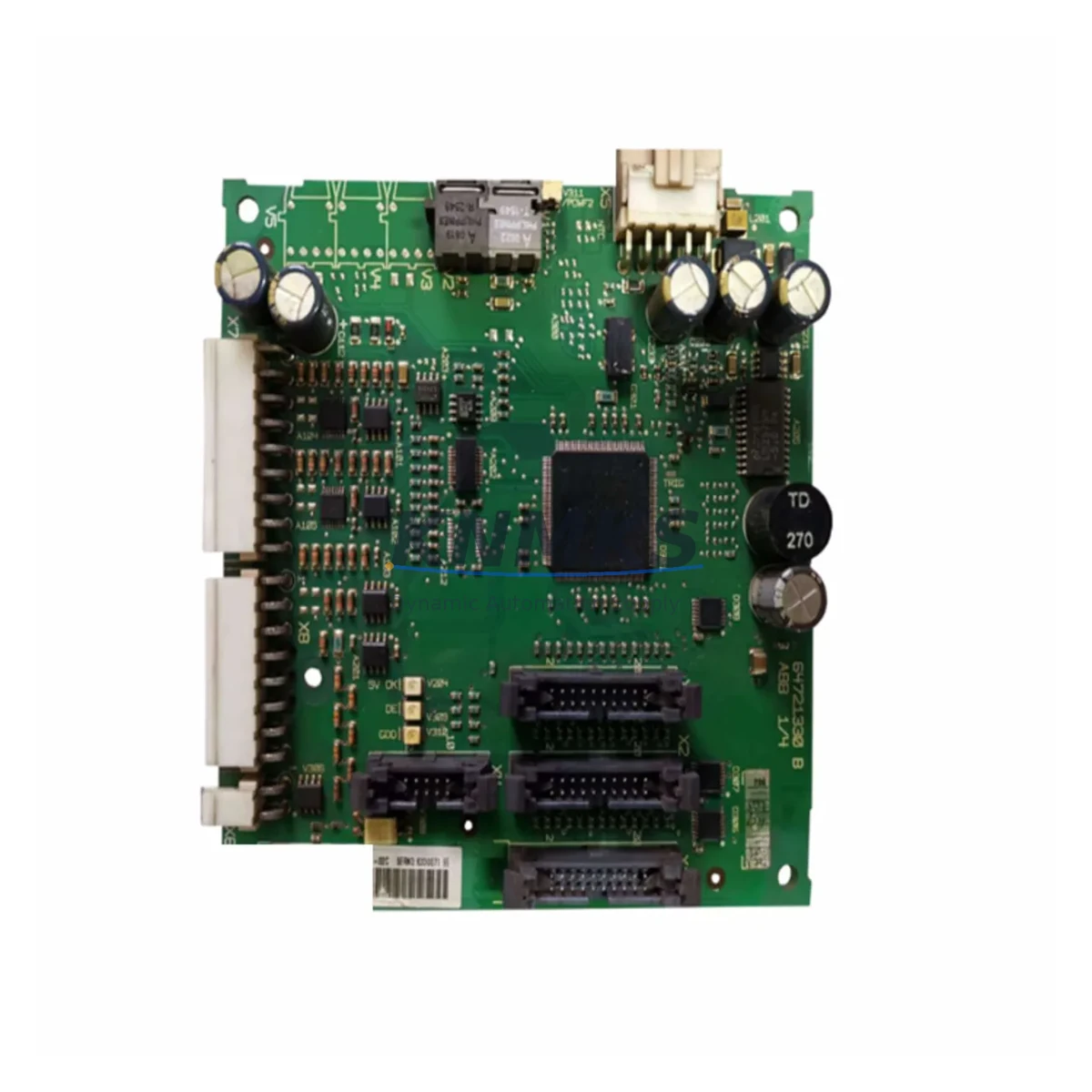

The ABB AINT-02C is a drive interface board engineered for the ACS800 series variable frequency drive platform, widely deployed across heavy industry, pulp and paper, metals processing, marine propulsion, and large-scale HVAC systems. As legacy ACS800 installations age and original interface boards reach end-of-life, the AINT-02C has become a critical migration component — enabling maintenance teams to restore full drive functionality without replacing the entire drive cabinet or rewriting control logic.

For retrofit engineers managing aging automation infrastructure, the AINT-02C provides a direct-fit replacement path that preserves existing wiring topology, backplane slot assignments, and RDCO/RMIO communication links. This eliminates the need for costly cabinet redesigns and minimizes the risk of introducing new compatibility issues during a live production migration. The board interfaces directly with the ACS800 main control board (RMIO-02C or RMIO-11C) and supports the drive’s internal DDCS fiber-optic communication protocol, ensuring seamless integration with existing master controllers and fieldbus adapters.

When planning a retrofit involving the AINT-02C, maintenance and procurement engineers must verify several interdependent system elements. The RMIO-02C main control board must be confirmed compatible in firmware revision — mismatched firmware between the AINT-02C and RMIO board is a common source of post-replacement faults. The RDCO-02C or RDCO-04C fiber-optic communication module, if installed, should be inspected for connector integrity and optical signal quality before the new interface board is commissioned. Power supply rails feeding the drive control section — typically the APOW-01C or equivalent auxiliary power board — should be load-tested to confirm stable 24 VDC output under control board demand.

I/O wiring connected to the drive’s standard I/O terminal block (X1) must be documented and verified against the AINT-02C terminal layout before reconnection. In systems where an AIMA-01C or AITC-01C I/O extension module is installed, the extension module’s ribbon cable connection to the interface board must be re-seated and inspected for pin damage. If the drive communicates via a fieldbus adapter — such as the AFCAN-01C for CANopen, AFPBA-01C for PROFIBUS-DP, or AFDNA-01C for DeviceNet — the adapter’s mounting slot and parameter configuration must be preserved exactly to avoid communication loss after the board swap.

For sites running ABB’s DriveWindow or DriveWindow Light commissioning software, the AINT-02C replacement should be followed by a parameter upload from the backup file stored prior to the fault, restoring motor control parameters, speed references, and protection thresholds without manual re-entry. Sites without a parameter backup should plan for a full recommissioning session, including motor identification run and ramp time verification.

From a procurement standpoint, the AINT-02C is a long-lifecycle component with continued demand across installed ACS800 fleets globally. Sourcing from a verified supplier with pre-shipment functional testing, documented firmware version, and a support terms confirmed by quotation significantly reduces the risk of receiving counterfeit or refurbished boards that fail within the first operational cycle. KNMKS maintains stock of AINT-02C boards with full traceability and ships with test reports on request.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AINT-02C retrofit begins well before the board is physically swapped. The first step is a full cabinet audit: inspect the RMIO-02C main control board for capacitor bulge, corrosion on the DDCS fiber connectors, and any burn marks near the power supply interface. The APOW-01C auxiliary power board should be measured under load — a sagging 24 VDC rail is a frequent root cause of interface board faults that are misdiagnosed as AINT-02C failures.

Next, document all fieldbus adapter settings. If an AFPBA-01C PROFIBUS-DP adapter is installed, record the node address, baud rate, and PPO type before removal. These parameters must be re-entered identically after the AINT-02C replacement to restore PLC communication without requiring a PLC program change. Similarly, if an AIMA-01C analog I/O extension is present, photograph the ribbon cable routing and terminal wiring before disconnection.

For sites with multiple ACS800 drives in a master-follower configuration using DDCS links, the AINT-02C replacement on a follower drive must be coordinated with the master drive’s parameter set to avoid torque reference conflicts during the first test run. Plan the replacement during a scheduled maintenance window and have a parameter backup file verified and accessible before beginning the swap.

Terminal blocks, cable ferrules, and grounding straps should be inspected and replaced if corroded — a common finding in drives that have operated in humid or chemically aggressive environments. Replacing the AINT-02C without addressing degraded wiring infrastructure is a leading cause of repeat failures within 6–12 months of retrofit.

Downtime Control During System Migration

Minimizing downtime during an AINT-02C replacement requires a structured pre-swap checklist. Before powering down the drive, upload the full parameter set using DriveWindow and store the backup file on a local engineering laptop — not solely on a network drive that may be inaccessible during the outage. Photograph the terminal wiring layout and label all cables with removable tags before disconnection.

The physical board swap on an ACS800 is typically completed in under 30 minutes by an experienced technician. The majority of downtime is consumed by parameter restoration, motor identification (if required), and functional testing under no-load and then partial-load conditions before returning the drive to production. Having a pre-tested AINT-02C board with a known-good firmware version on hand — rather than waiting for a repair cycle — reduces total outage time from days to hours.

For critical production lines where even a planned outage carries significant cost, consider maintaining one pre-configured spare AINT-02C board per drive type in the site’s spare parts cabinet. KNMKS supports long-term supply agreements for ACS800 interface boards, ensuring consistent availability across multi-year maintenance contracts. All boards ship with a pre-shipment functional test report and are covered by a support terms confirmed by quotation from the date of dispatch.

Retrofit Support FAQ

Q: Is the AINT-02C a direct drop-in replacement for the AINT-01C?
A: In most ACS800 frames, yes — the mechanical footprint and connector layout are compatible. However, firmware compatibility between the AINT-02C and the installed RMIO board must be verified. If the RMIO board is running an older firmware version, a firmware update may be required before the new interface board will initialize correctly.

Q: Will my PLC program need to be modified after replacing the AINT-02C?
A: No, provided the fieldbus adapter (e.g., AFPBA-01C or AFCAN-01C) is reinstalled with identical node address and communication parameters. The AINT-02C replacement is transparent to the PLC as long as the drive’s parameter set is restored from backup and the fieldbus adapter configuration is preserved.

Q: Does KNMKS provide pre-shipment testing for the AINT-02C?
A: Yes. All AINT-02C boards supplied by KNMKS undergo functional testing prior to dispatch. A test report is available on request. Boards are shipped with anti-static packaging and are covered by a support terms confirmed by quotation covering functional failure under normal operating conditions.

Q: What is the lead time and long-term supply availability?
A: KNMKS maintains stock of AINT-02C boards for immediate dispatch. For sites requiring ongoing supply across multi-year maintenance programs, long-term supply agreements are available. Contact [email protected] or +86 18359268345 to discuss volume pricing and reserved stock arrangements.
